Hoover Concept two U4217 Manual de usuario

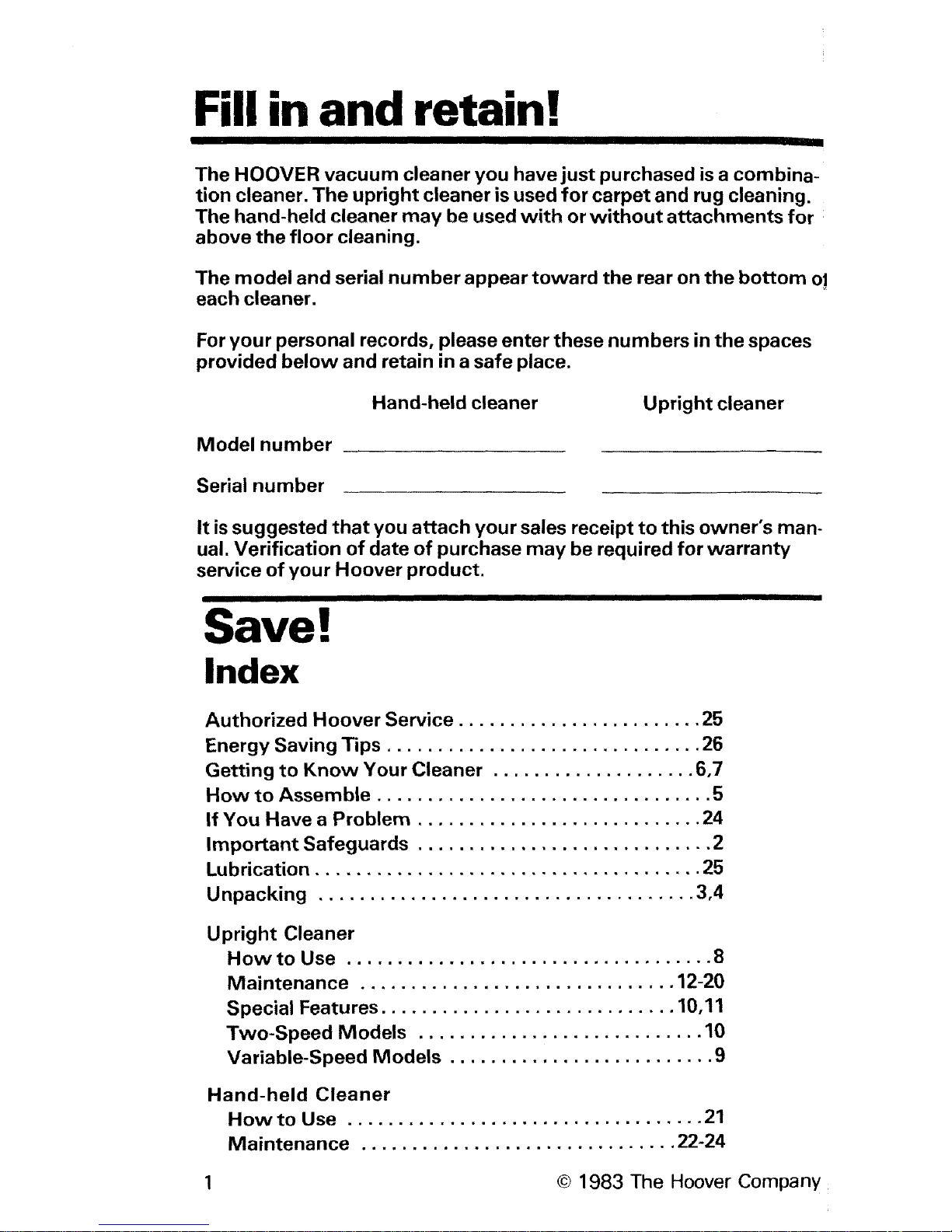

Fill in and retain!

The HOOVER vacuum cleaner you have just purchased isa combina-

tion cleaner. The upright cleaner is used for carpet and rug cleaning.

The hand-held cleaner may be used with or without attachments for

above the floor cleaning.

The model and serial number appear toward the rear on the bottom o)

each cleaner,

For your personal records, please enter these numbers in the spaces

provided below and retain in a safe place.

Hand-held cleaner Upright cleaner

Model number

Serial number

It issuggested that you attach your sales receipt to this owner's man-

ual. Verification of date of purchase may be required for warranty

service of your Hoover product.

Save!

Index

Authorized Hoover Service ........................ 25

Energy Saving Tips ............................... 26

Getting to Know Your Cleaner .................... 6,7

How to Assemble ................................. 5

If You Have a Problem ............................ 24

Important Safeguards ............................. 2

Lubrication ...................................... 25

Unpacking ..................................... 3,4

Upright Cleaner

How to Use .................................... 8

Maintenance ............................... 12-20

Special Features ............................. 10,11

Two-Speed Models ............................ 10

Variable-Speed Models .......................... 9

Hand-held Cleaner

How to Use ................................... 21

Maintenance ............................... 22-24

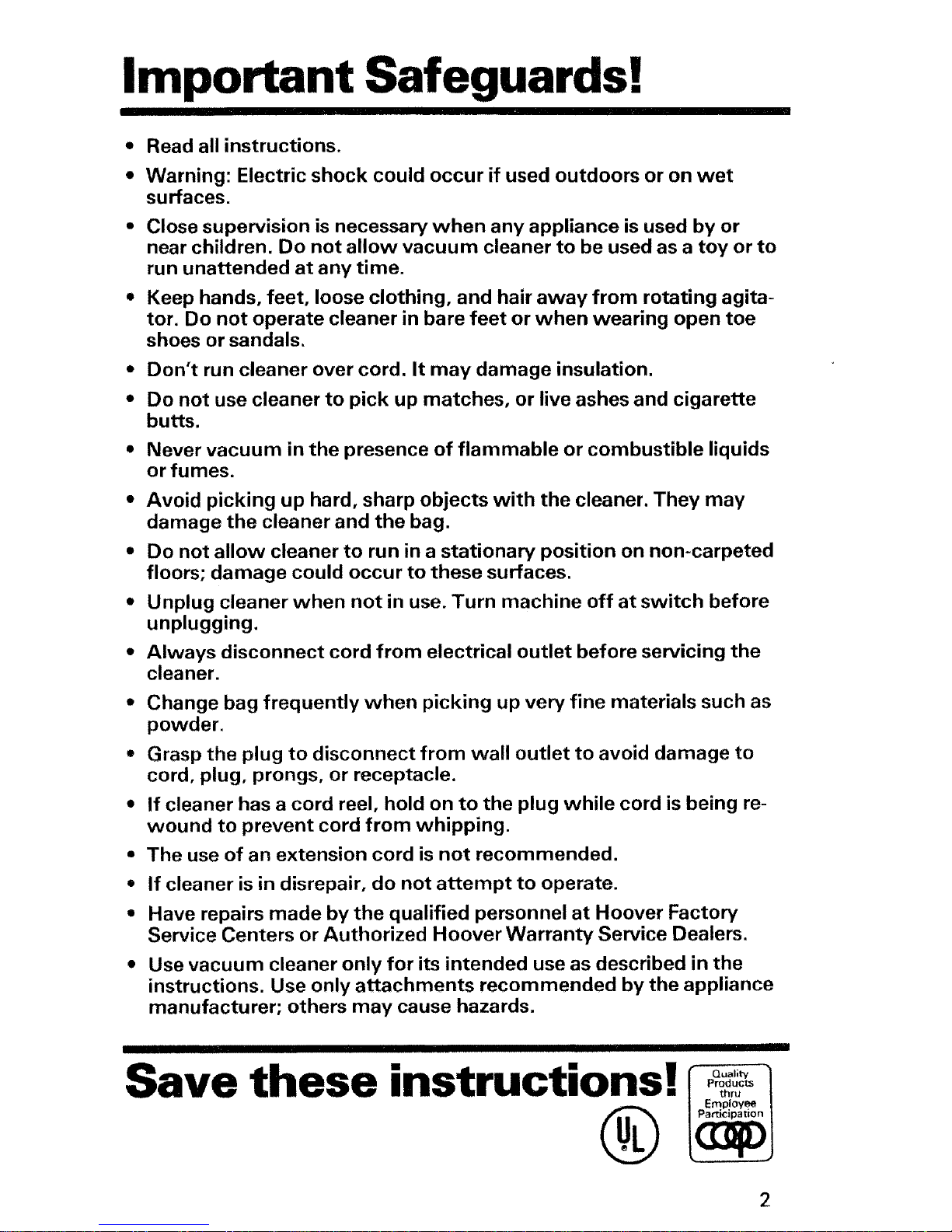

Important uards!

• Read all instructions.

*Warning: Electric shock could occur if used outdoors or on wet

surfaces.

Close supervision is necessary when any appliance is used by or

near children. Do not allow vacuum cleaner to be used as a toy or to

run unattended at any time.

Keep hands, feet, loose clothing, and hair away from rotating agita-

tor. Do not operate cleaner in bare feet or when wearing open toe

shoes or sandals.

Don't run cleaner over cord. It may damage insulation.

Do not use cleaner to pick up matches, or live ashes and cigarette

butts.

Never vacuum in the presence of flammable or combustible liquids

or fumes.

• Avoid picking up hard, sharp objects with the cleaner. They may

damage the cleaner and the bag.

• Do not allow cleaner to run in a stationary position on non-carpeted

floors; damage could occur to these surfaces.

• Unplug cleaner when not in use. Turn machine off at switch before

unplugging.

•Always disconnect cord from electrical outlet before servicing the

cleaner.

• Change bag frequently when picking up very fine materials such as

powder.

• Grasp the plug to disconnect from wall outlet to avoid damage to

cord, plug, prongs, or receptacle.

• If cleaner has a cord reel, hold on to the plug while cord is being re-

wound to prevent cord from whipping.

• The use of an extension cord is not recommended.

° If cleaner is in disrepair, do not attempt to operate.

• Have repairs made by the qualified personnel at Hoover Factory

Service Centers or Authorized Hoover Warranty Service Dealers.

• Use vacuum cleaner only for its intended use as described in the

instructions. Use only attachments recommended by the appliance

manufacturer; others may cause hazards.

I I IIII

Save these instructions!

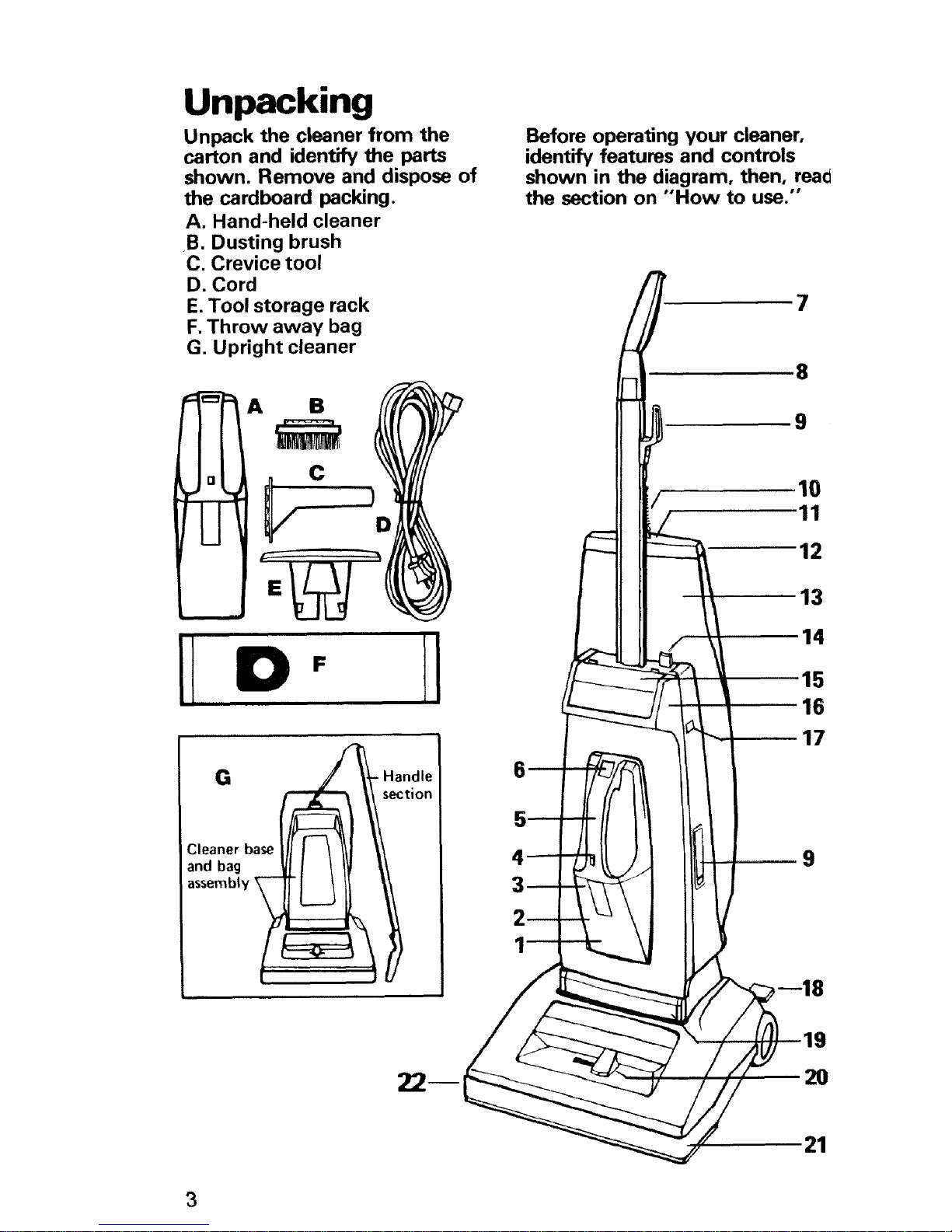

Unpacking

Unpack the cleaner from the

carton and identify _e parts

shown. Remove and dispose of

the cardboard packing.

A. Hand-held cleaner

B. Dusting brush

C. Crevice tool

D. Cord

E. Tool storage rack

F. Throw away bag

G. Upright cleaner

Cleaner base

and bag

assembly f

Handle

section

Before operating your cleaner,

identify features and controls

shown in the diagram, then, rea_

the section on "How to use."

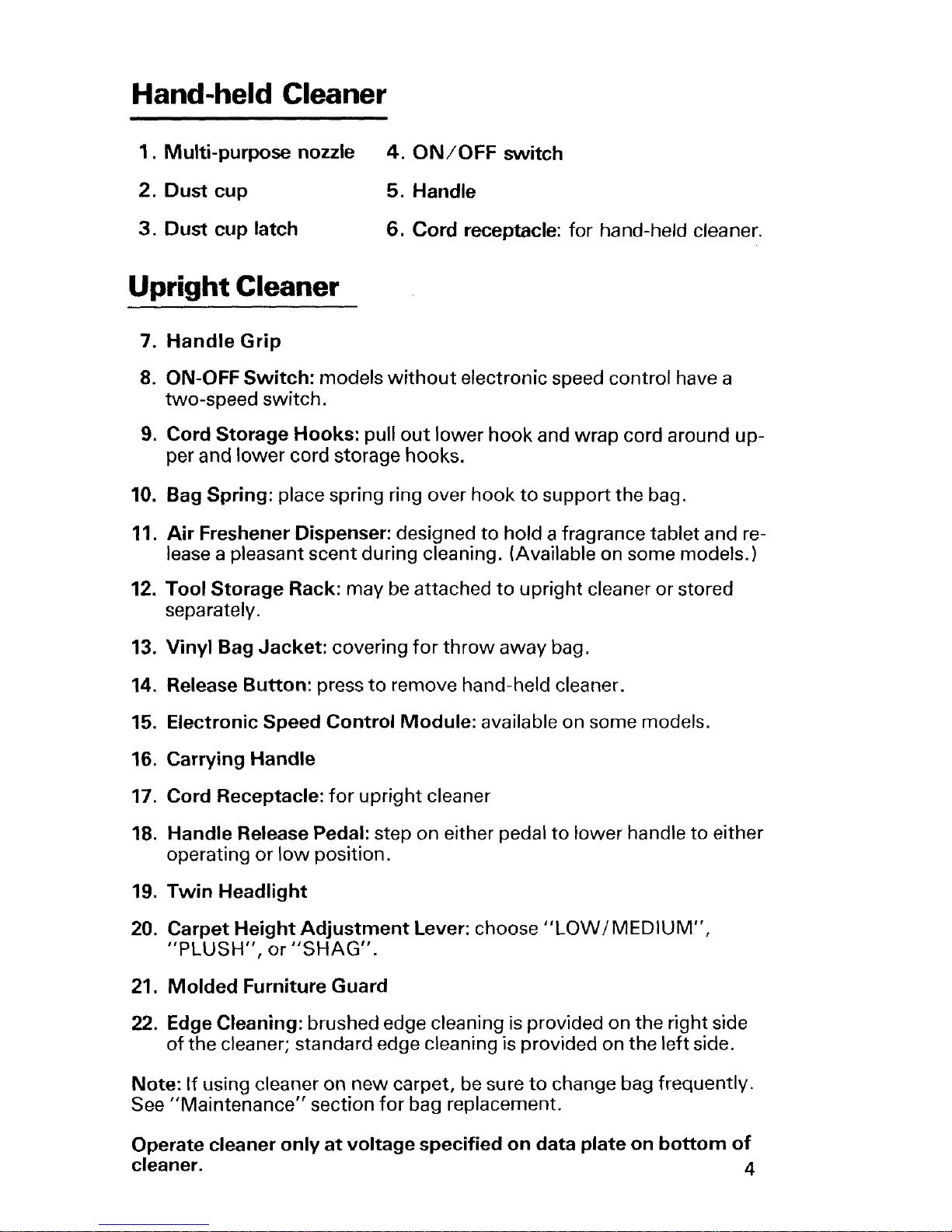

Hand-held Cleaner

1. Multi-purpose nozzle

2. Dust cup

3. Dust cup latch

4. ON/OFF switch

5. Handle

6. Cord receptacle: for hand-held cleaner.

Upright Cleaner

7. Handle Grip

8. ON-OFF Switch: models without electronic speed control have a

two-speed switch.

9. Cord Storage Hooks: pull out lower hook and wrap cord around up-

per and lower cord storage hooks.

10. Bag Spring: place spring ring over hook to support the bag.

11. Air Freshener Dispenser: designed to hold a fragrance tablet and re-

lease a pleasant scent during cleaning. (Available on some models.)

12. Tool Storage Rack: may be attached to upright cleaner or stored

separately.

13. Vinyl Bag Jacket: covering for throw away bag.

14. Release Button: press to remove hand-held cleaner.

15. Electronic Speed Control Module: available on some models.

16. Carrying Handle

17. Cord Receptacle: for upright cleaner

18. Handle Release Pedal: step on either pedal to lower handle to either

operating or low position.

19. Twin Headlight

20. Carpet Height Adjustment Lever: choose "LOW/MEDIUM",

"PLUSH", or "SHAG".

21. Molded Furniture Guard

22. Edge Cleaning: brushed edge cleaning is provided on the right side

of the cleaner; standard edge cleaning is provided on the left side.

Note: If using cleaner on new carpet, be sure to change bag frequently.

See "Maintenance" section for bag replacement.

Operate cleaner only at voltage specified on data plate on bottom of

cleaner. 4

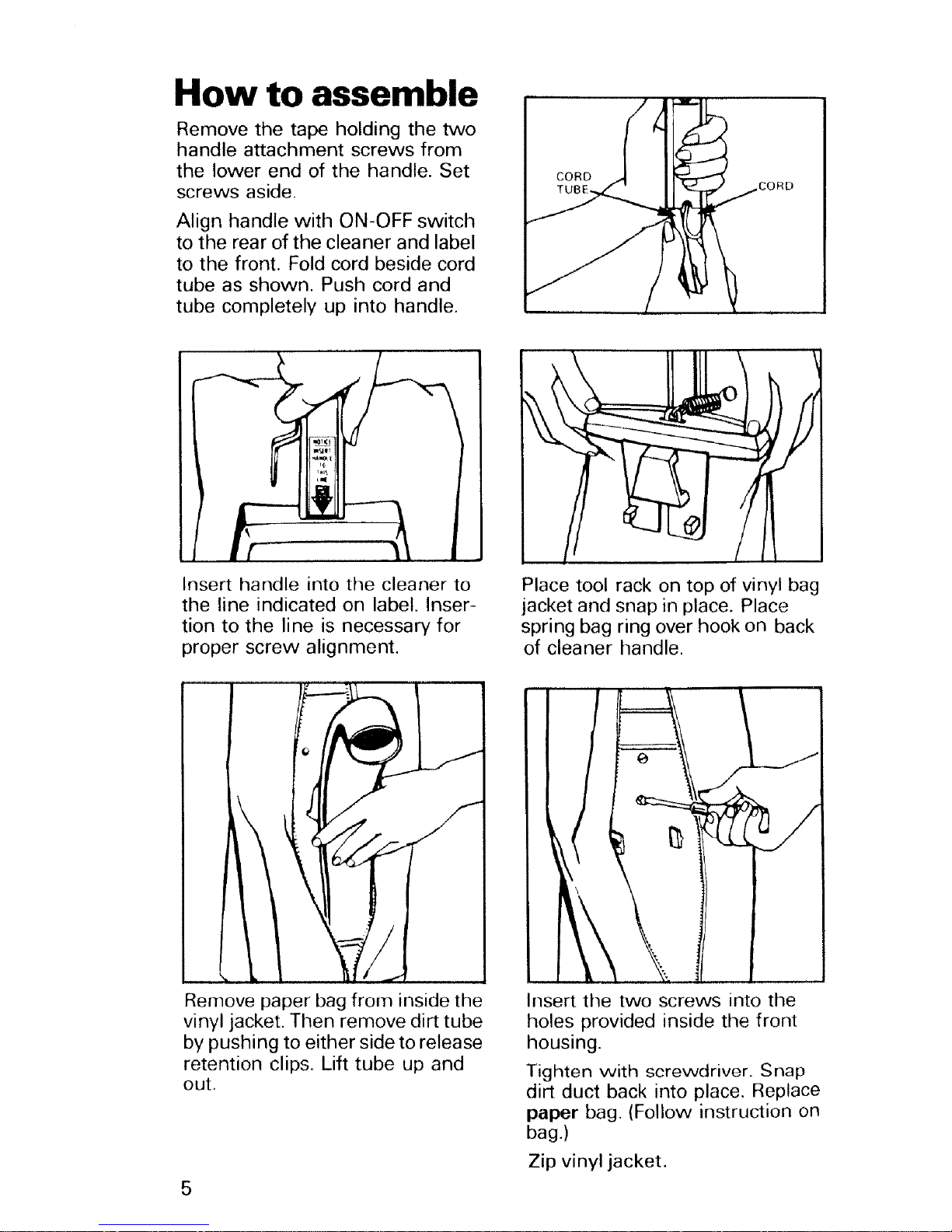

How to assemble

Remove the tape holding the two

handle attachment screws from

the lower end of the handle. Set

screws aside.

Align handle with ON-OFF switch

to the rear of the cleaner and label

to the front, Fold cord beside cord

tube as shown. Push cord and

tube completely up into handle.

CORD

TUBE~ CORD

Insert handle into the cleaner to

the line indicated on label. Inser-

tion to the line is necessary for

proper screw alignment.

Remove paper bag from inside the

vinyl jacket. Then remove dirt tube

by pushing to either side to release

retention clips. Lift tube up and

out.

Place tool rack on top of vinyl bag

jacket and snap in place. Place

spring bag ring over hook on back

of cleaner handle.

Insert the two screws into the

holes provided inside the front

housing.

Tighten with screwdriver. Snap

dirt duct back into place, Replace

paper bag. (Follow instruction on

bag.)

Zip vinyl jacket.

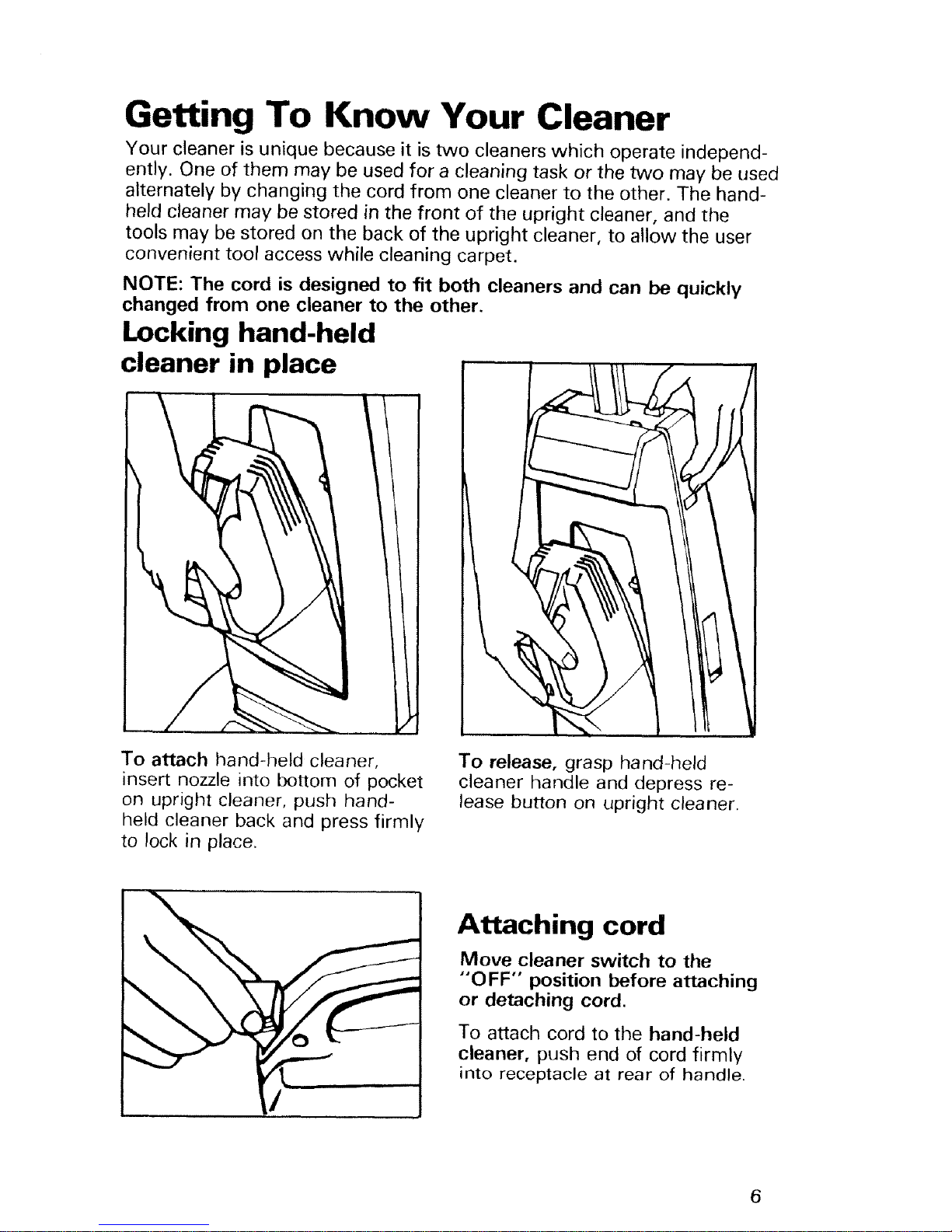

Getting To Know Your Cleaner

Your cleaner is unique because it is two cleaners which operate independ-

ently. One of them may be used for a cleaning task or the two may be used

alternately by changing the cord from one cleaner to the other. The hand-

held cleaner may be stored in the front of the upright cleaner, and the

tools may be stored on the back of the upright cleaner, to allow the user

convenient tool access while cleaning carpet.

NOTE: The cord is designed to fit both cleaners and can be quickly

changed from one cleaner to the other.

Locking hand-held

cleaner in place

To attach hand-held cleaner,

insert nozzle into bottom of pocket

on upright cleaner, push hand-

held cleaner back and press firmly

to lock in place.

To release, grasp hand-held

cleaner handle and depress re-

lease button on upright cleaner.

Attaching cord

Move cleaner switch to the

"OFF" position before attaching

or detaching cord.

To attach cord to the hand-held

cleaner, push end of cord firmly

into receptacle at rear of handle.

To attach cord to upright cleaner,

push end of cord firmly into recep-

tacle on side of cleaner, with cord

extending upward.

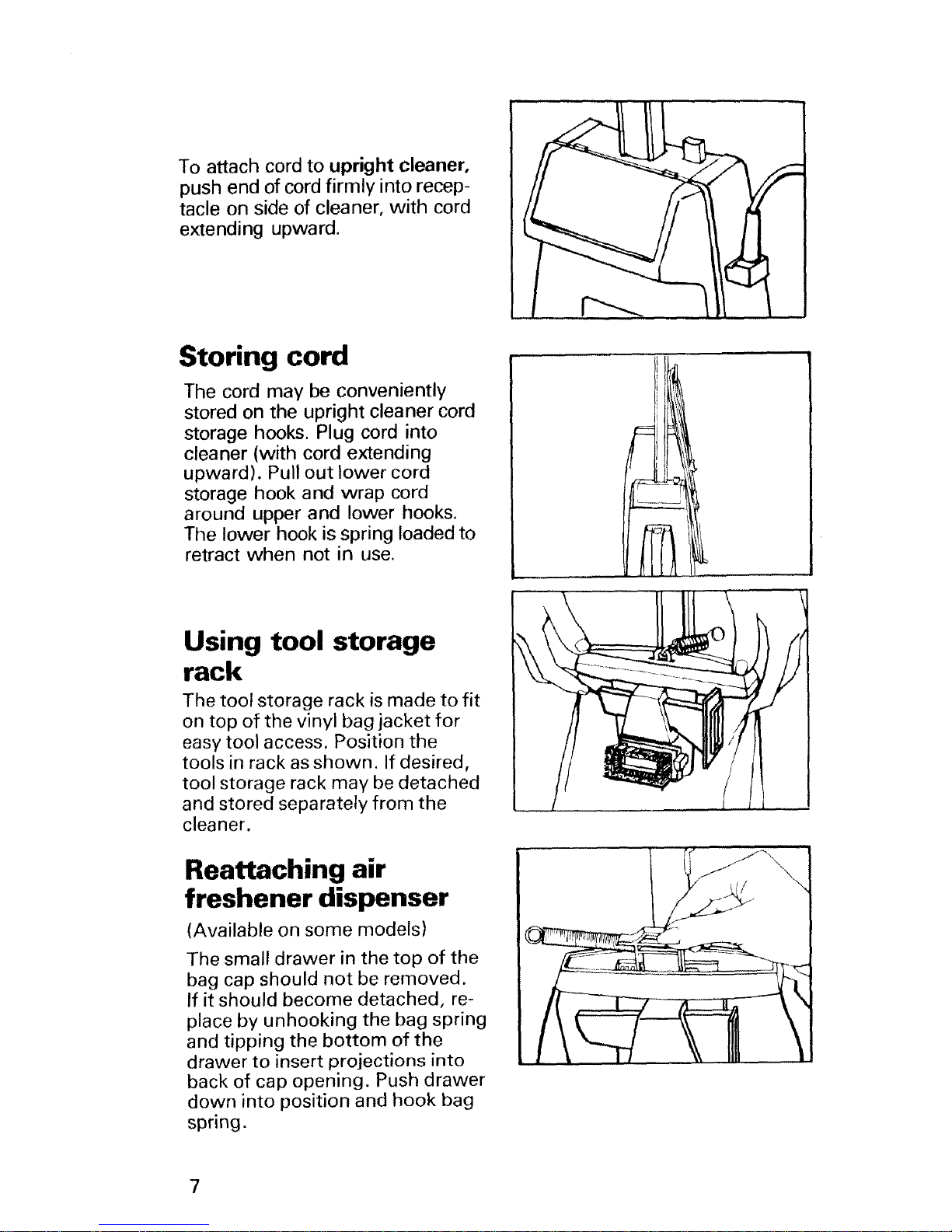

Storing cord

The cord may be conveniently

stored on the upright cleaner cord

storage hooks. Plug cord into

cleaner (with cord extending

upward). Pull out lower cord

storage hook and wrap cord

around upper and lower hooks.

The lower hook is spring loaded to

retract when not in use.

Using tool storage

rack

The tool storage rack is made to fit

on top of the vinyl bag jacket for

easy tool access. Position the

tools in rack as shown. If desired,

tool storage rack may be detached

and stored separately from the

cleaner.

Reattaching air

freshener dispenser

(Available on some models)

The small drawer in the top of the

bag cap should not be removed.

If it should become detached, re-

place by unhooking the bag spring

and tipping the bottom of the

drawer to insert projections into

back of cap opening. Push drawer

down into position and hook bag

spring.

__ UPRIGHT_

Upright

Cleaner

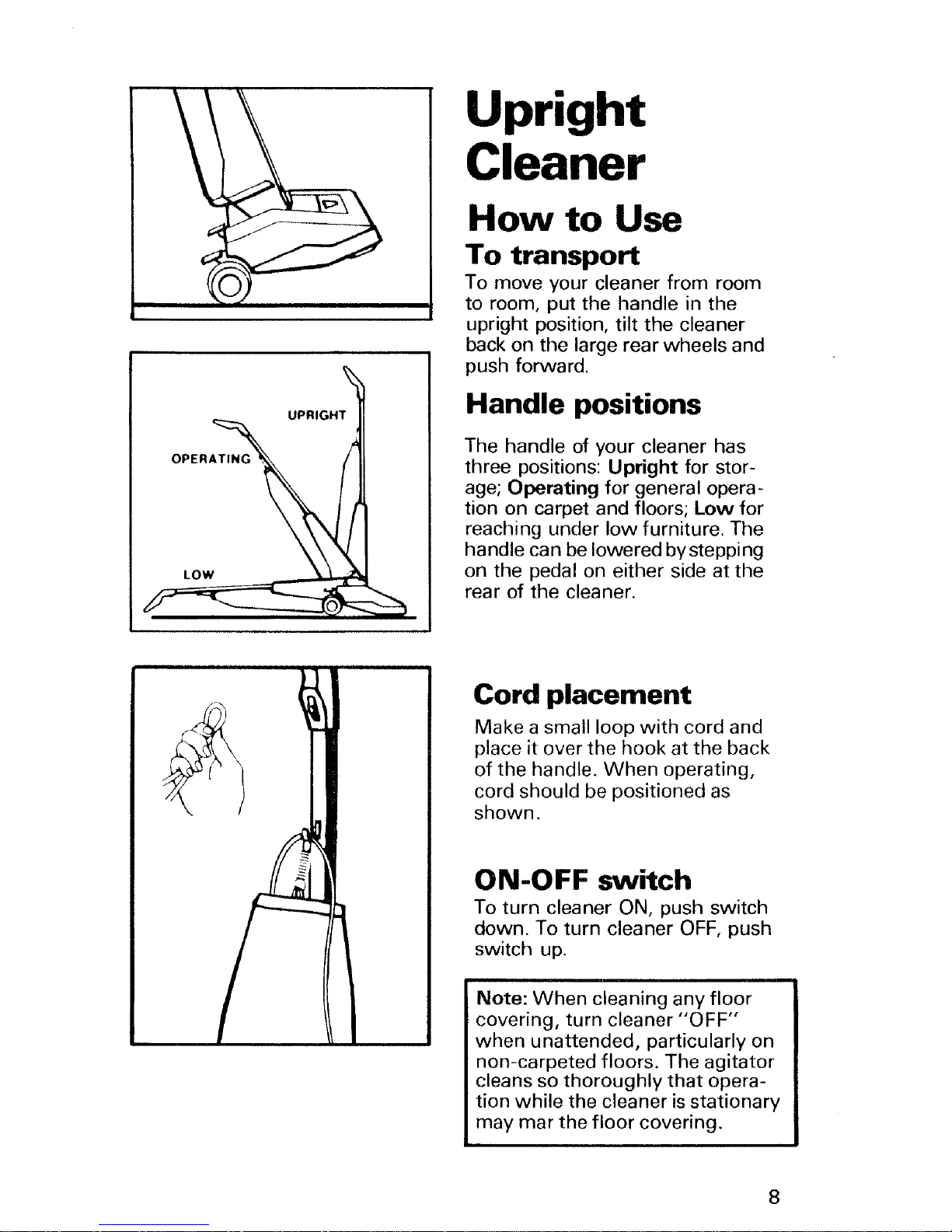

How to U

To transport

To move your cleaner from room

to room, put the handle in the

upright position, tilt the cleaner

back on the large rear wheels and

push forward.

Handle positions

The handle of your cleaner has

three positions: Upright for stor-

age; Operating for general opera-

tion on carpet and floors; Low for

reaching under low furniture. The

ha ndle ca n be lowered by stepping

on the pedal on either side at the

rear of the cleaner.

Cord placement

Make a small loop with cord and

place it over the hook at the back

of the handle. When operating,

cord should be positioned as

shown.

0 N-O FF switch

To turn cleaner ON, push switch

down. To turn cleaner OFF, push

switch up.

i iii i ill ii illll!ll ii iiilll

Note: When cleaning any floor

covering, turn cleaner "OFF"

when unattended, particularly on

non-carpeted floors. The agitator

cleans so thoroughly that opera-

tion while the cleaner is stationary

may mar the floor covering.

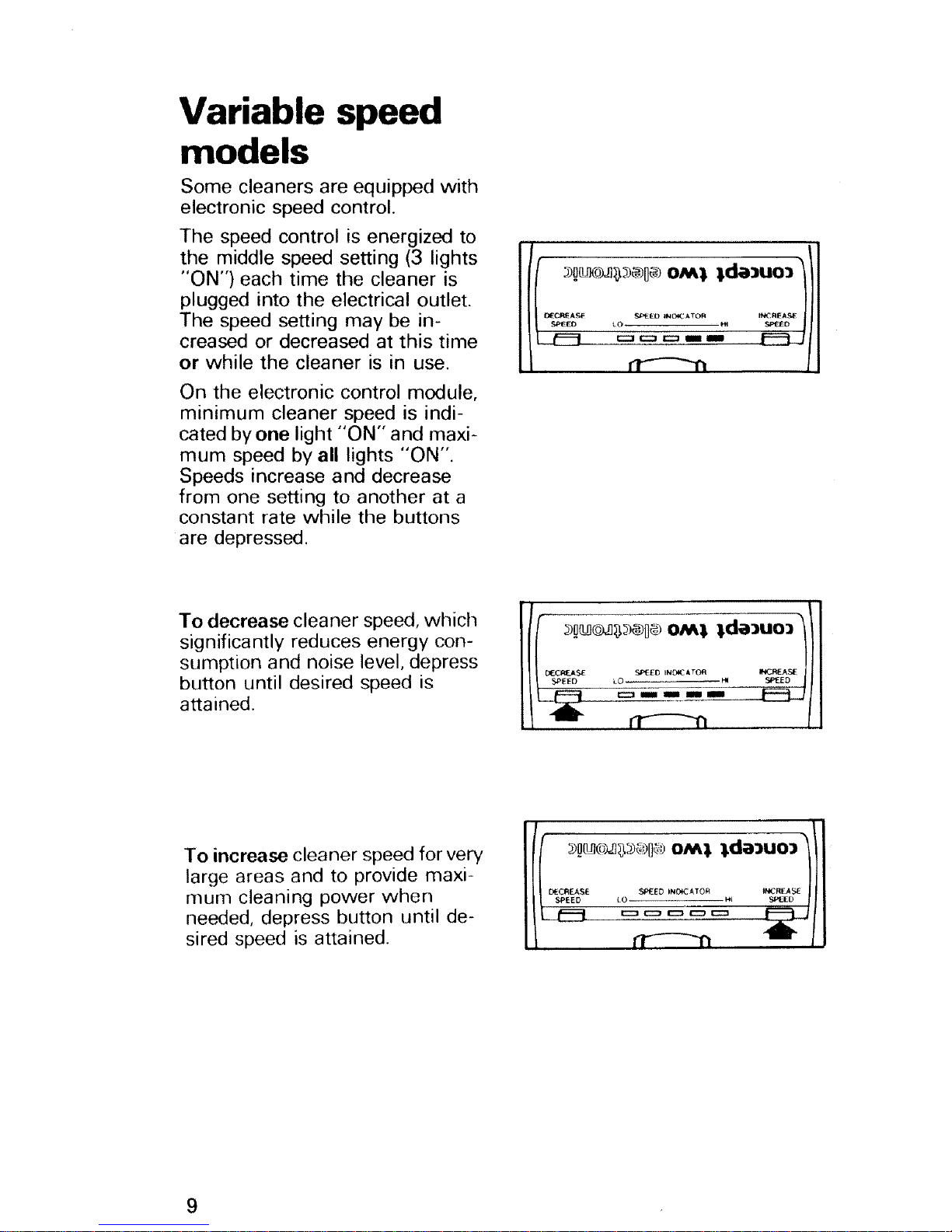

Variable speed

models

Some cleaners are equipped with

electronic speed control.

The speed control is energized to

the middle speed setting (3 lights

"ON") each time the cleaner is

plugged into the electrical outlet.

The speed setting may be in-

creased or decreased at this time

or while the cleaner is in use.

On the electronic control module,

minimum cleaner speed is indi-

cated by one light "ON" and maxi-

mum speed by all lights "ON".

Speeds increase and decrease

from one setting to another at a

constant rate while the buttons

are depressed.

ida_uo_

IDt_C_A_ _EI:_ INL_<;_ TOR

£_>IEEIO LO .H4

To decrease cleaner speed, which

significantly reduces energy con-

sumption and noise level, depress

button until desired speed is

attained.

To increase cleaner speed for very

large areas and to provide maxi-

mum cleaning power when

needed, depress button until de-

sired speed is attained.

SPEED LO H_ _ED

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Aspiradora de Hoover

Hoover

Hoover PROFESSIONAL Series Manual de usuario

Hoover

Hoover Khross Manual de usuario

Hoover

Hoover Corded & Cordless Rechargeable Manual de usuario

Hoover

Hoover Limited Manual de usuario

Hoover

Hoover UH70085 - Pet Cyclonic Bagless Upright... Manual de usuario

Hoover

Hoover SM156DPN4 Manual de usuario

Hoover

Hoover TSBE2010 011 Manual de usuario

Hoover

Hoover ATHYSS Manual de usuario

Hoover

Hoover steamjet ssnv1400 Manual de usuario

Hoover

Hoover U5155-900 Manual de usuario

Hoover

Hoover FLOORMATE DELUXE FH40160 Series Manual de usuario

Hoover

Hoover CYCLONIC BAGLESS UPRIGHT Manual de usuario

Hoover

Hoover U5182900 Manual de usuario

Hoover

Hoover REACT BH53200/CA Manual de usuario

Hoover

Hoover WindTunnel T Series Manual de usuario

Hoover

Hoover Power Scrub Elite Manual de usuario

Hoover

Hoover Cruise Series Manual de usuario

Hoover

Hoover U5365 Manual de usuario

Hoover

Hoover UH70110 Manual de usuario

Hoover

Hoover S3865 - Platinum Cyclonic Bagless Canister Vacuum... Manual de usuario

Hoover

Hoover BRUSH N WASH Manual de usuario

Hoover

Hoover Air Mini Manual de instrucciones

Hoover

Hoover FH50035 - SteamVac Carpet Cleaner Manual de usuario

Hoover

Hoover SteamVac FH50010 Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario

Hoover concept two U4217 Manual de usuario

Manuales populares de Aspiradora de otras marcas
