5210 Heritage

Congratulations on the purchase of your new HOOVER vacuum cleaner.There are many

useful features built into your cleaner and we recommend that you carefully read this

instruction manual so that you may take best advantage of them.

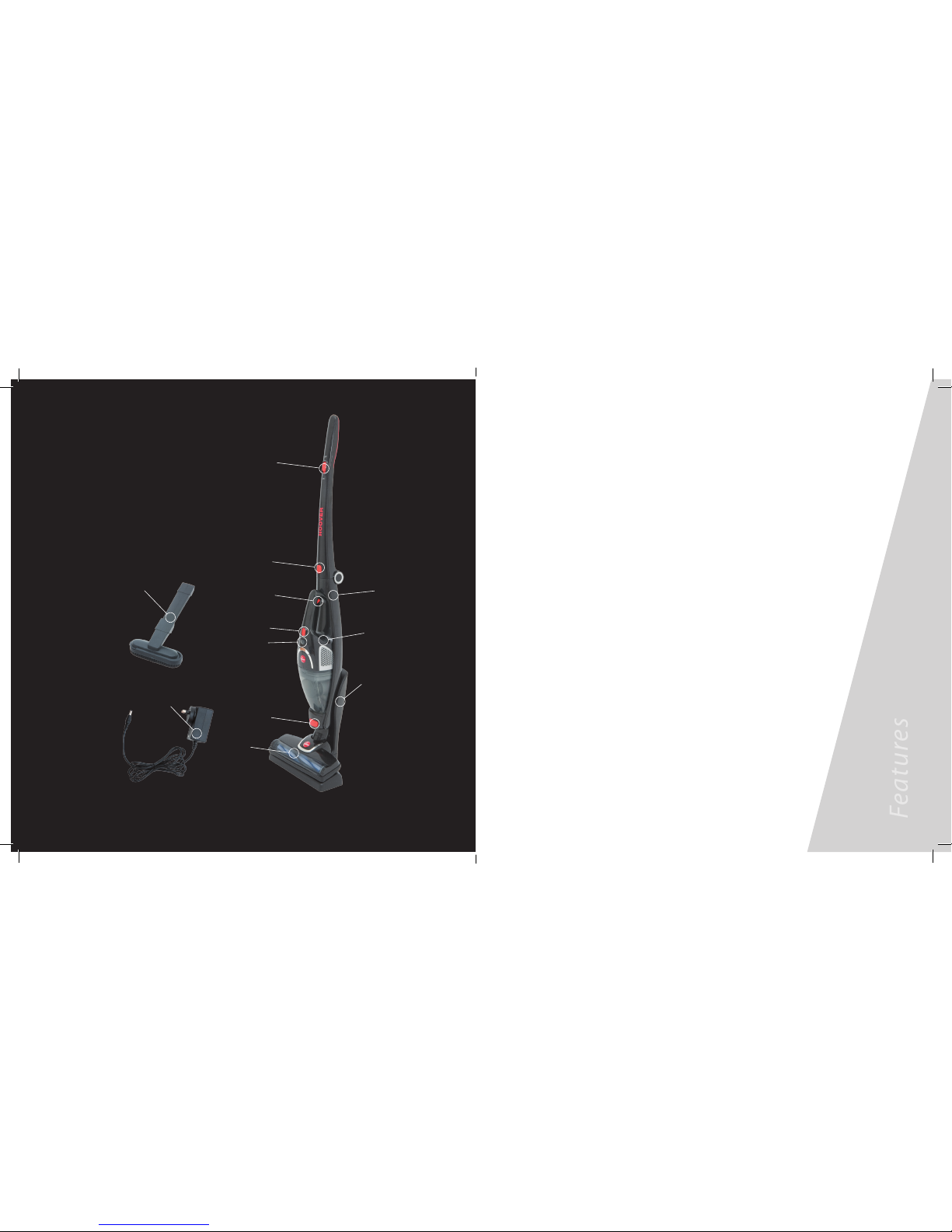

Features:

1. On/Oﬀ Button (on Unit)

2. Handle Release Button

3. Hand Vac Release Button

4. On/Oﬀ Button (on Hand Vac)

5. 3 in 1 Accessory

6. Hand Vac

7. Brush Release Button

8. Charging Base

9. Body of stick vac

10. Turbo Head

11. Dust Cup Release Button

12. Charger

Speciﬁcations:

Voltage: 14.4V

Rated power: 80W

Type of charger: LKC-173030-S

Input of charger: 100-240V~50/60Hz

Output of charger: 17.3V-300mA

Type of turbo brush: EB265B

Rated power of Turbo brush: 6W

Features

Before you Begin

Before you begin

The cleaner must be operated in accordance with these instructions and used only for domestic household

cleaning to remove DRY dirt and dust from household carpets, ﬂooring and fabrics.This cleaner is not ﬁt to

be used as an industrial cleaner, and is not designed for the collection of vitreous building material including

particle board, construction products and similar products such as wood/ﬁbres, cement, ﬁllers, ﬁbre glass

etc or excessive or frequent sand. The infrequent pick-up of these materials in these circumstances may be

harmful to your cleaner and may void the manufacturer’s warranty.

Please read these instructions thoroughly

This will ensure you obtain full beneﬁt from your new cleaner. Keep this Instruction Manual in a handy place

for future reference.

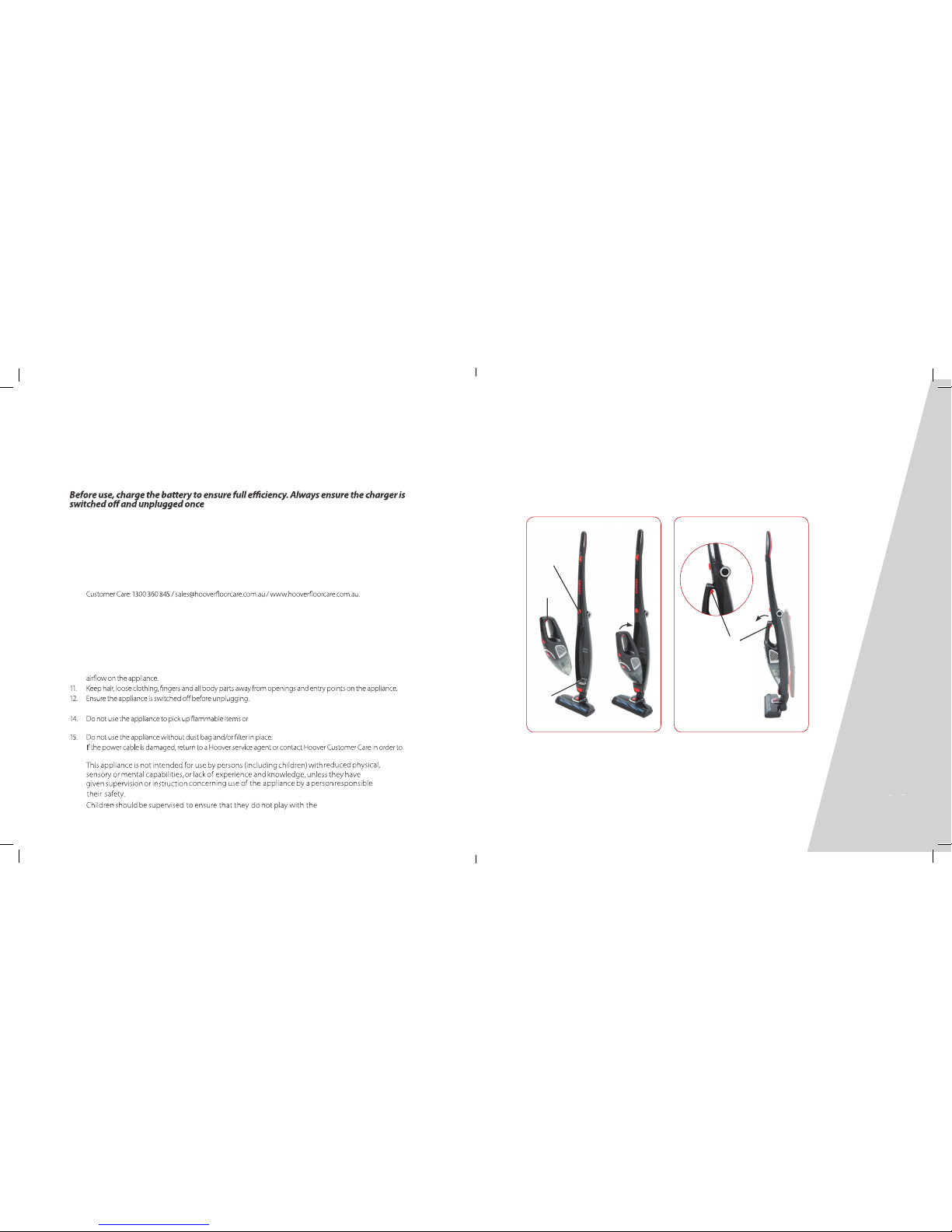

Important

Always switch the cleaner oﬀ and remove the plug from the electricity supply before cleaning your

appliance, when not in use, or attempting any maintenance task.The cleaner must only be connected to

an AC supply at the voltage shown on the rating plate.This cleaner should only be used for its intended

purpose as described in these instructions. Never operate the vacuum cleaner without lters.

Precautionary measures:

1. Do not operate the vacuum cleaner too close to heaters, radiators, and other

hot surfaces.

2. Before inserting the plug into the wall, make sure your hand is dry.

3. Before turning on the vacuum cleaner, remove any large or sharp objects from the ﬂoor

or cleaning surface in order to prevent damage to the ﬁlter.

4. When you want to pull the plug from the wall, do not use the power cable, gently pull

the plug from the power socket.

If the air inlet or ﬂoor head are blocked, you should switch oﬀ the cleaner straight

away and remove from mains power. First clear the blocked substance before

attempting to start the vacuum cleaner again.

arnin

the appliance has ﬁnished charging.

morftcennocsiD.esunitonnehwylppusrewopsniamehtotdetcennocregrahcehtevaeltonoD.1

any power supply before performing any maintenance duties.

2. To reduce the risk of electric shock, do not use outdoors or on wet surfaces

3. This appliance must not be used as a toy. Do not allow children to use the appliance unattended.

deniltuoesohttpecxeesopruprehtoynarofesutonoD.launamnoitcurtsnisihtnidebircsedsayl

noesU.4

in this instruction manual.

5. If the power cable or plug appears damaged, do not use. If the cleaner is not working correctly, has been

dropped, damaged, left outdoors, or dropped into water, return toa Hoover service agent or contact Hoover

elbacrewopehtllupro,eldnahasaelbacrewopehtesu,elbacrewopehtybecnailppaehtyrracrolluptonoD.6

around sharp edges or corners. Avoid running the appliance over the power cable.

7. Keep the appliance away from heated surfaces.

8. Unplug the charger by lightly grasping and pulling the plug from the wall. Do not unplug the charger by pulling

on the power cable.

9. Do not handle the appliance and/or power cable with wet hands.

10. Always ensure that all openings and entry points on the appliance are clear from objects or any blockages

before commencing use. Removal of dust, lint, hair and dirt from all openings and entry points will help improve

13. Use extra care when cleaning on stairs.

combustible liquids (i.e. gasoline, hot ashes, cigarettes,

matches or anything burning) or use in areas where such substances and items may be present.

16.

17.

18.

avoid a hazard.

Instructions for Use

Always remove the plug from the power socket before ﬁtting or removing accessories!

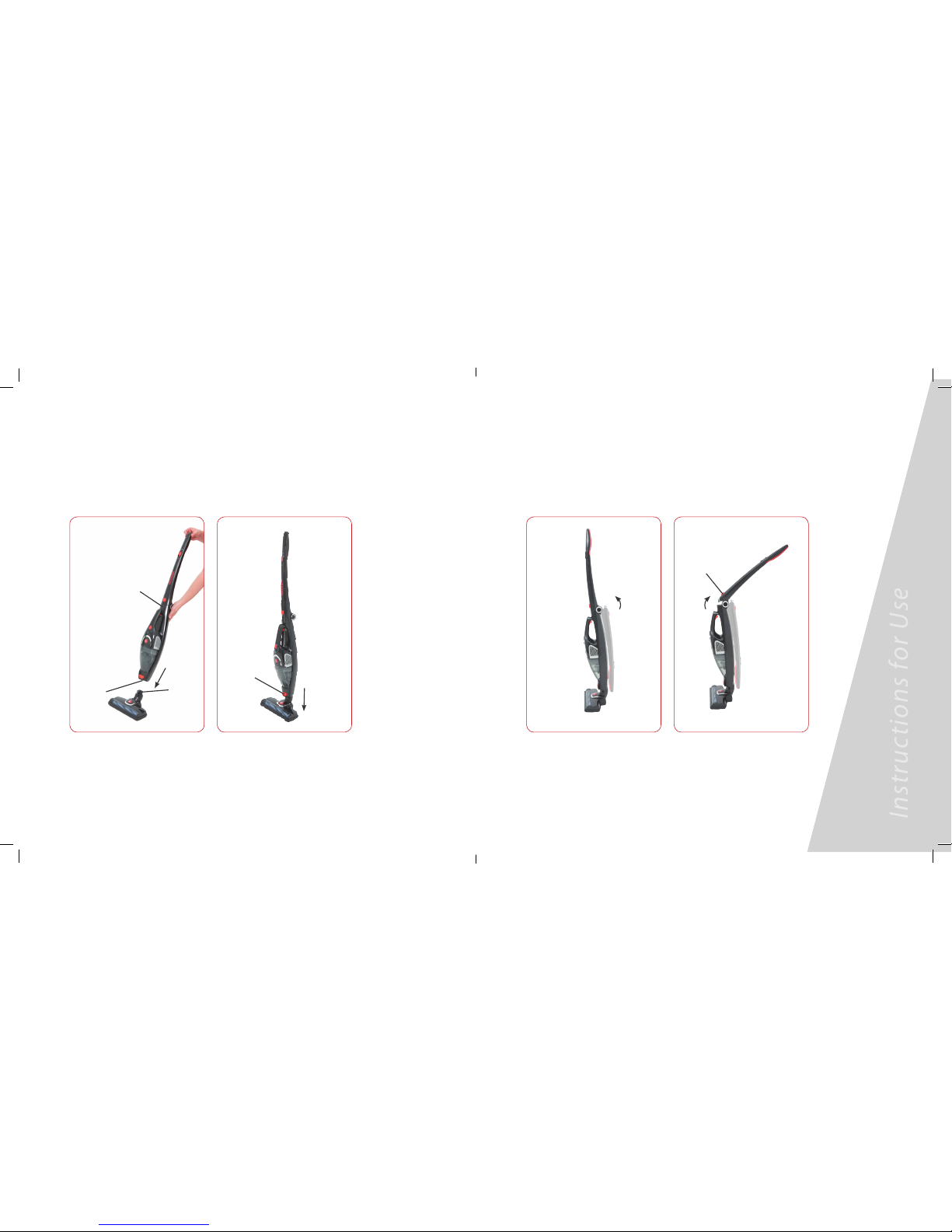

Connection for hand vac and body

a. Body of stick vac

b. Hand vac

c. Air inlet

d. Hand vac release button

been

for

appliance.

Warning

Instructions for Use

Connection for hand vac and body

a. Body of stick vac

b. Connector of brush

c. Hole to connect with brush

d. Brush release button

Instructions for Use (continued)

Handle bending and locking

a. Handle release button

Instructions for Use

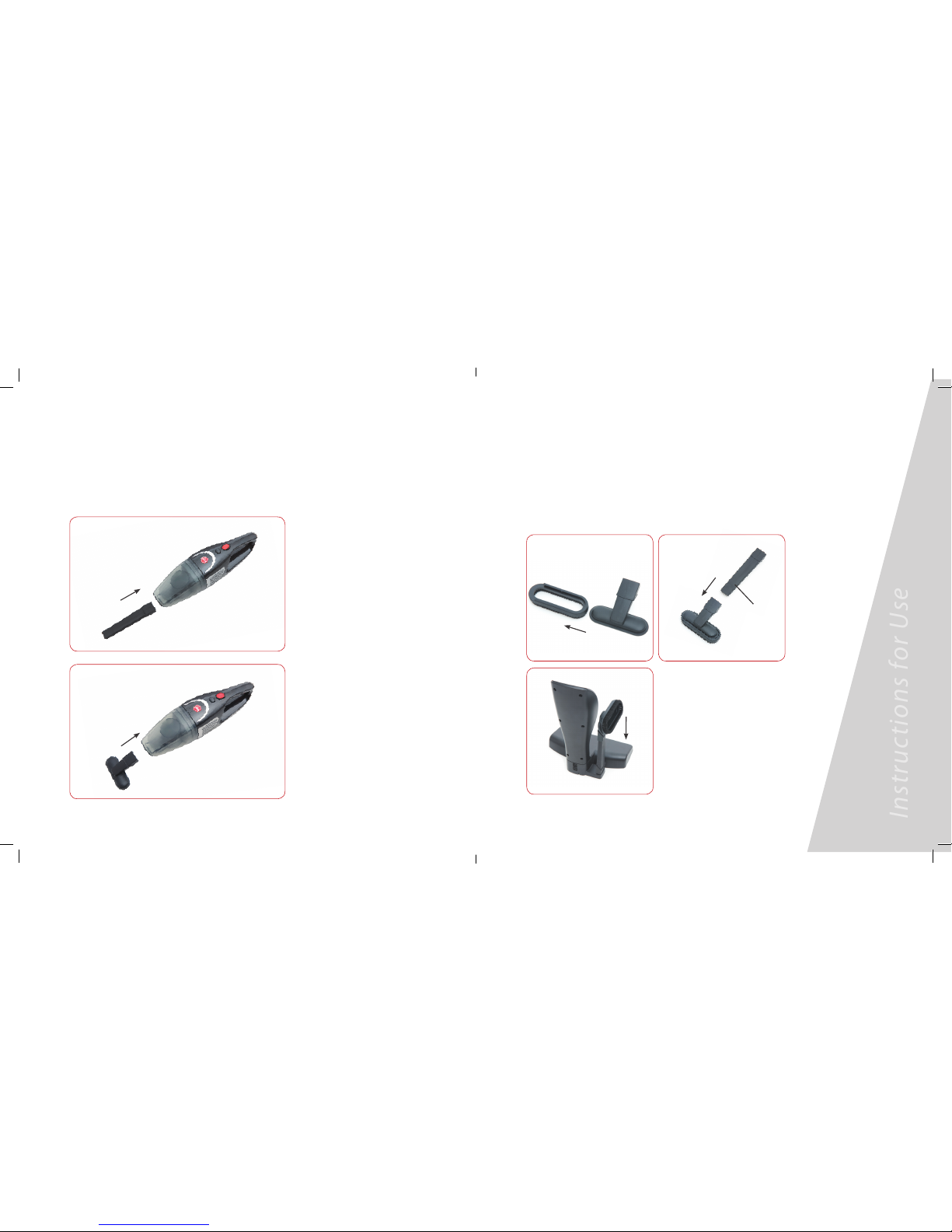

Connection for 3 in1 accessory

a. Crevice nozzle

b. Sofa brush

Instructions for Use (continued)

Connection for 3 in1 accessory

Small brush

Sofa brush

3 in 1

accessory

Holder for

accessory

Longer extension

of brush

Instructions for Use

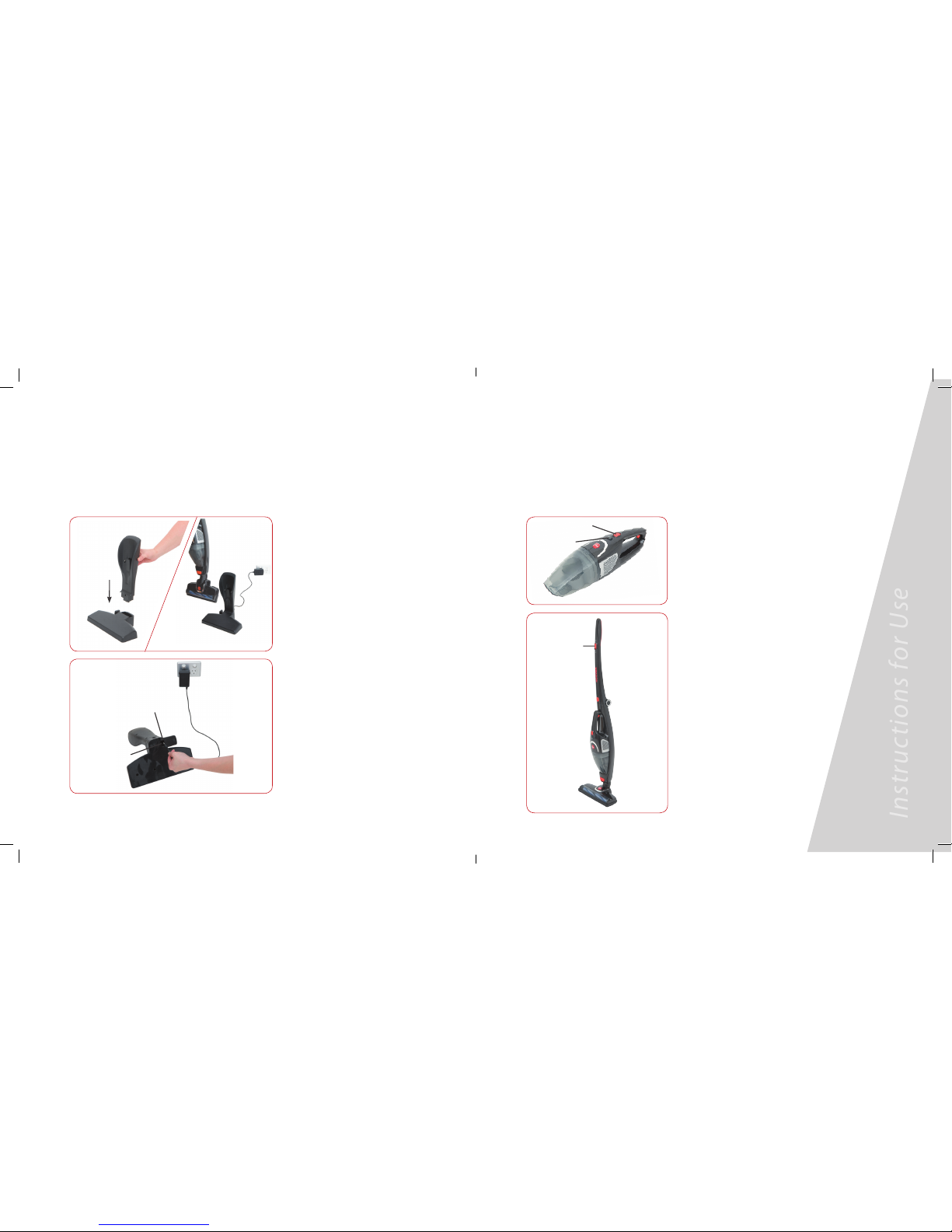

Charging the cleaner

1. Connect the power plug on the

battery charger to the power socket.

2. Connect the stick vac to the charging

base. The stick vac should be able

to stand alone once correctly

connected to the charging base.

3.The indicator on the cleaner turns

red whilst it is charging. Once fully

charged the indicator will turn green

(approximately 6-8 hours).

4. Once the stick vac has been

charged it can be removed from

the charging base for use or it

can remain on the charging base

which also acts as a holder.

Note: Once the stick vac has been

fully charged, it is recommended that

the charging base is unplugged from

the mains power supply.

Support

board

Connect hole

Connector

Instructions for Use (continued)

How to operate the stick vac

Hand vac

1. Press the button under the handle of the hand vac

to release the unit from the body of the cleaner.

2. Press the on/oﬀ button to turn on the hand vac

– a blue light will appear when the hand vac is

operational.

3. Press the on/oﬀ Button to turn the hand vac oﬀ.

Stick vac

1. Ensure the hand vac is placed back into the body

of the stick vac.

2. Press the on/oﬀ button at the handle end of the

stick vac to turn on the stick vac. A blue light will

appear on the electrical brush head when

the stick vac is operational.

Press the on/oﬀ Button to turn the stick vac oﬀ.

On / oﬀ button

Indicator

Instructions for Use

Operation for turbo brush

1. The turbo brush on this stick vac can

be used on short haired carpet and

hard ﬂoors.

2. This brush has been manufactured

with a stop protection device, which

acts as a safety switch and will

activate and stop the stick vac in the

event a child places his/her ﬁngers

on the roller brush or if anything gets

stuck in the brush.

3. If the stop protection has been

activated the stick vac can be

re-started after 5 minutes – allowing

enough time for the motor to

re-adjust.

Carpet Hard Floor

Instructions for Use (continued)

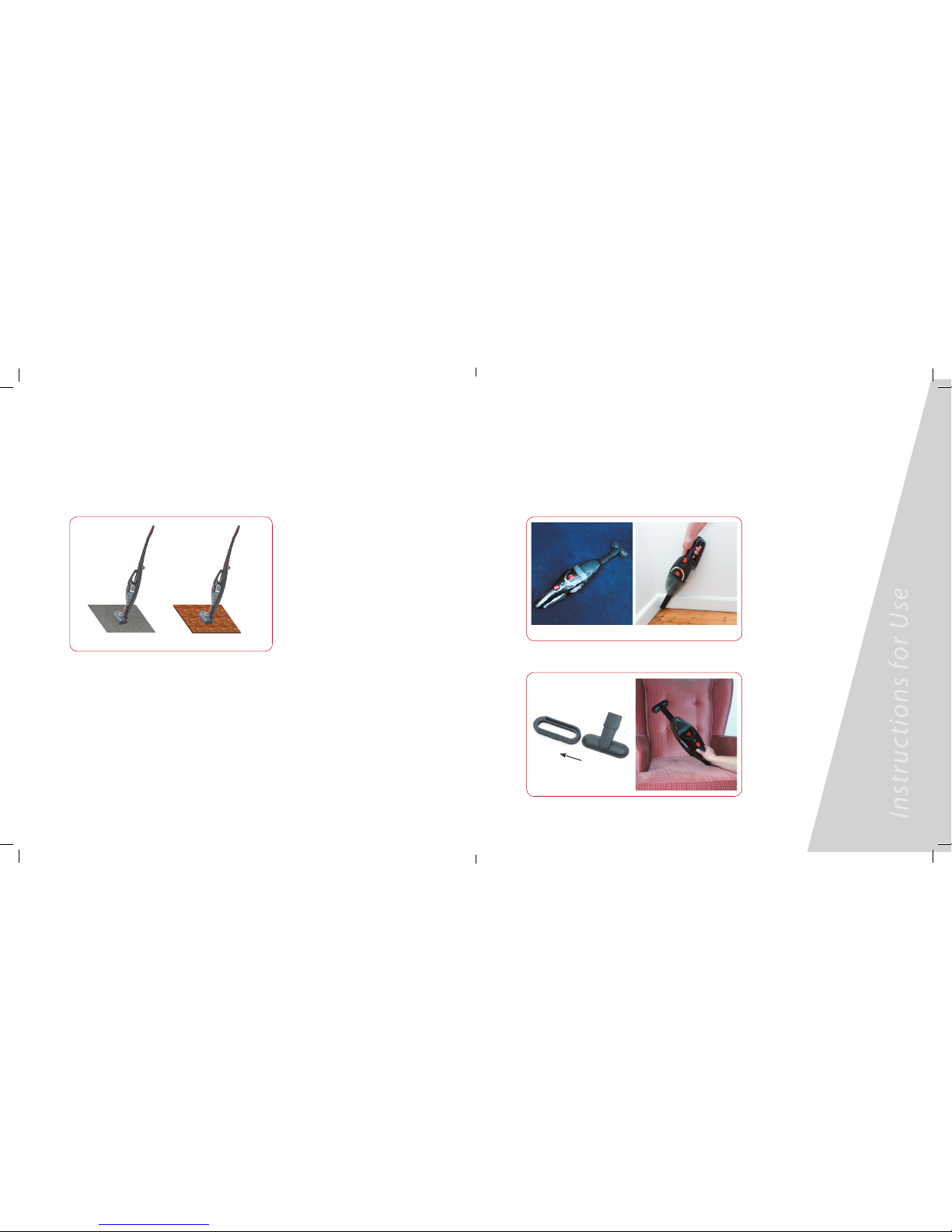

Use of 3 in 1 accessory

This stick vac comes with a

3 in 1 accessory:

Soft Brush – for cleaning upholstery.

CreviceTool – to clean in between

tight spaces.

• Usethesofabrushtoclean

sofas, beds etc.

• Usethecrevicenozzleto

clean corners, stairs and

keyboards etc.

• Usethe2in1brushto

clean furniture, book

shelves, curtains etc.

Small brush

Extension of brush for cleaning hard to reach places

Sofa brush

Maintenance

Cleaning and changing parts

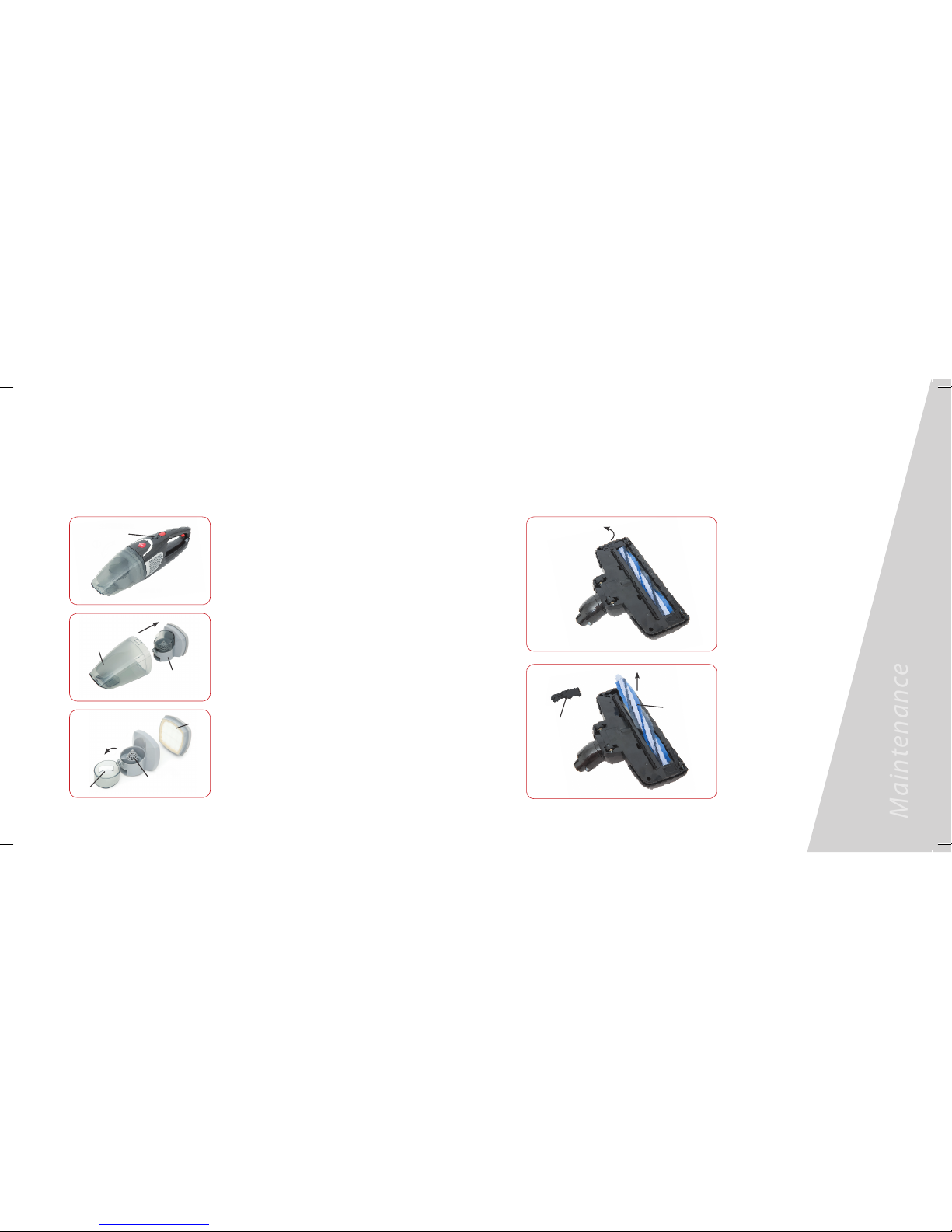

Dust cup and lter system cleaning

1. Push the button to release the dust cup from

the hand vac

2.Take the dust cup (as shown), pull back the clear

cover to pour out dust. Close the cover.

3. Remove the HEPA ﬁlter from the side of the

dust cup and replace with a new HEPA ﬁlter.

Dust cup assembly

Dust cup release

Cyclone cover

Cyclone cone

HEPA

Dust cup

Filter assembly

Turbo brush cleaning

1. Use a screw driver to rotate the

locking button.

2. Remove the cover, take the roller

out and clean it gently by removing

all dust, dirt etc. (do not clean with

water or any liquids).The roller can

also be replaced with a new roller

if necessary.

3. Re-assemble the roller and cover

after cleaning or replacement.

Locking button

for the cover

Cover

Roller

Maintenance

Troubleshooting Customer Care

Problems and solution

If you come across a problem, please use the checklist of troubleshooting tips before ringing

Hoover Customer Care.

Stick vac does

not work •Doesthebatteryneedcharging?

•Hasthehandvacbeenassembledcorrectlybackintothebody

ofthestickvac?

Suction power

has decreased •Checkthedustcup,isitfullanddoesitneedtobeemptied?

•IstheHEPAlterblocked?Doesitneedtobereplacedorcleaned?

•Isthereablockageintheairinlettunnelorontherollerofthe

turbobrushthatneedstoberemoved?

The stick vac will

not charge •Isthechargerconnectedcorrectlytothepowersocket?

•Isthepowerplugonthechargerconnectedtothebaseofthecharger?

•Hasthehandvacbeencorrectlyassembledtothebodyofthestickvac?

The cleaner has

been charged

but unable to get

enough run time

from the cleaner

•Hasthestickvacbeenfullycharged–6-8hours?

•Doesthebatteryrequirereplacement?

Part Part Number

Filter 32200739

Cone lter assembly 32200738

Charger 33200733

Brush bar assembly 33701711

Please contact Hoover Customer Care: 1300 360 845 to ﬁnd your local spare parts provider.
