Honeywell FocusBT AP-010-BT Manual de usuario

AP-010-BT and AP-100-BT

Access Point Device with Bluetooth®Wireless Technology

Installation Guide

may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their

respective companies.

TABLE OF CONTENTS

Introduction

Product Overview ............................................................................................. 1

Base Kit Components and Optional Accessories ............................................. 1

Components ..................................................................................................... 2

Mounting Specifications.................................................................................... 3

Cable Removal................................................................................................. 3

Product Labels ................................................................................................. 4

Installation

Cable to Access Point Connection ................................................................... 5

RS232 Host Connections ................................................................................. 5

USB Host Connections..................................................................................... 6

Keyboard Wedge Host Connections ................................................................ 6

RS485 Host Connections ................................................................................. 6

Establishing Communication

Between the Scanner and the Access Point Device......................................... 7

Access Point Device Operation

Page/Disconnect Button................................................................................... 8

Visual Indicators ............................................................................................... 8

Configuration Procedures

Metro Protocol Compatibility............................................................................. 9

CodeXML Protocol Compatibility.................................................................... 10

Access Point Device Configuration in CodeXML Mode.................................. 11

Optional Configuration Bar Codes.................................................................. 12

iii

TABLE OF CONTENTS

Uploading and Downloading Settings

Uploading Settings via MetroSet2.................................................................. 15

Downloading Settings via MetroSet2.............................................................. 16

Upgrading the Firmware..................................................................................... 17

Upgrading the Firmware in the Access Point Device...................................... 17

Upgrading FocusBT Firmware via the Access Point Device........................... 18

Design Specifications ......................................................................................... 19

Device and Cable Terminations

Device Pinout ................................................................................................. 20

Cable Pinout Connections .............................................................................. 21

Regulatory Compliance

EMC ............................................................................................................... 23

Limited Warranty ................................................................................................ 25

Index .................................................................................................................. 26

Contact Information and Office Locations........................................................... 27

INTRODUCTION

Honeywell’s access point devices with Bluetooth®wireless technology provide

customers with a flexible and convenient solution for wireless communication

in a variety of environments, including retail, healthcare, and manufacturing.

The access point device separates charging functions from communication

functions, allowing the user to optimize the available radio range.

Choose from Class II (10 meters) Bluetooth communication or Class I

(100 meters) to meet the specific needs of the application.

ACCESS POINT INTERFACE SUPPORT

Interfaces supported include:

AP-010-BT

AP-100-BT

•RS232

•RS485S

•USB

•Keyboard Wedge

SApplicable for IBM®Host applications.

Base Kit Components and Optional Accessories

BASIC KIT

Part # Description

AP-010-BT

AP-100-BT

Access Point Device (Class 2 radio: 10 m)

Access Point Device (Class 1 radio: 100 m)

70-79035 Access Point Device with Bluetooth®Wireless Technology

Installation Guide*

* Available for download at www.metrologic.com

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer- Regulated 5.2VDC @ 1A output.

46-00525 90VAC-255VAC United States, Canada, and Japan

46-00526 90VAC-255VAC Continental European

46-00527 90VAC-255VAC United Kingdom

46-00528 90VAC-255VAC Australia

46-00529 90VAC-255VAC China

www.metrologic.com2

INTRODUCTION

OPTIONAL ACCESSORIES

Part # Description

55-55500-3 RS232 Straight PowerLink Cable, Black

55-55502-N-3 Keyboard Wedge Straight Cable, Black

55-55512-3 RS485SApplications,Straight PowerLink Cable

55-55535-N-3 USB Type A Straight Cable, Black

55-55567-3 AUX Cable, Black

SApplicable for IBM®host applications.

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

Components

ITEM NO. DESCRIPTION LOCATION

1 Page/Disconnect Button &

Blue LED (see page 8)

2 Mounting Holes, Qty. 2

3 10-Pin RJ45, Female Socket

4 Pinhole for Cable Release

(see page 5)

5 Address Bar Code Figure 1. Components

INTRODUCTION

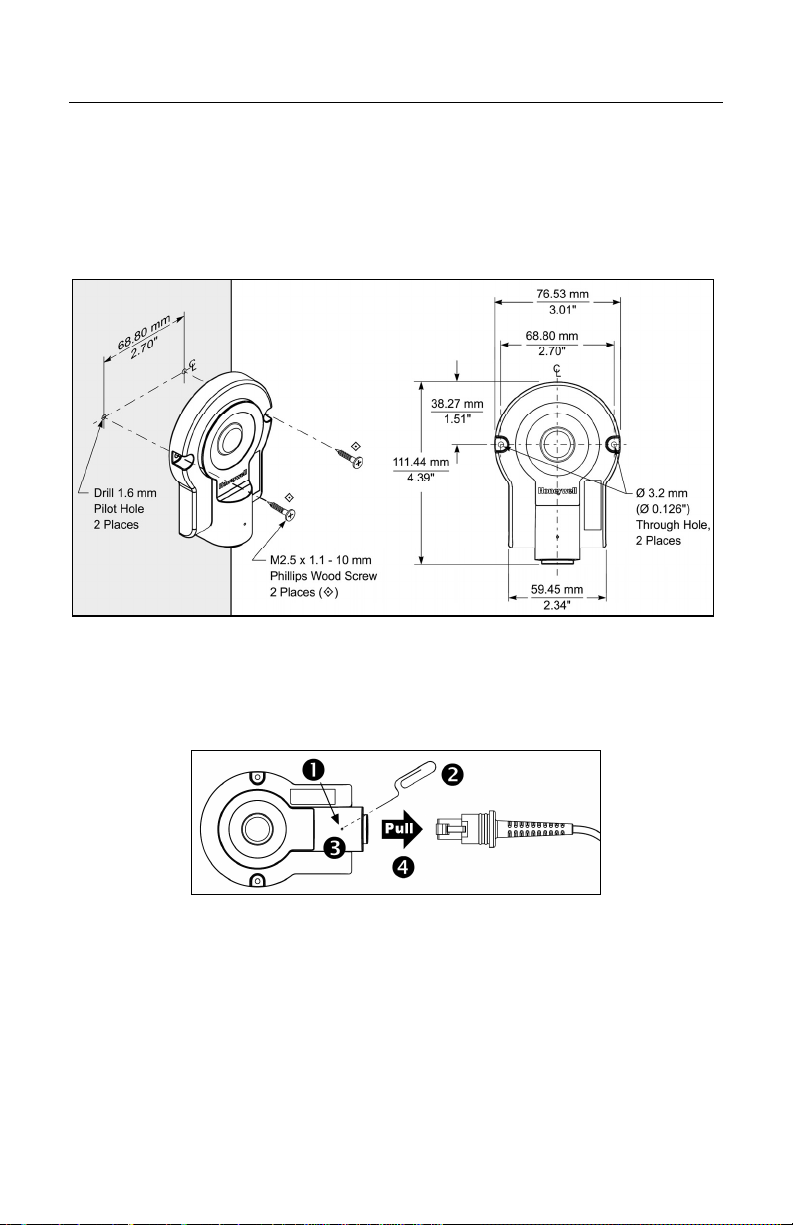

Mounting Specifications

1. Drill two, 1.6 mm pilot holes in the mounting surface. The pilot holes should

be located on a common centerline and be spaced 68.80 mm (2.70") apart.

2. Secure the access point device to the mounting surface with the

M2.5 x 1.1 - 10 mm, Phillips wood screws provided with the access point.

Figure 2. Mounting Specifications

Cable Removal

Turn off power to the host system before removing the cable from the access

point device. If the cable is a PowerLink cable, disconnect the power supply on

the cable.

Figure 3. Cable Removal

1. Locate the small pinhole on the top of the access point device

(see figure above).

2. Bend an ordinary paperclip into the shape shown above.

3. Insert the paperclip into the pinhole on the device. Apply pressure to

release the connector’s lock.

4. Pull on the cable’s strain-relief to remove the cable.

www.metrologic.com4

INTRODUCTION

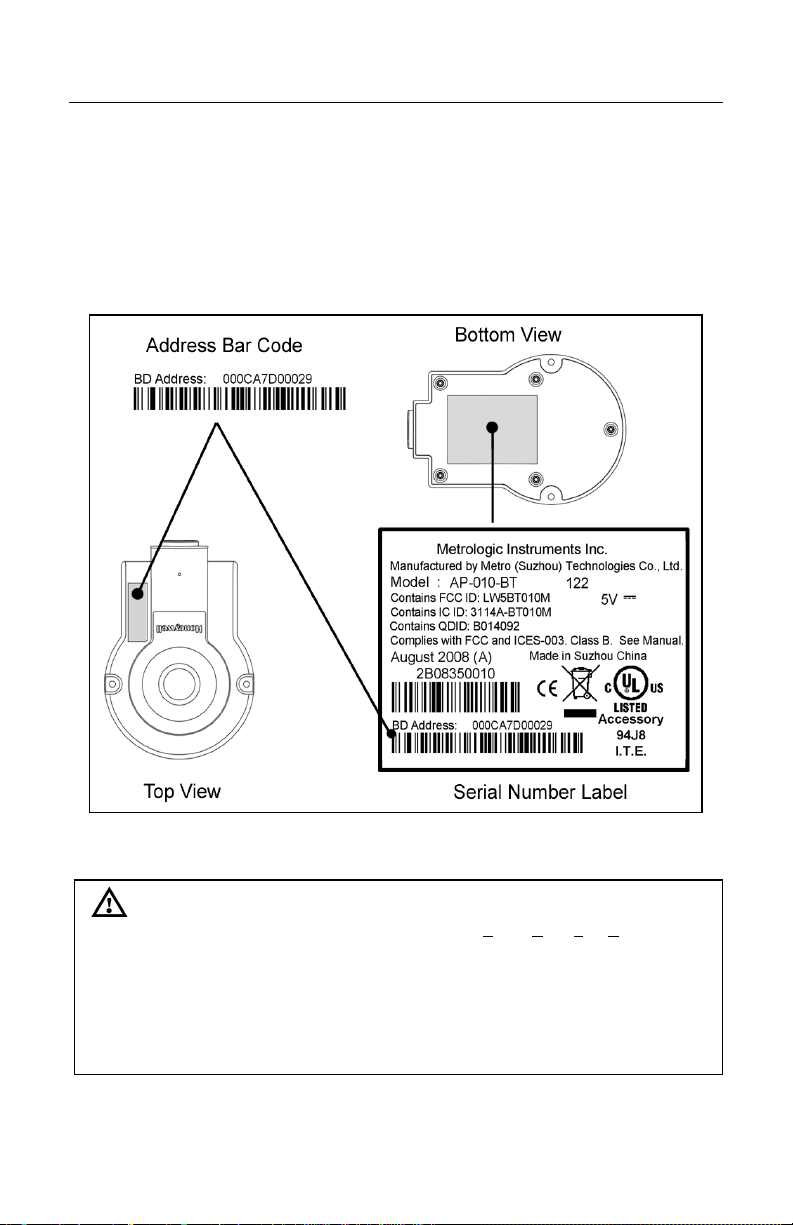

Product Labels

The serial number label located on the bottom of the access point device

provides important information including the model number, date of manufacture,

serial number, address bar code, safety and regulatory information. An

additional copy of the address bar code is location on the top of the device near

the Honeywell logo. The figure below provides examples of the labels and their

locations on the access point device.

Figure 4. Label Location with Examples

Caution

To maintain compliance with applicable standards, all circuits connected to the

scanner must meet the requirements for SELV (Safety Extra Low Voltage)

according to EN/IEC 60950-1.

To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and

norm EN/IEC 60950-1, the power source should meet applicable performance

requirements for a limited power source.

The AP-010-BT and AP-100-BT are intended for use with Listed UL computer

and/or Listed PS with LPS/Class 2 output.

INSTALLATION

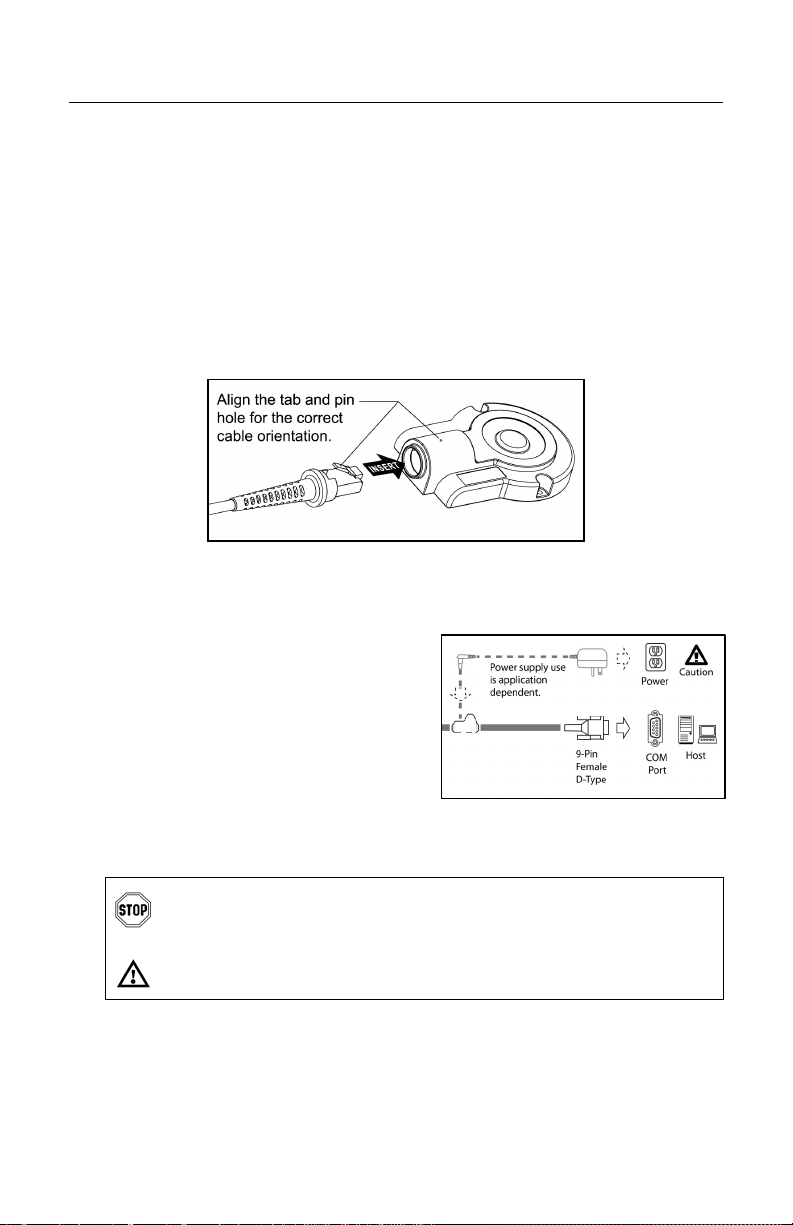

Cable to Access Point Connection

1. Align the tab on the modular connector with the pinhole on the access point

device (see figure below).

2. Insert the modular connector into the device’s socket.

3. Test the cable’s connection to ensure the connector lock has engaged.

Important: If the cable is not fully latched, the unit can power intermittently.

4. Refer to pages 5 – 6 for the appropriate host connections applicable to the

interface type.

Figure 5. Cable Installation

RS232 Host Connections

1. Turn off power to the host system.

2. Connect the female, 9-Pin D-type

connector to a dedicated RS232

communication port on the host

system.

3. Plug the external power supply into

the power jack on the PowerLink

cable.

Check the AC input requirements of the power supply verify the

voltage matches the AC outlet. The outlet must be located near the

equipment.

See caution information on page 4.

4. Connect AC power to the transformer.

5. Turn on power to the host system.

Figure 6. RS232 Host Connections

www.metrologic.com6

INSTALLATION

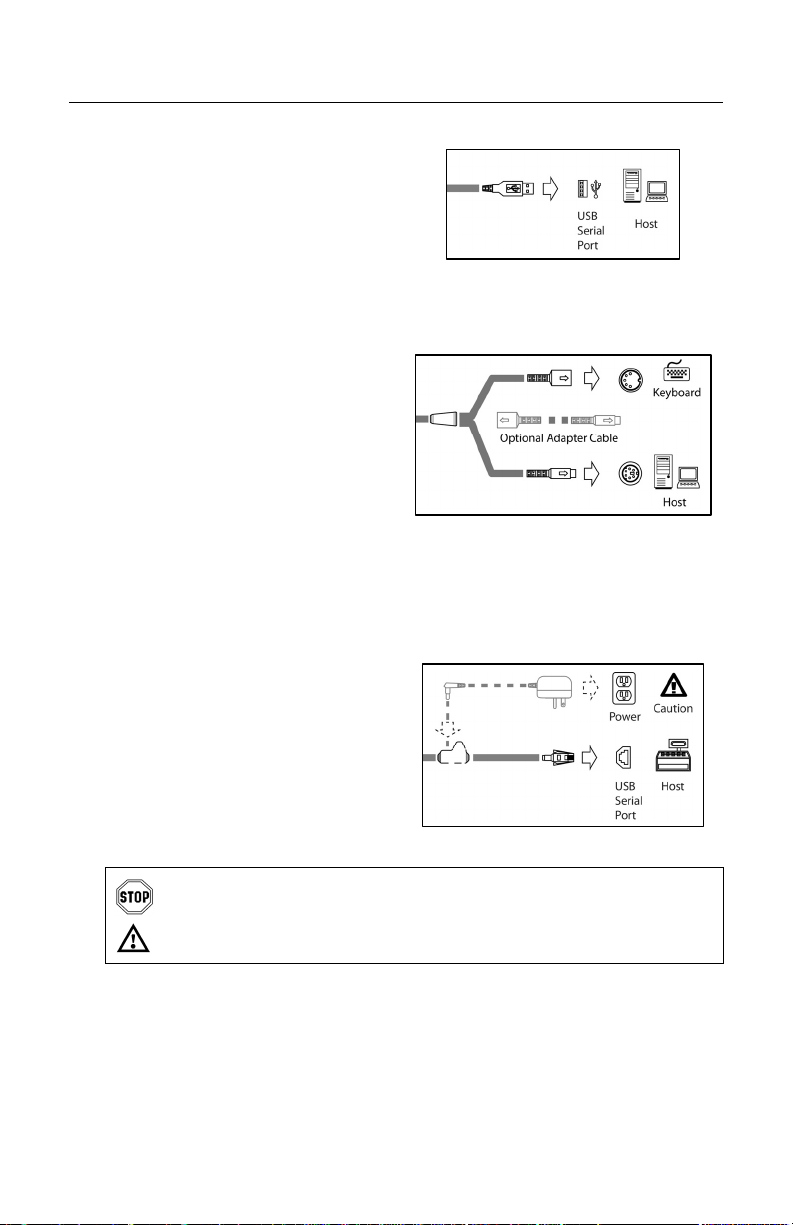

USB Host Connections

1. Turn off power to the host system.

2. Plug the USB connector into the to

a dedicated USB serial port.

3. Turn on power to the host system.

Keyboard Wedge Host Connections

1. Turn off power to the host system.

2. Disconnect the keyboard from the

host system.

3. Connect the “Y” ends of the

communication cable to the

keyboard and the keyboard port on

the host system. If necessary, use

the male/female adapter cable

supplied with the device for proper

connections.

4. Turn on power to the host system.

RS485SHost Connections

1. Turn off power to the host system.

2. Connect the SDL connector into

a dedicated Port 9 on the host

system.

3. Plug the external power supply

into the power jack on the

PowerLink cable

Check the AC input requirements of the power supply verify the voltage

matches the AC outlet. The outlet must be located near the equipment.

See caution information on page 4.

4. Connect AC power to the transformer.

5. Turn on power to the host system.

SApplicable for IBM®Host applications.

Figure 8. KBW Host Connections

Figure 7. USB Host Connections

Figure 9. RS485 Host Connections
