Honeywell T80 Manual de usuario
Quick Guide
OVERVIEW
Scan Light
Receiver
Power Light
Scan
Scan
Enter
F2 Key
Delete
Speaker
Scan window
Flash lamp
Camera
Card
Reading area
Power Button
Scan
Return
F1 Key
Microphone
Type-C
interface
Power Button
Battery cover
HOME
Hot button/Custom button
1. Screen capture: "power"+"Volume -"
2. Custom button: Setting → Feature → Custom Key
3. Letter input switching: Press"1-A" on Keyboard
1
STRAP INSTALLATION
Buckle
(As Pic1)
2
Following the direction of the above arrow, push the strap
buckle up to secure it.
OPEN THE BATTERY COVER
3
Please remove the positive and negative insulation yellow
sticker on the battery before turning on tne device.
1. Push the battery cover button in anti-clockwise direction.
(As Pic1)
2. Pull out the battery cover by using the hand position between the
battery cover and the bottom case.
*
REMOVING-THE BATTERY
4
1. Lift the strap on the battery:
2. Pull the battery belt to take the battery off on 45° obliquely
upward.
INSTALL TF/SIM CARD
TF slot
PSAM slotx 2
Micro SIM slot
5
1. Insert the SIM card into the corresponding slots as shown in
the figure below
(Note: The handheld terminal only supports Micro SIM card; the
standard SIM card slot is for PSAM card)
EQUIPMENT CHARGING
Type-C interface
6
1. Pull out the waterproof USB plug on the right side with the Type-C
USB cable that comes with the device.Insert the Type-C USB cable.
2. Use cradle to charge. (Cradle comes seperately)
DEVICE CHARGING:
1. Battery is fully charged after 4 hours of charging, and the standby
time is over 48 hours.
2. Cradle can charge 1 battery and 1 terminal simultaneously.
3. The left indicator light is the battery charging indicator, when the
battery is charging, it will appear red. Light will display green once
fully charged.
4. The right light is the power on indicator. Green for when power is
on, and indicator is off when power is off.
*To prevent the battery from being over-consumed, please charge
the device when the battery power is less than 20%. If the battery
displays over-comsumption state, please charge the device for
20-30 minutes. This then will display a normal charging status.
SCAN(OPTIONAL)
Clear the
contents
Settings
About
Scan key
Scan window
Reset scan
Function setting:
Enter/Tab
Append prefix/
suffix
(Pic1)
7
1. Find the "scanner" app, and open it.(As Pic 1)
2. In the scan interface, press scan button to scan the barcode.
IF PDA COMES WITH SCAN FUNCTION, OPERATE AS BELOW:

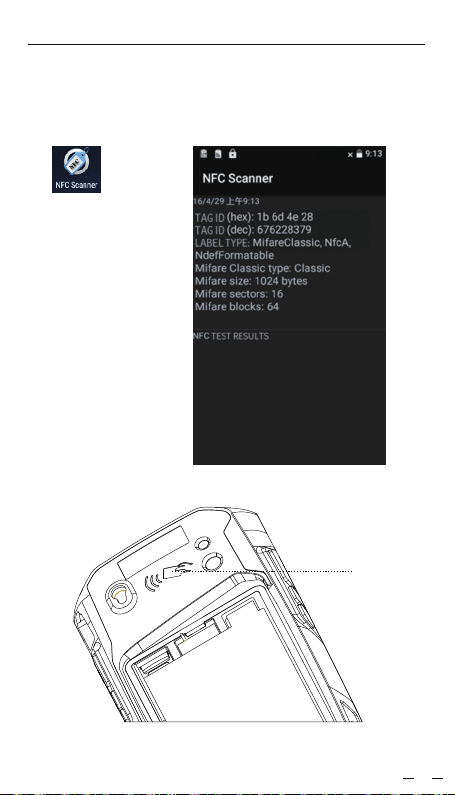

NFC(OPTIONAL)
NFC reading
(Pic1)
(Pic 2)
8
1. Find the “NFC" app, and open it.(As Pic 1)
2. In the NFC interface, please read the card by NFC reading area.
IF PDA WITH NFC FUNCTION, OPERATE AS BELOW:
(Note: NFC function is optional feature, you should make sure PDA
includes NFC function)
OTA(UPDATE ONLINE)
(As Pic1) (As Pic 2)
9
1. Select "Settings"- About phone.
2. Press "System update" and enter into the updating firmware interface.
3. Press "Check now" to update the OS.
OUR PDA SUPPORT OTA(UPDATE ONLINE)FUNCTION,YOU CAN
UPDATE THE LATEST FIRMWARE BY OTA, OPERATE IT AS BELOW:
