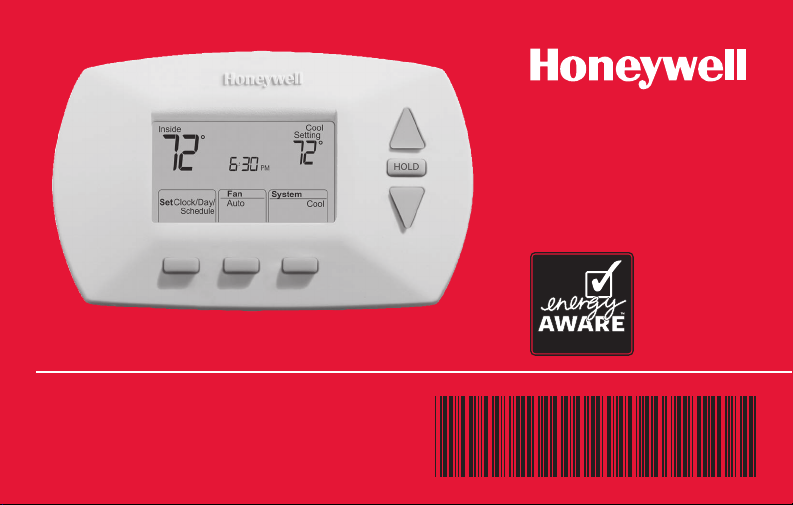

Honeywell RTH6300B Manual de usuario

Operating

Manual

RTH6300B

Programmable Thermostat

69-1925ES-03

Read and save these instructions.

Need Help?

For assistance with this product please visit http://yourhome.honeywell.com

or call Honeywell Customer Care toll-free at 1-800-468-1502

® U.S. Registered Trademark. Patents pending.

Quick Reference Card

Grasp and pull to see basic

operating instructions at a

glance.

Battery Holder

Press down and pull to

remove batteries.

Batteries should be

replaced once a year (see

page 15).

RTH6300B Programmable Thermostat

About your new thermostat

1 69-1925ES—03

About your new thermostat

Thermostat features....................................2

Programming at a glance............................3

Quick reference to controls .........................4

Quick reference to display...........................5

Programming & Operation

Set time and day.........................................6

Select fan setting (auto/on) ........................7

Select system setting (heat/cool)................8

Using program schedules ...........................9

Program schedule overrides .....................12

Built-in compressor protection ..................14

Appendices

Battery installation.....................................15

In case of difficulty .................................... 16

Customer assistance ................................18

Accessories/replacement parts.................18

1-year limited warranty..............................19

This thermostat is ready to go!

Your new thermostat is pre-programmed

and ready to go.

See page 3 to check settings.

Table of contents

69-1925ES—03 2

About your new thermostat

Congratulations on the purchase of your new Honeywell thermostat. It has been designed

to give you many years of reliable service and easy-to-use, push-button

climate control.

Features

• Separatelyprogrammableweekday/weekendschedules.

• One-touchtempcontroloverridesprogramscheduleatanytime.

• Energy-savingsettingsformaximumcostsavings.

• Large,clear,backlitdisplayiseasytoread—eveninthedark.

• Displaysbothroomtemperatureandtemperaturesetting.

• Removablebatteryholderforfast,easyreplacement.

• Built-incompressorprotection.

Operating Manual

RTH6300B Programmable Thermostat

3 69-1925ES—03

This thermostat is ready to go!

Your new thermostat is pre-programmed and ready to go. All you have to do is set the

time and day. Then check the settings below and change if needed:

1. Set time and day (required for proper operation)..............................See page 6

2. Select fan setting (Auto/On): Preset to Auto......................To change, see page 7

3. Select system setting (Heat/Cool): Preset to Heat............To change, see page 8

4. Program schedules: Preset to energy-saving levels

while you’re at work or asleep (assumes you wake at

6 am, leave at 8 am, return at 6 pm and go to bed

at 10 pm)........................................................................To change, see pages 9-11

ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and

manually adjust the temperature (see pages 12-13).

Operating Manual

69-1925ES—03 4

Quick reference to controls

Digital display (see page 5). Battery holder (see page 15).

Temperature buttons

Press to adjust temperature

settings (see pages 11-13).

Hold button

Press to override programmed

temperature control (see page 13).

Function buttons

Press to select the function displayed just above each button.

(Functions change depending on the task.)

RTH6300B Programmable Thermostat

5 69-1925ES—03

Quick reference to display screen

Set Clock/Day/

Schedule

Auto

Wake Wed

Fan System

Heat On

Heat

Setting

Inside

6:30

Replace Battery

Current inside temperature

Current program period

Wake/Leave/Return/Sleep

(see pages 9-11)

Set clock/day/schedule

Press to set time, day or

program schedules (see

pages 6 & 11)

Function buttons

Press the button beneath each function to view or change

settings (functions change depending on the task)

Low battery warning

(see page 15) Current time/day

(see page 6)

Temperature setting

(see pages 11-13)

System status

Onwhen“calling”for

heating or cooling;

flashes when waiting for

compressor restart (see

page 14)

System setting

Heat/Cool/Off

(see page 8)

Fan setting

Auto/On(seepage7)

Operating Manual

69-1925ES—03 6

Set the time and day

1. Press the SET CLOCK/DAY/SCHEDULE

button, then press s or t to set

the clock time.

2. Press the SET DAY button, then

press s or t to select the day of

the week.

3. Press DONEtosave&exit.

Note: If the SET CLOCK/DAY/SCHEDULE

option is not displayed, press DONE or

RUN SCHEDULE.

Note: If the display flashes Set Clock, the

thermostat will follow your settings for the

weekday“Wake”timeperioduntilyoureset

the time and day.

4:30

Set Clock/Day/

Schedule

Auto

Fan System

Heat

Wed

Set Day Set Schedule

Done

Press SET CLOCK/DAY/SCHEDULE, then adjust time

Press SET DAY, then select current day

RTH6300B Programmable Thermostat

7 69-1925ES—03

Set Clock/Day/

Schedule

Auto

Fan System

Heat

Set Clock/Day/

Schedule

Fan System

Heat

Select the fan setting

Press the FAN button to select Auto or On.

In“Auto”mode(themostcommonlyused

setting), the fan runs only when the heating

orcoolingsystemison.Ifsetto“On,”the

fan runs continuously. Use this setting for

improved air circulation, or for more efficient

air cleaning.

Operating Manual

69-1925ES—03 8

Select the system setting

Press the SYSTEM button to select Heat, Cool

or Off.

• Heat: Thermostat controls only the heating

system.

• Cool: Thermostat controls only the cooling

system.

• Off: Heating and cooling systems are off.

Set Clock/Day/

Schedule

Auto

Fan System

Heat

Set Clock/Day/

Schedule

Auto

Fan System

Cool

CAUTION: EQUIPMENT DAMAGE

HAZARD. To prevent possible

compressor damage, do not operate

cooling system when outdoor

temperature is below 50°F (10°C).
