GlobalGuard Alarm System

HISK1

Hardware Installation and Operating Manual

FOREWORD

All devices in this wireless Alarm System are

designed and manufactured to provide long

reliable service. The system is designed for

ease of installation using only conventional

domestic tools. However, it is essential that the

installer reads and fully understands the advice

and procedures contained in this manual and

plans the system before proceeding with the

installation.

IMPORTANT:

LOCAL AUTHORITY REGULATIONS

AND LEGISLATION'

This alarm system should be installed and

operated in accordance with the requirements of

any current local and/or national regulations and

legislation. We recommend that you contact

your authority to obtain details of your area's

requirements local and/or national regulations.

For example in Belgium, the installation and use

of an alarm system including notification by

telephone (Voice Dialler) functionality and the

optional use of an external siren is controlled by

Belgium legislation "KB" of 19/06/2002.

DECLARATION

Novar ED&S hereby declares that this wireless

alarm system is in compliance with the essential

requirements and other relevant provisions of

the Radio and Telecommunications Terminal

Equipment (R&TTE) directive, 1999/5/EC.

Tools and Equipment Required:

No.0 Philips Screwdrivers

Bradawl

No.1 Philips Screwdrivers

Drill

No.2 Philips Screwdrivers

3mm Drill Bit

Small Spirit Level

5 & 6mm Masonry Drill Bits

DEVICE RANGE

The quoted range of the system devices (see

component specification on rear cover) is

measured in ideal conditions. Any solid object

(e.g. walls, ceilings, reinforced PVC doors etc)

placed between the transmitter and Receiver

device will reduce the radio range.

The amount by which the range will be reduced

is dependent upon the nature of the barrier. For

example:

Wall Type Range

Reduction

Dry-lined partition wall: 10-30%

Single layer brick wall: 20-40%

Double layer brick wall: 30-70%

Metal panel/radiator: 90-100%

Note: The effect on the range of multiple walls is

cumulative. i.e. if there are 2 brick walls in the

way, the range will be reduced by up to 40% by

each wall.

SYSTEM SECURITY

This system has been designed to both detect

intruders and act as a strong deterrent to would-

be intruders when installed correctly.

Please remember that given adequate

knowledge and time it is possible to overcome

any alarm system and we therefore recommend

that your Alarm is used in conjunction with good

physical protection such as security window and

door locks.

All units in the system are encoded to operate

together using an 20 bit rolling House Code.

The system House Code is automatically

changed each time the system is

armed/disarmed or triggered by a detector.

The system can be operated from one or more

accessory Remote Control Units and/or

Keypads. It can also be operated remotely over

the internet using a PC or mobile

device(Android/Apple IOS device). Care should

be taken to ensure that any of your Remote

Control Units are not lost or the User Access

PIN Code for the Control Panel do not become

known to other people as this will compromise

the security of your system. The User Access

PIN Code should be changed as soon as

possible.

HOME AUTOMATION CONTROL

The system allows you to create Programmes,

Schedules and Events using the GlobalGuard

PC setup software. Home automation allows you

to control wireless ON/OFF switching devices

together with security arming. There are 3

function keys I/II/III located on the side of the

Control Panel which are programmable via the

PC software and each function key can store a

Programme. The activation of a Programme can

be instantly activated simply by pressing one of

the corresponding function keys.

REMOTE ACCESS AND SYSTEM

REQUIREMENTS

This system is supplied pre-linked to an IP

gateway module which allows you to remotely

access and control your system via the internet.

In order to get the full benefits of the system,

please ensure you meet the following

requirements:

•A broadband router with x2 spare LAN ports

(x1 for IP gateway and other for an optional IP

Camera if added in future)

- An unrestricted internet broadband

connection with wired or wireless (Wifi)

connectivity. (For optional wireless

indoor CCTV accessory, Wifi will allow

you connect the camera to the router

wirelessly)

- A PC with;

•Operating System:

Windows XP/Vista/Window7

•Internet Explorer 6.x or higher Internet

Web Browser

•CPU: Pentium 4, 1GHz or above

•VGA Card Resolution: 800x600 or

above

•Video Memory Size: 128Mb or above

•Recommended internet upload speed

512kbp/s for 1 x IP Camera (optional)

or 2Mbp/s for 8 x cameras connected

Optional Android or Apple IOS

Smartphone/mobile device;

•IOS: iPhone1/2/3/4, iPad1/2, iPod

Touch 4 up to IOS V4.3. 4(latest iOS

Version release)

•Android: Android phone V2.X, tablet PC

tested up to V4.0

PROGRAMMING THE SYSTEM

The system can be setup using the instructions

in this manual or alternatively using the

GlobalGuard PC setup software available at

www.GlobalGuard.Friedland.co.uk

Note that home automation Programmes,

Events and Schedules can only programmed

using the PC software. This means that the

function keys I/II/III located on the side of the

Control Panel can only be programmed from the

PC software.

If using a PC to run the setup software then

ensure that it is connected wired or

wirelessly (WIFI) to the same internet

broadband router as that connected to the IP

Gateway otherwise the software will not run

correctly. If using a WIFI connection, ensure

the PC is within operating range of the router.

SECURITY DEVICES BACKWARD

COMPATIBILITY

Please note that earlier versions of the

Response branded 868MHz security PIR

movement detectors, magnetic door/window

contact detectors, remote control and remote

keypad devices are also compatible with this

system.

If you are upgrading an existing Response

868MHz wireless security system you already

purchased in the past, then you can reuse the

existing security devices installed by simply

linking one each to the GlobalGuard system.

SAFETY

Always follow the manufacturer’s advice when

using power tools; steps, ladders etc. and wear

suitable protective equipment (e.g. safety

goggles) when drilling holes etc.

Before drilling holes in walls, check for hidden

electricity cables and water pipes, the use of a

cable/pipe locater maybe advisable if in doubt.

When using ladders, ensure that they are

positioned on a firm stable surface at the correct

angle and suitably secured before use.

The use of ear defenders is advisable when

working in close proximity to the Siren due to the

high sound level produced by this device.

CONTENTS

KIT CONTENTS 7

INTRODUCTION AND OVERVIEW 8

Multiple Users 8

User Access PIN Code 8

System Arming 8

Entry/Exit Delay 8

Zones 9

Zone Lockout 9

Quick Set 9

Event Log 9

Chime 10

Tamper Protection 10

Jamming Detection 10

Battery Monitoring 10

Home Automation 10

PLANNING AND EXTENDING 11

YOUR ALARM SYSTEM

EXTERNAL SOLAR SIREN 14

Configuring the Solar Siren 14

Charging the Solar Siren Battery 15

CONTROL PANEL 16

Positioning the Control Panel 16

Control Panel Overview 16

Installing the Control Panel 17

IP GATEWAY 18

Installing the IP Gateway 19

LED Indications 19

Linking An IP Gateway To The

Control Panel(Optional) 19

Deleting The IP Gateway From

The Control Panel(Optional) 20

PASSIVE INFRA-RED (PIR) MOVEMENT

DETECTOR 20

Positioning the PIR Detectors 21

Installing the PIR Movement

Detector 21

Testing the PIR Detector Independently 22

Linking A PIR Detector To The Control

Panel 23

Testing the PIR Detector with the

Control Panel 24

MAGNETIC CONTACT DETECTORS 25

Positioning the Magnetic Contact

Detectors 25

Installing and Configuring the

Magnetic Contact Detectors 25

Testing A Magnetic Contact Detector

Independently 27

Linking A Magnetic Contact Detector

To The Control Panel 27

Testing the Magnetic Contact

Detector with the Control Panel 28

INSTALLING THE SOLAR SIREN AFTER

CHARGING 29

Testing the Siren from the Control

Panel 30

Mounting the Siren on the wall 31

REMOTE CONTROL UNIT (OPTIONAL

ACCESSORY) 31

Configuring the Remote Control 31

Testing the Remote Control 32

Linking a Remote Control or

Remote Keypad to the Control Panel 32

EXTERNAL CONNECTIONS 35

TESTING THE SYSTEM 37

DEFAULT SETTINGS 39

RESET 41

PROGRAMMING 42

User Setup 42

Learn Remote Control 44

System Setup 46

Internal Siren 47

Alarm Duration 47

Wireless Siren 47

Night Alarm 47

Warning/Error Beep 48

Jamming Detection 48

Alarm Relay 48

Zone Lockout 49

Part-Arm I Setup 49

Part-Arm II Setup 49

Fully Arm Setup 49

Holiday Arm Setup 50

Date and Time Setup 50

Learn Wireless Keypad 50

Link Panel To Friedland

Spectra Receiver (Optional) 52

Lighting Setup For Spectra Receiver 52

Security Detector/Zone Setup 53

Learn Detector Code 53

Chime 55

Part-Arm I Setup For Zone Detector 55

Part-Arm II Setup For Zone Detector 55

Detector Status 56

Detector Remove 56

Siren At Trigger 56

Entry Delay 56

Home Automation Setup 58

Home Automation Control 59

Learning a receiver 59

All Turn ON 59

Device Remote Access Control 59

Home Automation/Remote Sensor 60

Learning a transmitter 60

Communication Device Setup 61

Learning/replacing a communication

device 61

Backup & Restore 62

OPERATING INSTRUCTIONS

Fully Arming The System 62

Holiday Arming The System 63

Part-Arming The System: Part-Arm-I 64

Part-Arming The System: Part-Arm-II 64

Disarming the System 64

Disarming the System with

the Duress Code 64

Spectra Lightening 64

Quick Set 65

Home Automation Function

Keys I/II/III 65

Personal Attack (PA) Alarm 65

Zone Lockout 65

Device Tamper 66

Chime 66

Keyboard Beep Mute 66

Entry/Exit Beeps 66

Event Log 66

Siren Service/Operating Mode 67

Battery Monitoring 68

MAINTENANCE 69

ALARM RECORD 71

USER PIN CODE NOTES 72

TROUBLESHOOTING 73

EXTENDING YOUR ALARM SYSTEM 75

COMPONENT SPECIFICATION 77

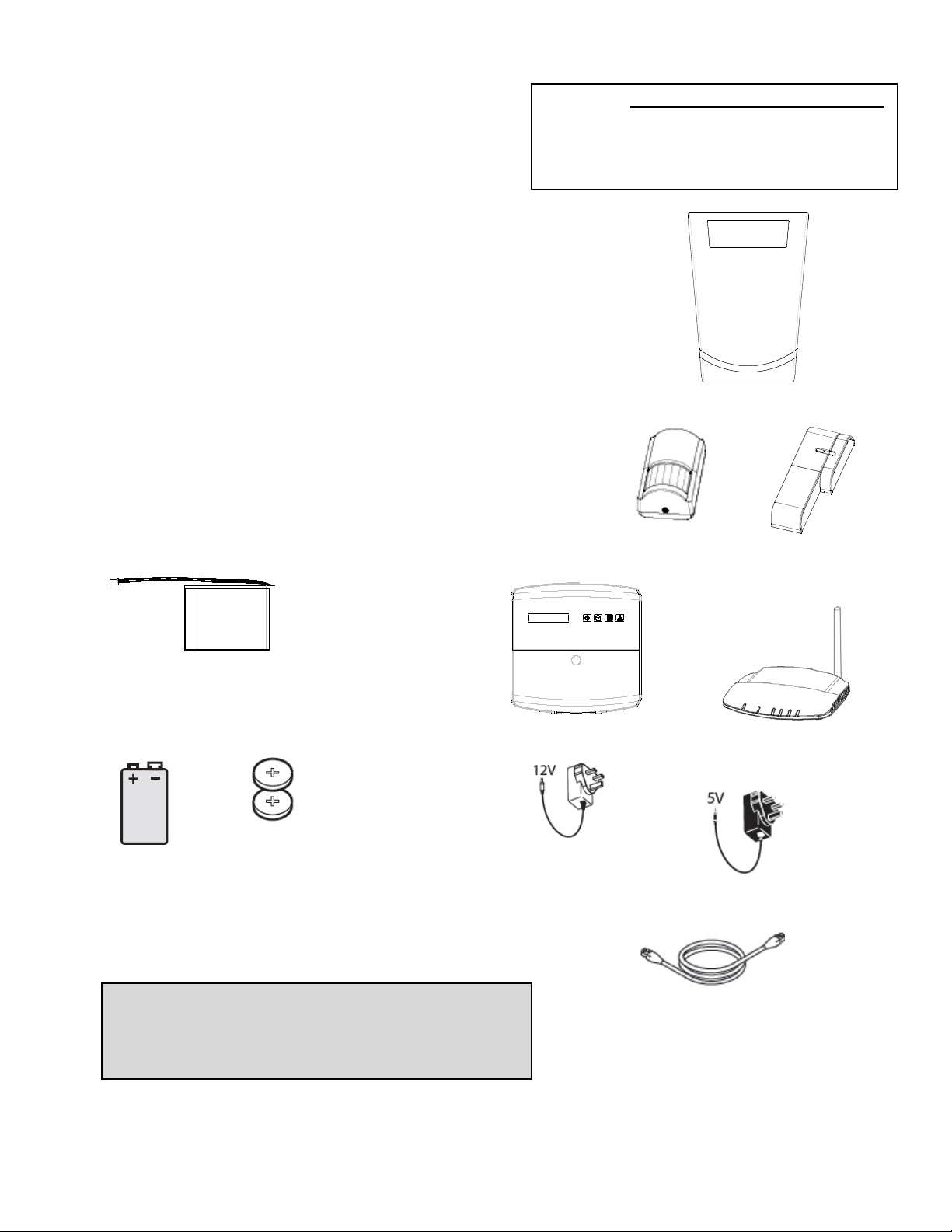

KIT CONTENTS

The Alarm System should contain the following devices

1 x Solar Siren

1 x LCD Control Panel

1 x IP Gateway

1 x Wireless USB Dongle

1 x PIR Movement Detector

1 x Magnetic Door /Window Detector

Also included:

1 x 12VDC Power Supply Adaptor (For Control Panel

and charging Siren)

1 x 5VDC Power Supply Adaptor

1 x 0.5m Ethernet cable

Siren Mounting Template

Quick Start Guide

Fixings Pack

Batteries

Wireless IP

Gateway

Solar Siren

Control Panel

HEALTH WARNING:

Do not put the coin cell battery in your mouth as this could impair

your health. Keep this cell out of reach from young children as

they could swallow it and choke.

2 x NiMH batteries (6V for Control Panel

and 7.2V for Siren)

3V CR2032

Lithium Coin Cells

(for Door/Window

Detector)

9V PP3 Alkaline

Battery (for PIR

Movement

Detector)

PIR Movement

Detector Door/Window

Contact Detector

Ethernet cable

12V DC Power supply

adaptor

5V DC Power supply adaptor

Please visit www.GlobalGuard.Friedland.co.uk

to view an online installation video. Further

details on setup and operation can be found in

both this and the online software manual

INTRODUCTION AND

OVERVIEW

MULTIPLE USERS

The system allows for up to 8 Users, a Master

(Admin) and 7 Users to be configured. This

allows the system Event Log to maintain a

record of which users have armed and disarmed

the system. Each user will have a different User

Access PIN Code.

Only the Admin User has access to the

programming functions and is able to configure

the system.

USER ACCESS PIN CODE

The Control Panel is the brains of the system

and is where the system is programmed and

operated from. A 4 digit PIN code is used to

ensure that only authorized people have access

to the system. This is the User access PIN code

and can be set to a code of your choice that only

you and other authorized system users know.

SYSTEM ARMING

The system has a ‘Fully Arm’, two ‘Part-Arm’

and a ‘Holiday Arm’ modes. Fully Arm and

Holiday Arm will ‘Arm’ all zones while the ‘Part-

Arm’ modes will only arm the zones that are

enabled for the particular Part-Arm mode.

For example:

The system could be configured so that during

night time, ‘Part-Arm-I’ would arm only zones

protecting the lower floor and outbuildings

leaving the upper floor free for movement

without triggering the alarm.

During the day while the property is occupied

‘Part-Arm-II’ could arm only the zones protecting

the outbuildings. However, when the property is

left un-occupied, the ‘Fully Arm’ mode will arm

all zones to protect the entire property, (i.e.

upper and lower floors and outbuildings).

ENTRY/EXIT DELAY

When the system is armed with the Exit-Delay

enabled, no signal from any detector on an

active zone will be able to trigger an alarm until

the Exit-Delay has expired. This enables the

system to be armed from within the property and

allows time for the user to exit the property

without triggering an alarm. If the Exit-Delay is

disabled then detectors on active zones will

immediately be able to trigger an alarm once the

system is armed.

Zones1&2 only have been pre-configured

with an entry/exit delay of 30 seconds

because detectors added on these zones are

Fully & Holiday Arm

Part-Arm-I

Part-Arm-II

typically installed at entry/exit points of your

property.

The system Exit-Delay may be configured for

between 10 to 250 seconds or disabled

completely.

If a detector on a zone with its Entry-Delay

enabled is triggered, then an alarm will not

sound until the Entry-Delay period has expired.

This allows time for the user to re-enter the

property and disarm the system before an alarm

occurs. Generally only the zones on the main

entry route to the property will be configured with

an Entry-Delay. The remaining zones would be

configured with their Entry-Delay disabled

allowing them to immediately initiate an alarm

the instant a detector on the zone is triggered.

The Entry-Delay for each zone may be

configured for between 10 to 250 seconds or

disabled completely.

Note: To conserve power and maximize battery

life the PIR movement Detector will only detect

movement if there has been no movement

detected within the previous 2 minutes.

Consequently the PIR Detector will not become

active until the protected area has been free

from movement for more than 3 minutes.

ZONES

The system incorporates 32 wireless alarm

zones for the connection of a PIR movement or

door/window contact detector per zone used to

independently monitor different areas of the

property. In addition to standard intruder

protection, each zone can also be configured to

operate in alternative modes.

For example:

– ‘Intruder’ mode provides standard intruder

monitoring.

– ‘24-hour Intruder’ mode provides 24 hour

intruder protection for areas where continuous

monitoring is required, (e.g. gun lockers).

– ‘Fire’ mode provides 24 hour monitoring of any

Smoke detectors incorporated into the system.

– ‘Test’ mode allows a zone to be monitored

while the system is armed. If a detector on a

zone is triggered an entry will be recorded in the

Event Log but an alarm will not occur.

In addition there is the facility to connect up to 4

hard wired zones to the Control Panel, each of

which is configurable with most of the features of

the wireless zones.

ZONE LOCKOUT

If a detector on an active zone is triggered while

the system is armed an alarm will sound. After

the programmed alarm duration has expired the

alarm will stop and the system will automatically

reset.

Subsequent detectors triggered will again trigger

an alarm. If a single zone triggers an alarm more

than 3 times then that zone will be ‘Locked Out’

and any further alarm signals from that zone will

be ignored until the system is disarmed.

Note: The ‘Zone Lockout’ feature can be

disabled if required.

QUICK SET

The system may be fully armed in 10 seconds

using the quick set facility, overriding the

programmed exit-delay. This is useful for setting

the system at night when the Exit-Delay warning

beep will be silenced after just a few seconds.

EVENT LOG

The Control Panel incorporates a memory

capable of storing the last 99 system events.

This enables the user to see which user has

Armed/Disarmed the system and if and when

any alarms occurred. The time, date and details

of the event type will be recorded for each

system event.

CHIME

Chime is a low security facility for use when the

system is in Standby mode. If the Chime feature

is ON, and a detector on a zone that has its

Chime function enabled is triggered, the internal

sounder will produce a low volume warning tone.

A typical use of the Chime function would be to

warn that a door or particular area has been

entered.

TAMPER PROTECTION

All security related system devices (except any

Remote Control Units) incorporate Tamper

protection features to protect against

unauthorized attempts to interfere with the

device.

Any attempt to remove the battery cover from

any device (except a Remote Control) or to

remove the Solar Siren or Control Panel from

the wall will trigger the alarm even if the system

is Disarmed (unless the system is in Test or

Program modes).

JAMMING DETECTION

In order to detect any attempts to illegally jam

the radio channel used by your alarm system, a

special jamming detection function is

incorporated into the Control Panel. If this

feature is enabled, an alarm will be triggered if

the radio channel is jammed continuously for

more than 30 seconds or if the system is

jammed for more than 3 periods of 10 seconds

in a 5 minute period. At full alarm it will beep for

3 seconds and will alarm after 10 seconds. At

Part Arm it will beep for 3 seconds.

The jamming detection circuit will constantly

scan for jamming signals. However, it will also

detect and could in extreme cases be triggered

by radio signals from other radio equipment

within range operating on the same frequency

which would not interfere with the normal

operation of your alarm.

If you are planning to operate the Jamming

Detection feature we recommend that you wait

at least 30 days before activating this feature to

allow time for you to become familiar with the

operation of your system.

When activating jamming detection the system

should be monitored carefully for false jamming

alarms for at least 2 weeks before leaving the

Jamming Detection function permanently

enabled.

BATTERY MONITORING

All security devices powered by non-

rechargeable batteries incorporate a battery

level monitoring feature which will warn of a low

battery status.

In addition the Control Panel will also indicate a

low battery status on any PIR (Passive Infra-

Red) movement or Magnetic Door /Window

Detector on the system.

The batteries on any device indicating a low

battery status should be replaced immediately.

HOME AUTOMATION

This system can also accommodate up to 32

wireless receiver home automation devices.

Devices include an ON/OFF Plugin Controller or

Bayonet Lampholder.

These devices are used to simulate the

presence of occupants whilst you are away from

the home.

Otros manuales para Friedland HISK1

Tabla de contenidos

Otros manuales de Sistema de seguridad de Honeywell

Honeywell

Honeywell LYNXR-I Series Instrucciones de funcionamiento

Honeywell

Honeywell Ademco VISTA-20P Manual de usuario

Honeywell

Honeywell Accenta Series Guía de inicio rápido

Honeywell

Honeywell Gamewell-FCI MS-95 Manual de usuario

Honeywell

Honeywell HS3SSXX Manual de usuario

Honeywell

Honeywell Lynx Touch L5100 Manual de usuario

Honeywell

Honeywell LYNX Touch 5100 Instrucciones de funcionamiento

Honeywell

Honeywell Gamewell-FCI E3 Series Manual de usuario

Honeywell

Honeywell VISTA-128BPT Instrucciones de montaje

Honeywell

Honeywell NOTIFIER PAN1-PLUS Manual de usuario

Honeywell

Honeywell Fire Lite Alarms SWIFT Hoja de datos

Honeywell

Honeywell Fire-Lite Alarms MS-9200UDLSC Manual de usuario

Honeywell

Honeywell LYNX Touch Security System Manual de usuario

Honeywell

Honeywell ADE ACCENTA Gen4 Manual de usuario

Honeywell

Honeywell LYNX TouchL5200 Series Manual de usuario

Honeywell

Honeywell 5800WAVE - Ademco Wireless Siren Instrucciones de montaje

Honeywell

Honeywell MAXPRO MPIP2000U Series Instrucciones de montaje

Honeywell

Honeywell ADEMCO 6150V Manual de usuario

Honeywell

Honeywell VISTA 21iPLTE Manual de usuario

Honeywell

Honeywell VISTA-128BPTSIA Manual de usuario

Honeywell

Honeywell Lynx Plus Series Manual de usuario

Honeywell

Honeywell Galaxy Flex V3 Series Guía del usuario

Honeywell

Honeywell Galaxy Dimension Manual de usuario

Honeywell

Honeywell Ademco VISTA-50PUL Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
