OptiCAM-IR

With Opticoax-1

Installation and Setup Guide

K6185 3/05 Rev. A

Table of Contents

••••••••••••••••••••••••••••••••••••••••••

Section 1: General Description

Description........................................................................................................1-1

Features..............................................................................................................1-1

Section 2: Installing the OptiCAM-IR

Warnings and Cautions...................................................................................2-1

Installation ........................................................................................................2-1

Section 3: Opticoax-1

Description ........................................................................................................3-1

Section 4: Specifications

Specifications....................................................................................................4-1

Section 5: Troubleshooting

Troubleshooting ...............................................................................................5-1

1-1

SECTION 1

General Description

••••••••••••••••••••••••••••••••••••••••••

The OptiCAM-IR is a low-voltage camera that provides high quality video.

The OptiCAM-IR has the following features:

• Excellent performance in all light levels.

• Reflective booster increases LED output by 30 percent.

• IR LEDs effective over 10 meters distance.

• CDS sensor activates IR LEDs only as needed.

• Weatherproof and waterproof for “all-season” operation.

• Constructed of corrosion-free aluminum for long life.

• Adjustable sunshield for increased camera versatility.

• Color by day, black and white by night.

OptiCAM-IR Installation and Setup Guide

1-2

2-1

SECTION 2

Installing the OptiCAM-IR

••••••••••••••••••••••••••••••••••••••••••

The following warnings and cautions must be observed when installing and

using the OptiCAM-IR camera.

• Do not position LED light directly on the eyes when the LEDs are on.

• Do not use improper power; fire or electric shock could result.

• Do not disassemble the camera; fire or electric shock could result.

• In the event that during camera use, a malfunction such as smoke or

extreme heat is detected, immediately stop using the camera; fire or

electric shock could result.

• Installation should only be accomplished by a qualified service person.

• Do not disassemble the unit. If a problem occurs within the unit please

contact the service center.

Install the OptiCAM-IR as follows:

1. Attach the mounting bracket (Figure 1) to the camera (Figure 2). Attach

the mounting bracket to the hole below or over the camera tightly.

NOTE: If you want to attach the mounting bracket to the hole over the

camera, you should do that after removing the screw to fix the sun visor

(Figure 3).

OptiCAM-IR Installation and Setup Guide

2-2

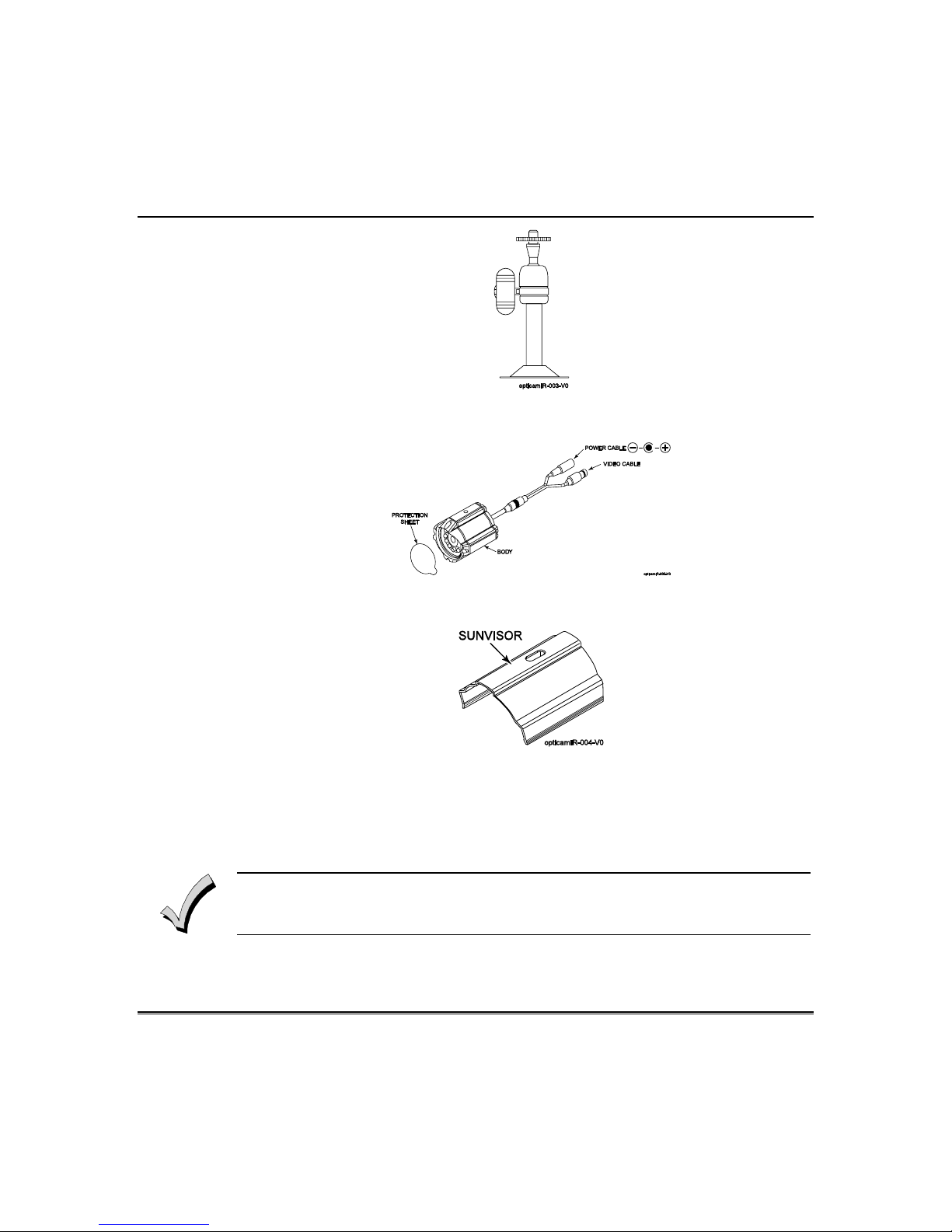

Figure 1. Mounting Bracket

Figure 2. Camera

Figure 3. Sun Visor

2. Install the camera on the wall or ceiling.

3. Connect the video cable of the camera to the monitor

The power supply should have a regulated, 12VDC, 500mA output. The power

should be connected after the camera has been installed.

4. Connect the power cable to the power supply adapter.

3-1

SECTION 3

Opticoax-1

••••••••••••••••••••••••••••••••••••••••••

Opicoax-1 (Figure 4) is a single camera adapter that allows any standard

BNC camera such as the OptiCAM-IR to be converted to an RJ-45 connection

for CAT-5 cabling to an Optiflex Video Controller.

Figure 4. Opticoax-1

OptiCAM-IR Installation and Setup Guide

3-2

4-1

SECTION 4

Specifications

••••••••••••••••••••••••••••••••••••••••••

Camera Type

Image Sensor

Effective Pixel

Cell Size

Horizontal Resolution

TV Type

Sync Type

Scanning System

Video Output

Gamma Characteristic

Min. Illumination

S/N Ratio

Gain control

IRIS

Shutter Speed (Electronic)

Test Illumination Area

Power Supply

Current Consumption

Operation Temperature

Preservation Temperature

LED

LENS

Dimensions

Weight

¼ - inch Color CCD Camera

¼ - Inch 270K Color CCD

510 (H) x 492 (V) Pixel (NTSC)

7.2µm (H) x 5.6µm (V) (NTSC)

350 TV-LINE

NTSC

Internal

2:1 Interlace

1Vp-p (Sync, Negative) Termination 75Ω

ν= 0.45 typical

1 Lux (LED off)

48db over (AGC off)

Automatic Gain Control

Electronic

1/60 to 1/100,000 second

Average test illumination by front view

Regulated 12VDC, 500mA

Max. 150mA (12VDC, LED off), Max. 330mA (12VDC, LED on)

-10 BC to 50 BC

-20 BC to 60 BC

IR LED

3.6mm fixed focal lens

69.7mm (W) x 92mm (H)

1,200g (with 60 ft cable), 350g (with 6 ft cable)

OptiCAM-IR Installation and Setup Guide

4-2

Figure 5. Equipment Dimensions(in millimeters)
