Honeywell NetAXS-123 Guía de solución de problemas
800-05780-V5A | December 2017
Quick Startup Guide
This document describes the basic setup, wiring, and configuration steps for getting started with a NetAXS-
123 access control system.
Setup Process
1. Preparing to Start Up
2. Connecting Devices
3. Powering Up
4. Connecting to the Web Server
5. Logging In to the System
6. Configuring the System
2 | NetAXS-123 Quick Startup Guide
www.honeywellaccess.com
Preparing to Start Up
ON
12345678910
ON
ON
12 3456 7 8 910
Verify
2
PoE
12V DC
OR
OR
Select
(default)
(default)
1
3
IP/Ethernet
Micro USB
Select
4
Configure
Power relay:
Relay type:
+12 V
EXT
NC
NO
Whetted 12 V DC
+12 V
EXT
NC
NO
External (EXT) Power
+12 V
EXT
NC
NO
Normally Closed (NC)
+12 V
EXT
NC
NO
Normally Open (NO)
Setup Process | 3
800-05780-V5A | December 2017
Connecting Devices
ON
12345678910
ON
Reader(s)
1
2
Input devices
3
Output devices
4
Communications
OR
IP/Ethernet
Micro USB
4 | NetAXS-123 Quick Startup Guide
www.honeywellaccess.com

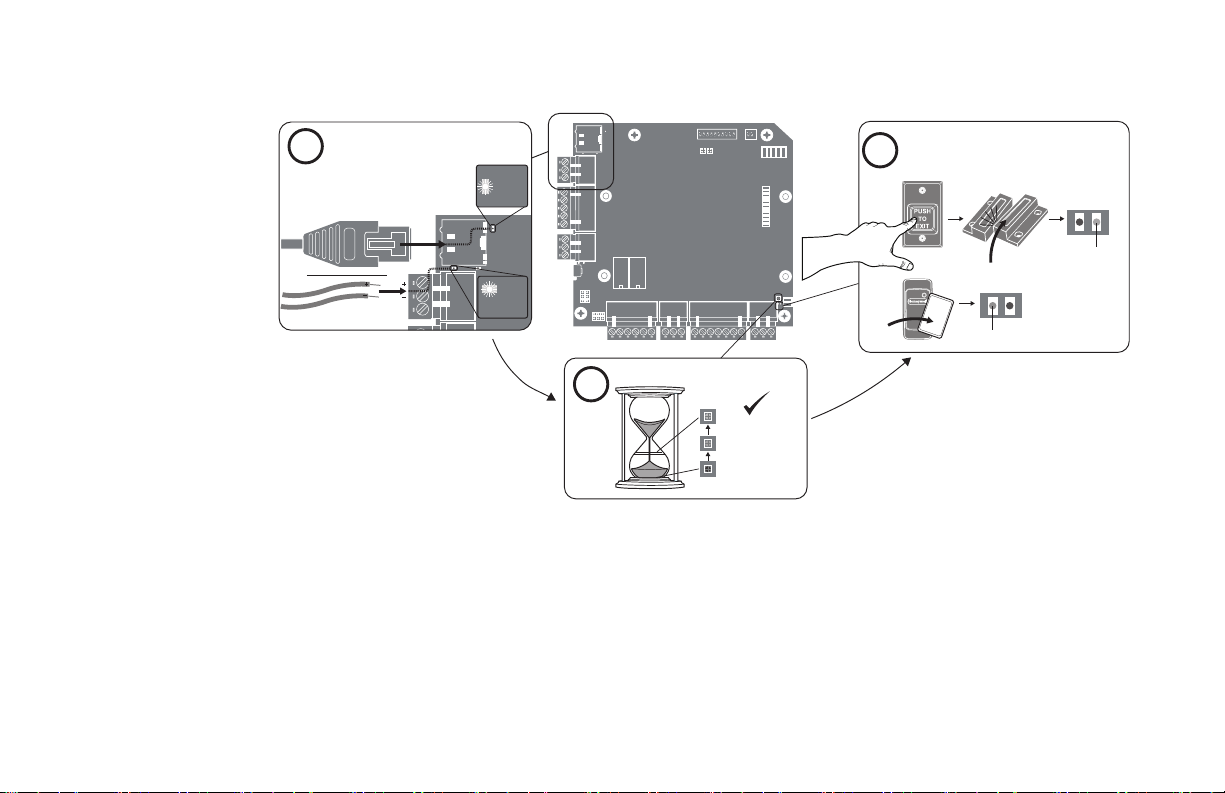

Powering Up
ON
123456 7 8 910
ON
Supply PoE or 12 V DC
1
OR
PoE LED
12 V DC
LED
2
Observe - RUN LED
Off
Red
Flash
Green
0s
3
Test panel and wire connections
2
Observe power up
Flash Green
Flash Blue
Status LED
Reader LED
Setup Process | 5
800-05780-V5A | December 2017
Connecting to the Web Server
Note These steps are for computers with Windows 7 operating system.
The steps for other operating systems might be slightly different.
1. Click Start > Control Panel.
2. Click Network and Sharing Center.
3. Click Change adapter settings.
4. Identify your local Ethernet connection (Local Area Connection) and double-click on the link. .
5. Click Properties.
6. Highlight the Internet Protocol (TCP/IPv4).
7. Click Properties. View your system’s current IP properties.
8. Select Use the following IP address.
9. Enter 192.168.1.10 in the IP address field.
10. Enter 255.255.255.0 in the Subnet Mask field.
6 | NetAXS-123 Quick Startup Guide
www.honeywellaccess.com
Logging In to the System
1. Open an Internet browser.
Note Honeywell recommends Google Chrome™.
2. Enter https:// and the panel’s IP address in the address box. A message warns that the connection is not
private.
IP/Ethernet > https://192.168.1.150
USB > https://192.168.2.150 (fixed)
Setup Process | 7
800-05780-V5A | December 2017
3. Click Advanced. An explanation appears.
4. Click Proceed to 192.168.1.150.
5. The Sign In screen opens.
8 | NetAXS-123 Quick Startup Guide
www.honeywellaccess.com
6. Enter admin in the Username and Password fields. Change the password for security.
Setup Process | 9
800-05780-V5A | December 2017
7.Click SIGN IN. The NetAXS-123 Dashboard appears.
10 | NetAXS-123 Quick Startup Guide
www.honeywellaccess.com
Configuring the System
1. Set the Communication
2. Set the Time
3. Create Schedules
4. Configure Spaces and Doors
5. Add People and Cards
6. Create Access Groups
1) Set the Communication
Note EVL mode is preferred. If you switch to EVL mode, the panel automatically reboots.
