TrueEASE™ Humidification System
PROFESSIONAL INSTALLATION GUIDE
INCLUDED IN THIS HUMIDIFIER BOX
Tools needed to install humidifier
Wire cutter/stripper
Tin snips or sheet metal cutter
#8 hex nut driver
Standard screwdriver
18-gauge wire (up to 5 conductor)
Other Requirements
If floor drain is not available, refer to Appendix B for
additional plumbing parts consideration.
If installed in or above a finished space, Honeywell
recommends installing a drip pan with water
sensor shut-off.
A1Humidifier Bypass
A2Humidifier Fan
Saddle valve
Water supply line
Drain hose (10 feet)
EOwner’s manual
FMounting template
GH8908 manual humidity control
Hardware (not pictured)
Additional accessories included in select
models
E
A1A2
F G
GETTING
STARTED MOUNTING PLUMBING WIRING APPENDICES
OPERATION
AND SERVICE
Cross Reference Table
Humidifier Honeywell® Aprilaire® GeneralAire®
HE100 and HE150 HE225 500 570
HE200 and HE250 HE265 600 900
HE300 HE365 700 1000
Humidifier
NEED HELP? For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502.
Read and save these instructions.
® U.S. Registered Trademark. Patents pending. Copyright © 2011 Honeywell International Inc. All rights reserved.
?
Humidifier 69-2413EF—05
GETTING
STARTED MOUNTING PLUMBING WIRING APPENDICES
OPERATION
AND SERVICE
1
GETTING STARTED
Safety Definitions and Precautions .............. 2
What to Expect From Your Humidifier ............ 3
Important Installation Requirements ............. 4
MOUNTING
Choosing a Mounting Method .................. 5
STEP ONE: Select the Mounting Location...... 6
STEP TWO: Install Mounting
Template to the Duct .................... 6
Bypass Model Installation ..................... 7
STEP THREE: Configure
Humidifier Bypass ...................... 7
STEP FOUR: Installation ................... 8
STEP FIVE: Bypass Duct Installation.......... 9
Fan Model Installation ....................... 10
STEP THREE: Installation ................. 10
Humidifier Control Installation ................. 11
OPTION ONE: Duct Installation
H8908 Humidistat ..................... 11
OPTION TWO: Remote Installation
H8908 Humidistat ..................... 12
PLUMBING
Water Supply and Drain Connections ........... 13
STEP ONE: Connect the Water Supply ....... 13
STEP TWO: Tap into a Water Line ........... 13
STEP THREE: Connect to the Water Drain .... 14
WIRING
Before Wiring Humidifier ..................... 15
STEP ONE: Remove the Humidifier Cover .... 15
STEP TWO: Understand the Wiring Terminals .. 15
STEP THREE: Understand the DIP Switches .. 16
STEP FOUR: Install the Transformer
(Bypass Models Only) .................. 16
STEP FIVE: Wiring Humidifier .............. 16
Wiring Configuration: Advanced Models
(HE150/HE250/HE300) ...................... 17
Wiring Configuration: Basic Models
(HE100/HE200) ............................ 19
OPERATION AND SERVICE
Startup and Checkout ....................... 21
Routine Maintenance........................ 22
Troubleshooting ............................ 23
APPENDICES
A: Specifications ........................... 24
B: Advanced Draining ....................... 25
C: Parts List ............................... 26
GETTING
STARTED
Safety Definitions and Precautions
Safety Definitions
These safety terms identify information you must read prior to installing or operating the humidifier.
CAUTION: Indicates a hazardous situation which, if not avoided, could cause bodily injury
or property damage.
WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Safety Precautions
Make sure you read and understand the following safety hazards before installing, using, or working with the
humidifier:
CAUTION: Voltage Hazard.
Can cause electrical shock or equipment damage.
Disconnect HVAC equipment and any electrical outlet being used for the humidifier installation.
WARNING: Electrocution and Water Hazard.
Can cause death, blindness, and water damage to the home and HVAC Equipment.
CAUTION: Condensation, Fire, and Freezing Water Hazard.
Can cause failure of fan or limit control or result in water damage to home.
Humidifier 69-2413EF—05
2
GETTING
STARTED
The installer should review these points with the homeowner and answer any questions they have before leaving
the job site.
• Achieving Humidity Setpoint. It may take up to a week of continuous operation to achieve the humidity
setpoint, especially if the home is dry when the humidifier is installed. This also depends on such factors as
weather, size of home, furnishings in the home, and insulation.
• Ideal Humidity. Home building industry experts cite 35% relative humidity as ideal for comfort and
safeguarding the home during the typical dry season. Homeowners can adjust to their own comfort or until
there is condensation on the windows. Lower the setpoint if condensation appears.
• Unit Not Humidifying. If the humidifier is not running but the humidity is below the setpoint, the humidity
control may have a frost protection setting to prevent window condensation from appearing.
• Home Ventilation. Excessive ventilation sends moist air outside and replaces it with dry air. This can make it
hard to maintain the humidity setpoint. If installing a ventilator, use a solution that retains moisture. An Energy
Recovery Ventilator (ERV) is recommended.
• Cleaning Requirements. At least once per year it is recommended to change the humidifier pad and clean
the water trays of the humidifier. See Operation and Service section for details.
• Energy Consumption. It is important to explain that with any humidification solution there is a cost
associated with converting water to humidity. The humidifier utilizes the air heat and air flow in your ducting to
make this conversion, which has gas and/or electric costs that depend on your HVAC system type and setup.
What to Expect From Your Humidifier
Humidifier 69-2413EF—05 3
GETTING
STARTED
Personal Safety
• Wear safety glasses while installing the humidifier.
• Do not cut into any air conditioning or electrical line.
• Follow professional safety standards and all local regulations for plumbing, electrical, and mechanical
considerations.
Mounting Location
• Mount the humidifier in a level position to avoid water damage and ensure maximum output.
• Location must have access to a water line, drain, and power.
• Do not install the humidifier where the ambient temperature is lower than 34°F (1.1°C) or higher than 90°F
(40°C).
• Mounting area must be strong enough to support humidifier weight (up to 16 lbs [Fan] or 10 lbs [Bypass]).
• Do not mount directly to ductboard.
• If used near a pool or spa, make sure the humidifier can not fall into the water or be splashed.
• Ensure that the top and bottom covers of the humidifier can be removed and that the pad is accessible from
the chosen location.
Water Supply and Drainage
• Consult local plumbing codes for drain size, material, and maximum temperature allowed.
If Replacing an Old Bypass Humidifier
The humidifier is not identical in size and shape to other Honeywell bypass humidifiers. Before performing a
retrofit installation, you might need to:
• Dry-fit the humidifier to the existing ducting, plumbing, and wiring before fastening it to the duct to ensure that
the existing connections will reach the humidifier.
• If the duct opening of the old humidifier is not the right size for the humidifier, choose a new location or cover
the old opening with a piece of sheet metal and cut a new opening specifically for the humidifier using the
template provided.
Important Installation Requirements
Failure to comply with these requirements will result in voided warranty, improper installation, and
service callbacks.
Cross Reference Table
Humidifier Honeywell® Aprilaire® GeneralAire®
HE100 and HE150 HE225 500 570
HE200 and HE250 HE265 600 900
HE300 HE365 700 1000
Humidifier 69-2413EF—05
4
MOUNTING

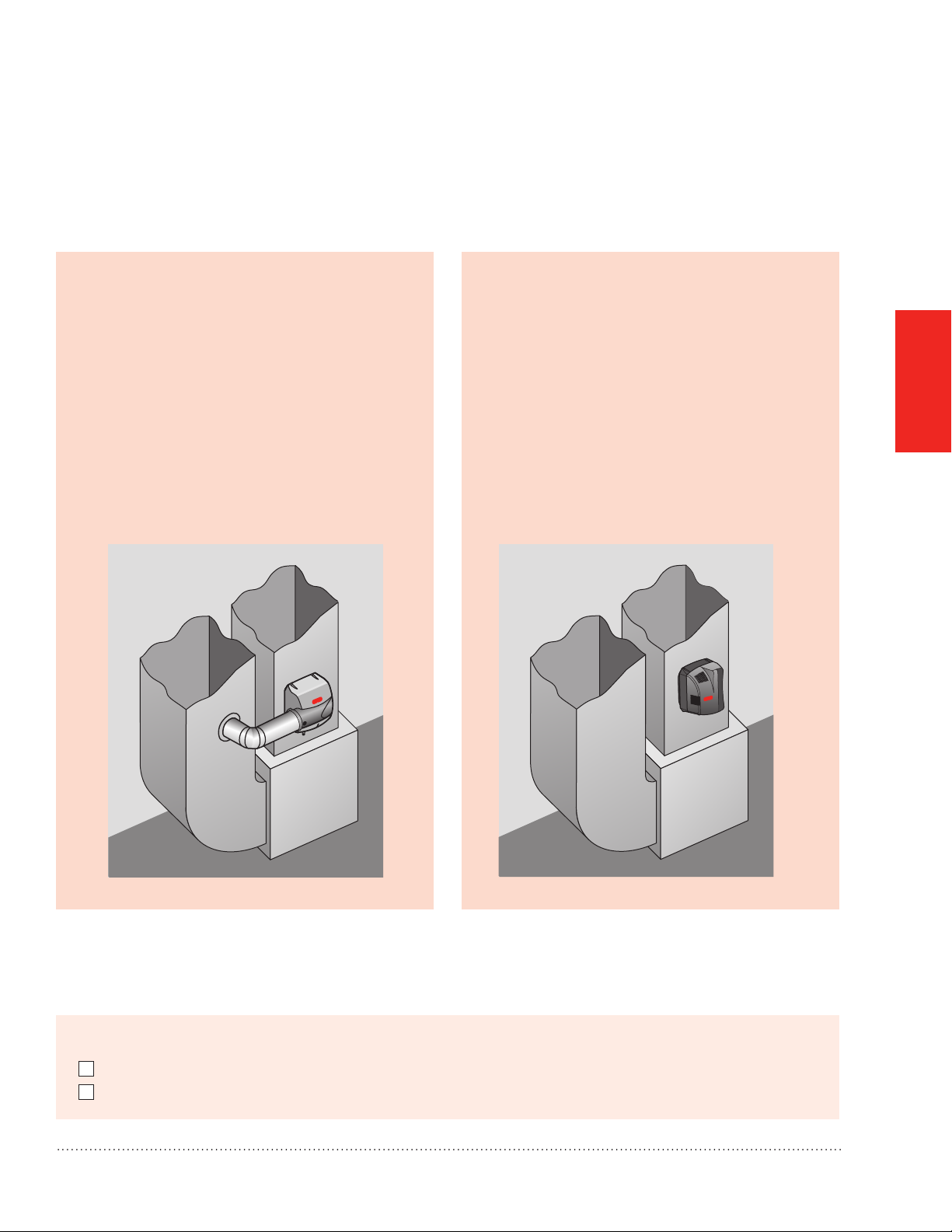

Whether you purchased a Bypass or Fan humidifier will determine how your humidifier will be installed:
Which humidifier do you have?
Bypass:
Bypass humidifiers use the pressure difference
between the supply and return to move duct
air through the humidifier. Access to both the
supply and return are required. The bypass
humidifier can be positioned on either the
supply or return duct.
MCR29871
Fan:
Fan humidifiers use the fan inside the humidifier
to pull duct air through the humidifier. Honeywell
strongly recomends mounting the HE300 on
the supply duct for maximum humidification
capacity. If a return duct installation is required,
a trap must be installed in the drain line. A hard
trap is recommended, but a coil in the line,
secured with tape or zip tie, is also acceptable.
See Water Supply and Drain Connections
section for details.
MCR29929
Choosing a Mounting Method
Before beginning Mounting:
I have confirmed local codes for proper plumbing practices.
I have chosen an installation location that meets the requirements on page 4.
Humidifier 69-2413EF—05 5
MOUNTING

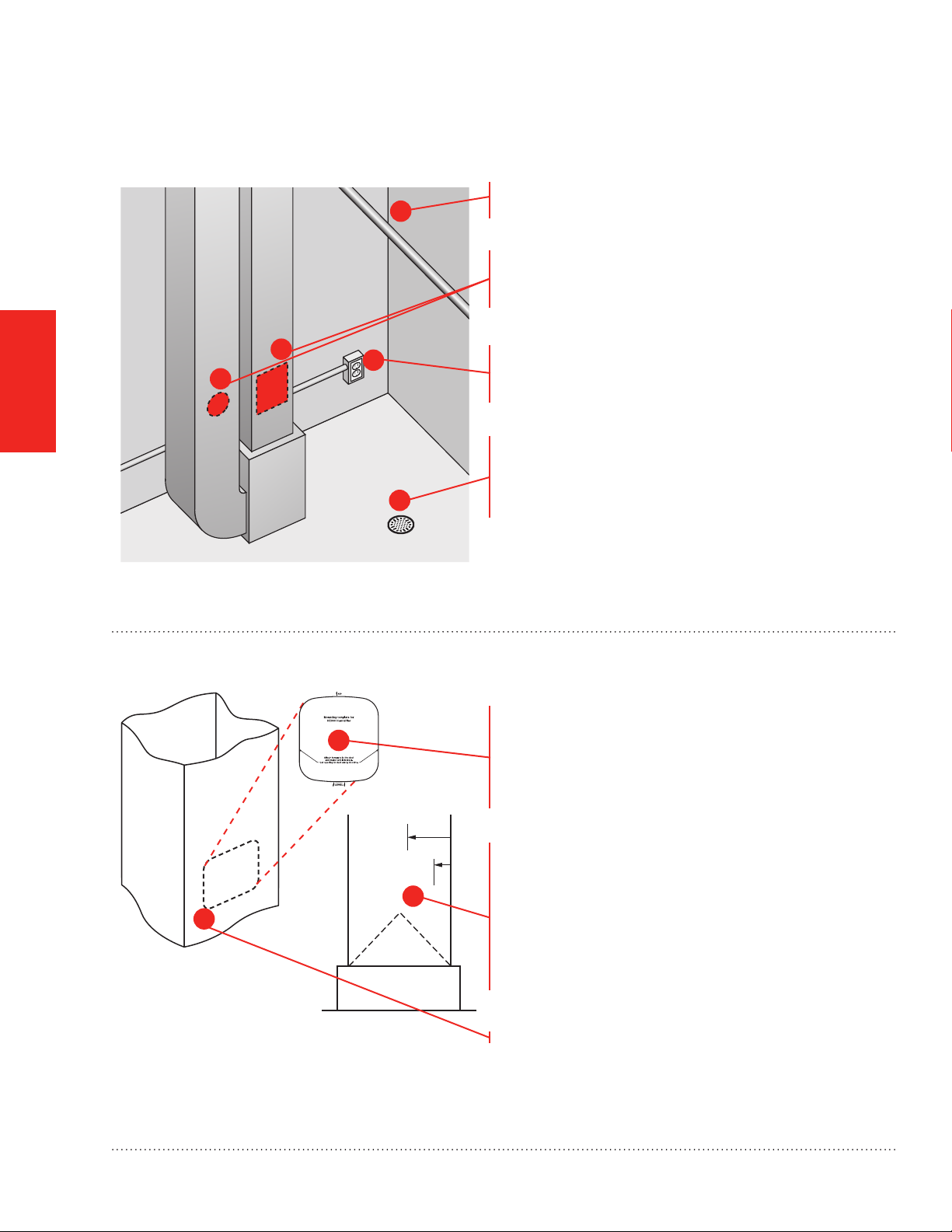

STEP ONE: Select the Mounting Location
Choose a location that has access to a water supply
pipe. Cold or hot water can be used.
Select a vertical or horizontal surface on the HVAC
duct work, with adequate space clearances, where
the humidifier can be mounted.
Location must also have access to 120 VAC power.
For the HE300 Fan humidifier, the power cord is 6 feet
long.
Ensure the location is near a drain. Consult local
plumbing codes for proper drainage. If no main
floor drain is available, see “Appendix B: Advanced
Draining.”
STEP TWO: Install Mounting Template to the Duct
Position the template on the duct.
• Make sure the template is level and in the desired
position on the duct. Peel adhesive backing
and press template firmly into place in desired
mounting location.
Ensure proper clearances from the air-conditioning
coil inside the duct.
NOTE: The HE300 Fan model extends into the duct
1-3/4 inch. Bypass models extend into the duct 1/2
inch. Ensure clearance inside the duct.
• For best performance, maintain at least 24 inches
downstream of open air space inside the duct.
Cut the sheet metal, following the template outline.
MCR29877
M29873
1
M29874
A-COIL
1-3/4
(44)
1/2
(13)
FAN
BYPASS
4
2
2
3
3
2
1
M32930
Humidifier 69-2413EF—05
6
MOUNTING
STEP THREE: Configure Humidifier Bypass
Configure the humidifier bypass outlet to the side that
best fits the application.
If the bypass needs to be on the other side, remove
the top and bottom covers
Unplug the damper wire and plug in on the other side
(HE150/HE250 only).
Pull the bypass clamps apart from center to remove
the bypass; snap it back into place with the outlet on
the desired side.
Ensure that the pad is accessible. The handle of
the pad holder and side panel of the humidifier can
be switched so the pad holder can be removed
(opposite side of the bypass duct opening).
To remove the handle for the pad holder, slide it
toward the back of the humidifier, then pull it away
from the humidifier.
To remove the opposite side panel, place a
screwdriver into the two slots on the back of the
humidifier, and pop the panel off.
Snap the pad holder handle and side panel back into
place in the desired configuration.
MCR29875
If you are installing HE300 Fan model, proceed to page 10.
Bypass Model Installation
MCR29876
1
1
2
2
3
3
MCR29946
4
5
Humidifier 69-2413EF—05 7
MOUNTING
STEP FOUR: Mounting
Secure the support hooks on Bypass models to the
bottom lip of the hole.
Push the top of the humidifier back against the duct.
Verify the humidifier is level and fasten the humidifier
to the duct using two self-drilling sheet metal screws
provided.
MCR29870
2
1
Bypass Model Installation
Humidifier 69-2413EF—05
8
Otros manuales para TrueEASE
2
Tabla de contenidos
Idiomas:
Otros manuales de Humidificador de Honeywell
Honeywell
Honeywell enviracaire Elite HE225A Manual de operación
Honeywell
Honeywell HEV312 SERIES Manual de usuario
Honeywell
Honeywell HE440A Manual de usuario
Honeywell
Honeywell TrueEASE HE100 Manual de operación
Honeywell
Honeywell HE120A Manual de usuario
Honeywell
Honeywell REFLECTION HUL900BC Manual de usuario
Honeywell
Honeywell HWM845B Manual de usuario
Honeywell
Honeywell HWM 500 - UV Warm Moisture Humidifier Manual de operación y mantenimiento
Honeywell
Honeywell HCM300T - Quiet Care 3.0 Gallon Ultraviolet Tower... Manual de usuario
Honeywell
Honeywell HE360B Manual de operación
Honeywell
Honeywell HWM910 - ENVIRACAIRE Warm Moisture 2 Gallon... Manual de usuario
Honeywell
Honeywell REFLECTION HUL900 Series Manual de usuario
Honeywell
Honeywell enviracaire Elite HE225A Manual de operación
Honeywell
Honeywell HWM-340 Series Manual de usuario
Honeywell
Honeywell HCM-750-TGT Manual de usuario
Honeywell
Honeywell HE120A Manual de operación
Honeywell
Honeywell ULTRA PLUS HUL565 Series Manual de usuario
Honeywell
Honeywell TrueSTEAM HM506 Manual de usuario
Honeywell
Honeywell HCM-631N - Quietcare 3 Gallon Manual de usuario
Honeywell
Honeywell enviracaire Elite HE225A Manual de usuario
