QUICK START GUIDE

33-00162-01

HM700A1000

ELECTRODE STEAM HUMIDIFIER

MOUNTING

Mounting Procedure

1. The HM700 humidifier is wall mounted using a key-

hole located on the back of the humidifier.

2. Use #8 x 2 in. (5 cm) screws mounted into 2x4

studs or better if there is drywall or other spacers.

Two screws are needed, one for hanging the unit

and one for securing it so it will not lift off the

keyhole.

3. Install the top screw so that 1/4 in. (6 mm) is

exposed. Raise the unit and place the screw head

through the keyhole.

4. Make sure the unit is level and then insert and

tighten the second screw through the bottom hole.

Tighten the top screw.

Mounting Requirements

Honeywell does not accept responsibility for installation

code violations.

1. Install as close as possible to the steam distributor.

2. Minimize the use of turn or bends in the steam line

as much as feasibly possible.

3. Mount on a suitable wall or vertical surface. Do not

sit the on the floor, where freezing can occur, or on

vibrating surfaces.

4. Allow clearances for plumbing and electrical con-

nections. Consult local and national codes prior to

final location and installation.

5. Install only in areas with ambient temperature

41-104 °F (5-40 °C), and relative humidity 5-95 %

(noncondensing).

6. When possible, mount the HM700 humidifier at a

height convenient for servicing.

Fig. 1. Mounting.

36 in. (92 cm)

duct model

min. front clearance

24 in.(61 cm)

min. height

Mount humidifier

level

As close as

possible to steam

distributor

5-95%

HM700A1000

33-00162—01 2

PLUMBING

Water Supply Requirements

Honeywell does not accept responsibility for installation

code violations. All drain and fill line connections should

be installed in accordance with local plumbing codes by a

licensed plumber.

1. Use 1/2 in. OD copper or plastic supply lines within

4 feet of the humidifier.

2. Install water shut off valve and coupler to facilitate

servicing.

3. Do not use reverse osmosis or de-ionized water.

4. Flush supply lines with fresh clean water after

installing, prior to operating the humidifier.

5. Do not solder/braze copper lines while connected to

the humidifier or the fill solenoid can melt or deform.

6. Water conditions must meet the following criteria for

optimal operation, consult factory for water

conditions outside of this range.

a. Pressure: 30 to 100 PSIG

b. Conductivity: 150-1200 Microsiemens

c. Temperature: 34-68 °F/1-20 °C

d. Hardness 0-10 GPG and Silica 0-4 PPM

–OR–

Hardness 0-3 GPG and Silica 0-14 PPM

Drain Line Requirements

1. Use 7/8 in. copper. Do not use PVC.

2. Install an air gap within three feet of the humidifier.

A copper reducer from 2-1/2 to 7/8 in. is ideal. Do

not allow the drain hose to bottom out in the funnel

cup.

3. The drain line should not end in a sink used

frequently by personnel, or where plumbing codes

prohibit it. Route to a floor drain or equivalent for

safety reasons.

4. Ensure drain line is adequately sloped and sized to

provide free and easy draining.

Fig. 2. Plumbing.

1/2 IN. (30 MM) OD

ALWAYS INSTALL A

WATER SHUT-OFF VALVE.

USE 1/4 IN. COMPRESSION

FITTING (INCLUDED) TO

CONNECT WATER SUPPLY

LINE TO UNIT (LDPE PLASTIC

OR COPPER).

USE 1/2 IN. OD COPPER TO

WITHIN 4 FT (1.2 M) OF HUMIDIFIER.

M35760

FILL AND DRAIN LINES CAN ALSO BE

ROUTED THROUGH OPENING IN BACK

OF CABINET.

HM700A1000

333-00162—01

ELECTRICAL

CAUTION

Wiring to be performed by a licensed electrician.

This unit must be installed on a GFI Circuit.

CAUTION

Equipment Damage Hazard

Failure to wire the humidifier in accordance with

the wiring instructions could cause permanent

damage. Such errors will void the warranty.

Install Requirements

Honeywell does not accept responsibility for installation

code violations.

1. All electrical connections to the humidifier are to be

done while the unit is switched off, and the external

disconnect is open.

2. Wiring should be done by a licensed electrician.

3. Install a labeled disconnect switch within view of the

humidifier.

Installation Steps

1. Unit requires a dedicated circuit with GFI protection.

Bring circuit to a disconnect near the device to pro-

tect from electrical shock when servicing.

2. Hard wire humidifier to disconnect according as

shown at right.

3. Install factory-supplied jumper between the P termi-

nal and the terminal that corresponds to supply volt-

age.

4. Remove green wire attached to case body and

drain valve (remove canister for access).

5. Clip ground wire as close to drain valve as possible

and remove excess.

Fig. 3. Primary power connection.

NOTES:

— Honeywell requires the use of a GFI circuit on this device to protect the homeowner from electrical shock.

— When installed correctly, the green wire should be removed from the drain valve. The green wire comes

pre-installed from the factory to protect the homeowner in case of an improper installation or when it is not

possible to retrofit a GFI circuit.

— Ensure that adequate power is available to carry full humidifier amp draw as indicated on the specification

label.

— Do not use neutral wire as a ground; connect a dedicated ground to ground termination.

— All wiring to be in accordance with national and local electrical codes.

Hot

Ground P

240

120

Ground

240 VAC (1 PHASE)

120 VAC (1 PHASE)

Neutral

Hot

Ground P

240

120

Ground

Note:

(Optional)

Connect 120 VAC,

“Hot”, to L1

Note: Power wires can

also be routed through

opening in back of cabinet

HM700A1000

33-00162—01 4

STEAM DISTRIBUTION

Install Requirements

The following instructions must be followed for installation of steam lines for the HM700. Failure to use recommended

material and exceeding maximum recommended length in Table 1, or failure to follow any other steam line installation

instructions will result in improper operation and could void the warranty.

Table 1. Recommended Steam Line Material for HM700 Duct.

*The use of steam line other than copper, stainless steel tube or Honeywell supplied steam line will void the warranty

and may adversely affect the operation of the humidifier.

*When using copper or stainless steel tubing (other than the supplied tubing), insulation is recommended due to high

temperature safety as well as reduced condensate.

To return condensate for HM700, insert copper tube

(supplied with equipment) half way into the condensate

opening of the fill cup along with the spring clamp

(supplied with equipment).

Insert the condensate hose into the condensate return

hole at the top of the HM700, and over the copper tube.

Fasten in place with the spring clamp.

MAIN RULES FOR ATMOSPHERIC STEAM LINES

• Steam lines must not have any restrictions which could result in back pressure.

• Follow recommended materials, size and length, see tables.

• Install steam line in a vertical (upwards) fashion from the HM700 to the distribution nozzle.

• Insulate with 1.0 in. (2.5 cm) pipe insulation.

• Trap condensate (Use full size ‘T’ for Traps)

• Do not over tighten hose clamp at cylinder steam outlet. The maximum torque is 12 in-lbs.

• Support steam line so weight is not on cylinder.

• Condensate traps must be a minimum of 6 in. (15 cm) in height or duct static pressure +2 in. (5 cm), whichever is

greater.

• Trapping by P-trap or pigtail. Support line as necessary to ensure it remains free of kinks.

Voltage

Steam Output Material*Maximum Steam

Line Length Possible Losses

lbs/hr (kg/hr)

Steam

Hose

MED-L

Copper

Tube

Stainless

Steel Tube ft (m) lbs/hr (kg/hr)

110/120V 3.85 1.75 (7/8”) 3/4 in. 0.875 X

0.049W

7 (2) 0.5 (0.2)

220/240V 7.7 3.5 12 (3.5) 1.5 (0.7)

HM700A1000

533-00162—01

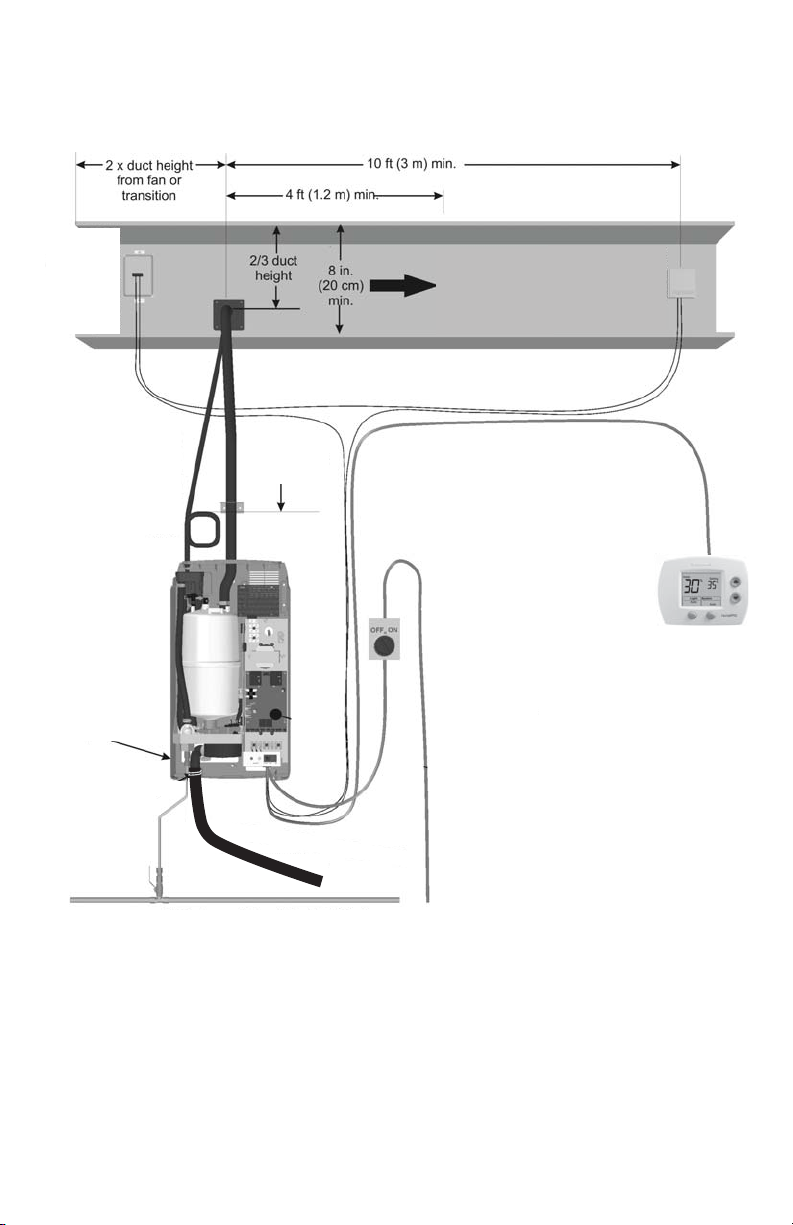

INSTALLATION CHECK

Before turning on power to the HM700, inspect the installation to ensure that it was carried out correctly.

Fig. 4. Installation check.

Fused Disconnect

Correct voltage / amps /

phase per spec label

(optional)

Mounting

- Unit level

- Screws into

structural member

Steam Line

- Adequate slope

- No restrictions

- No kinks in hose

- Condensate traps

on long runs

High Limit

On/Off

(optional)

In series between

terminals 1 and 2.

Jumper between terminals

1 and 8 must be removed.

Note:

U or HUM terminals in series

between terminals 1 and 2

Humidity Control

in return duct or

location which

represents humidified

space (no drafts, not

by door, not by

diffuser)

Air Proving

(optional)

In series between

terminals 1 and 2.

Jumper between

terminals 1 and 8

must be removed.

1/2 in. line (minimum) to within 4 ft (1.2 m)

30-100 PSIG

Spec Label

Air Gap

P Trap

with 12 in (30 cm)

minimum drop

Bend, or other

obstruction

HM700A1000

33-00162—01 6

HM700A1000

733-00162—01

HM700A1000

Automation and Control Solutions

Honeywell International Inc.

1985 Douglas Drive North

Golden Valley, MN 55422

customer.honeywell.com

® U.S. Registered Trademark

33-00162—01 M.S. 11-15

Printed in United States

For more information on maintenance and replacement,

please visit http://yourhome.honeywell.com

or call 1-800-468-1502 or 1-800-814-9452
