Honeywell ScanPal EDA51 Manual de usuario

ScanPal™ EDA51

powered by Android™

Quick Start Guide

EDA51-A-EN-QS-01 Rev A

11/19





1

Out of the Box

Make sure that your shipping box contains these items:

• ScanPal EDA51 mobile computer

(Model EDA51-0 or EDA51-1)

• Rechargeable Li-ion battery (see page 7)

• Hand strap (optional)

• Product documentation

If you ordered accessories for your mobile computer, verify that

they are also included with the order. Be sure to keep the original

packaging in case you need to return the mobile computer for

service.

Note: EDA51-0 models do not include a WWAN radio.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC)

industrial grade microSD™ or microSDHC™ memory cards with

ScanPal mobile computers for maximum performance and

durability. Contact a Honeywell sales representative for

additional information on qualified memory card options.

2

Mobile Computer Features

Power Indicator

Touch Panel

Return Key

Scan Status LED

Home Key

Function Key

Speaker

USB Cover

I/O Connector

Microphone

3

Scan Button

Battery Cover

Laser Safety

Label Location

Volume Button

Battery Latch

Scan Engine

Camera Lens and

Flash

Speaker

4

Remove the Battery Cover

12

3

4

5

5

Install a Nano SIM Card

Only EDA51-1 (WWAN) models support Nano SIM card use for

cellular phone feature.

Note: Always power off the computer before attempting to install or

remove a card.

Card Cover

SIM

SIM Card

6

Install a MicroSD Card (Optional)

Note: Format the microSD card before initial use.

Note: Always power off the computer before attempting to install or

remove a card.

MicroSD

7

About the Battery

The EDA51 mobile computer ships with a Li-ion battery

manufactured for Honeywell International Inc.

Model Configuration battery P/N Power

EDA51-0 50129589-001,

50134176-001

3.8 VDC,

15.2 watt-hour

EDA51-1 50129589-001,

50134176-001

3.8 VDC,

15.2 watt-hour

Configuration number (CN) is located on the label in the battery well of

the mobile computer.

We recommend use of Honeywell Li-ion battery

packs. Use of any non-Honeywell battery may result

in damage not covered by the warranty.

Ensure all components are dry prior to placing the

battery in the computer. Mating wet components

may cause damage not covered by the warranty.

8

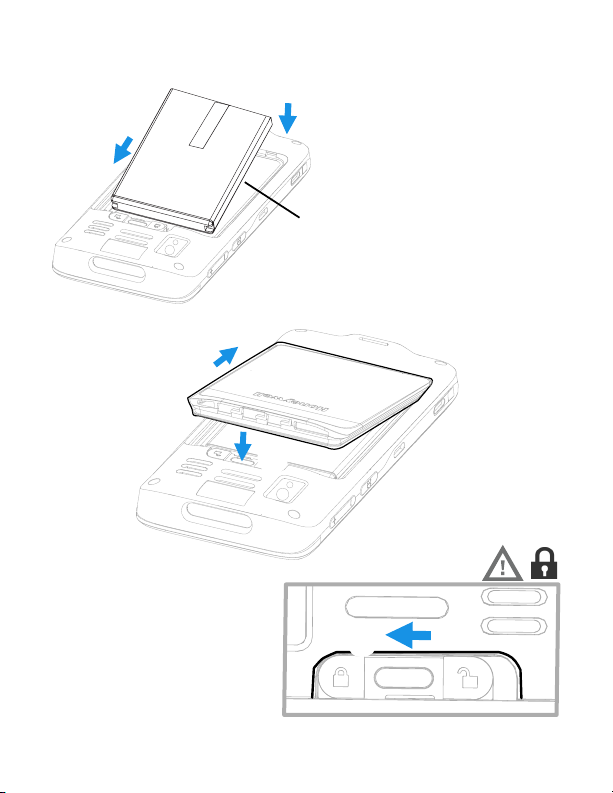

Install the Battery

1

2

Battery

(Refer to page 7)

5

3

4

9

Install the Hand Strap (Optional)

1

2

3

4
