Honeywell Dolphin 70e Black Manual de usuario

Dolphin™ 70e Black

Quick Start Guide

70E-AND-QS Rev B

6/13

Out of the Box

Verify that your carton contains the following items:

• Dolphin 70e Black mobile computer (terminal)

• 1GB, 2GB, or 4GB industrial grade microSD™ card (pre-installed)

• Rechargeable 3.7V Li-ion battery

• USB charge/communication cable

• Power adapter with regional plug adapters

• Quick Start Guide

• Compliance Regulatory Sheet

If you ordered accessories for your terminal, verify that they are also included

with the order. Be sure to keep the original packaging in case you need to

return the Dolphin terminal for service.

Note: Your Dolphin model may differ from the model illustrated in this guide;

however, the features noted are standard for all Dolphin 70e Black models

Memory Card Specifications

Applications on your Dolphin 70e Black terminal utilize the microSD card to

store files and application data. Memory card use is recommended to avoid

potential application errors or possible data loss.

Honeywell recommends the use of Single Level Cell (SLC) industrial grade

microSD or microSDHC™ memory cards with Dolphin terminals for maximum

performance and durability. Contact a Honeywell sales representative for

additional information on qualified memory card options.

Getting to Know the Dolphin 70e Black

Front

Microphone*

Scan Button

General Notification LED

Right Scan/

Image Button

USB Door/

Micro USB

Port

Search Button

Menu Button

Side

Microphone*

Home Button

Back Button

WAN Notification

LED

Front Speaker

Touch Panel

Display

Bottom Speaker

Note: Noise cancellation is available on WWAN models only.

*Important - Do not cover the side microphone with your hand

when using the terminal for phone calls. Both the front and side

microphones must be free from obstruction for the noise

cancellation feature to function during handset calls.

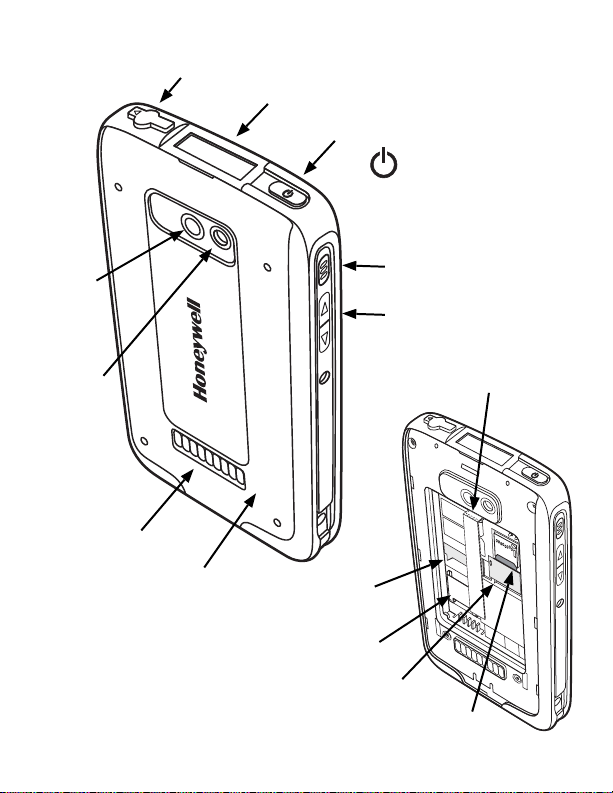

Camera

Flash

Color

Camera

Lens

I/O Connector

Battery Door

(standard model shown)

Volume Control Button

Left Scan/Image Button

Power Button

Audio Jack

Scan/Image Engine Window (LED aperture)

Memory Card Socket with microSD Card (pre-installed)

Memory Card Retention Flap

SIM Card

Retention Flap

SIM Card Socket

Battery Latch and Retention Strap

(battery and battery door not shown)

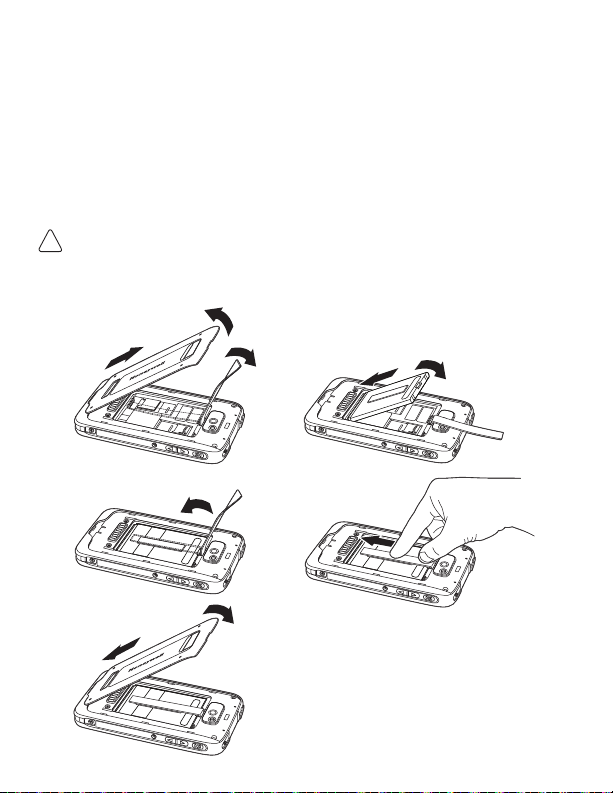

Installing the Battery

Dolphin 70e Black model terminals are designed for use with battery part

numbers BAT-STANDARD-01 (Li-ion 3.7 V, 6.179 watt hour) and

BAT-EXTENDED-01 (Li-ion 3.7 V, 12.358 watt hour), manufactured for

Honeywell International Inc.

The Dolphin 70e Black is shipped with the battery packaged separately from

the terminal. Perform the steps illustrated below to install the battery.

Ensure all components are dry prior to placing the battery in the

terminal. Mating wet components may cause damage not covered by

the warranty.

Note: Standard model battery

and battery door shown.

We recommend use of Honeywell Li-ion battery packs. Use of any non-

Honeywell battery may result in damage not covered by the warranty.

Once the battery is installed, connect the terminal to one of the Dolphin 70e

Black charging peripherals to charge the battery.

Charging the Dolphin 70e Black

Dolphin terminals ship with the battery significantly discharged of power.

Charge the battery with a Dolphin charging device for a minimum of 4 hours

for the standard battery and 6 hours for the extended battery. When using the

70e-USB Charge/Communication cable to charge from a 500mA USB port on

a host device, charge the battery for a minimum of 6 hours for the standard

battery and 8 hours for the extended battery.

Note: Using the terminal while charging the battery significantly increases the time

required to reach a full charge.

We recommend use of Honeywell peripherals, power cables, and power

adapters. Use of any non-Honeywell peripherals, cables, or power

adapters may cause damage not covered by the warranty.

Dolphin 70e Black model terminals powered by Android are designed for use

with the following charging devices and cables: 70e-HB, 70e-CB, 70e-MB,

70e-MC, and the 70e-USB ADAPTERKIT.

Ensure all components are dry prior to mating terminals/batteries with

peripheral devices. Mating wet components may cause damage not

covered by the warranty.

HomeBase (Model 70e-HB)

The 70e-HB charger is designed for use with Dolphin 70e Black model

terminals, and battery part numbers BAT-STANDARD-01 (Li-ion 3.7V,

6.179 watt hour) and BAT-EXTENDED-01 (Li-ion 3.7V, 12.358 watt hour),

manufactured for Honeywell International Inc.

Use only a UL Listed power supply, which has been qualified by Honeywell

with output rated at 12VDC and 3 amps with the device.

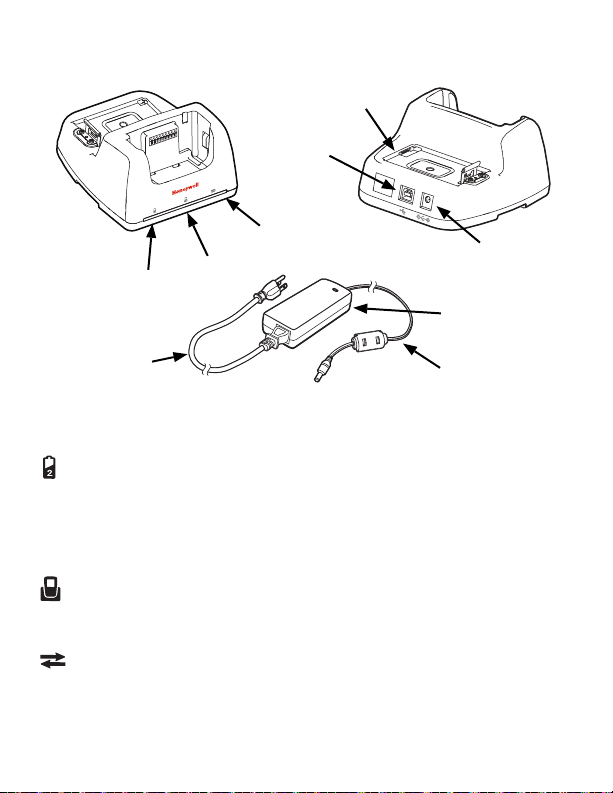

HomeBase Parts

HomeBase LED Indicators

AUX battery LED

Orange The auxiliary battery is charging.

Green The auxiliary battery has completed charging and is ready

for use.

Dock LED

Blue The terminal is properly seated in the base.

COMM LED

Green A USB connection is established with the host workstation.

AUX Battery Well

AUX

Battery LED

COMM LED

Dock LED

AC Power Cord

USB Port

DC Power

Jack

Power Adapter

Power Cable

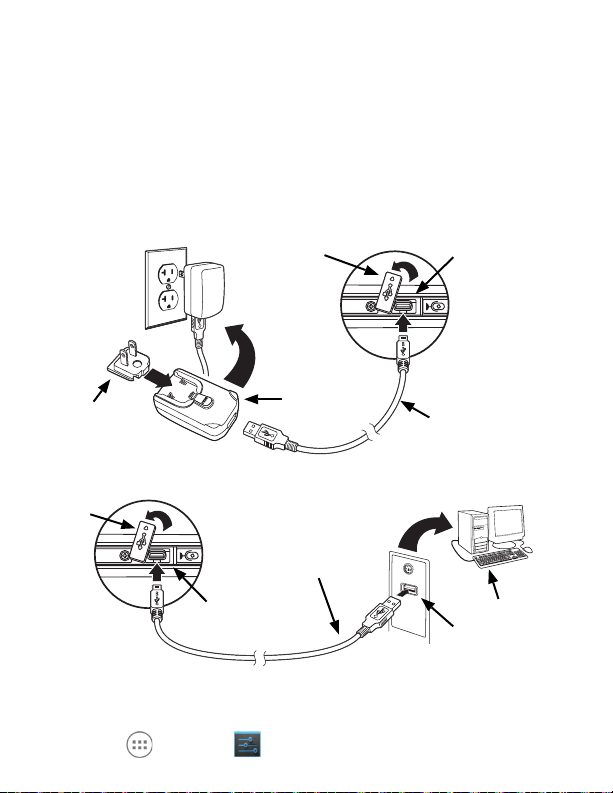

USB Charge/Communication Cable (70e-USB ADAPTERKIT)

The USB Charge/Communication cable provides two options for charging

the terminal. Use the cable in conjunction with the provided power supply

adapter and plug adapter to charge the terminal from a power outlet or

connect the cable to a high-power USB port to charge from a host device.

Option 1: Charging from a power outlet

Use only a UL Listed power supply, which has been qualified by Honeywell

with an output rated at 5VDC and 1A with the device.

Option 2: Charging from a USB port on a host device

Note: Charging the battery through a USB port takes more time than direct AC

adapter charging. USB charging will not take place if the terminal is drawing

more current than supplied by the USB port.

Touch > Settings

> Battery to verify the battery is charging.

Power

Adapter

Micro USB Port

USB Door

Plug Adapter 70e-USB Charge/

Communication Cable

Micro USB

Port

USB

Door

Host Device

USB Port

70e-USB Charge/

Communication Cable

Turning Power On/Off

To turn the terminal On, press and release the Power button .

To turn the terminal Off:

1. Press and hold the Power button until the Phone Options menu

displays.

2. Touch Power Off.

Suspend Mode

Suspend mode automatically turns the touch screen off and locks the

terminal to save battery power when the terminal is inactive for a programmed

period of time.

1. Press and release the Power button to toggle the terminal in or out of

Suspend mode.

2. Drag to the right on the touch screen or press the menu button to

unlock the terminal.

To adjust the timeout limit, touch > Settings > Display > Sleep.

Note: You should always place the terminal into Suspend mode before removing

the battery.

Airplane Mode

1. Press and hold the Power button until the Phone Options menu dis-

plays.

2. Touch Airplane Mode to toggle the mode ON or OFF.

Note: When Airplane Mode is turned on,

shows on the status bar.

Removing the Battery

1. Place the terminal in Suspend mode.

2. Perform the steps illustrated below to remove the battery.

Installing the SIM Card and/or Replacing the Memory Card

A microSD memory card is pre-installed in the terminal. You can expand the

memory capacity by replacing the supplied card with a larger capacity

microSD or microSDHC card.

Honeywell recommends the use of Single Level Cell (SLC) industrial grade

microSD or microSDHC memory cards with Dolphin terminals for maximum

performance and durability. Contact a Honeywell sales representative for

additional information on qualified memory card options.

Note: Format replacement microSD/SDHC card to Fat32 before initial use.

To install the SIM card and/or replace the memory card:

1. Place the terminal in Suspend mode.

2. Remove the battery door and battery.

236
