Honeywell MBeacon Manual de usuario

Rev. A

September 2015

P/N F04-4015-000

MBeacon

User’s Guide

MBeacon User’s Guide

Contents

1Warnings.................................................................................. 5

1.1 Operation Area and Conditions ................................. 7

1.1.1 Hazardous Areas classified by Zones ................. 7

1.1.2 Hazardous Areas classified by Divisions............ 7

1.2 Instruction For Safe Use ............................................ 7

1.3 Use In Hazardous Areas............................................. 7

2Standard Kit............................................................................. 8

2.1 Key features ............................................................... 8

3General Information................................................................. 9

4Physical Description .............................................................. 10

4.1 LCD Display (Monitoring) ...................................... 11

5Specifications......................................................................... 12

6Operation................................................................................ 13

6.1 Network Planning and Preparation.......................... 13

6.2 Turning The MBeacon On....................................... 14

6.3 Turning The MBeacon Off ...................................... 15

6.4 Battery Charge Indicator.......................................... 15

7Button Functions.................................................................... 16

7.1 Backlight.................................................................. 16

8Programming The MBeacon.................................................. 16

8.1.1 LCD Contrast.................................................... 19

8.1.2 Serial Number................................................... 19

8.1.3 Firmware Version ............................................. 20

8.1.4 Factory Reset .................................................... 20

8.1.5 Edit Password.................................................... 21

8.1.6 Exit.................................................................... 22

8.2 Wireless.................................................................... 23

8.2.1 PAN ID Setup................................................... 24

8.2.2 Channel Setup................................................... 25

8.2.3 TxPower Setup.................................................. 27

8.2.4 Interval Setup.................................................... 28

8.2.5 Exit.................................................................... 29

9Installation.............................................................................. 30

10 Internal Battery Replacement ......................................... 31

10.1 Proper Battery Disposal........................................... 32

MBeacon User’s Guide

11 Troubleshooting.............................................................. 33

12 MBeacon Alarm Signal Summary.................................. 34

13 MBeacon Installation...................................................... 35

13.1 Magnet-Mount Installation ...................................... 35

13.2 Fixed Installation ..................................................... 36

13.3 Magnetic Mount Alternative Installation................. 39

14 Technical Support........................................................... 41

MBeacon User’s Guide

1 WARNINGS

Read Before Operating

This manual must be carefully read by all individuals who have or will

have the responsibility of using, maintaining, or servicing this product.

The product will perform as designed only if it is used, maintained, and

serviced in accordance with the manufacturer’s instructions.

Warning:

Use only the Lithium battery provided by RAE Systems. This instrument

has not been tested in an explosive gas/air atmosphere having an oxygen

concentration greater than 21%. Substitution of components may impair

suitability for intrinsic safety. Replace batteries only in non-hazardous

locations.

STATIC HAZARD: Clean only with a damp cloth.

For safety reasons this equipment must be operated and serviced by

qualified personnel only. Read and understand instruction manual

completely before operating or servicing. Any rapid up-scale reading

followed by a declining or erratic reading may indicate a gas

concentration beyond upper scale limit, which may be hazardous.

MBeacon User’s Guide

Marking

The MBeacon is certified according to the IECEx scheme, ATEX and

CSA for US and Canada as protected by intrinsic safety.

The product is marked with the following information:

RAE SYSTEMS

3775 N. 1st. St., San Jose

CA 95134, USA

FMC-400

Serial No/barcode: XXX-XXXX-000

IECEx TSA

10.0016X

Ex ia IIC T4

Ex ia I

0575

IM1/II 1G

Ex ia IIC T4

Ex ia I

DNV 10 ATEX 83388X

Class I, Gr. A,B,C,D

Intrinsically Safe

-40º C ≤Tamb ≤50º C

Warnings:

Use only RAE 500-0111-000 for internal battery. Do not replace

internal battery in hazardous locations.

Ui: 3.6V; Ci: 78µF; Li/Ri: 3.5µH/ohm

Understand User’s Manual before operating or servicing.

Substitution of components may impair intrinsic safety.

To prevent ignition of flammable or combustible atmospheres,

disconnect power before servicing.

Applied Standards

IECEx

ATEX

North America

IEC 60079-

0:2004

EN 60079-0:2006

CAN/CSA-C22.2 No. 0-M91

IEC 60079-

11:2006

EN 60079-

11:2007

CAN/CSA-C22.2 No. 157-92

C22.2 No. 142-M1987

UL 913

UL916

MBeacon User’s Guide

1.1 Operation Area and Conditions

1.1.1 Hazardous Areas classified by Zones

MBeacon is intended to be used in hazardous areas classified

zone 0, zone 1 or zone 2, within the temperature range of -40º C to

+50º C, where gases of explosion groups IIA, IIB or IIC and T4

may be present.

1.1.2 Hazardous Areas classified by Divisions

MBeacon is intended to be used in hazardous areas classified for

Class I Div. 1 or 2, within the temperature range of

-40º C to +50º C, where gases of explosion groups A, B, C or D

and temperature class T4 may be present.

1.2 Instruction For Safe Use

Strictly follow the instructions for safe use. Application of the

MBeacon requires full understanding and strict observation of the

instructions.

1.3 Use In Hazardous Areas

Equipment which is intended for use in explosive atmospheres and

which has been assessed and certified according to international

regulations may be used only under specified conditions. The

components may not be modified in any way.

The appropriate regulations for service and repair must be properly

observed during such activities.

MBeacon User’s Guide

2 Standard Kit

MBeacon with antenna

Maintenance tool

User’s Guide

2.1 Key features

Battery-powered beacon device hasa a one-year battery run time.

Field-replaceable battery does not require a “hot work” permit.

Does not require network cabling or any type of infrastructure

installation.

Factory configured for plug and play.

Cl I/Div I, Zone I hazardous location approvals

FCC and R&TTE wireless communication approvals

IP-65 ingress protection rating for outdoor use

MBeacon User’s Guide

3 General Information

The MBeacon is a component within the ConneXt PRO wireless gas-

monitoring system that regularly transmits its SSID, which is used by the

system to provide location information on wireless gas monitors.

The ConneXt PRO system is a permanently installed solution that allows

for remote monitoring, two-way communication (on select equipment),

and quick visual compliance verification.

The ConneXtPRO consists of wireless gas monitors (and their associated

docking stations), beacon devices, and a real-time software monitoring

application. By providing remote, real-time gas concentration status and

location information to key stakeholders, ConneXt PRO supports a safer,

more efficient plant.

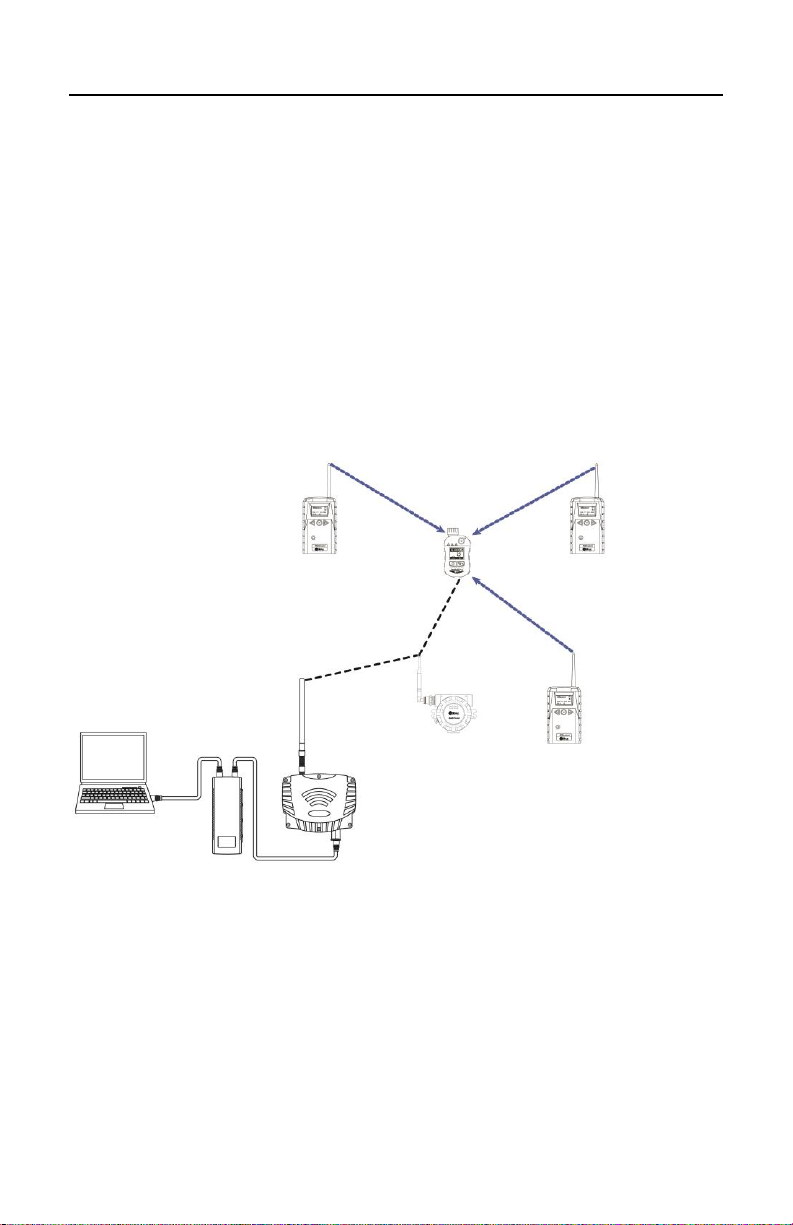

Simple network configuration

RadiantReader

PC running

ProRAE

Guardian

PoE Power

Injector

MBeacon

RAEPoint

Router

MBeacon

ToxiRAE Pro

or other

monitor

MBeacon User’s Guide

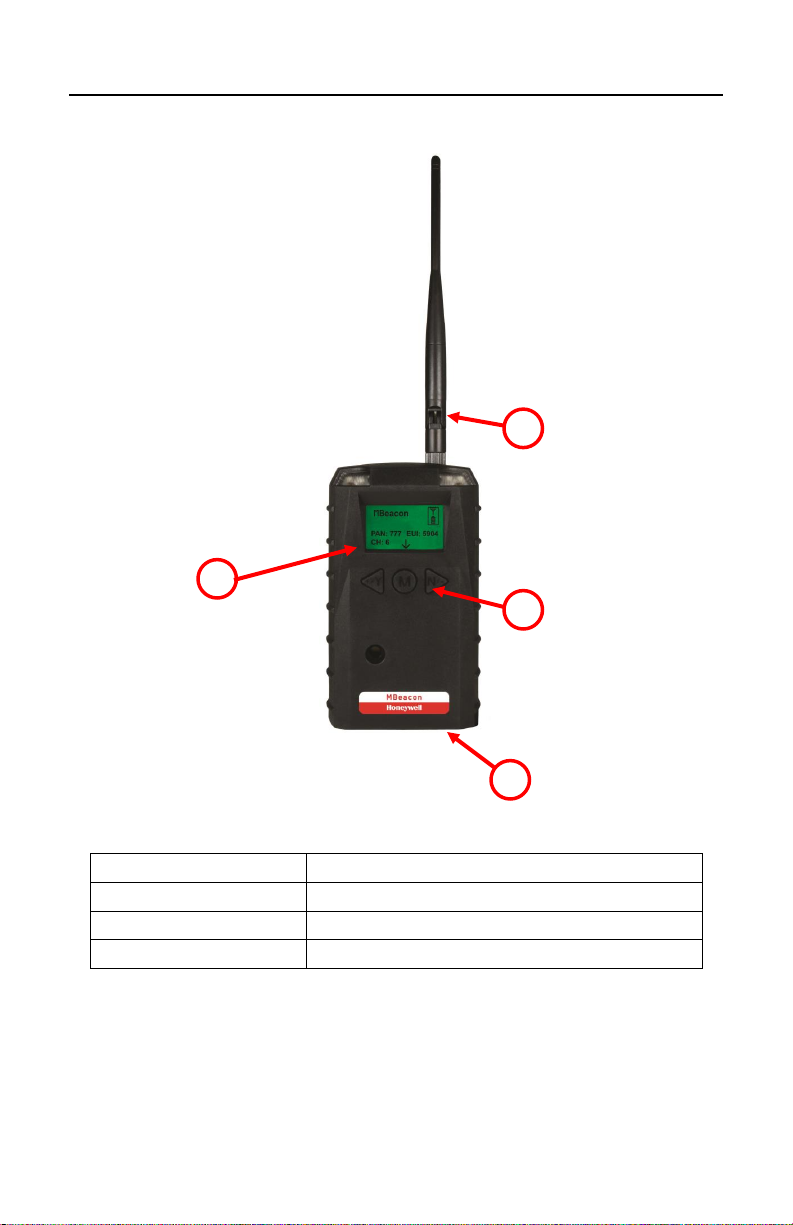

4 Physical Description

LCD (with backlighting)

Battery cover (on bottom)

Y/+, MODE, and N/- keys

Antenna

MBeacon User’s Guide

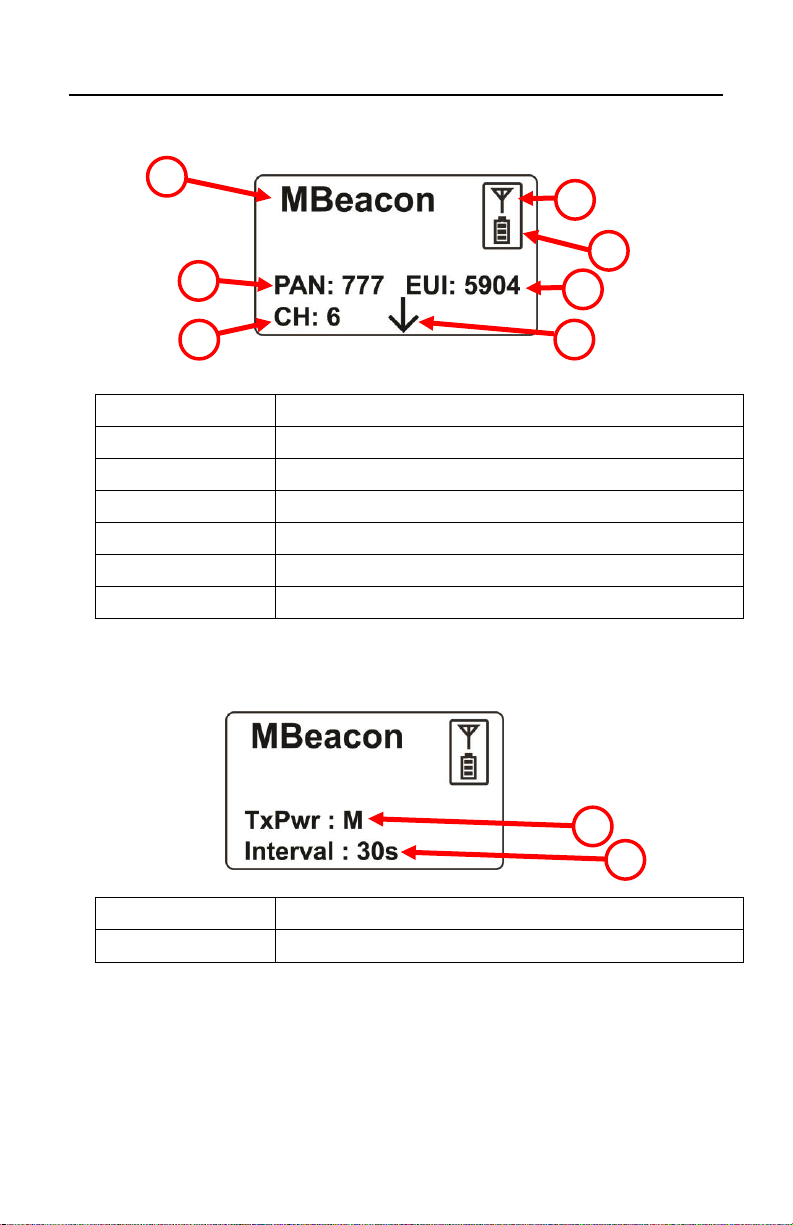

4.1 LCD Display (Monitoring)

Instrument name

Pan ID

Channel

Radio connectivity indicator

Battery strength indicator (percentage)

EUI (Extended Unique Identifier)

Prompt for next screen (press [MODE] key)

When you press [MODE], a second screen is shown:

Transmission power (low, medium, high)

Polling interval

Press [MODE] to return to the main screen.
