Honeywell FIRE-LITE ALARMS CRF-300 Manual de usuario

BEFORE INSTALLING

This information is included as a quick reference installation guide. Refer to

the control panel installation manual for detailed system information. If the

modules will be installed in an existing operational system, inform the opera-

tor and local authority that the system will be temporarily out of service. Dis-

connect power to the control panel before installing the modules.

NOTICE: This manual should be left with the owner/user of this equipment.

GENERAL DESCRIPTION

The CRF-300 Relay Control Module is intended for use in addressable, two-

wire systems, where the individual address of each module is selected using

the built-in rotary switches. It allows a compatible control panel to switch

discrete contacts by code command. The relay contains two isolated sets of

Form-C contacts, which operate as a DPDT switch and are rated in accordance

with the table in the manual. Circuit connections to the relay contacts are

not supervised by the module. The module also has a panel controlled LED

indicator. This module can be used to replace an C304 module that has been

configured for Form-C operation.

COMPATIBILITY REQUIREMENTS

To ensure proper operation, these modules shall be connected to listed com-

patible system control panels only.

SPECIFICATIONS

Normal Operating Voltage: 15 to 32 VDC

Maximum Current Draw: 6.5mA (LED on)

Average Operating Current: 230 µA direct poll; 255 µA group poll

EOL Resistance: Not used

Temperature Range: 32°F to 120°F (0°C to 49°C)

Humidity: 10% to 93% Non-condensing

Dimensions: 4.675˝ H x 4.275˝ W x 1.4˝ D (Mounts to a 4˝ square by 21

/8˝ deep box.)

Accessories: SMB500 Electrical Box; CB500 Barrier

CRF-300 Relay Control Module

FL-460-001 1 I56-3651-004

I56-3651-004

INSTALLATION AND MAINTENANCE INSTRUCTIONS

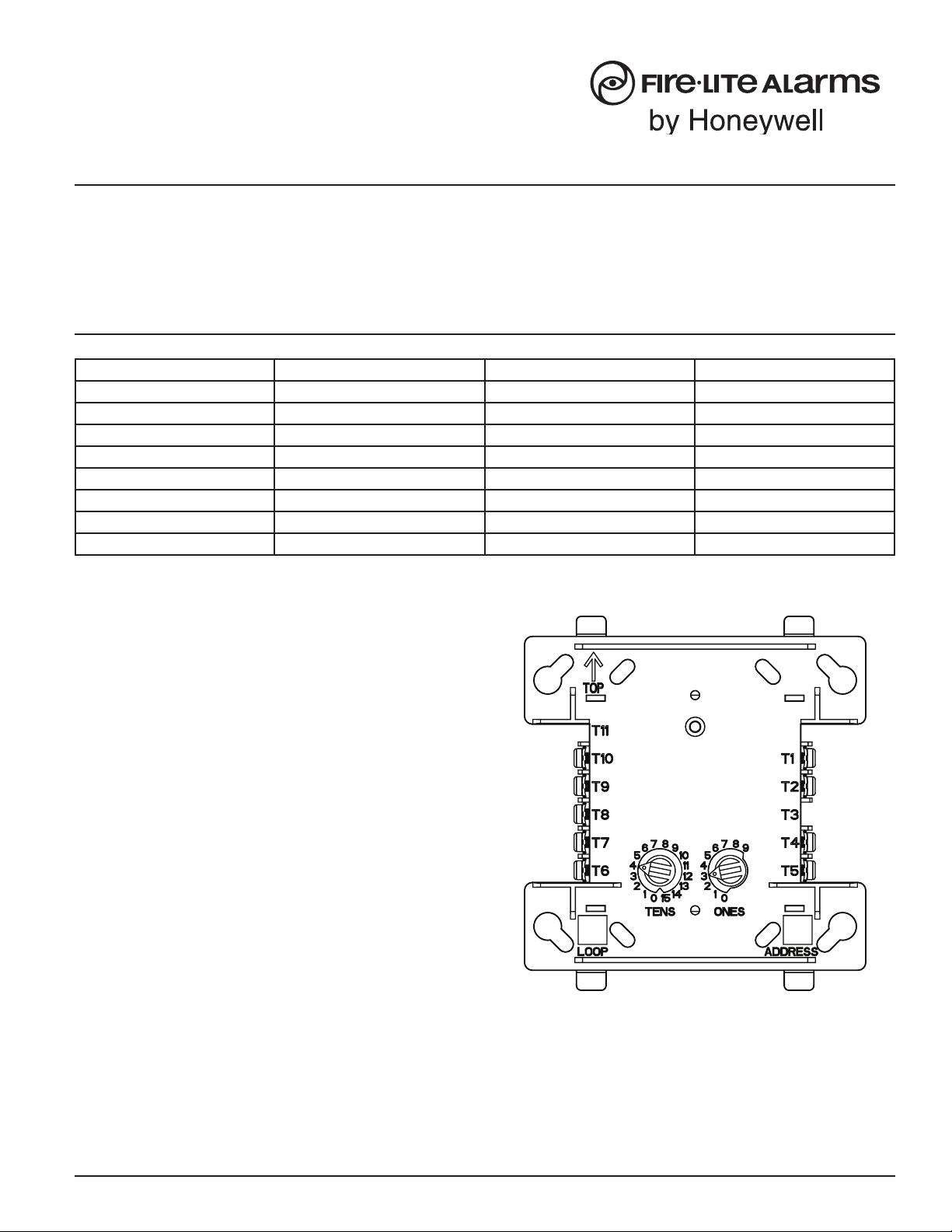

FIGURE 1. CONTROLS AND INDICATORS:

C1071-00

MOUNTING

The CRF-300 mounts directly to 4-inch square electrical boxes (see Figure 2A).

The box must have a minimum depth of 21/8inches. Surface mounted electri-

cal boxes (SMB500) are available. The module can also mount to the D355PL

or DNR(W) duct housing.

One FireLite Place

Northford, CT 06472

Phone: 203.484.7161

RELAY CONTACT RATINGS:

CURRENT RATING MAXIMUM VOLTAGE LOAD DESCRIPTION APPLICATION

2 A 25 VAC PF = 0.35 Non-coded

3 A 30 VDC Resistive Non-coded

2 A 30 VDC Resistive Coded

0.46 A 30 VDC (L/R = 20ms) Non-coded

0.7 A 70.7 VAC PF = 0.35 Non-coded

0.9 A 125 VDC Resistive Non-coded

0.5 A 125 VAC PF = 0.75 Non-coded

0.3 A 125 VAC PF = 0.35 Non-coded

WARNING

All relay switch contacts are shipped in the standby state (open) state, but may have transferred to the activated (closed) state during shipping. To ensure that

the switch contacts are in their correct state, modules must be made to communicate with the panel before connecting circuits controlled by the module.

FIGURE 3. RELAY MODULE WIRING DIAGRAM:

MODULE

FROM PANEL OR

(+)

(–)

TO NEXT

(+)

(–)

DEVICE

(+)

(–)

CONTROL

CONNECT MODULES TO LISTED COMPATIBLE

RELAY COMMON 1

RELAY COMMON 2

NORMALLY CLOSED 1

NORMALLY OPEN 2

NORMALLY CLOSED 2

MODULE DOES NOT SUPERVISE CONTROLLED CIRCUITS

NORMALLY OPEN 1

CONTROL PANELS ONLY

PREVIOUS DEVICE

SIGNAL LINE CIRCUIT (SLC)

32 VDC MAX.

TWISTED PAIR

IS RECOMMENDED

UNUSED

*NOTE: ANY FAULT IN THE POWER SUPPLY IS

LIMITED TO THAT ZONE AND DOES NOT

RESULT IN A FAULT IN A SEPARATE ZONE.

IF ANY WIRING TO TERMINALS 4 – 10 IS NONPOWER

LIMITED, THE CB500 BARRIER IS REQUIRED. THE CB500

INCLUDES A NONPOWER LIMITED LABEL, WHICH MUST

BE PLACED OVER THE POWER LIMITED TERMINAL

INFORMATION ON THE NAMEPLATE LABEL.

C0924-04

FL-460-001 2 I56-3651-004

FIGURE 2A. MODULE MOUNTING FIGURE 2B:

WITH BARRIER:

C1070-00

WIRING

NOTE: All wiring must conform to applicable local codes, ordinances, and

regulations. When using control modules in nonpower limited applications,

the CB500 Module Barrier must be used to meet UL requirements for the sepa-

ration of power-limited and nonpower-limited terminals and wiring. The bar-

rier must be inserted into a 4˝×4˝×21/8˝ junction box, and the control module

must be placed into the barrier and attached to the junction box (Figure 2A).

The power-limited wiring must be placed into the isolated quadrant of the

module barrier (Figure 2B).

1. Install module wiring in accordance with the job drawings and appropri-

ate wiring diagrams.

2. Set the address on the module per job drawings.

3. Secure module to electrical box (supplied by installer), as shown in

Figure 2A.

Wire should be stripped to the appropriate length (recommended strip length

is 1/4“ to 3/8”). Exposed conductor should be secured under the clamping plate

and should not protrude beyond the terminal block area. Caution: Do not loop

wire under terminals. Break wire run to provide supervision of connections.
