Honeywell EIM Guía de instalación

Equipment Interface Module

Training

EIM Module Basics

•Reasons to use EIM Modules:

1.)Not enough wires to thermostat or want to use

wireless thermostat.

2.)Want to monitor system through honeywell

3.)Installing a humidifier, ventilator, dehumidifier

4.)Use of dry contacts for alarms, alerts, unit

protection.

EIM Module Mounting Locations

•1.)Mounting EIM Module on horizontal

applications can be accomplished by mounting to

supply or return air plenums.

•2.)Mounting EIM Module on vertical applications

can be accomplished by mounting to supply

ductwork or walls in closet.

•3.)Mounting EIM Module on package units can be

accomplished by installing anywhere inside unit

where water can not enter. Examples: mount on

splitter inside, interior wall, heat strip

compartment.

EIM Module Wiring

•1.) If wiring 24 volts to thermostat Red and

Common to be connected at R and C at the

(TO THERMOSTAT) terminals on EIM Module.

•2.)Wiring to equipment is standard

connections: example Y to Y, G to G on EIM

Module terminals.

•3.) Wiring of discharge sensor to go to S2

terminals on EIM Module, note does not

matter which wire goes to which.

EIM Module Wiring Cont

•4.) Wiring of return air sensor to be connected to

S1 terminals on EIM Module, note does not

matter what wire goes to which terminal.

•5.)Wiring of condensate safety switch must be

connected to the S3 terminals, again does not

matter which wires.

•6.)Wiring of drain pan sensor (optional) must be

connected to S4 terminals for normally closed

circuit, and 24 volts to Red and Common

Programming Redlink for EIM Module

•1.)Follow instructions that come up on screen when

new thermostat is first installed or reset to factory

default settings then follow instructions.

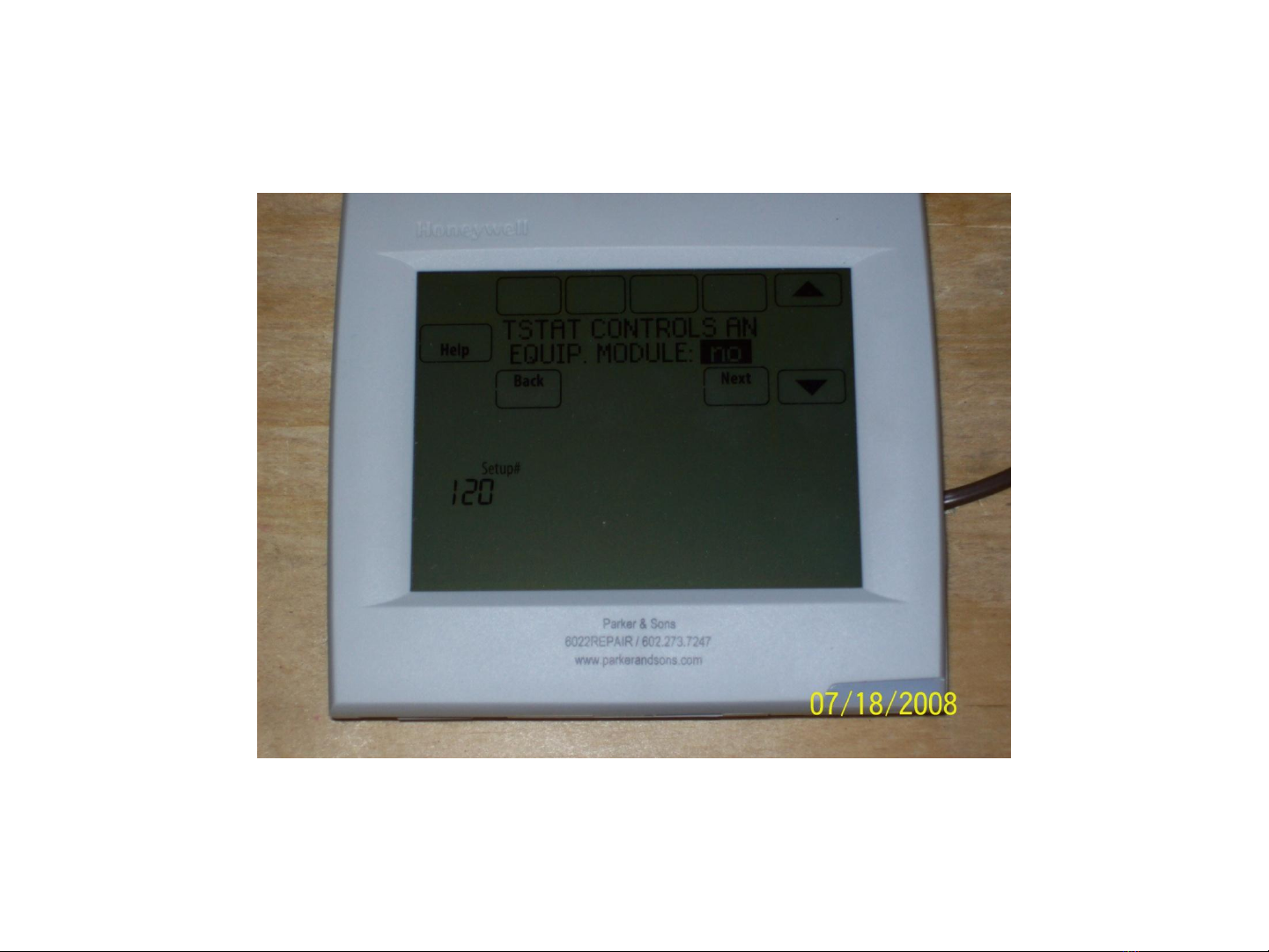

•2.)Go through thermostat until thermostat reads:T-Stat

Controls an Equip Module:NO switch using arrow keys

to yes. Next hit yes then next says to press connect at

EIM Module. Press connect and wait to see green LED

start flashing then go to thermostat and hit next.

Should say connecting, once connected thermostat will

say connected, hit next and you have now linked

thermostat to Module.

Programming Continued

•3.)Next screen on thermostat says connect

redlink devices, this is where you connect all

wireless devices.

•4.)Continue through set up until thermostat

says:Wired Sensor on S terminals:no. Switch

to yes using arrow keys and hit next.

•5.)Next screen asks if wired remote indoor

sensor:no leave at no these are not remote

indoor sensors.
