Model IFP-2100ECS

Basic Operating Instructions

These instructions must be framed and displayed next to the IFP-2100ECS panel in

accordance with NFPA 72 fire code for Local Protected Fire Alarm Systems.

FS = Fire System ECS = Emergency Communication System

Operation Task to Perform

Silence Alarms

and Troubles

Press SILENCE then enter a code if prompted. Silence LED will light.

Reset Alarms

Press

RESET

Press 1 to Reset Fire System.

Press 2 to Reset Emergency Communication. System.

Note: To reset ECS at an LOC, the user must gain ECS Control (See Figure 1).

View all active

alarms, troubles,

and supervisory

signals

The highest priority event will display first. Press the Down arrow to view location and type of alarm or trouble.

View a Point’s

Status

Press ENTER to access Main Menu.

Press 2 to select Point Functions.

Then press 2 to select Point Status.

Select the module the device is located on by using the Up or Down button. Then pressENTER.

Enter the point number.

Conduct a Fire

Drill

Hold the DRILL button and then enter a code if prompted. OR

Enter the installer code. The panel will automatically go to the main menu.

Press 1 to select System Tests.

Enter code if prompted, then press 1 to select Fire Drill.

Press ENTER to start the fire drill, and Press ENTER to end the fire drill.

NOT APPROVED BY VERMONT FOR FIRE DRILLS.

Set Time and

Date

Enter the installer code. The panel will automatically go to the main menu.

Press 4 to select Set Time & Date. Enter a code if prompted.

Make changes to the fields on the screen as necessary.

Press ENTER if you wish to keep thechanges.

Press ENTER to set the entered time anddate.

Enable / Disable

a Point

Enter the installer code. The panel will automatically go to the main menu.

Press 2 to select Point Functions.

Enter code if prompted, then press 1 to select Disable / Enable Point.

Press 7 to select Disable/Enable Point.

Select the module the point is located on by using the up or down arrow. Then press ENTER.

Enter the point number then press ENTER.

Press the right arrow to Disable/Enable Point.

To Gain /Request

ECS Control

1. Press the Button and follow the on-screen Instructions.

Note: When ECS Control LED is blinking, another LOC has ECS Control. ECS Control LED is on steady when the

LOC has ECS Control.

For Service call:

(800) 639-2521

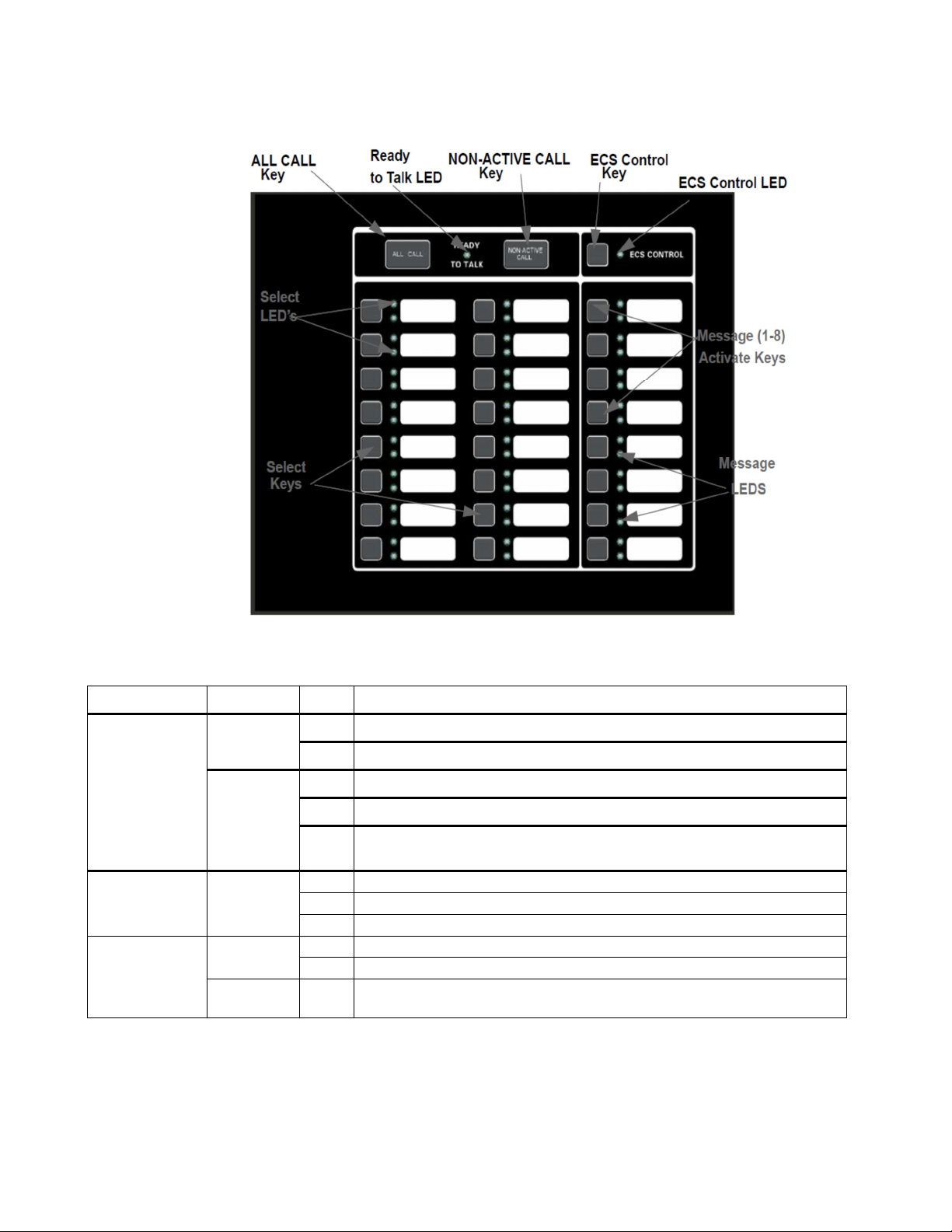

Figure 1-1: ECS Front view

Table 1-1: LED Conditions

LED Color States

Meaning

Select Keys

Red

On The corresponding area is active for the currently playing ECS message.

Off The corresponding area is not active.

Green

On The corresponding area is active for the microphone.

Off The corresponding area is not active for the microphone.

Blink One or more associated network page destination panels are unable to output

the page.

ECS Control LED

Green

Blink

When

this

LED

blinking,

someone

has

requested

control

the

ECS

System.

LOC has ECS Control and the user is able to make changes to the ECS.

Off

LOC does not have ECS Control.

Off

The corresponding ECS event was not activated from this LOC.

Green

The corresponding ECS event is active and was generated from the LOC (or

was activated from another LOC, but this LOC now has ECS Control).

Table 1-2: ECS Control Request

Operation Task

Gain ECS Control at an LOC

Press the ECS Control Key and enter a code if prompted. If ECS

Control is available, the ECS Control LED will illuminate. If another

LOC has ECS Control, the display will be similar to the one shown.

Press 1 to request control. The LOC with ECS Control will then be able

to allow or deny the request.

Gain ECS Control as ECS Super User at an LOC

(only one ECS Super User is allowed ECS Control

in the system at a time).

From the idle screen, enter an ECS Super User access code and then

press the ECS Control Key. If ECS Control as Super User is available,

the ECS Control LED will illuminate. If another LOC has Super User

ECS Control, a request for Super User ECS Control will automatically

be made to the LOC with control. The LOC with Super User ECS

Control will then be able to allow or deny the request. (See Figure 1-2

for screen display example).

Select all output group for microphone override

Key the microphone, wait for the Ready

Talk LED to light, press the

All Call Key, and then deliver your verbal message.

Select all non

activated output groups for

microphone override

Key the microphone, wait for the Ready

Talk LED to light, press the

Non-Active Call Key, and then deliver your verbal message.

Figure 1-2: Gain ECS Control as ECS Super User Screen

How to Operate the Microphone:

Press the ECS Control button

Key the Microphone

Press the All Call button

How to Reset the ECS System

Press The Reset Button

Select 2 to Reset the Emergency system

ECS-LOC2100 Operating Instruction

For Live Message

Key the Microphone.

Press the All Call Key or select desired output area using select keys.

Deliver your verbal message.

For Pre-recorded Message

1. Select desired ECS Message Key 1-8.

•

If ECS Control LED is on steady, the LOC has ECS Control.

•

If ECS Control LED is Blinking, another LOC has ECS Control.
