Honeywell CM4680 Manual de usuario

CM4680 2D Imager Module

Quick Start Guide

CM4680-EN-QS Rev a

6/21

What is the CM4680 2D Imager Module

The CM4680 is an encased compact 2D imager module for fixed

mount applications.

The CM4680 2D imager module includes the following features:

• USB interface (micro USB connector)

•Exitwindow

• Beeper

• Status indicator

• Mounting holes for multiple mounting positions

• Sealed enclosure

Required Accessories (not provided)

• Standard USB cable (USB-A to micro USB). Maximum

recommended length is 3-5 meters.

Additional Documentation

The following document is available from your local Honeywell

OEM representative:

• N4680/CF4680/CM4680 User Guide

CM4680 2D Imager Module Views

Status

indicator

Exit

window Mounting

holes (x10)

Mounting

holes (x10)

Beeper

USB cable

Slider to

secure cable

Mounting

holes (x10)

Mounting

holes (x10)

Connecting to a Host

By default, the scanner is in USB serial interface.

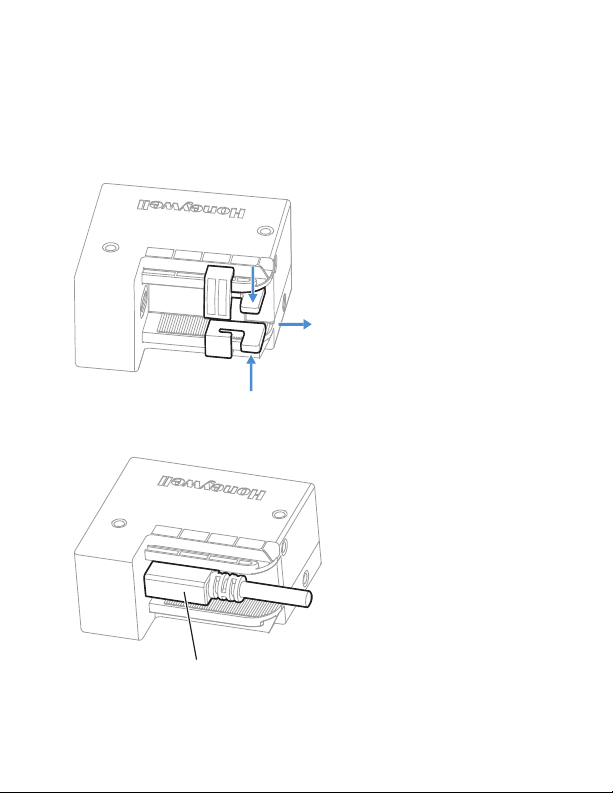

1. Remove slider from module by pressing the ends and slid-

ing it off.

2. Connect a standard USB cable (standard USB-A to micro

USB) to the module.

USB cable

3. Secure the cable to the module using the slider:

Place the cable through the center of the slider.

Press the ends of the slider and slide it back on to the mod-

ule until tight.

4. Connect the USB cable to the host.

5. Power-up the host.

The scanner powers up, emits a series of beeps from low to

high, and lighting turns on.

Note: The host does not have to be powered down before

plugging in the device. It can be hot plugged.

Configuration

You can configure your scanner two ways:

• Reading configuration bar codes

• Using the EZConfig Cloud for Scanning tool

Configuration Bar Codes

Scan configuration bar codes to set up your scanner. All avail-

able configuration bar codes are available in the N4680/

CF4680/CM4680 User Guide. Contact your local Honeywell

OEM representative for more information.

EZConfig for Scanning Tool

Use the EZConfig for Scanning tool to configure your scanner

Online:

1. Go to the Honeywell https://hsmftp.honeywell.com.

2. Register (if you haven’t already), then login.

3. Browse to Software >Barcode Scanners > Software > Tools

and Utilities > EZConfig for Scanning > Current and

download the tool.

4. Open EZConfig to configure your scanner.

Basic Setup

Here are some basic menu bar codes that may be useful for test-

ing. For more setup options see the N4680/CF4680/CM4680

User Guide (available from your local Honeywell OEM represen-

tative).

Note: The * symbol indicates the default value.

Interface

For USB serial interface, you must install the USB driver before

connecting your scanner. You can find the most current USB

driver at hsmftp.honeywell.com.

USB Serial Interface *

USB PC Keyboard

Keyboard Country Layout

the default keyboard is United States.

United States *

French

German

Italian

Beeper Volume

Low

Medium

High *

Off
