HoMedics HUM-CM50 Manual de instrucciones

Instruction Manual and

Warranty Information HUM-CM50

Cool Mist

Ultrasonic Humidifier

IMPORTANT SAFETY INSTRUCTIONS:

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE

PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED,

INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING

DANGER

– TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Always unplug the appliance from the electrical outlet immediately after using and

before cleaning.

• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.

• DO NOT use while bathing or in shower.

• DO NOT place or store appliance where it can fall or be pulled into a tub or sink.

• DO NOT place in or drop into water or other liquid.

• NEVER use pins or other metallic fasteners with this appliance.

• Keep dry – DO NOT operate in a wet or moist condition.

• DO NOT use water above 30˚ Celsius.

WARNING

- TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC

SHOCK OR INJURY TO PERSONS:

• An appliance should never be left unattended when plugged in. Unplug from outlet

when not in use and before putting on or taking off parts or attachments.

• Close supervision is necessary when this appliance is used by or near children,

invalids or disabled persons.

• Use this appliance only for its intended use as described in this manual.

• NEVER operate this appliance if it has a damaged cord or plug, if it is not working

properly, if it has been dropped or damaged, or dropped into water. Return it to

HoMedics' Service Center for examination and repair.

• Keep cord away from heated surfaces.

• NEVER drop or insert any object into any opening.

• DO NOT operate where aerosol (spray) products are being used or where oxygen is

being administered.

• Always place the humidifier on a firm, flat, level surface.

• Please hold the water tank firmly with both hands when carrying a full tank of water.

• NEVER use humidifier in an environment where explosive gases are present.

• DO NOT place the humidifier near heat sources, such as a stove and do not

expose the humidifier to direct sunlight.

• DO NOT carry this appliance by the power cord or use cord as handle.

• To disconnect, turn all controls to the "OFF" position, then remove plug from outlet.

• This appliance is designed for personal, non-professional use only.

• DO NOT use outdoors. For indoor use only.

• DO NOT overfill with water.

• Children should be supervised to ensure they do not play with the appliance.

• Unplug the appliance during filling and cleaning.

SAVE THESE INSTRUCTIONS

CAUTION

– PLEASE READ ALL INSTRUCTIONS CAREFULLY

BEFORE OPERATION.

• Never cover the appliance when it is in operation.

• Always keep the cord away from high temperature and fire.

• Perform regular maintenance of the Ultrasonic Nebulizer.

• Avoid contact with detergent to your mouth and eyes. If contact occurs,

use clean water to wash immediately. If serious, contact poison control

or seek medical treatment.

• Never use detergent to clean the Ultrasonic Nebulizer that is not recommended

by the manufacturer.

• Never scrape the Ultrasonic Nebulizer with a hard object to clean.

Operation and Maintenance

• Do not repair or adjust the unit. Servicing must be performed by professional or

qualified personnel.

• Do not operate any appliance with an aging, knotted or damaged cord or plug, the

replacement must be performed by the manufacturer, service center or qualified

professional personnel.

• Stop use if there is an unusual noise or smell. Servicing should be performed by

qualified personnel only.

• Humidifier should be unplugged when not in use for a long period of time.

• Do not touch the water in the main unit or the parts in the water when the unit is on.

• Never operate unit without water in the tank. Only use water in the tanks.

• Never add any additive to the water that is not produced or under the supervision

of the manufacturer.

• Do not wash, adjust or move the humidifier without first unplugging the unit from its

electrical outlet.

• Keep the appliance out of reach from children. Do not allow children to use the

appliance without supervision.

Unique Features and Speciﬁcations

Ultrasonic Technology

This humidifier uses ultrasonic high frequency technology to convert the water into

1-5 million super particles that are dispersed into the air evenly. These particles then

combine with the ions generated by the humidifier to moisten the air.

Oscillating Head

The humidifier features a motorized nozzle that oscillates 120°. The oscillating head

can also be stopped at any point in the oscillation cycle to target the mist in a

specific direction.

Night Light

A useful night light feature is included for your convenience.

Auto Shut Off Protection

When the tank is empty the unit will shut off automatically.

Overheat Protection

This humidiﬁer is equipped with a non-resettable fuse in case of overheating. If

the non-resettable fuse has been activated, operation cannot be resumed. The

fuse will need to be replaced by an authorized service personnel.

Ultrasonic Nebulizer

The humidifier utilizes special spray techniques and the ultrasonic nebulizer is easy to

clean for lifetime use.

Voltage

240V / 50Hz

Watts

Tank Capacity

3.78 litres

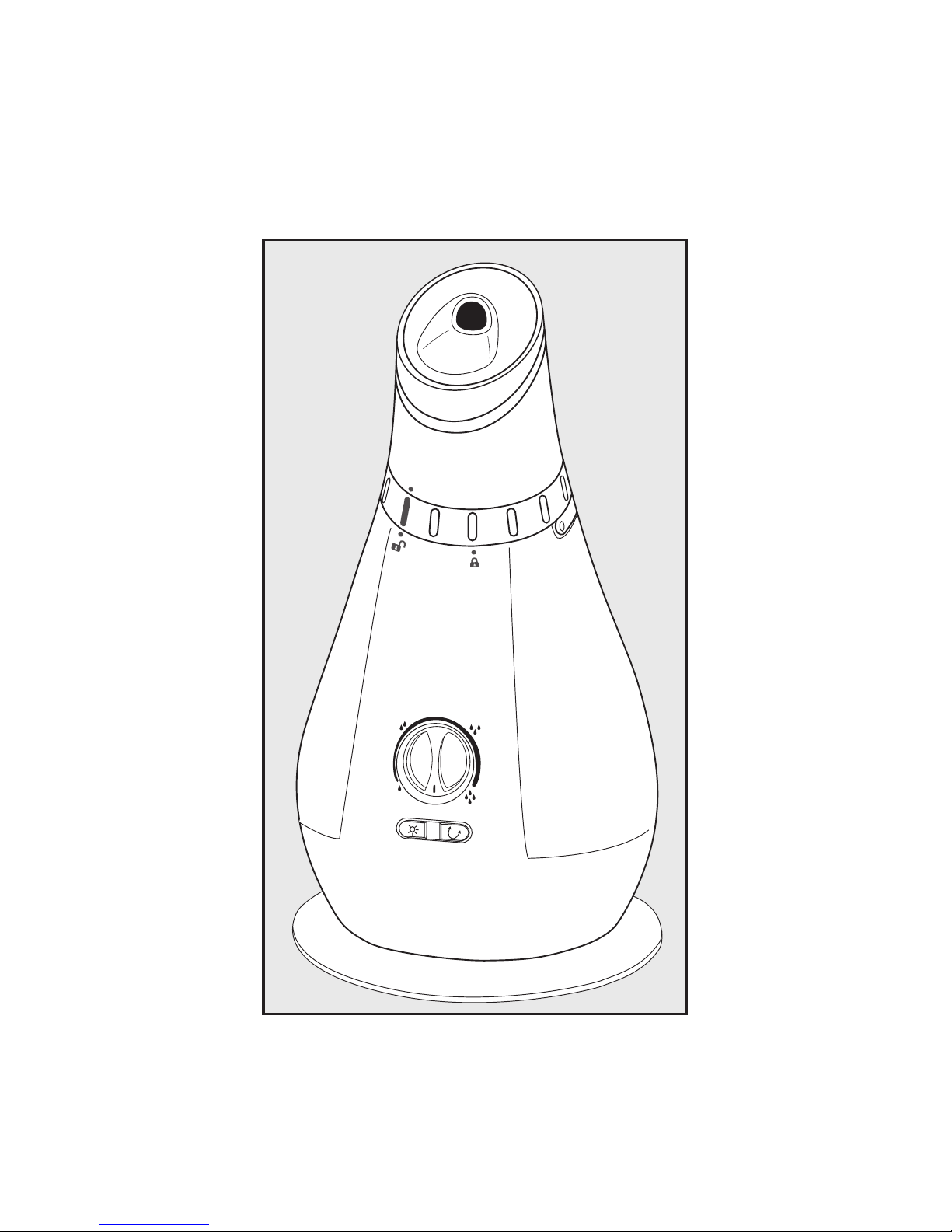

Cool Mist Ultrasonic Humidiﬁer

Fig.1

Power Knob

lug unit in to a 240 volt AC electrical outlet. Turn the POWER knob clockwise to

turn unit on.

ATTENTION: When the water in the tank is almost empty the red indicator light in

the tank will turn on and the power will shut off to indicate to the user to refill water.

Mist Adjustment Setting

Mist adjusts from Lowest output ( ) to Highest output ( ). To increase the mist

output, turn the MIST knob clockwise. To decrease mist output, turn the MIST knob

counter-clockwise. (Fig.2)

Night Light

Press the NIGHT LIGHT ( ) button to turn on the night light. The light at the bottom

of the water tank will turn on, illuminating the tank. (Fig.2)

Oscillation

When the humidifier is producing mist, press the OSCILLATION ON/OFF ( ) button

to turn on the motorized oscillation feature. The nozzle at the top of the unit will

oscillate in a 120° range from side to side. To target the nozzle and mist in a fixed

direction, press the OSCILLATION ON/OFF ( ) button when the nozzle is at the

desired position and the nozzle will stop and direct mist to the desired area only.

(Fig.2)

NOTE: The oscillation feature will not operate if the humidifying function is not

operating. Oscillation feature will only work when mist is being produced.

Fig.2 Fig.3

Oscillation

ON/OFF Button

Night Light

ON/OFF Button

Power/Mist Knob

Mist Setting Indicator Oscillating

Head & Nozzle

LOCK/UNLOCK

Ring

Locator Icons

1. Remove the oscillation nozzle. To remove the nozzle,

turn the ring on the bottom of the nozzle to the left

until the Locator icons on the head, ring and base

all line up and are aligned with the UNLOCK ( )

position. Lift up to remove the nozzle and set aside.

2. Raise the ﬂip-up handle on the water tank and

remove the tank from the humidiﬁer base by lifting it

up and away.

3. Turn the tank upside down – remove the tank cap by

turning it counter-clockwise.

4. FIll the water tank with clean, cool (not cold) tap

water. We recommend using distilled water if you live

in a hard water area.

How To Fill

CAUTION: Before filling unit with water, turn power off and unplug unit from outlet.

Fig.4

Fig.5

Fig.6

Fig.7

5. Replace the tank cap by turning clockwise until tight.

6. Install the tank back on the base of the unit. Make

sure the tank is ﬁrmly seated.

7. Place the oscillating nozzle back on the unit making

sure that the locator icons on the head and ring are

aligned with the locator icon ( ) on the base above

the UNLOCK ( ) icon.

8. Lock into place by turning the ring to the right

until the Locator icon ( ) is aligned with the

LOCK ( ) position.

Fig.8

Fig.9

Fig.10a

Fig.10b

About White Dust

Use of high-mineral content hard water will cause a white mineral residue to

accumulate on room surfaces near the humidifier. The mineral residue is commonly

called "white dust". The higher the mineral content (the harder your water is), the

greater the potential for white dust. The white dust is not caused by a defect in the

humidifier, but is due only to minerals suspended in the water.

Demineralization Cartridge

The HoMedics demineralization cartridge will help reduce the potential for white

dust, a deposit of minerals left behind from using hard water in your humidiﬁer.

The cartridge should be replaced every 30-40 ﬁllings. The cartridge may need to

be replaced more often when very hard water is used. When the cartridge needs

to be changed, white dust will form around the humidiﬁer. If white residue still

forms around the humidiﬁer after a new cartridge has been inserted, please make

sure that the water you are using is untreated. If you live in a hard water area,

we recommend the use of distilled water for better results from the

humidiﬁer. Do not use with water softeners.

Installing Instructions

1. Remove demineralization cartridge from packaging and let it soak in water

for 10 minutes.

2. Remove the oscillation nozzle. To remove the nozzle, turn the ring on the

bottom of the nozzle to the left until the locator icons on the head, ring and

base all line up and are aligned with the UNLOCK position. Lift up to remove

the nozzle and set aside. (Fig.4)

3. Raise the ﬂip-up handle on the water tank and remove the tank from the

humidiﬁer base by lifting it up and away. (Fig.5)

4. Place 1 demineralization cartridge down onto post and into the

matching slot in the humidiﬁer base. (Fig.12)

Fig.11 Fig.12
