SMART WIRELESS
TRIPLE HEAD LED
FLOODLIGHT CAMERA
the bright way to do home security.
securit y
ES00941G
INSTALLATION INSTRUCTIONS
Mounting bar
Light fixture
Mounting screw
Mounting
bracket screw
Wire nut
Rubber plug
1
What's in the box
x 2 x 3
2groups
Parameter
1Illumination output: approx. 3500 lumens / 5000K
2Wattage: 40W
3Power source: AC120V/60Hz
4Detect range: up to 32feet, 270 degree
5Camera view angle: 150 degree
2
Safety instructions
1. Please read all warning and instruction before attempting to
install this light.
2. Disconnect power before installing or servicing.
Warning
Risk of Electrical Shock
1. Turn off electrical power at fuse or circuit breaker box before
wiring fixture to the power supply.
2. Make sure all electrical and grounded connections are in
accordance with the National Electrical Code and applicable
local code requirements.
3. All wiring connections should be compliant with UL standard.
Risk of Injury
1. Wear gloves and safety glasses at all times when moving
luminaire from carton, installing, servicing or performing
maintenance.
2. Avoid direct eye exposure to the light source while it is on.
or this may cause irreparable damage to the eyes.
3. Account for small parts and destroy packing material, as
these may be hazardous to children.
Risk of Burn
1. Allow fixture to cool before touch.
2. Do not exceed maximum wattage marked on luminaire label.
Attention: lights must be installed by the experienced household
wire installer or a qualified electrician. Electrical system and the
electrical connection method of light fixture must conform to the
national electrical standards and specification requirements of the
local architecture.
2Unscrew the center mounting screw on the light fixture in order to
remove the back plate on the back of the light fixture
Install the mounting bar to the outlet box with the stamped word
"FRONT" facing away from the outlet box, use two mounting
screws that best fit the outlet box.
(Choose one group of suitable mounting screws among two
groups in the hardware pack)
Note: For the best performance, install fixture at 5.9 feet ~11.5 feet
(1.8~3.5m) above the ground.
Note: Please install the flood light camera within Wi-Fi covered
area to ensure best performance
FRONT
3
Installation
1
4
3Connect the source wires from the outlet box with the wires of the
back plate using wire nuts as follows:
Connect the white wire to white wire
Connect the black wire to black wire
Connect the Green wire to the house ground wire
Note:
DO NOT connect electricity before installation and maintenance
4Place the back plate against the outlet box, insert the mounting
bracket screw through the back plate hole, thread mounting
bracket screw into the center hole of the mounting bar. Tighten
the mounting bracket screw securely.
Note: The "UP" arrow must point upward.
5

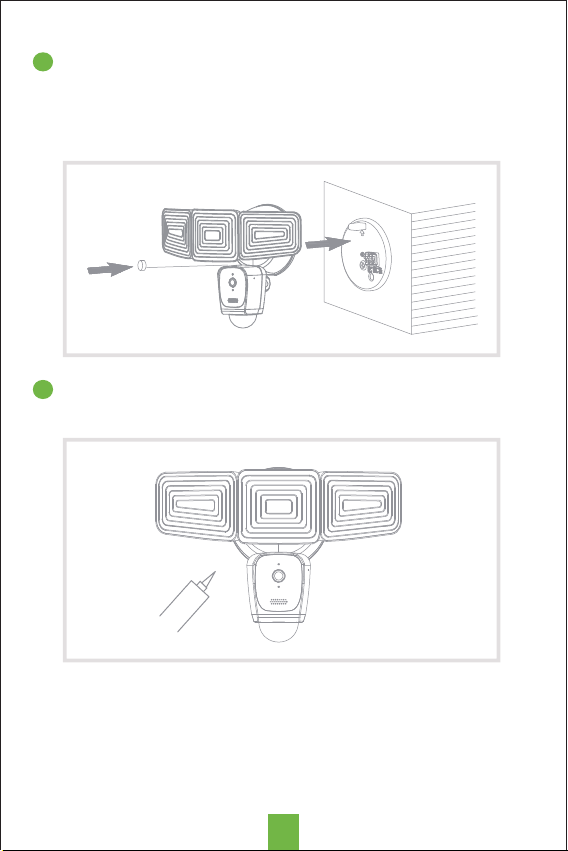

5Attached the light fixture to the back plate using the center
mounting screw:
• Tighten the center mounting screw securely through the center of
the light fixture. Do not overtighten.
• Push the rubber plug firmly into the center hole to cover the center
mounting screw.
6Using silicone caulking compound, caulk completely around where
the light fixture meets the wall surface to prevent water from
seeping into the outlet box.
Note: If you install this light fixture on the covered wall or eave
without junction box, you must
consult a qualified, licensed electrician and use the appropriate
screws (not included) to install this light fixture on the wall or eave
directly depending on the surface.
6
How it Works
Adjusting the Lamp Heads and Camera
1. Swing the lamp heads to adjust the lamp head left and right
or up and down to get the desired lamp direction.
2. Gently grasp the motion sensor and adjust the sensor left and
right or up and down to get the desired sensor direction.
35º
80º
100º
90º 90º
70º
45º
45º
35º
100º
70º
Download the ‘Home Zone Smart’ APP to your smartphone from App Store or Google Play.
Connection APP
7
Set up Router
press and hold the Reset button located on
the back of the camera head until a prompt sound is heard. The camera will initiate reset
process and the indicator light will blink blue when ready for paring.
8
Note：
Alarm to deter intruders
Please visit website at www.homezonesecurity.com/home-zone-smart
for cloud storage information.
9
FCC
Cleaning and Maintenance
1. Clean periodically with soft cloth.
2. Do not use any cleaners with chemicals, solvents or harsh
abrasives on this light. Do not use scouring pads, powders, steel
wool or brasive paper. They could cause deterioration of the
finish.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
This device complies with FCC Part 15 of FCC Rules.
Warning
: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE
: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
