USE AND CARE GUIDE

MERRYN POINTE 52 IN. CEILING FAN

Item #752 973

#753 638

Model #

YG583-BN

YG583-WH

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

Operation .....................................................................

Wall Control Operating Instructions .......................................

Reverse Switch Operating Instructions .................................

Care and Cleaning ......................................................

Troubleshooting ..........................................................

Service Parts ...............................................................

Table of Contents

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Speciﬁcations ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Installation .....................................................................

Assembly ........................................................................

Hanging the Fan .......................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Safety Information

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of ﬁre, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for

help.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked

“FOR FAN SUPPORT.”

4. The fan must be mounted with a minimum of 10 ft. (3.05m)

clearance from the trailing edge of the blades to the ﬂoor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

10. This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

Warning: Changes or modiﬁcations to this unit not expressly

approved by the party responsible for compliance could void

the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

Warranty

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

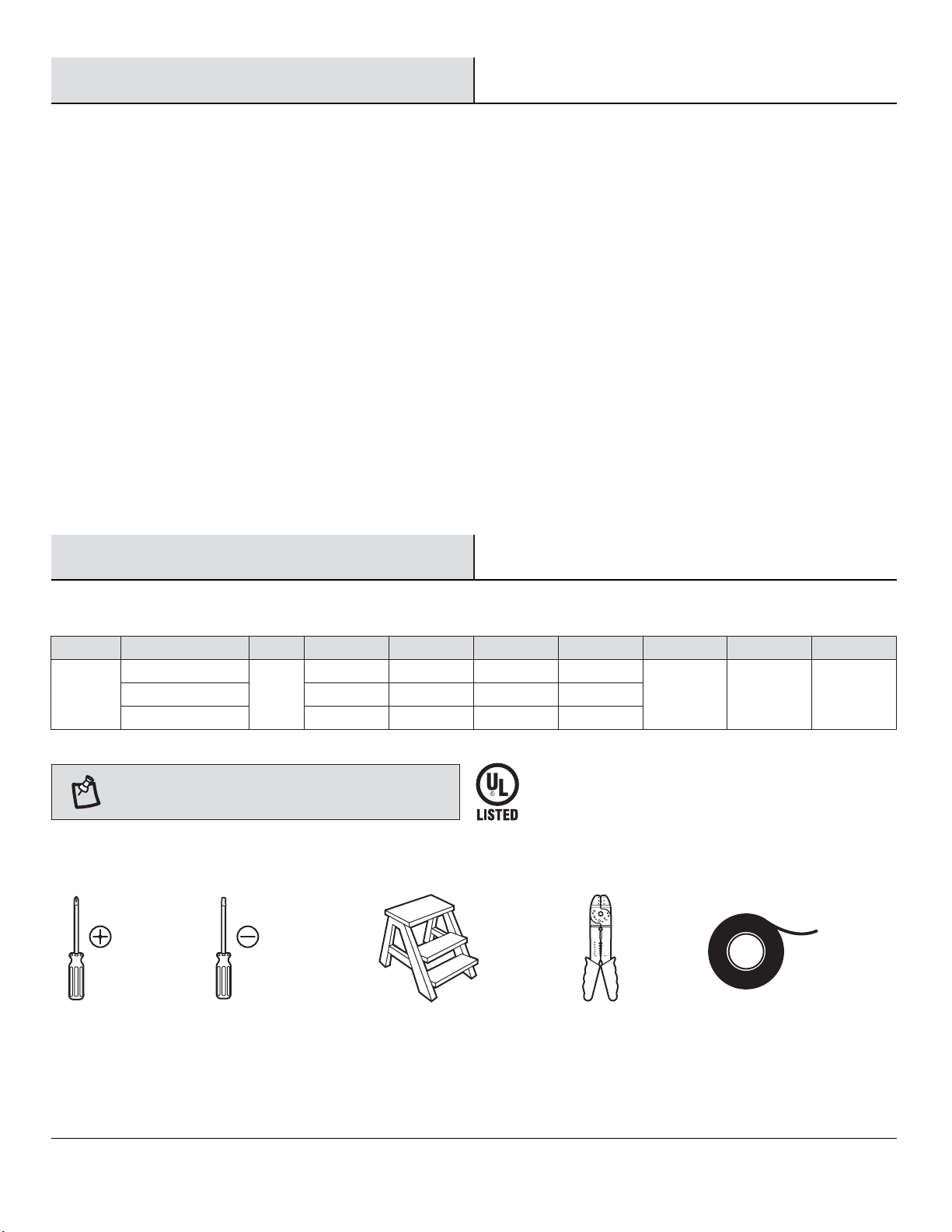

SPECIFICATIONS

TOOLS REQUIRED

Phillips

screwdriver

Electrical

tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

Pre-InstallationPre-Installation

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

8.8 kg

(19.36 lbs.)

10.09 kg

(22.2 lbs.) 1.513 cu. ft.

52 in.

Low (Speed 4)

Medium (Speed 3)

High (Speed 1)

120

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

N.W.

G.W.

C.F.

0.17

0.24

0.35

9.73

42.31

112

185

281

2326

3752

5956

Pre-Installation (continued)

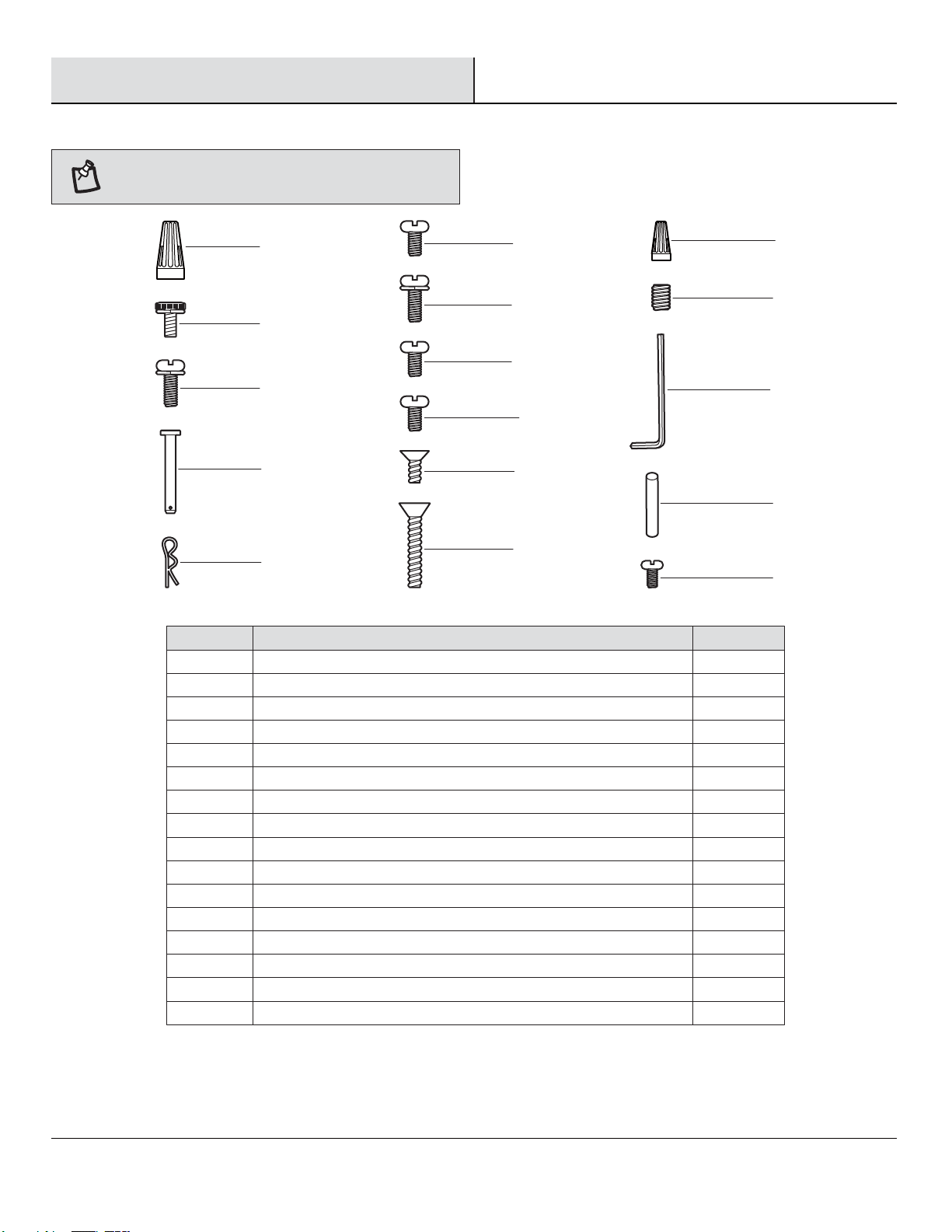

HARDWARE INCLUDED

NOTE: Hardware shown to actual size unless noted

otherwise in the table below.

Plastic wire nut

Canopy mounting screw with lock washer (preassembled)

Blade arm screw and lock washer (not to scale)

Clevis pin (preassembled)

Cotter pin (preassembled)

Collar setscrew (preassembled)

Collar mounting screw with lock washer (preassembled)

Light kit mounting plate screw (preassembled)

Light kit mounting screw (preassembled)

Wall plate screw (not to scale)

Wall control screw (not to scale)

Plastic wire nut (not to scale)

Coupling cover screw (preassembled)

Hex wrench (not to scale)

Cross pin (preassembled)

Setscrew (preassembled)

Part

Description

Quantity

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

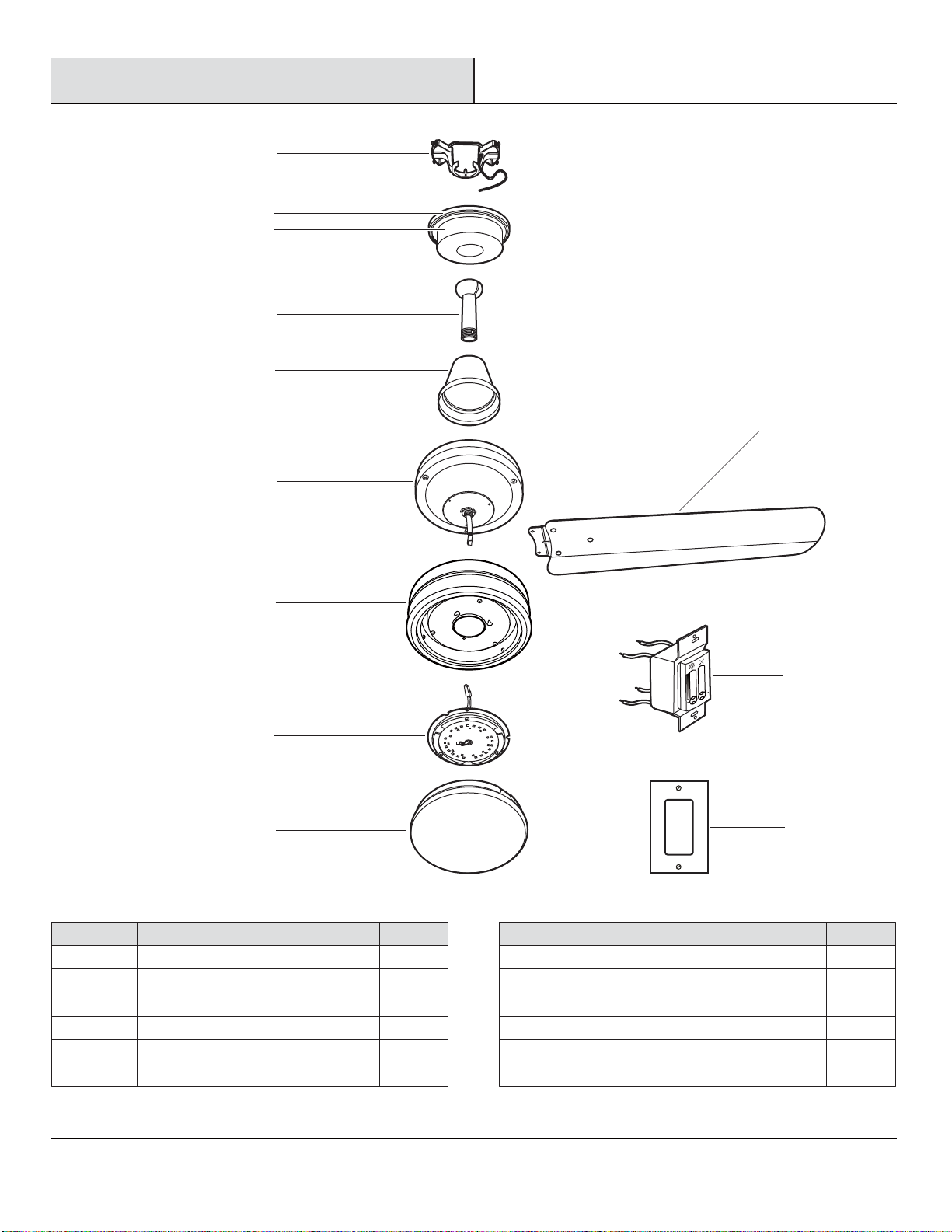

PACKAGE CONTENTS

Pre-Installation (continued)

Part

Description

Blade

Light kit mounting plate

24 watt LED Light kit

Glass shade

Wall switch

Wall plate

Quantity

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy ring (preassembled)

Canopy

Hanger ball/downrod assembly

Coupling cover

Fan motor assembly

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (RR) (not included)

as shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (QQ) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

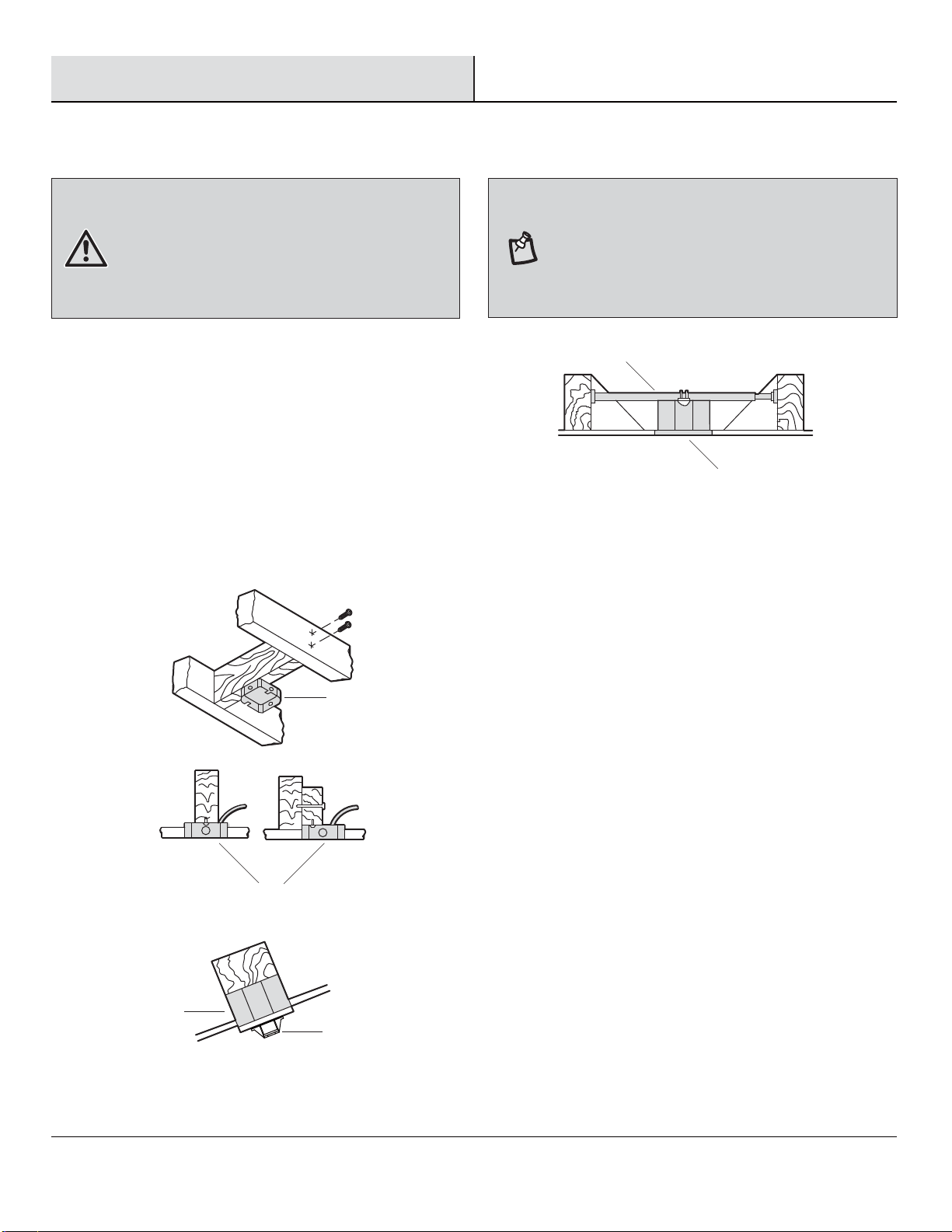

The illustrations below show three different ways to mount the

outlet box (QQ) (not included).

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy (C) touches the hanger ball/downrod assembly

(D), turn the canopy (C) 180° before attaching the canopy (C)

to the mounting bracket (A).

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

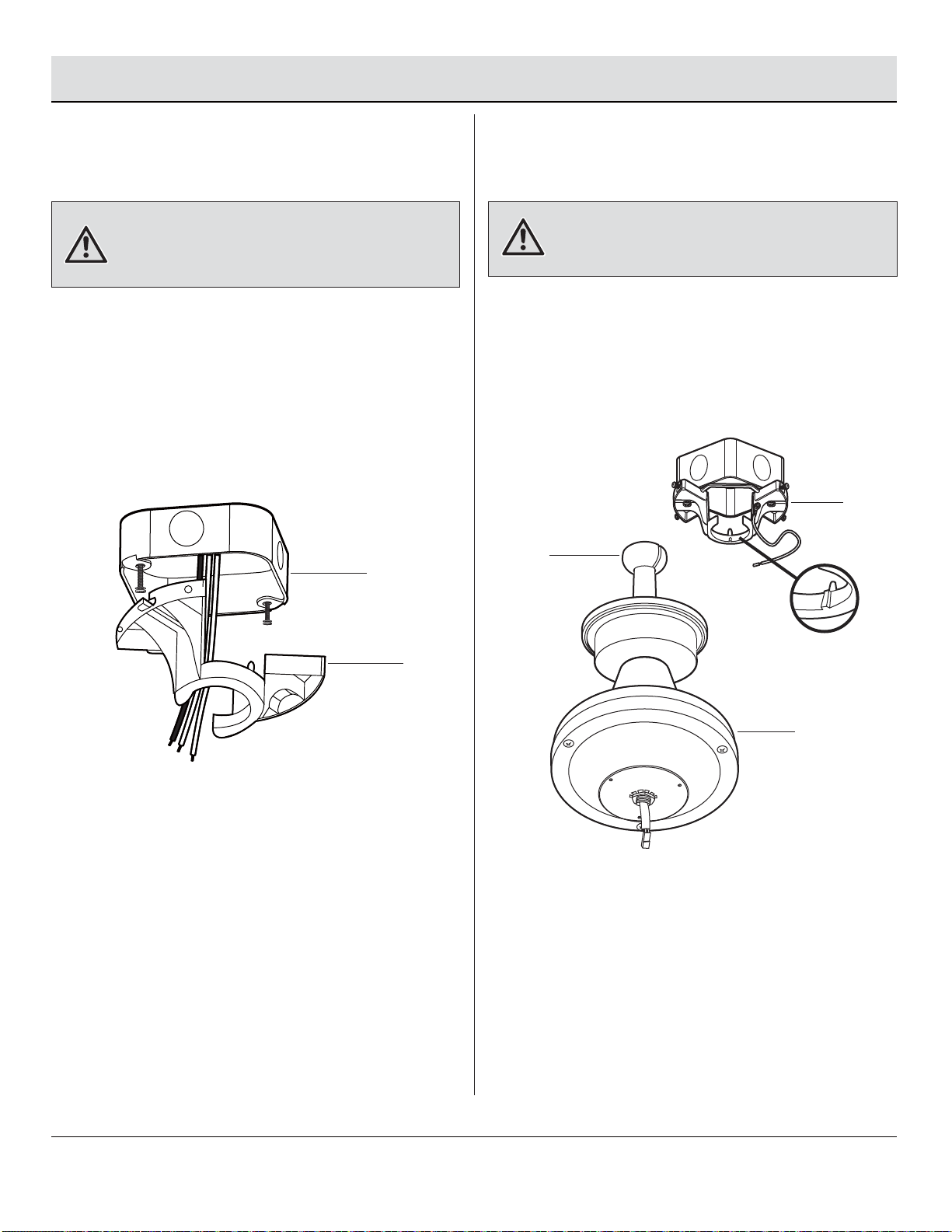

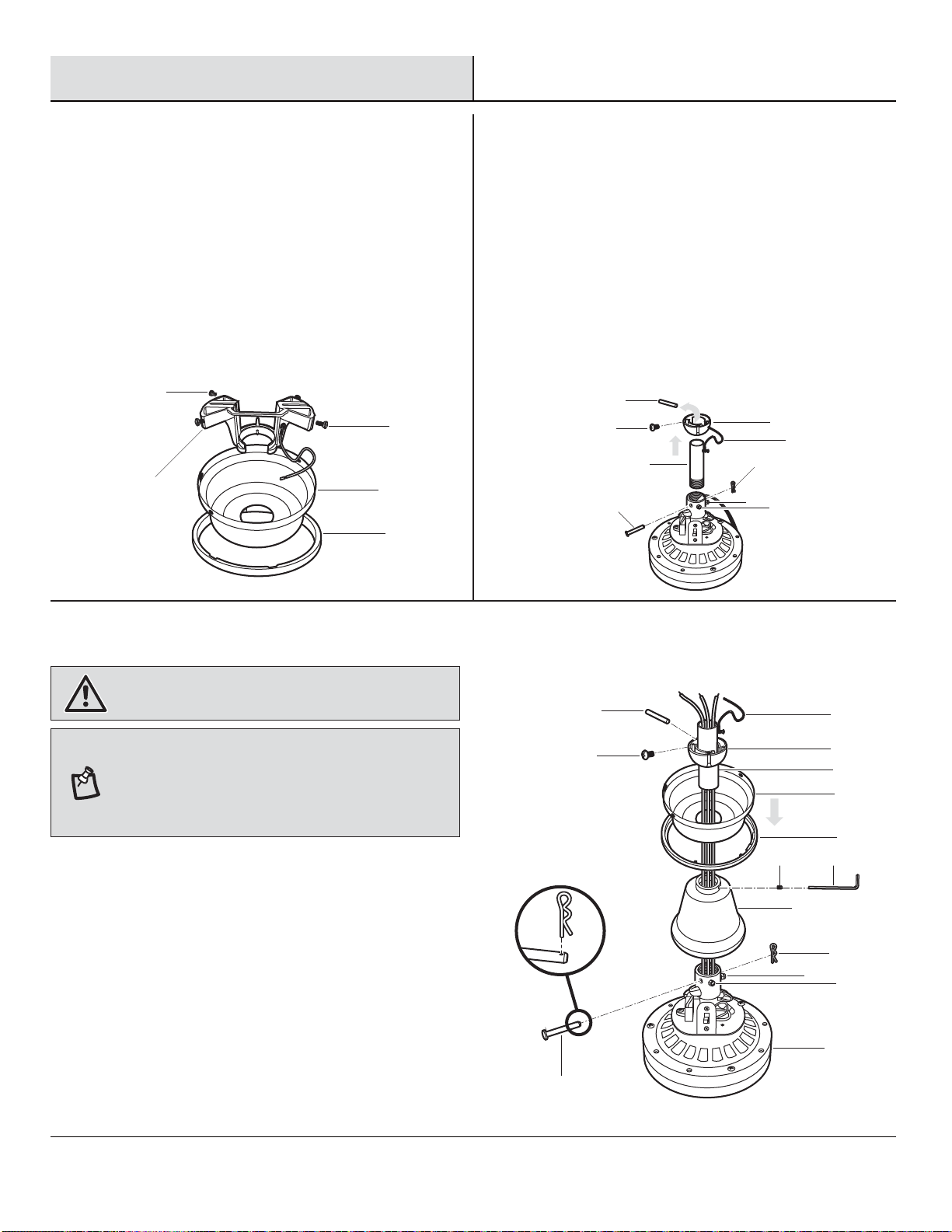

Assembly

1Preparing the canopy 2Preparing the motor

3Assembling the fan

MM NN

DD FF FF

□Remove the canopy ring (B) from the canopy (C).

□Remove the two non-slotted canopy mounting screws

(BB) from the canopy (C), and loosen the slotted

canopy mounting screws (BB) on the canopy (C).

□Remove the canopy (C) from the mounting bracket (A)

by turning the canopy (C) counterclockwise.

WARNING: Failure to properly install the cotter pin (EE)

could result in the fan loosening and possibly falling.

NOTE: If a longer downrod (not included) is needed, take

out the screw located in the hanger ball (SS), lower the

hanger ball (SS) and remove the pin (OO). Remove all three

pieces from the downrod and assemble them onto the new

longer downrod before proceeding to the downrod installa-

tion.

□Remove the cotter pin (EE) and clevis pin (DD), and

loosen the two collar setscrews (FF) from the motor

collar.

□Take out the setscrew (PP) located in the hanger ball

(SS), lower the hanger ball (SS) and remove the cross

pin (OO). Remove the hanger ball (SS) from the

hanger ball/downrod assembly (D).

□Remove the ground lead (TT) from the downrod

assembly (D).

□Carefully feed the motor wires up through the

downrod (UU). Thread the downrod (UU) into the

collar.

□Align the holes and replace clevis pin (DD) and cotter

pin (EE). Tighten the two collar setscrews (FF).

□Slip the coupling cover (E), canopy ring (B), and

canopy (C) onto the downrod (UU). Tighten the

coupling cover screw (MM) by using the hex wrench

(NN) provided.

□Carefully reinstall the hanger ball (SS) onto the

downrod (UU) and reinstall the ground lead (TT) onto

the downrod (UU). Be sure that the cross pin (OO) is in

the correct position, the setscrew (PP) is tightened

and wires are not twisted.

4Installing the mounting bracket

to the electrical box

Hanging the fan to the mounting

bracket

□Carefully lift the fan motor assembly (F) up to the

mounting bracket (A) and seat the hanger

ball/downrod assembly (D) in the mounting bracket

(A) socket. Make sure the tab on the mounting

bracket (A) socket is properly seated in the groove in

the hanger ball/downrod assembly (D). This will help

to balance the ceiling fan.

Assembly — Hanging the Fan

WARNING: To reduce the risk of ﬁre, electric shock or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

WARNING: The tab in the ring must rest in the groove of

the hanger ball/downrod assembly (D). Failure to properly

seat the tab in the groove could cause damage to the wiring.

□Pass the 120-volt supply wires through the center

hole in the mounting bracket (A).

□Attach the mounting bracket (A) on the outlet box

(QQ) by sliding the mounting bracket (A) over the

screws provided with the outlet box (QQ). Note that

the ﬂat side of the mounting bracket (A) is toward the

outlet box (QQ).

□Securely tighten the two mounting screws.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

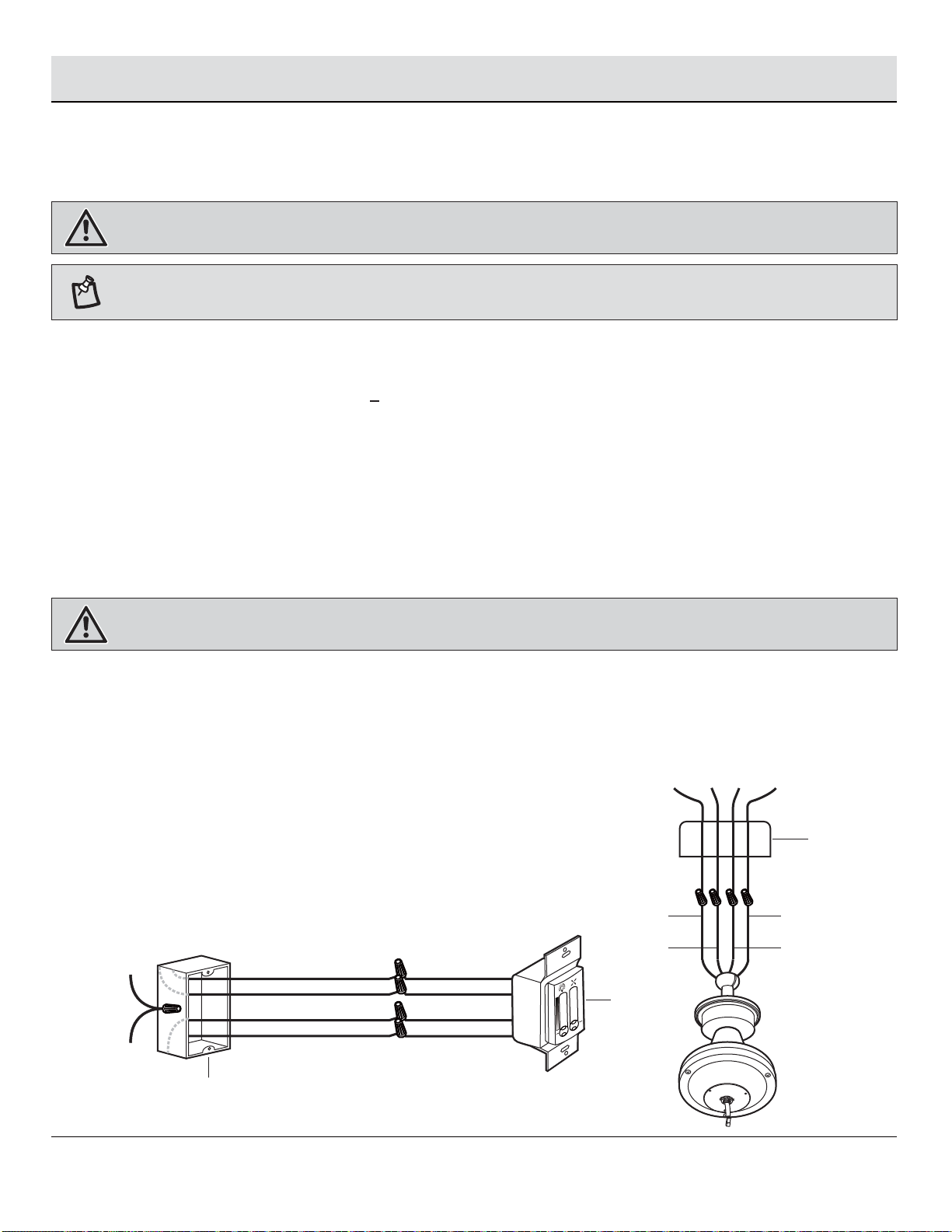

6Making the electrical connections

Assembly — Hanging the Fan (continued)

If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.

□Disconnect the power and remove the existing wall plate and switch from the wall outlet box.

□Set the knob on the wall switch (K) to the” “position.

□Make wire connections as follows using the wire nuts (AA).

a. Connecting the wires from the fan to the wires from the ceiling outlet box.

1. Connect the red wire form the ceiling outlet box to the blue wire from the ceiling fan.

2. Connect the black wire from the ceiling outlet box toe the black wire form the ceiling fan.

3. Connect the white wire from the ceiling outlet box to the white wire from the ceiling fan.

4. Connect the green wires from the bracket and down rod to the ground conductor wire on the ceiling box.

WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.

NOTE: Installation of this fan requires that a three-conductor cable with ground wire be run between ceiling and wall outlet box (VV).

Blue

Red

Green

White

Ground

conductor

Black

Line Voltage

(Black wire from main fuse box)

Ground

Black

Red

Black

Black/white

Yellow/green

Blue

White

(Neutral)

b. Connecting the wires from the switch to the wires from the wall outlet box.

□Make wire connections as follows using the wire nuts (LL).

1. Connect the blue wire from the switch to the red wire from the wall outlet box.

2. Connect the black wire form the switch to the black wire form the wall outlet box that feeds up to the fan.

3. Connect the black / white striped wire from the switch to the black LINE VOLTAGE wire from the outlet box that

feeds back to the main fuse box.

4. Connect the yellow / green striped wire form the switch to the ground terminal on the wall outlet box.

WARNING: Incorrectly connecting the black wires will cause the fan to not work and may damage the switch.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de Home Decorators Collection

Home Decorators Collection

Home Decorators Collection 52-MONT Manual de usuario

Home Decorators Collection

Home Decorators Collection 44-CRD Manual de usuario

Home Decorators Collection

Home Decorators Collection CHAPLIN AM443-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection AM183W-NI Manual de usuario

Home Decorators Collection

Home Decorators Collection BENTOYGA 51820 Manual de usuario

Home Decorators Collection

Home Decorators Collection WINDWARD IV Manual de usuario

Home Decorators Collection

Home Decorators Collection MERCER 54728 Manual de usuario

Home Decorators Collection

Home Decorators Collection YG683AP-PL Manual de usuario

Home Decorators Collection

Home Decorators Collection DRISKOL Manual de usuario

Home Decorators Collection

Home Decorators Collection Chartwell Manual de usuario

Home Decorators Collection

Home Decorators Collection GRENADA YG522-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection 56049 Manual de usuario

Home Decorators Collection

Home Decorators Collection KENSGROVE Series Manual de usuario

Home Decorators Collection

Home Decorators Collection 56006 Manual de usuario

Home Decorators Collection

Home Decorators Collection ACWORTH YG623A-MWH Manual de usuario

Home Decorators Collection

Home Decorators Collection FC132-BVRL Manual de usuario

Home Decorators Collection

Home Decorators Collection PICCADILLY YG503-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection 34777-HBUG Manual de usuario

Home Decorators Collection

Home Decorators Collection TRENTINO II YG475-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection FAWNDALE 1005 819 911 Manual de usuario

Home Decorators Collection

Home Decorators Collection GLENMEADOW AM613A-MBK Manual de usuario

Home Decorators Collection

Home Decorators Collection MERCER 54725 Manual de usuario

Home Decorators Collection

Home Decorators Collection HERALD AM429-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection DRAPER YG664-BN Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
