USE AND CARE GUIDE

MERCER LED 52 INCH CEILING FAN

Item #1002 211 945

Model #54728

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Speciﬁcations ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Dual Mounting Instructions .....................................................

Installation .....................................................................

Assembly ........................................................................

Standard Ceiling Mounting ......................................................

Close-to-Ceiling Mounting .....................................................

Hanging the Fan .....................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

Operation ......................................................................

Remote Control Operating Instructions ..................................

Installing the Remote Control Holder .....................................

Reverse Switch Operating Instructions ..................................

Care and Cleaning .......................................................

Troubleshooting ..........................................................

Service Parts ...............................................................

Table of Contents

READ AND SAVE THESE INSTRUCTIONS

Safety Information

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked

“FOR FAN SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft (2.1m)

clearance from the trailing edge of the blades to the ﬂoor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

10. Suitable for use with solid-state speed control (MK868-90W

only).

11. This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

Warning: Changes or modiﬁcations to this unit not expressly

approved by the party responsible for compliance could void

the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

WARNING: To reduce the risk of electric shock, this fan

must be installed with an isolating wall control/switch.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of ﬁre, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for

help.

The following responsible party designated in FCC §2.909 is

responsible for this declaration:

Model Number: 54728

Company Name: Minka Group

Company Address: 1151 W. Bradford Circle, Corona CA 92882, U.S.A.

Full Name: Christian Gonzalez Title: Product Manager

Telephone Number: 1-951-735-9220 Fax: 1-951-935-9802

SPECIFICATIONS

TOOLS REQUIRED

Phillips

screwdriver

Electrical

tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

Warranty

Pre-InstallationPre-Installation

52 in.

Low

Medium

High

120

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

1.796 ft.

N.W.

G.W.

C.F.

8.69 kgs

(19.12 lbs)

9.98 kgs

(21.96 lbs)

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

0.25

0.46

0.60

12.09

39.62

70.91

117

157

2017

4074

5484

Pre-Installation (continued)

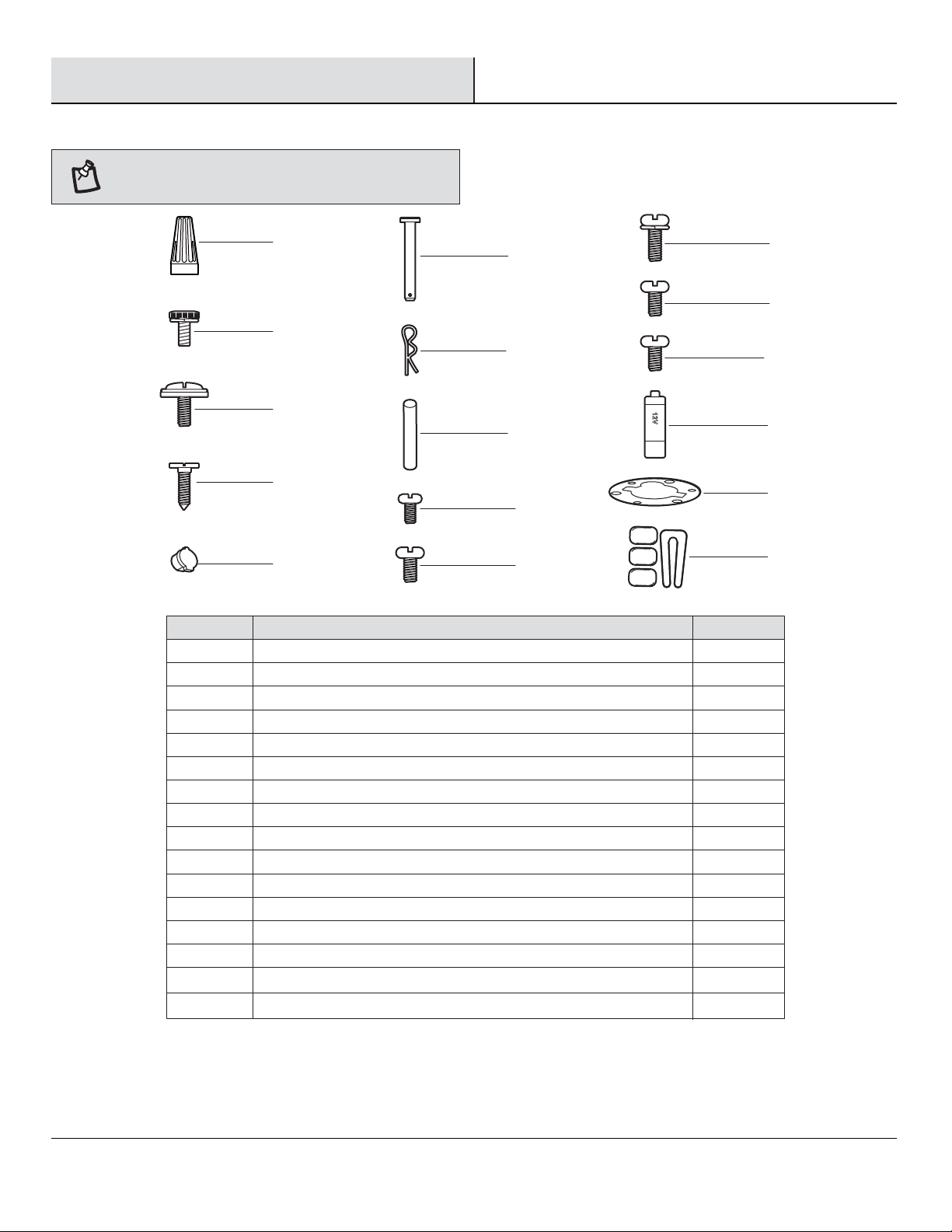

HARDWARE INCLUDED

NOTE: Hardware shown to actual size unless noted

otherwise in the table below.

Plastic wire nut

Canopy mounting screw with lock washer (preassembled)

Blade attachment screw and ﬁber washer

Remote control holder mounting screw

Remote control holder plug (preassembled)

Clevis pin (preassembled)

Cotter pin (preassembled)

Cross pin (preassembled)

Setscrew (preassembled)

Collar setscrew (preassembled)

Collar mounting screw with lock washer (preassembled)

Light kit mounting plate screw (preassembled)

Light kit mounting screw (preassembled)

12V MN21/A23 battery (not to scale)

Metal plate (not to scale)

Balance kit (not to scale)

Part

Description

Quantity

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Part

Description

Blade support plate

Light kit mounting plate

20 watt LED Light kit

Glass shade

Receiver

Remote control

Remote control holder

Quantity

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy ring (preassembled)

Canopy

Canopy bottom cover (preassembled)

Hanger ball/downrod assembly

Coupling cover

Fan motor assembly

Blade

PACKAGE CONTENTS

Pre-Installation (continued)

DUAL MOUNTING INSTRUCTIONS

This ceiling fan is supplied with two types of hanging assemblies: the

standard ceiling installation using the downrod with ball and socket

mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling"

mounting is recommended in rooms with less than 8 ft. ceilings or in

areas where additional space is desired from the ﬂoor to the fan blades.

When using the standard downrod installation, the distance from the

ceiling to the bottom of the fan blades will be approximately 12 in. The

"close-to-ceiling" installation reduces the distance from the ceiling to the

bottom of the fan blades to approximately 9 in.

Once you have decided which ceiling installation you will use, refer to the

corresponding sections and procedures during the assembly period.

Where necessary, each section of the instructions will note the different

procedures to follow for the two types of installation.

Standard Ceiling Mounting

Close-to-Ceiling Mounting

7 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (RR) (not included)

as shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (QQ) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box (QQ) (not included).

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy (C) touches the hanger ball/downrod assembly (E),

then remove the decorative canopy bottom cover (D) and turn

the canopy (C) 180° before attaching the canopy (C) to the

mounting bracket (A).

1Preparing the canopy 2Preparing the motor

□Remove the canopy ring (B) from the canopy (C).

□Remove the two non-slotted canopy mounting screw

with lock washer (BB) from the canopy (C), and loosen

the slotted canopy mounting screw with lock washer

(BB) on the canopy (C).

□Remove the canopy (C) from the mounting bracket (A)

by turning the canopy (C) counterclockwise.

3Assembling the fan

Assembly — Standard Ceiling Mounting

BGG

9 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

□Remove the cotter pin (GG) and clevis pin (FF), and

loosen the two collar setscrews (JJ) from the motor

collar.

□Take out the setscrew (II) located in the hanger ball

(SS), lower the hanger ball (SS) and remove the cross

pin (HH). Remove the hanger ball (SS) from the

hanger ball/downrod assembly (E).

□Remove the ground lead (TT) from the downrod

assembly (E).

WARNING: Failure to properly install the cotter pin (GG)

could result in the fan loosening and possibly falling.

□Carefully feed the motor wires up through the

downrod (UU). Thread the downrod (UU) into the

collar.

□Align the holes and replace clevis pin (FF) and cotter

pin (GG). Tighten the two collar setscrews (JJ).

□Slip the coupling cover (F), canopy ring (B), and

canopy (C) onto the downrod (UU).

□Carefully reinstall the hanger ball (SS) onto the

downrod (UU) and reinstall the ground lead (TT) onto

the downrod (UU), being sure that the cross pin (HH)

is in the correct position, the setscrew (II) is tightened

and wires are not twisted.

NOTE: If a longer downrod (not included) is needed, take

out the screw located in the hanger ball (SS), lower the

hanger ball (SS) and remove the pin (HH). Remove all three

pieces from the downrod and assemble them onto the new

longer downrod before proceeding to the downrod installa-

tion.

Assembly — Close-to-Ceiling Mounting

3Assembling the fan

Preparing the motorPreparing the canopy

□Remove three of the six collar mounting screws with

lock washers (KK) (every other one) from the collar on

top of the fan motor assembly (G).

□Route the wires exiting the top of the fan motor

through the canopy ring (B) (make sure the slot

openings are on top), and then proceed to place the

canopy (C) and metal plate (OO) over the collar at the

top of the fan motor assembly (G).

□Align the mounting holes in the bottom of the canopy

bly (G), and fasten using the three collar mounting

screws with lock washers (KK) previously removed.

□Tighten the collar mounting screws (KK) securely.

WARNING: Failure to completely tighten the three collar

mounting screws (KK) could result in the fan becoming loose

and possibly falling.

□Remove the canopy ring (B) from the canopy (C).

□Remove the mounting bracket (A) from the canopy (C)

by loosening the four canopy mounting screw with

lock washer (BB) on the top of the canopy (C).

□Remove the two non-slotted canopy mounting screw

with lock washer (BB) and loosen the slotted canopy

mounting screw with lock washer (BB).

□Remove the canopy bottom cover (D) from the canopy

counterclockwise.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de Home Decorators Collection

Home Decorators Collection

Home Decorators Collection RADLEY AM690-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection BETHEL 52-BETL Manual de usuario

Home Decorators Collection

Home Decorators Collection CASUN 11252AIWNCN Manual de usuario

Home Decorators Collection

Home Decorators Collection KENSGROVE II N608-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection 7982HDCBN Manual de usuario

Home Decorators Collection

Home Decorators Collection CANSON 60-CANS Manual de usuario

Home Decorators Collection

Home Decorators Collection KENSGROVE YG493OD-ORB Manual de usuario

Home Decorators Collection

Home Decorators Collection HERALD AM429-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection HERITAGE POINT AM909-CB Manual de usuario

Home Decorators Collection

Home Decorators Collection GRAMERCY YG513-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection YG583-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection 44-WWD Manual de usuario

Home Decorators Collection

Home Decorators Collection AK83-EB Manual de usuario

Home Decorators Collection

Home Decorators Collection TRENTINO II YG475-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection 51608 Manual de usuario

Home Decorators Collection

Home Decorators Collection 56047 Manual de usuario

Home Decorators Collection

Home Decorators Collection KELBRA YG439-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection ROYALTY II AM590B-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection ALTURA 56-ATR Manual de usuario

Home Decorators Collection

Home Decorators Collection FENCEHAM YG491A-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection DIALSTONE AK480-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection EASTWIND 43260 Manual de usuario

Home Decorators Collection

Home Decorators Collection 56047 Manual de usuario

Home Decorators Collection

Home Decorators Collection SANDY COVE 52-GLH Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
