USE AND CARE GUIDE

KINGSBROOK 60-INCH CEILING FAN

Table of Contents ................................................................2

Safety Information...............................................................2

Warranty ............................................................................... 3

Pre-Installation ....................................................................3

Installation............................................................................ 6

Assembly..............................................................................7

Operation ...........................................................................14

Care and Cleaning.............................................................16

Troubleshooting.................................................................16

1. To reduce the risk of electric shock, ensure the electricity has

been turned off at the circuit breaker or fuse box before you

begin.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70 and local electrical codes. Electrical

installation should be performed by a qualied licensed

electrician.

3. The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 35 lbs. (15.9

kg). Use only UL-listed outlet boxes marked “Acceptable for

Fan Support of 35 lbs. (15.9 kg) or less.”

4. The fan must be mounted with a minimum of 7 ft (2.1 m) of

clearance from the trailing edge of the blades to the oor.

5. Do not place objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other items,

use caution when working around or cleaning the fan.

7. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

outlet box.

8. All set screws must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of personal injury,

do not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do

not insert objects in the path of the blades.

WARNING: To reduce the risk of re or electric

shock, do not use this fan with any solid-state speed

control device.

WARNING: Electrical diagrams are for reference

only. If you are using a light kit, refer to the light kit

instructions manual to make the electrical

connections. Optional use of any light kit shall be

UL-listed and marked suitable for use with this fan.

WARNING: To avoid possible electrical shock,

turn the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs. (15.9 kg) or

less”, and use screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

WARNING: To reduce the risk of re or electric

shock, this fan should only be used with fan speed

control part no. XXXXXXX, manufactured by Satellite

Electronic Co., LTD.

This device complies with part 15 of the FCC rules, operation is subject to the following two conditions. (1) this device may not cause harmful

interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Do NOT use this fan with a dimmer switch

or wall control. Using a dimmer switch or wall control

will damage the fan.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a

lifetime after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date

of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior

model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any

accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish,

including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying

weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons

shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties,

including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any

implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a

limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by

law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior

warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

SPECIFICATIONS

NOTE:These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Size Speed Volts

Fan Power

Consumption

(without lights)

WATT

Airow

CFM

Airow Efciency

(Higher Is Better)

CFM/WATT

Net

Weight

Gross

Weight Cubic Feet

60 in.

120

X.0 XXXX XXXX

XX.XX lbs

(X.X kgs)

XX.XX lbs

(X.X kgs)

X.X pies³

(0.X m³)

2 X.0 XXXX XXXX

3 X.0 XXXX XXXX

4 X.0 XXXX XXXX

5 X.0 XXXX XXXX

6 X.0 XXXX XXXX

7 X.0 XXXX XXXX

8 X.0 XXXX XXXX

9 X.0 XXXX XXXX

Part Description Quantity

AA Blade attachment screws 25

BB Plastic wire connecting nut 3

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

AA BB

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire cutter

/ Stripper

Step ladder

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

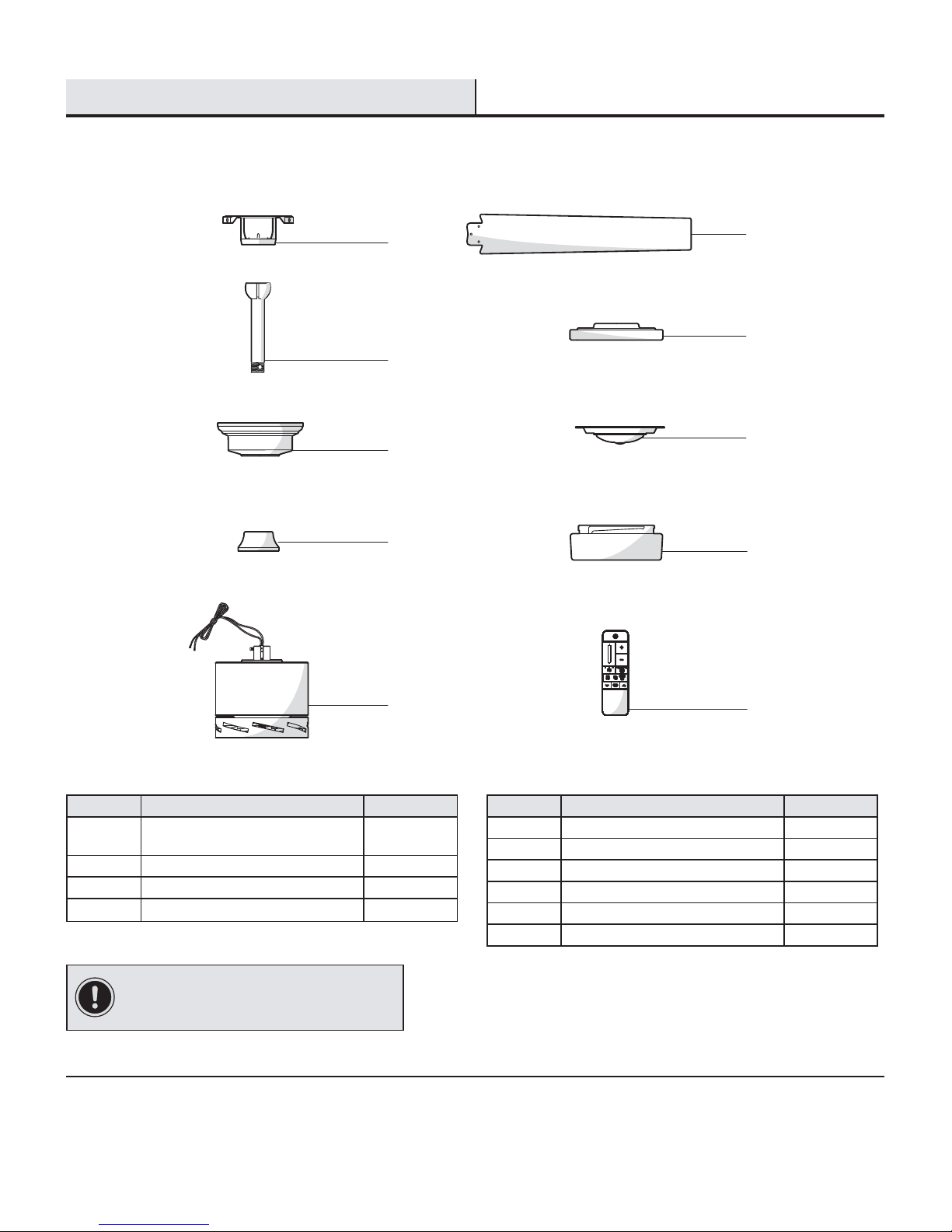

Part Description Quantity

ASlide-on mounting bracket

(inside canopy) 1

B Ball/downrod assembly 1

C Canopy with canopy ring attached 1

D Decorative motor collar cover 1

Part Description Quantity

E Fan-motor assembly 1

F Blade 8

G Light kit pan 1

H Light kit tter assembly (LED included) 1

I Glass bowl 1

J Remote control (batteries included) 1

IMPORTANT: This product and/or components are

governed by one or more of the following U.S. Patents:

5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117

and other patents pending.

Pre-Installation (continued)

PACKAGE CONTENTS

2H 4H 8H

Installation

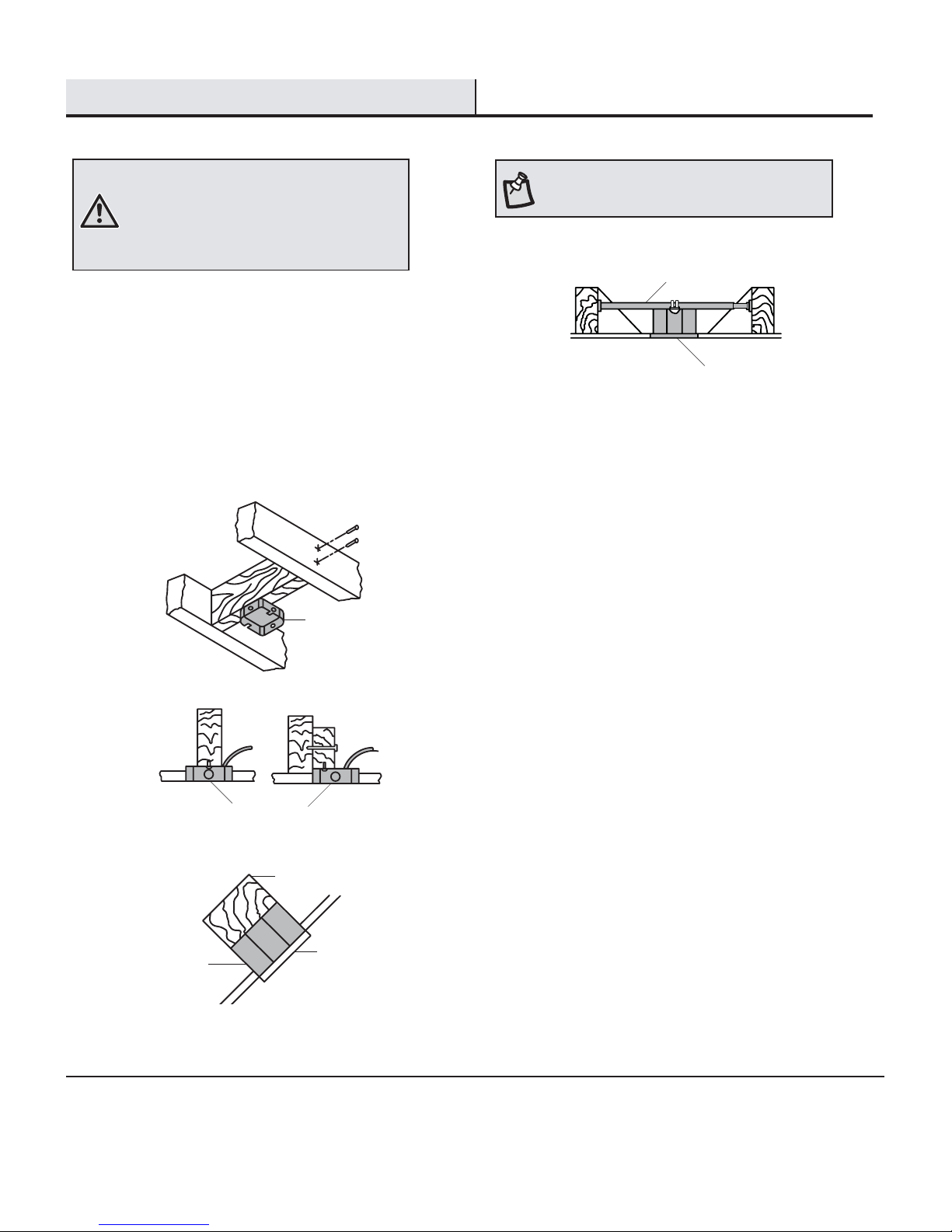

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock

or personal injury, mount to outlet box marked

“Acceptable for fan support of 35 lbs. (15.9 Kg)

or less”, and use screws provided with the outlet

box. An outlet box commonly used for the support

of lighting xtures may not be acceptable for fan

support and may need to be replaced. If in doubt,

consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

ƑDisconnect the power by removing the fuses or turning off

the circuit breakers.

ƑSecure the outlet box directly to the building structure. Use

the appropriate fasteners and materials. The outlet box and

support structure must be securely mounted and capable of

reliably supporting a minimum of 35 lbs. (15.9kg). Use only

UL-listed outlet boxes marked “Acceptable for fan support of

35 lbs. (15.9 Kg) or less” Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box.

If the canopy touches the downrod, then remove the decorative canopy

bottom cover, and turn the canopy 180° before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE:You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 30° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Standard Ceiling Mount

Routing the wires

Assembling the fan

Preparing for mounting

ƑRemove the canopy ring (EE) from the canopy (C) by turning

the ring counterclockwise until it unlocks.

ƑRemove the mounting bracket (A) from the canopy (C) by

loosening the two canopy screws (CC) located in the “L

shaped” slots.

ƑRemove and save the two canopy screws (DD) in the round

holes. This will enable you to remove the mounting bracket

(A).

ƑRoute the wires exiting the top of the fan-motor

assembly (E) through the center of the canopy ring (EE).

ƑInsert the ball/downrod (B) through the canopy (C) and

slide the decorative motor collar cover (D) onto the end

of the ball/downrod (B). Make sure the slots on the

canopy (C) are on top.

ƑRoute the wires exiting the top of the fan motor

assembly (E) through the downrod as shown.

ƑRemove the setscrew (HH) by turning it counterclockwise.

ƑInstall the downrod (B) by inserting it into the motor collar (FF),

and turning it clockwise until it is tight.

ƑReinstall the setscrew (HH) turning clockwise until tight.

NOTE:This fan is equipped with a safety tab (GG). Should

the setscrew (HH) ever become loose while the fan is

running in reverse, the safety tab (GG) will engage and

stop the fan from falling.

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the downrod (B) and the setscrew

(HH) must be completely tightened

Assembly - Hanging the Fan

Attaching the fan to the electrical

box Hanging the fan

ƑLoosen the two mounting screws (JJ) in the outlet box.

ƑPass the 120-Volt supply wires through the center hole in the

mounting bracket (A).

ƑSlide the mounting bracket (A) on to the mounting screws (JJ)

and center the mounting bracket (A) in relation to the outlet box.

If necessary, use leveling washers (not included) between the

slide-on mounting bracket (A) and the outlet box. The at side of

the slide-on mounting bracket (A) should face toward the outlet

box, as shown.

ƑSecurely tighten the two mounting screws (JJ).

ƑCarefully lift the fan-motor assembly (E) up to the slide-on

mounting bracket (A).

ƑInsert the ball portion of the ball/downrod assembly into

the socket of the slide-on mounting bracket (A).

ƑTurn the ball/downrod assembly clockwise until it is seated

with the tab of the slide-on mounting bracket (A) aligned

with the slot in the ball.

WARNING: To reduce the risk of re, electric shock or personal

injury, mount to outlet box marked “Acceptable for fan support

of 35 lbs. 15.9 kg) or less”, and use screws provided with the

outlet box.

NOTE:The mounting bracket (A) is designed to slide into place

on an outlet box with the outlet box screws (JJ) installed.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan (continued)

Outlet box

in the ceiling II

Green or bare wire

Black White

Black White Green

Making the electrical connection

IMPORTANT:Use the plastic wire connectors (BB) supplied with

your fan. Secure the connectors with electrical tape and ensure

there are no loose strands or connections.

WARNING: Each wire not supplied with this fan is designed to

accept up to one 12-gauge house wire and two wires from the

fan. If you have larger than 12-gauge house wiring or more

than one house wire to connect to the fan wiring, consult an

electrician for the proper size wire nuts to use.

ƑThe fan comes with 78 in. lead wires for use with an extended

ball/ downrod assembly. If using the 6 in. ball/downrod

assembly (B) provided, you can cut the lead wires to your

desired length (no shorter than 12 in.). This will make extra

room in the canopy (C), if you do not wish to cut the wires,

you will need to neatly wrap them.

ƑConnect the fan motor green wires to the household green or

bare wire using a wire connecting nut (BB).

ƑConnect the fan motor white wires to the household white

wire using a wire connecting nut (BB).

ƑConnect the fan motor black wires to the household black

wire using a wire connecting nut (BB).

ƑSecure each wire connecting nut using electrical tape.

ƑTurn the wire connecting nut (BB) upward and push the wiring

into the outlet box (II).

NOTE:The fan comes with 78 in. lead wires for use with an

extended ball/ downrod assembly. If using the 6 in. ball/downrod

assembly (B) provided, you can cut the lead wires to your desired

length (no shorter than 12 in.)

Mounting the fan-motor assembly

(standard mount)

ƑAlign the locking slots of the ceiling canopy (C) with the two

screws (CC) in the slide-on mounting bracket (A). Push up to

engage the slots, and turn clockwise to lock the canopy (C) in

place.

ƑFirmly tighten the two mounting screws (CC).

ƑInstall the two mounting screws (saved from Assembly Step 1

“Preparing for mounting”) into the holes in the canopy (C) and

tighten rmly.

ƑInstall the decorative canopy ring (EE) by aligning the ring’s

slots with the screws in the canopy (C). Rotate the canopy

ring (EE) counterclockwise to lock it in place.

WARNING: When using the standard ball/downrod mounting, the

tab in the ring at the bottom of the mounting bracket must rest in

the groove of the hanger ball. Failure to properly seat the tab in

the groove could cause damage to the wiring.

Assembly - Hanging the Fan (continued)

Wrapping the extra wire

ƑGently wrap the excess wire around the mounting bracket.

ƑSecure with electrical tape.

NOTE:Follow this step ONLY if you did not cut the extra length off

from the wires coming from the ceiling fan.

WARNING: The locking slots of ceiling canopy are provided only

as an aid to mounting. Do not leave the fan assembly unattended

until all four canopy screws are engaged and rmly tightened.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Admirador de Home Decorators Collection

Home Decorators Collection

Home Decorators Collection BETHEL 52-BETL Manual de usuario

Home Decorators Collection

Home Decorators Collection ALTURA II 94468 Manual de usuario

Home Decorators Collection

Home Decorators Collection BANNERET Manual de usuario

Home Decorators Collection

Home Decorators Collection EMSWELL 52-INCH Manual de usuario

Home Decorators Collection

Home Decorators Collection STILLMORE 59203 Manual de usuario

Home Decorators Collection

Home Decorators Collection DELMORE 56054 Manual de usuario

Home Decorators Collection

Home Decorators Collection TRUDEAU YG545A-EB Manual de usuario

Home Decorators Collection

Home Decorators Collection 60-SCHU Manual de usuario

Home Decorators Collection

Home Decorators Collection GLENMEADOW AM613A-MBK Manual de usuario

Home Decorators Collection

Home Decorators Collection SUDLER RIDGE 51714 Manual de usuario

Home Decorators Collection

Home Decorators Collection WINDLOW 52-VAGN Manual de usuario

Home Decorators Collection

Home Decorators Collection TETIA Manual de usuario

Home Decorators Collection

Home Decorators Collection ACWORTH YG623A-MWH Manual de usuario

Home Decorators Collection

Home Decorators Collection 60-BDT Manual de usuario

Home Decorators Collection

Home Decorators Collection 34545-HBUN Manual de usuario

Home Decorators Collection

Home Decorators Collection TRENTINO II YG475-WH Manual de usuario

Home Decorators Collection

Home Decorators Collection ALISIO Manual de usuario

Home Decorators Collection

Home Decorators Collection 56047 Manual de usuario

Home Decorators Collection

Home Decorators Collection EASTON N381A-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection 51860 Manual de usuario

Home Decorators Collection

Home Decorators Collection WALES 56-WALS Manual de usuario

Home Decorators Collection

Home Decorators Collection CIRINO AM550-BN Manual de usuario

Home Decorators Collection

Home Decorators Collection VIRGINIA HIGHLAND 754 146 Manual de usuario

Home Decorators Collection

Home Decorators Collection BAXLEY POINT OUTDOOR YG786-MBK Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
