HOMCOM 370-096 Manual de usuario

ASSEMBLY INSTRUCTION

IN221000270V01_UK

370-096

1.Suitable age for 18-36 Months.

2.Maximum user weight: 20KGS.

3.Adult assembly required.

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

WARNING:

(1) This kind of product is ﬁt for the children aged 18-36 month old and

maximum load under 20kg maximum load under 20kg.

(2) WARNING-Never leave the child unattended.

(3) Prevent access to stairs, steps and uneven surface.

(4) Remove hot liquids, electrical ﬂexes and other potential hazards

from reach.

(5) Prevent collisions with glass in doors, windows and furniture.

(6) Instruction for routine maintenance and cleaning or washing.

(7) Before using, this product will be inspected and assembled by the

adult.

Speciﬁcation

ltem

Maximum weight

Size

Available ages

Speciﬁcations

20KGS

67x40.5x46CM

Children at 18-36 months

(1) Installing and changing batteries should be

fulﬁlled by adults.

(2) Install the batteries refer to the picture (1) of

the parts: the installation of AA (1.5V)

batteries: open the cover, install the batteries

correctly according to the marks of the positive

and the negative electrodes , ﬁnally put on the

cover and fasten the cover.

(3) The unchangeable batteries must not be changed and do not mix

the diﬀerent types of the batteries( or the new and the old) to use

together.

(4) Take out the used-up batteries and avoid short circuit.

The notices of installing and changing batteries

PART

LIST

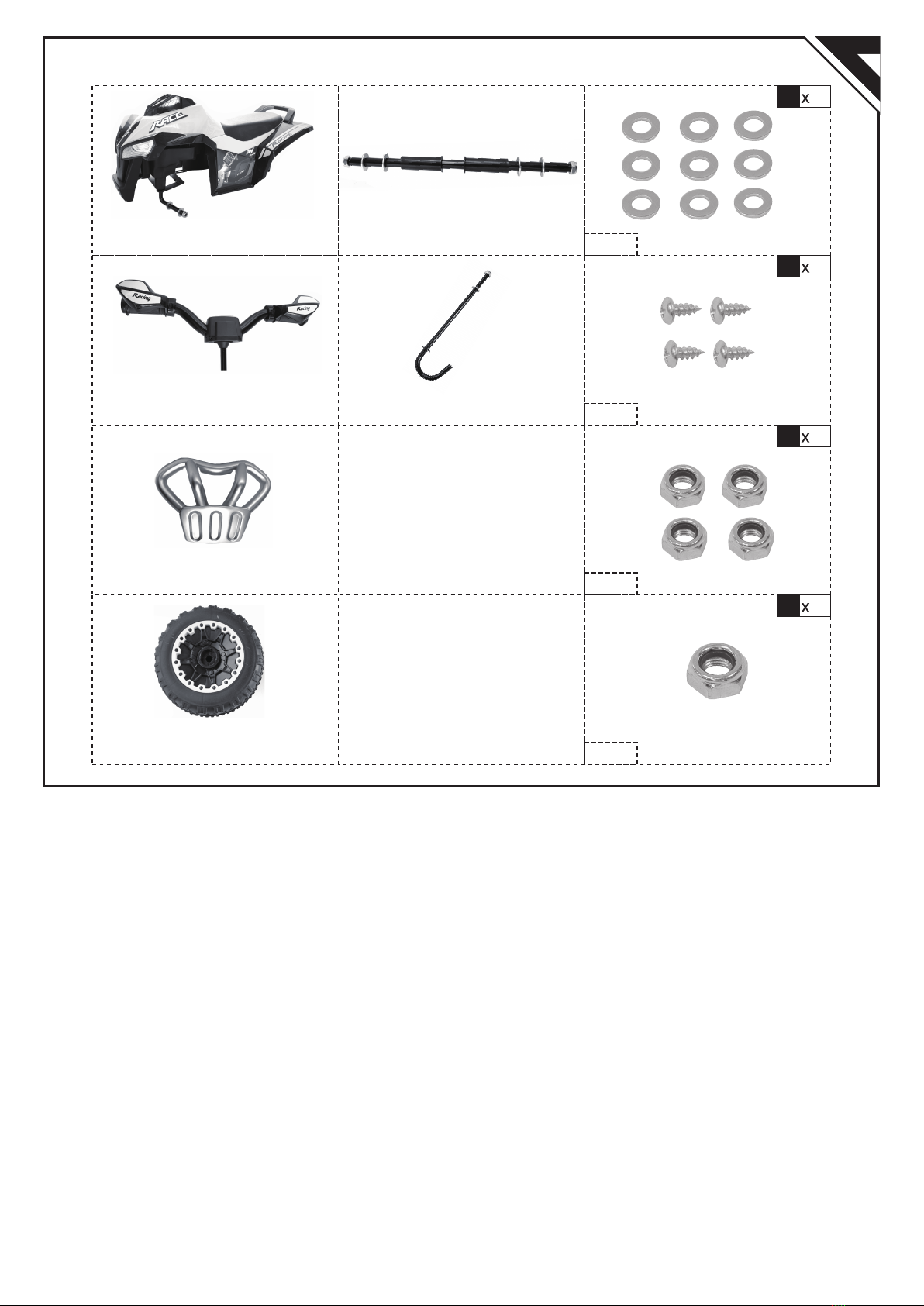

1.body

4. wheel*4

2.handlebar

5.A rear axle &

3.Bumper

6. Steering shaft

M10

M4*10

Axle sleeve*2

Note:

All screws, nuts and small plastic parts are pre-installed in

the corresponding position, please follow the steps to

remove before you install the product.

A rear axle

Gasket

wheel

Nut Axle sleev

Gasket

Step 2 Install the bumper

Install the bumper on the front of the car as shown by the arrow

and screw it in place

Installing the other side wheel is the same as step 1.

(4X(4X10)SCREW)

INSTALLATION STEPS

Step 1 Install the rear wheel

As shown in the arrow, insert the shaft frame into the

car body, pass the axle sleeve, gasket, rear wheel,

gasket and nut (as shown in Figure 1) through the axle,

and tighten the nut clockwise (as shown in Figure 2).

A rear axle

Gasket

wheel

Nut

Axle sleeve

Step 4 Install the Steering shaft

Turn the car upside down and insert the steering shaft

Step 5 Install the Steering shaft

Nut

Gasket

Insert the handlebar into the steering shaft, insert the gasket,

and secure with a nut(M10*1)

Step 3 Install front wheel

Gasket

Nut

Gasket

Gasket Gasket

Nut

As shown by the arrow, pass the gasket, wheel, gasket and nut

through the front axle and tighten the nut clockwise

Step 6 Install the battery

box and take off the cover;

Use three AAA 1.5V cells, please install

the batteries properly.

Warning:

Do not mix to use the batteries, such as

used, unused, different type, etc.

Keep the child away from the battery.

Loosen the 4x10 mounting screws and

open the seat cushion to see the battery

box. Add the dry battery and you can use

the music function.
