ASSEMBLY INSTRUCTIONS

835-421

Ver 032021.08

INc4b074_US

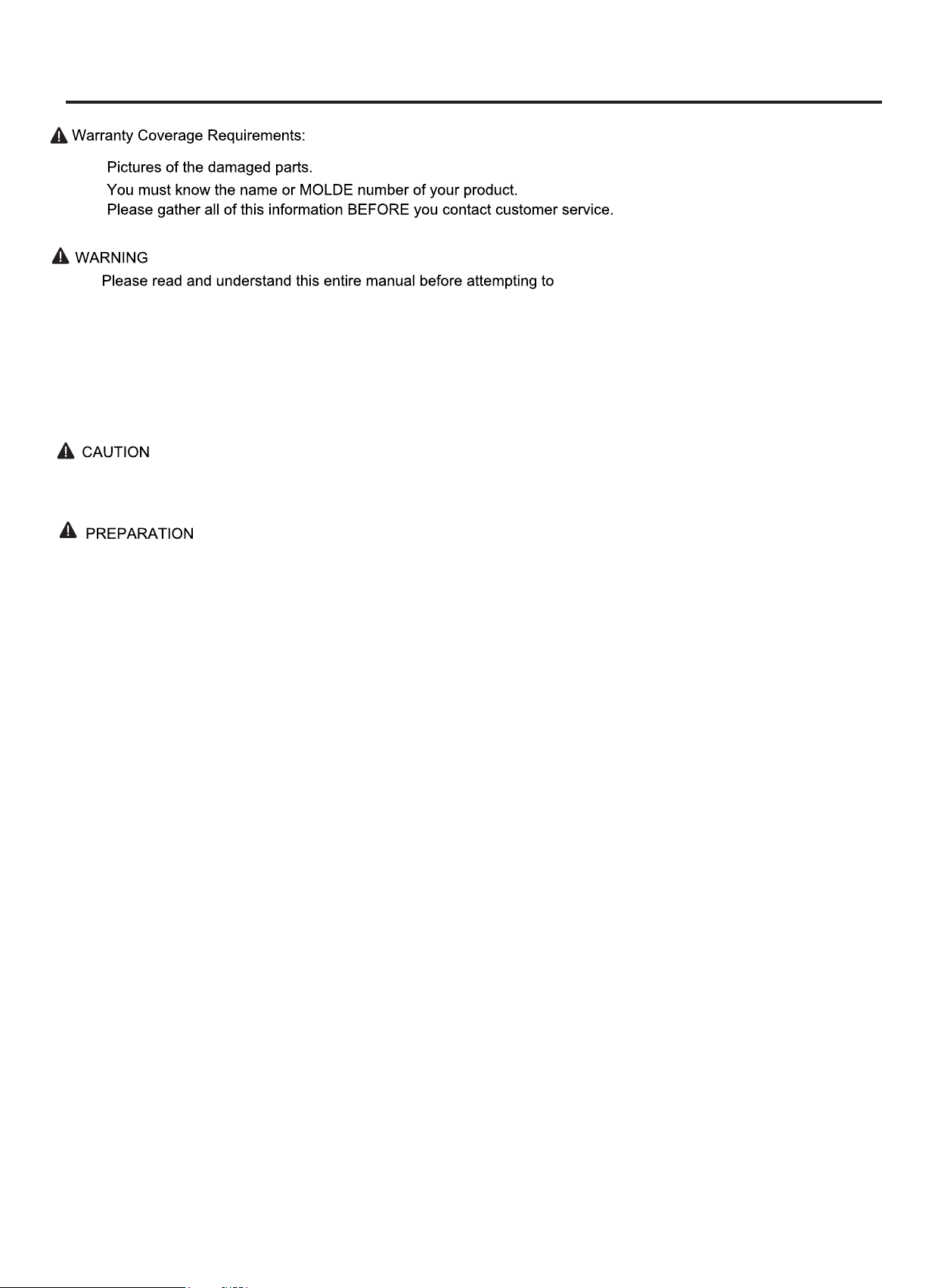

SAFETY INFORMATION

2.Assemble the item on a soft, non-abrasive surface such as carpeting

to avoid damage.

Recommended maximum sitting weight for the stool is 350lbs/ 160kgs

Before beginning assembly of product, make sure all parts are present.

Compare parts with parts list.If any part is missing or damaged, do not attempt

to assemble the product and contact us immediately

assemble or install the product.

3.Item is heavy. Handle with care. May require two adults for safe assembly.

Estimated Assembly Time: 60 minutes.

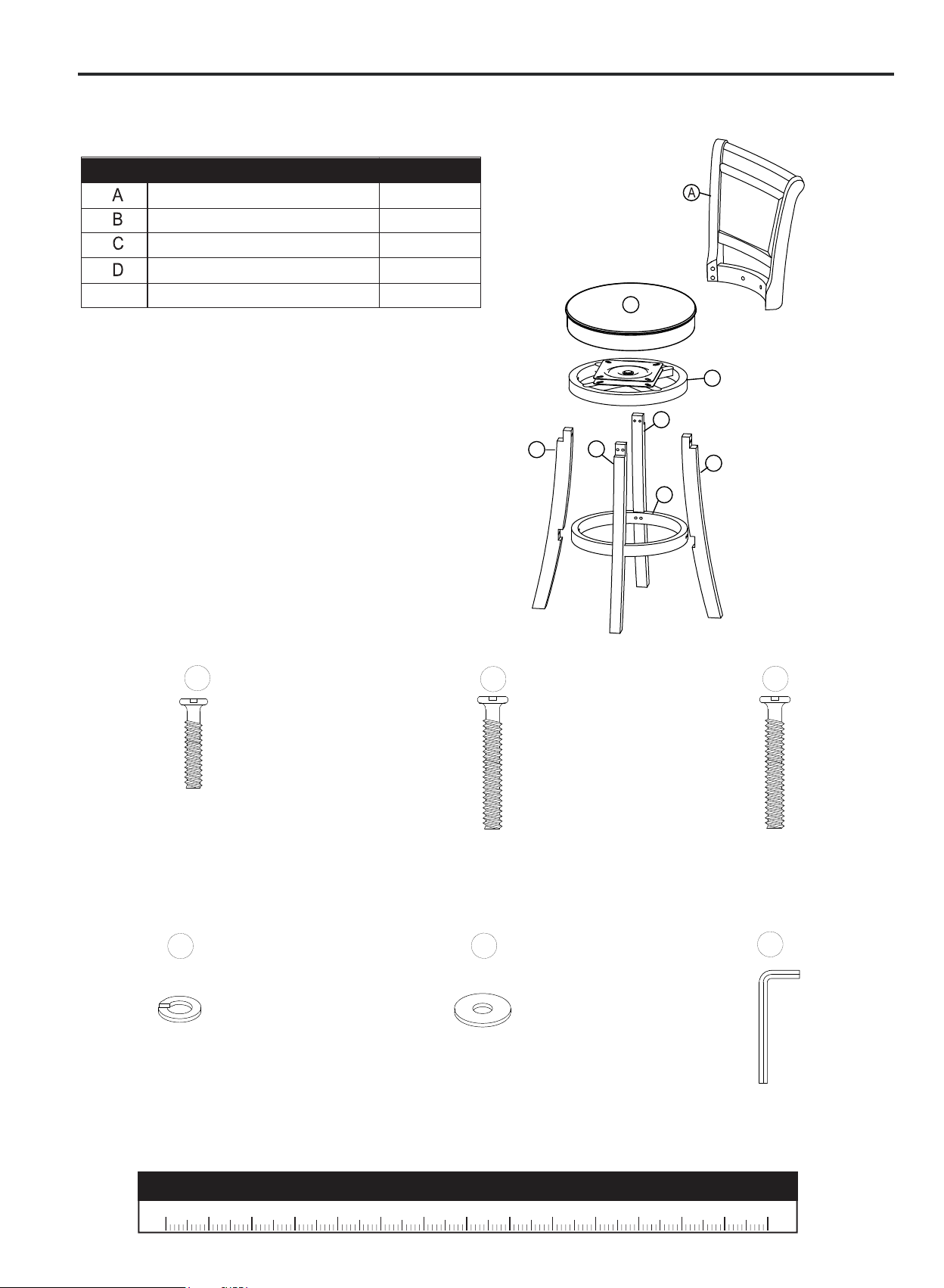

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

Ruler

- Use this ruler to help correctly identify the screws.

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140

Chair back

Seat cushion

Seat frame

Chair legs

Foot rest

01B

Ø6.3 x 25L

Bolt

Qty. 4

Extra. 1

Ø6.3 x 45L

Bolt

Qty. 18

Extra. 2

Ø6.3

Spring

Washer

Qty.26

Ø6.3

Flat

Washer

Qty. 26

AA BB

DD EE

Allen

Wrench

Qty. 1

Ø6.3 x 50L

Bolt

Qty. 4

Extra. 1

ASSEMBLY INSTRUCTIONS

FRAME ASSEMBLY

Hardware Used

x 2

x 4

x 6

Ø6.3 x 45L Bolt

EE EE

Ø6.3 x 50L Bolt

Ø6.3 Spring washer

Ø6.3 Flat washer

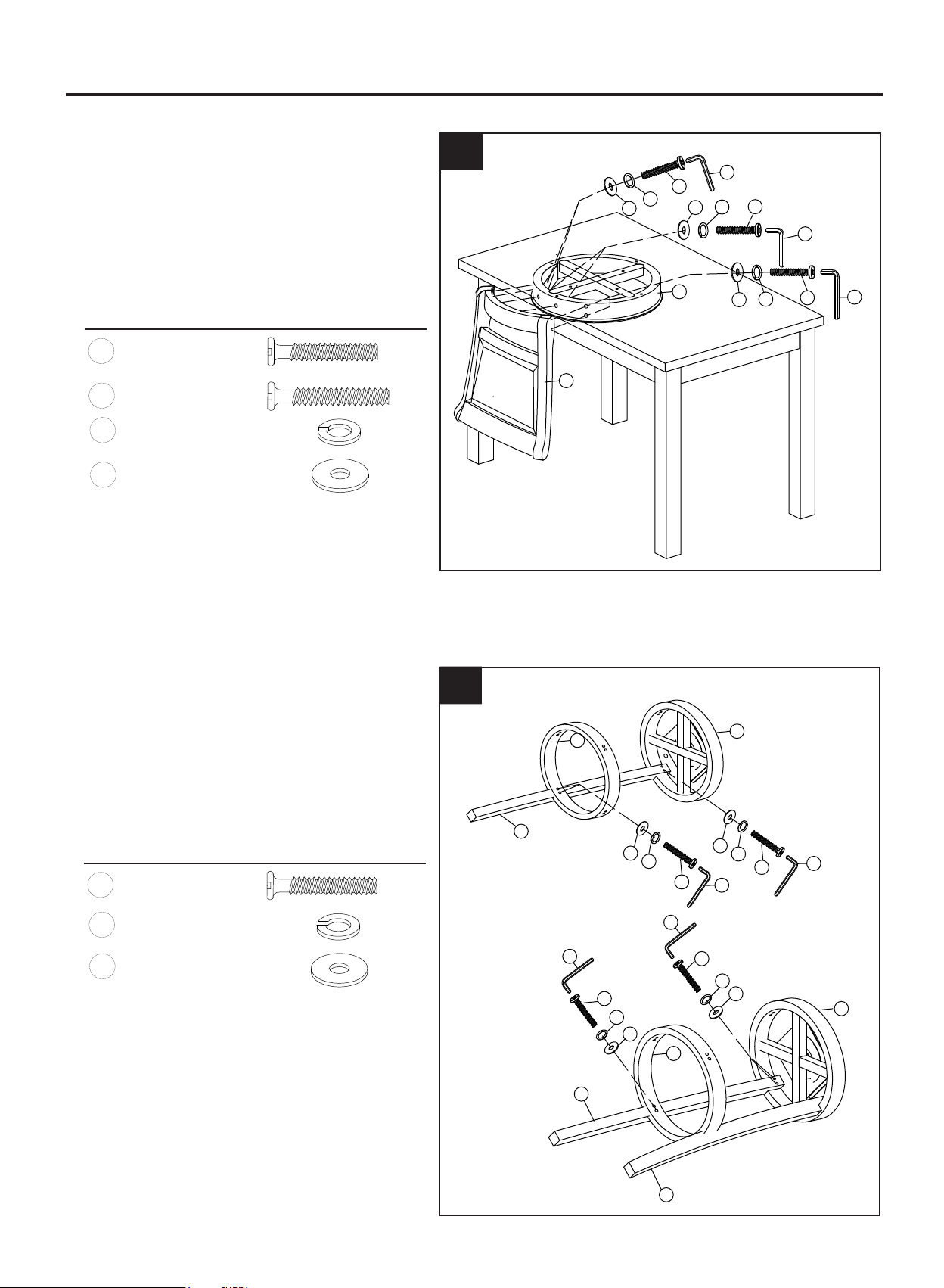

Align six holes of the seat cushion (B).

Insert Ø6.3 x 45L bolt (BB), Ø6.3 x 50L

(CC) bolt through spring washer (DD),

flat washer (EE), with the chair back (A).

Repeat this procedure for adjacent hole.

Hardware Used

x 8

Ø6.3 x 45L Bolt

Ø6.3 Spring washer

Ø6.3 Flat washer

Align holes of the seat frame (C)and

foot rest (E).Insert Ø6.3 x 45L bolt (BB)

through spring washer (DD), flat washer

(EE), with the chair leg (D). Repeat this

procedure for 2nd leg.

EE DD

ASSEMBLY INSTRUCTIONS

FRAME ASSEMBLY

Hardware Used

x 8

Ø6.3 x 45L Bolt

Ø6.3 Spring washer

Ø6.3 Flat washer

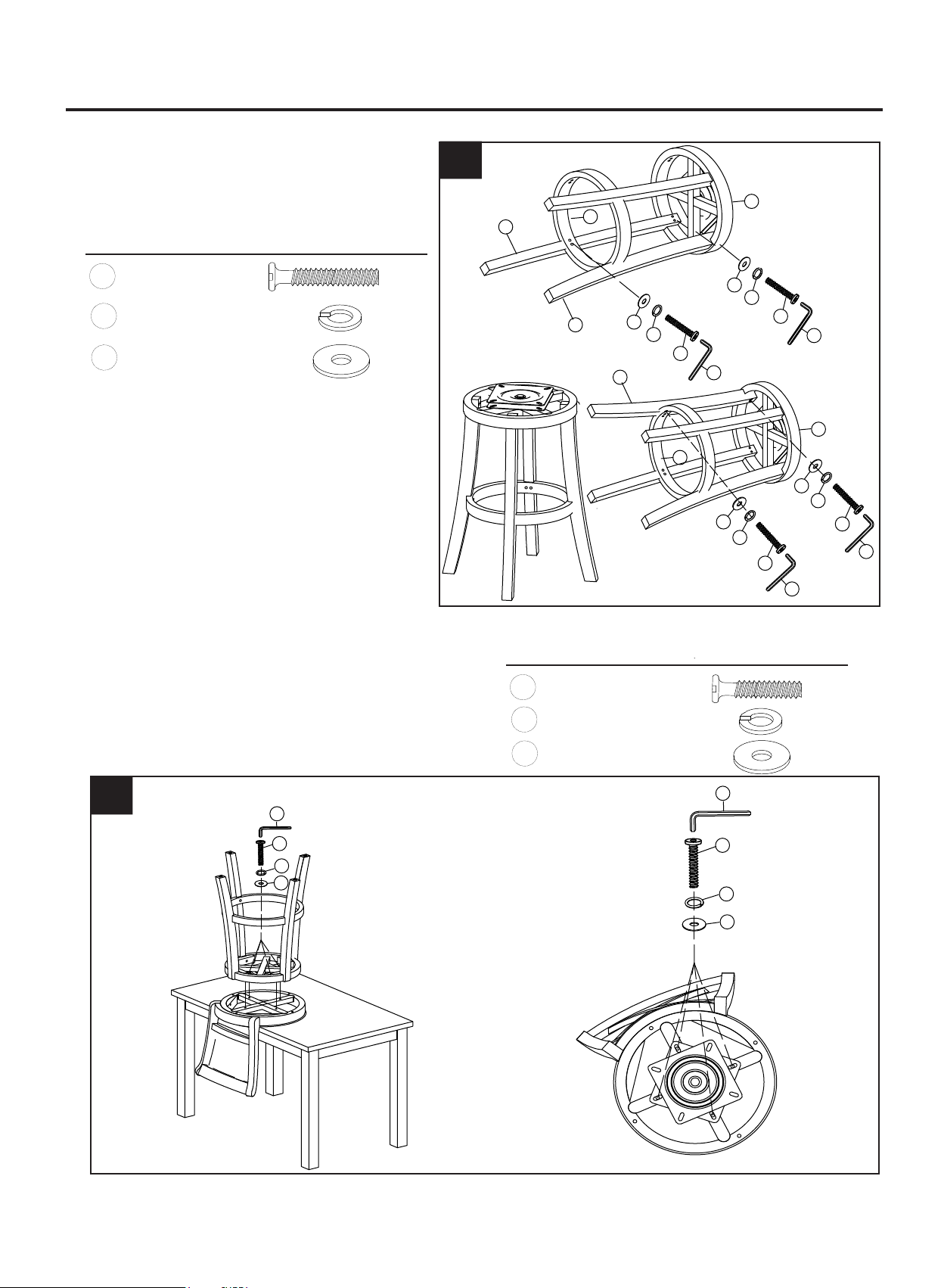

Repeat the same procedure as step 2

for the 3rd and 4th leg

Hardware Used

x 4

Ø6.3 x 25L Bolt

Ø6.3 Spring washer

Ø6.3 Flat washer

Align holes of the swivel plate (C).

Insert Ø6.3 x 25L bolt (AA) through

spring washer (DD), flat washer (EE),

with the seat cushion (B). Repeat this

procedure for adjacent hole. The assembly

of this product has been completed.

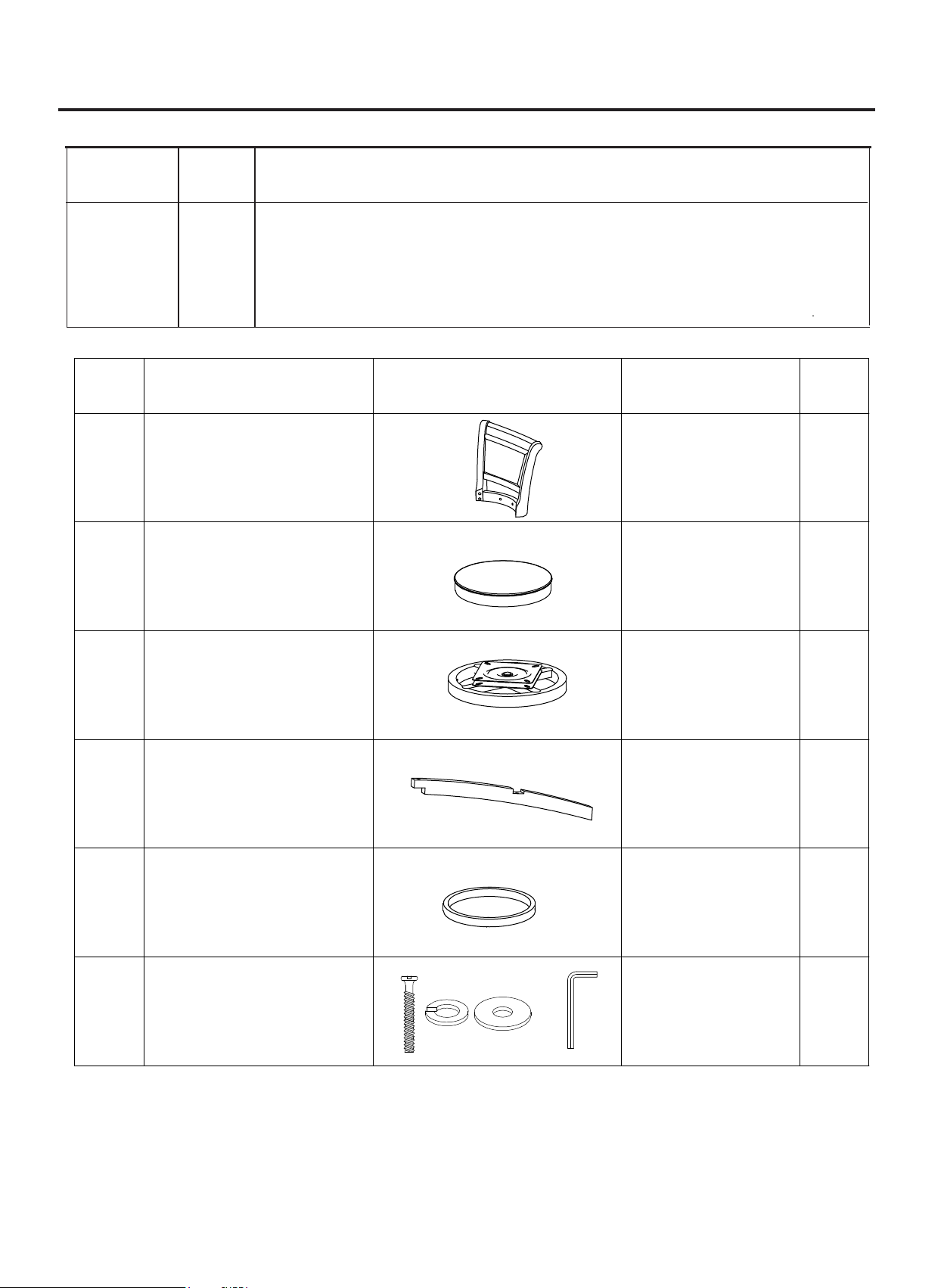

ITEM NO. CTN NO. INCLUDING

835-442BK/

WT 11Chair back + 1 Seat cushion + 1 Seat Frame + 4 Chair legs + 1 Foot Rest

+ Hardware

NoProduct clusters inside carton Reference Picture Part Qty

Chair back

Seat cusshion

Seat frame

Chair legs

Foot rest

Hardware

AA, BB, CC, DD,

EE, FF
