Holux GR-239 Manual de usuario

English

GR-23

User Manual

Bluetooth GPS Receiver

About This Manual

Thank you for choosing Holux GR-239 Bluetooth GPS Receiver. This

manual helps you to familiarize yourself with this product to best suit your

needs. Keep this manual for future reference.

Warranty

The GPR-239 Bluetooth GPS Receiver is warranted to be free from defects

in material and functions for a period of one year from the date of purchase.

If there is a product failure of within this period (under normal conditions), a

replacement will be provided at no charge to the customer.

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any mean, without the

express written permission of Holux Technology, Inc.

Safety Information

•When using this product, heed the safety precautions to reduce the risk

of fire, electric shock, or personal injury.

•Read and understand all instructions.

•Unplug this unit from the cigarette lighter adapter before cleaning. Use

a dampen cloth for cleaning. Do not use liquid or aerosol cleaners.

•Do not disassemble the device. The product contains no user-

replaceable parts.

Table of Contents

1. Product Overview.........................................................................1

2. Package Contents........................................................................2

3. Main Features ...............................................................................3

4. Getting Started .............................................................................4

4.1. Hardware Overview ...............................................................4

4.2. Using the GR-239 ..................................................................5

4.3. Data Port................................................................................6

4.4. Connecting the Antenna ........................................................7

4.5. Bluetooth Installation .............................................................7

4.6. Installing the Testing Program............................................ 10

4.7. Connecting to a Notebook .................................................. 14

4.8. Driver Installation ................................................................ 15

5. Troubleshooting........................................................................ 17

6. Specifications............................................................................ 18

1. Product Overview

The

HOLUX

GR-239 Bluetooth GPS Receiver is a complete GPS

solution featuring Bluetooth and UART interface for high sensitivity to

tracking signals. The GR-239 design is based on SiRF Star III Single Chip

Architecture and is powered directly from a cigarette lighter, which saves

the trouble of charging the device.

The GR-239 is a dual-function GPS receiver. It not only transmit

satellite information through the PDA or Notebook with Bluetooth capability

but is also a G-Mouse GPS receiver and through a USB data cable to

deliver satellite signal to the device without Bluetooth capability.

This positioning application meets your needs with car navigation,

mapping, surveying, security, agriculture and features needed. The GR-239

connects to other device through Bluetooth or Serial Port Profile (SPP). It

supports NMEA 2.2 output protocol, which helps to save satellite

information such as the satellite signal status, the last location, date and

time of last use.

With low power consumption, the GR-239 tracks up to 20 satellites at

a time, re-acquires satellite signals in 100 ms and updates position data

every second. Trickle-Power allows the instantaneous start and Push-to-Fix

permits users to obtain a quick position fix even if the receiver is usually off.

2. Package Contents

Congratulations on your purchase of the GR-239 Bluetooth GPS Receiver.

Before you start using your GR-239 Bluetooth GPS Receiver, check that

your package contains the following items. If anything appears to be

missing or damaged, contact your local Holux dealer or distributor for a

replacement.

GR-239 Bluetooth

GPS Receiver Warranty card Tool CD

MMCX Active antenna (optional) USB data cable (optional)

* USB data cable can be used for data transfer between GR-239 and

Notebook / PC.

3. Main Features

•Compact design integrated with cigarette lighter adapter for easy

use in car.

•20 parallel satellite-tracking channels for fast acquisition and

reacquisition. *c

•Supports NMEA0183 v2.2 data protocol or SiRF binary code.

•100% compatible with Bluetooth™ Serial Port Profile (SPP).

•Designed with SiRF Star III Single Chip architecture which draws

power from car battery; no power adapter required.

•Function as a G-Mouse GPS receiver through a USB data cable to

deliver satellite signals to device directly.

•Features MMCX Active antenna for getting better satellites signal.

4. Getting Started

This section describes the driver installation procedure, gives a brief

introduction of the hardware and software, and covers the installation of

testing program. Read this section carefully to learn more about your

Bluetooth GPS receiver.

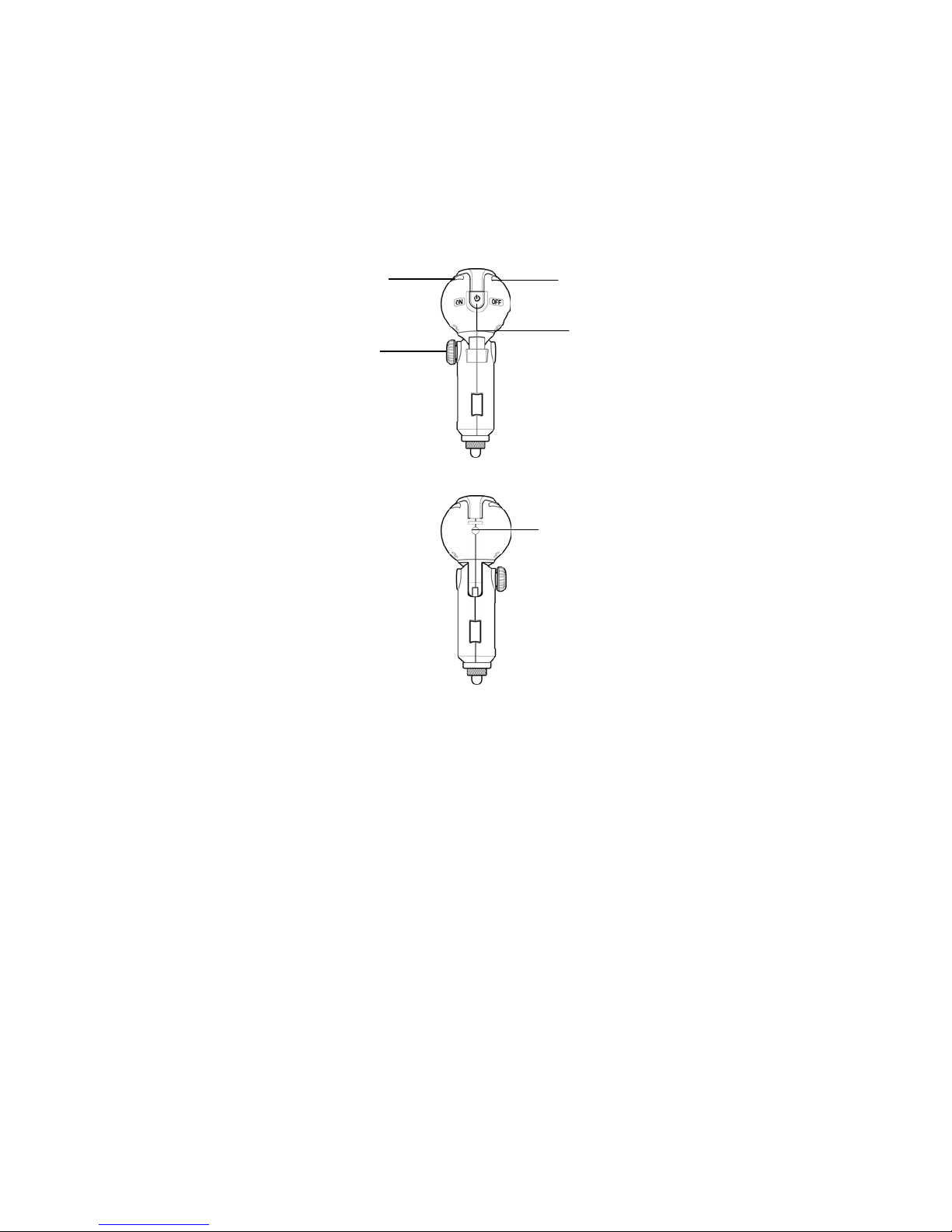

4.1. Hardware Overview

4.1.1 Front View

4.1.2 Rear View

GPS

(Orange LED)

Bluetooth

(Blue LED)

Power

Switch

Locking

Screw

ntenna

Connector

4.1.3 LED Status

LED Name Status Definition

Flashing once per second Offline/ Searching

Bluetooth device

Bluetooth

(Blue LED)

Flashing once every three

seconds

Transferring data

Constant light on Acquiring satellitesGPS

(Orange LED) Flashing once per second Position fixed

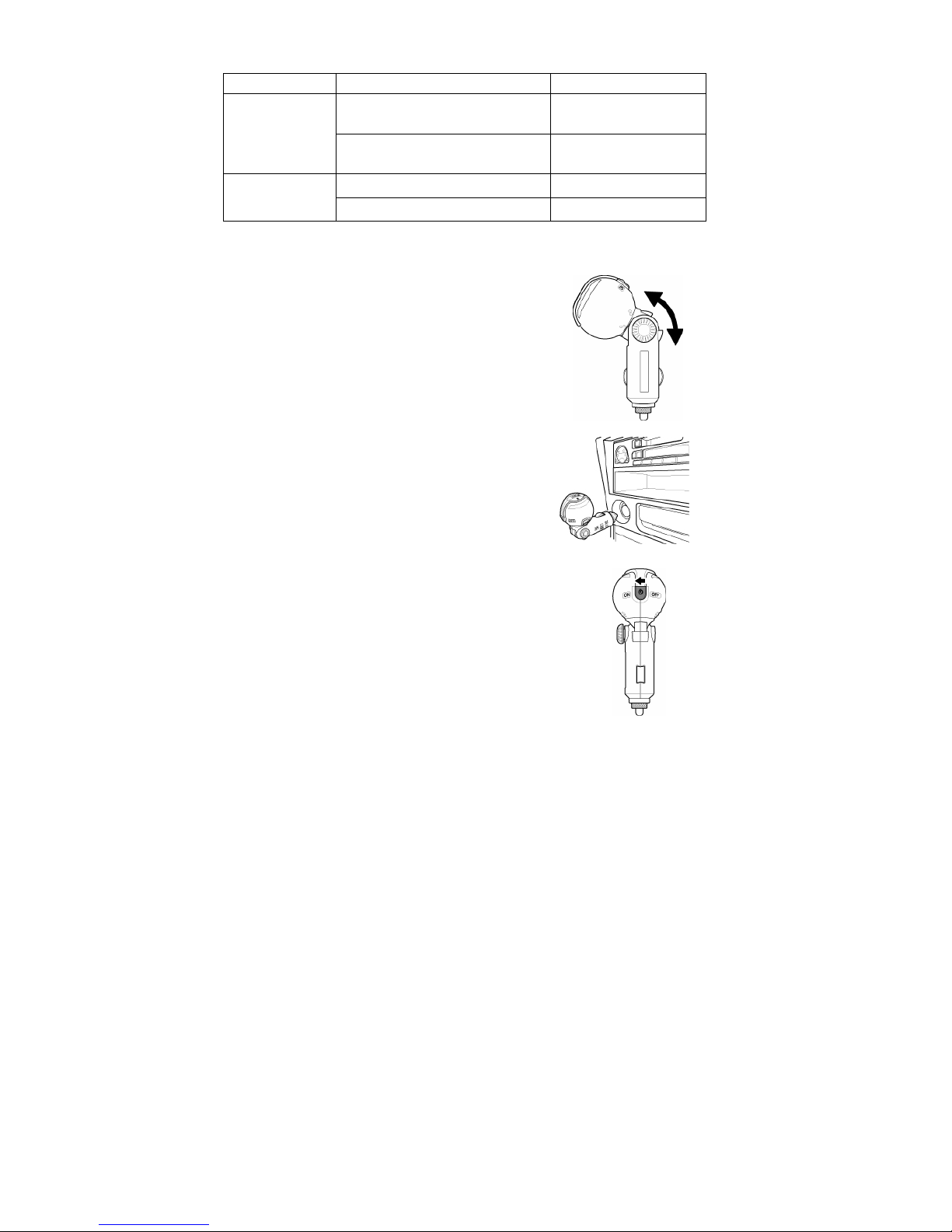

4.2. Using the GR-239

1. Adjust the Receiver Head.

•Carefully unscrew the locking screw

on the side of the receiver.

•Move the receiver head to the

required position.

•Screw the locking screw back tightly.

2. Insert the Receiver.

•Insert the GR-239 into the lighter

slot of your car.

•Adjust the receiver head vertically

by 90 degrees.

3. Switch on the Power.

Slide the power switch to the ON position.

4. Establish Bluetooth Link.

•Refer to 4.5 Bluetooth Installation in the user

manual for further details if you have any

problems establishing the link.

WARNING:

Do not place the GR-239 under strong sunlight for a

long time. Do not place it in a high temperature

environment, or near heat radiating devices such as

a stove or radiator. Doing so will cause the device to

malfunction.

4.3. Data Port

Below listed the description of the GR-239 USB data port.

PIN Function Signal and description

1 GND Power and system ground.

2 NC N/A

3 TXD

Data output pin. Transfers data to

external device. (Output voltage

range: CMOS 3.0V Level)

4 RXD

Data input pin. Transfers data from

external device to GPS. (Input

voltage range: CMOS 3.0V Level)

5 NC N/A

PIN 5PIN 1
