Hobie Mirage Compass Manual de usuario

Hobie®Mirage®

Compass

Kayak Manual

In 1950, Hobie’s dream was born in his

parents’ garage when he decided to apply

his love of woodworking to the sport of

surfing. Dad backed out the Buick... Hobie

carved out his very first surfboard...

Hobie’s business of fun had begun.

4Table of Contents

Anatomy ............................................................................................................................................................ .5

Seating................................................................................................................................................................ .6

MirageDrive®................................................................................................................................................ .10

On the Water................................................................................................................................................ .13

Lowrance®Ready Option......................................................................................................................... .15

Storage and Transport............................................................................................................................. .18

Maintenance and Care............................................................................................................................. .21

Safety ............................................................................................................................................................... .23

Warranty ........................................................................................................................................................ .25

Look for this icon. Online video is available at

www.hobie.com/support

Please read through the instruction manual before using this product

hobie.com

Anatomy

1. Hull

2. Seat

3. MirageDrive

4. Paddle

5. Cassette Plug

6. Lowrance Ready Kit

Items not shown to scale

6Seating

Seating Assembly

Line up threaded

inserts on seat

back frame with

holes molded

in seat bottom

frame.

Once aligned, insert

screws and tighten. Do

not over tighten as seat

will not be able to pivot.

hobie.com

Seating Anatomy

Seating

Seat back

Seat frame

Support strap

adjustment

Mesh tension straps

Lumbar adjustment strap

Pad Eye

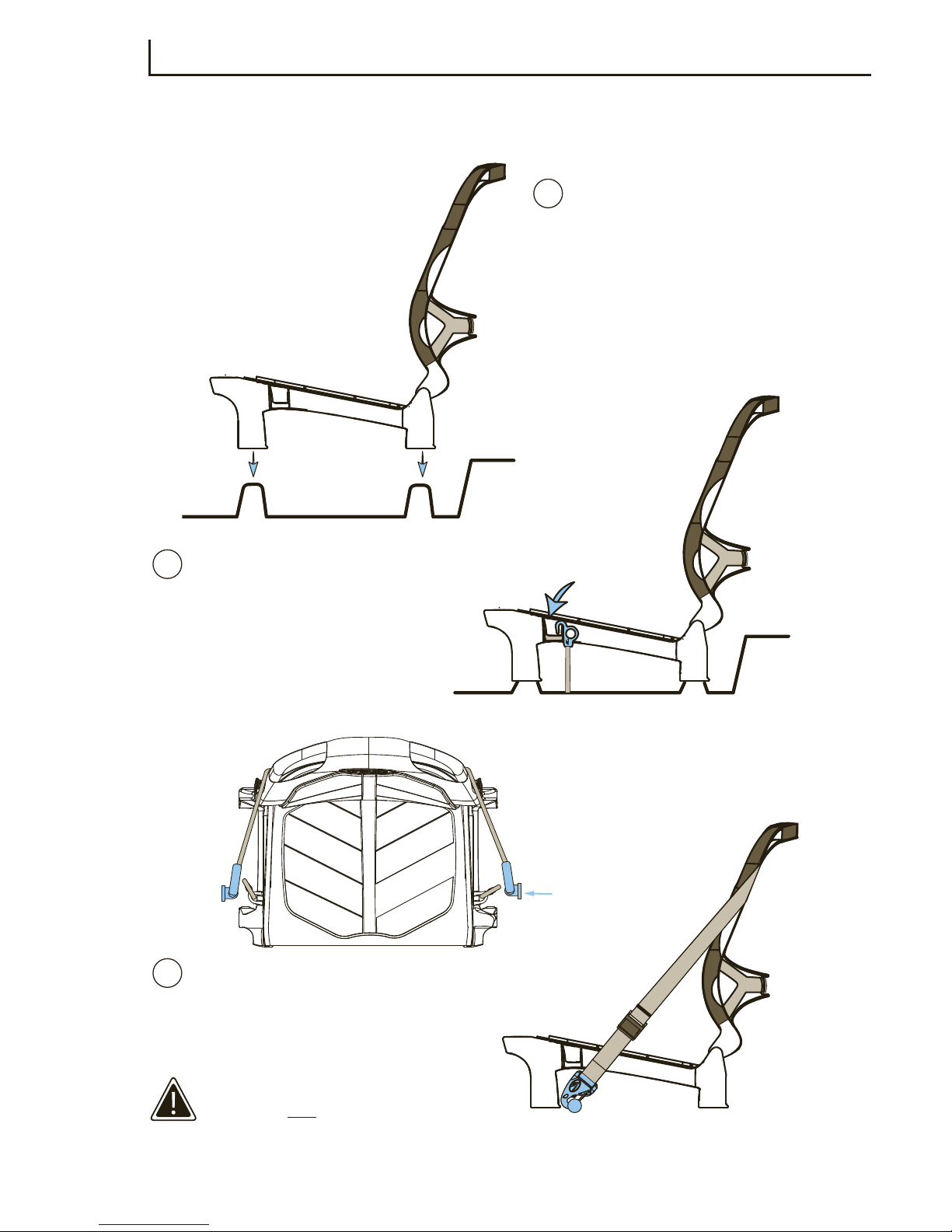

Seat Installation

Seating

Place the seat onto the

seat mounts.

To secure the seat to the boat,

attach the two hooks under the

seat to the seat retention loops.

Clip the two back straps to pad eyes

on the boat.

Make sure clips are attached to

the boat not the retention loop

on the chair itself.

hobie.com

Using the seat outside the boat

Seating

Unhook the seat retention hooks

from the boat and remove the seat.

Clip the two back straps to the

seat retention loop.

CLICK

Removal

Level

Press down and lock drive into

Click and Go’s. The drive locks

automatically when installed.

Lower drive

straight down

making sure the

spine is level.

Lift drive

straight up

Pull back

each Click

and Go lever

Installation

MirageDrive Instruction
