HMS Ixxat SG-gateway Guía del usuario

SG-gateway

Getting Started: EtherNet/IP

STARTUP GUIDE

4.02.0400.22004 1.0 en-US ENGLISH

Important User Information

Disclaimer

The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any

inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability

for any errors that may appear in this document.

HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product

development. The information in this document shall therefore not be construed as a commitment on the part of

HMS Industrial Networks and is subject to change without notice. HMS Industrial Networks makes no commitment

to update or keep current the information in this document.

The data, examples and illustrations found in this document are included for illustrative purposes and are only

intended to help improve understanding of the functionality and handling of the product. In view of the wide range

of possible applications of the product, and because of the many variables and requirements associated with any

particular implementation, HMS Industrial Networks cannot assume responsibility or liability for actual use based on

the data, examples or illustrations included in this document nor for any damages incurred during installation of the

product. Those responsible for the use of the product must acquire sufficient knowledge in order to ensure that the

product is used correctly in their specific application and that the application meets all performance and safety

requirements including any applicable laws, regulations, codes and standards. Further, HMS Industrial Networks will

under no circumstances assume liability or responsibility for any problems that may arise as a result from the use of

undocumented features or functional side effects found outside the documented scope of the product. The effects

caused by any direct or indirect use of such aspects of the product are undefined and may include e.g. compatibility

issues and stability issues.

SG-gateway Startup Guide 4.02.0400.22004 1.0 en-US

Table of Contents Page

1 How to Use the Getting Started ......................................................................................... 3

2 Protocol Specific Features and Restrictions....................................................................... 3

3 Configuring the Device........................................................................................................ 4

3.1 Setting IP Address of the EtherNet/IP Ports ..........................................................................4

3.2 WEB-PLC Settings.............................................................................................................4

3.3 Defining Inputs and Outputs ..............................................................................................6

4 Configuring the EtherNet/IP Communication.................................................................... 7

4.1 Creating a New Project in Studio 5000 .................................................................................7

4.2 Adding a Module ........................................................................................................... 10

4.3 Configuring a Program .................................................................................................... 11

This page intentionally left blank

How to Use the Getting Started 3 (12)

1 How to Use the Getting Started

This Getting Started shows how to configure an Ixxat SG-gateway for EtherNet/IP with the Ixxat

WEB-PLC and the Rockwell Software Studio 5000. The Getting Started accompanies the tutorial

video that can be found on www.ixxat.com/energy-video.

2 Protocol Specific Features and Restrictions

Features

• 2 x RJ-45 EtherNet/IP 100 Mbit/s via integrated dual port cut-through switch

• generic device profile

• device Level Ring (DLR) Beacon-based

• QuickConnect class B

• CIP energy object support

• customized identity information

• explicit messaging up to 1500 bytes using Large Forward Open

• multiple I/O assembly support

• modular device support

• module status LED and network status LED

Restrictions

• up to 1448 bytes of process data in each direction

• up to 1500 bytes of explicit messaging

SG-gateway Startup Guide 4.02.0400.22004 1.0 en-US

Configuring the Device 4 (12)

3 Configuring the Device

3.1 Setting IP Address of the EtherNet/IP Ports

►Open Rockwell Studio 5000 standard DHCP tool.

►In menu Start, select the Rockwell standard DHCP tool.

►Connect the SG-gateway to power supply.

→ During the boot up the SG-gateway appears with its MAC address in the DHCP tool.

►Select the MAC address of the connected SG-gateway in the list and set the IP address of

the EtherNet/IP ports. DHCP is activated by default.

Fig. 1 Studio 5000 DHCP tool

►Access the SG-gateway WEB-PLC (see WEB-PLC Settings, p. 4).

3.2 WEB-PLC Settings

Observe that changes in the configuration are only saved after clicking button OK and

rebooting with button Reboot .

►Observe SG-gateway User Manual for information how to install the device and how to

configure the IP address of the device.

►Enter IP address of the device in use into a web browser.

→ Log in window is opened.

SG-gateway Startup Guide 4.02.0400.22004 1.0 en-US

Configuring the Device 5 (12)

►Enter user name and password.

→ Home page of the WEB-PLC is opened.

Fig. 2 EtherNet/IP settings

►Click button Settings .

►Open tab Settings (1) and expand I/O in the configuration tree.

►Select EtherNet/IP Adapter (2) in the configuration tree.

►Activate checkbox Store changes from external tools (3) to keep changes that are made in

external tools after a reboot.

HMS recommends to work with the default DHCP IP settings for the EtherNet/IP ports during the

configuration.

►Define desired inputs and outputs (see Defining Inputs and Outputs, p. 6).

►Click button OK (4) and button Reboot to apply the changes.

►Click button Download (5) to download the EDS file.

→ Generated ESD file contains all defined modules and values.

►To configure the communication between the SG-device and the PLC, import the ESD file in

an external tool (e.g. Rockwell Studio 5000, see Configuring the EtherNet/IP Communication,

p. 7).

SG-gateway Startup Guide 4.02.0400.22004 1.0 en-US

Configuring the Device 6 (12)

3.3 Defining Inputs and Outputs

In the group list, groups can be defined and values can be added to the groups.

►To add inputs select line input in the device list and click button Add Group.

►To add outputs select line output in the device list and click button Add Group.

→ Window Edit Group is opened.

►In the Window Define a name for the group (1-64 printable ASCII characters). Each group

name can only be used once.

►Click button OK.

→ Groups are entered in the device list.

►To add a value to a group, select the group in the device list and click button Add Value (2).

→ Window Edit value is opened.

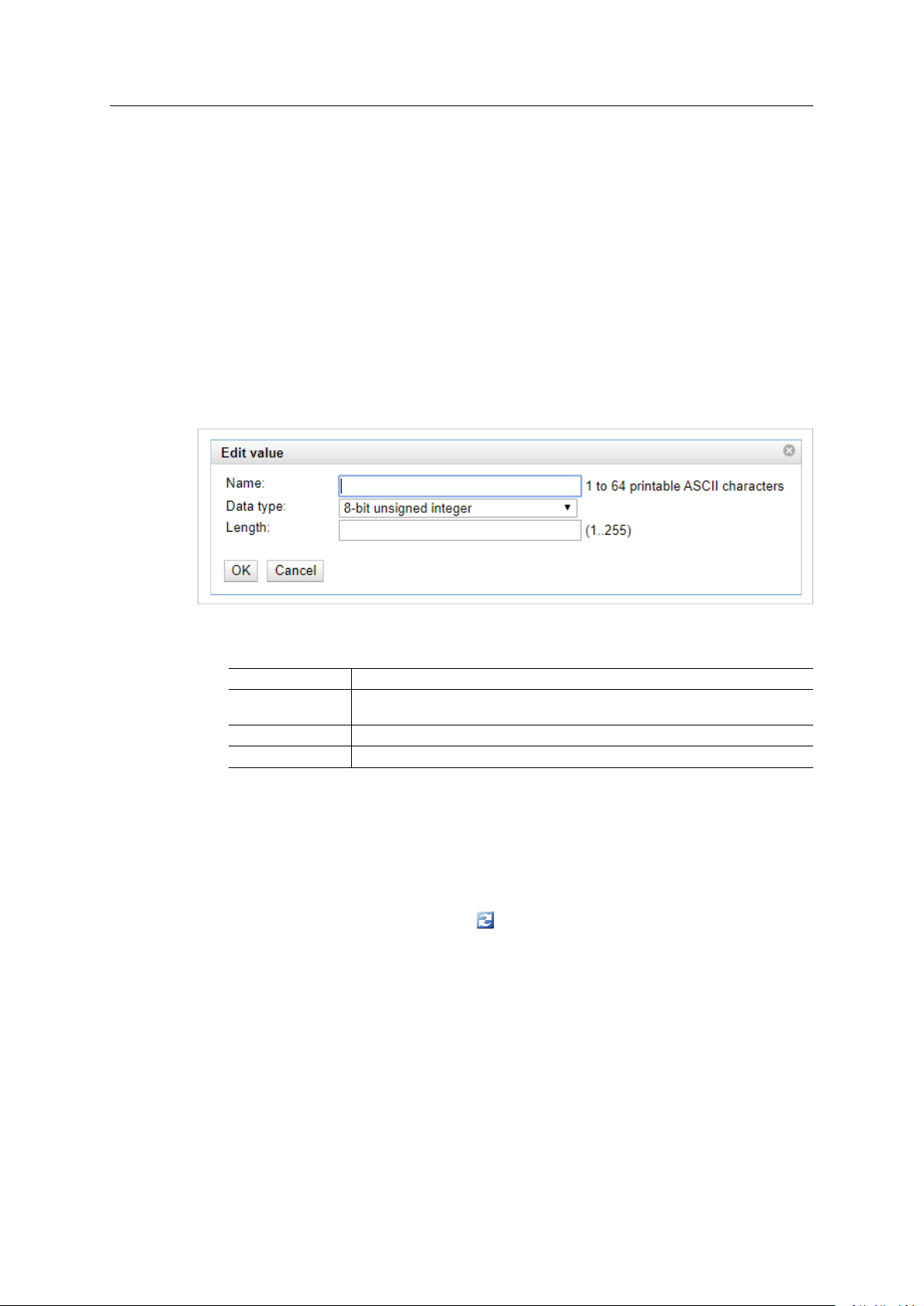

Fig. 3 Example: edit value

►Configure the value parameters and click button OK.

Value parameter Description

Name Name of value (1-64 printable ASCII characters). Name is shown in the external tools (e.g.

Studio 5000). Each value name can only be used once inside a group.

Data type Data type of the value

Length If length is more than 1, an array is defined. Arrays can have up to 255 elements

►Add all desired input and output groups including the desired values.

→ Groups and values are entered in the device list.

→ Each group and each value gets an index (5) that is used internally to address the

modules and values.

►To modify an input, output, or value double click on the respective list entry.

►Click button OK (3) and button Reboot to apply the changes.

SG-gateway Startup Guide 4.02.0400.22004 1.0 en-US

Configuring the EtherNet/IP Communication 7 (12)

4 Configuring the EtherNet/IP Communication

To configure the communication between the PLC and the SG-gateway the Rockwell Software

Studio 5000 can be used.

4.1 Creating a New Project in Studio 5000

►Open Studio 5000.

►In the quick start menu click New Project to create a new project.

→ Window to create a project is opened.

►Select the controller in use.

►Define name and path of project.

►Click button Next.

►If necessary modify the controller settings and click button Next.

→ Project is created.

Fig. 4 Project in Rockwell Studio 5000

►Open menu Tools and select EDS Hardware Installation Tool.

→ EDS wizard is opened.

►Start the wizard.

►Select Register an EDS file and click button Next.

►Select Register a single file and click button Browse to select the created ESD file (see WEB-

PLC Settings, p. 4 for information how to create an ESD file).

►Click button Next.

→ Window that shows the active installed EDS files is opened.

SG-gateway Startup Guide 4.02.0400.22004 1.0 en-US

Configuring the EtherNet/IP Communication 8 (12)

►Click button Next.

→ Window that shows the active communications adapters is opened.

►Select the SG-gateway and click button Next.

►To confirm the registration of the SG-gateway, click button Next.

►Finish the EDS wizard.

►In the Windows taskbar click on icon RSLinx Classic Activation.

→ Window RSLinx Classic is opened.

Fig. 5 RSLinx Classic

►In menu Communications (1) select Configure Drivers.

→ Window Configure Drivers is opened.

►In drop down menu Available Driver Types (2) select EtherNet/IP Driver.

►Click button Add New (3) and define a name for the driver.

►Select the controller in use and click button OK.

→ Driver is added to the list (4).

►Click button Close.

SG-gateway Startup Guide 4.02.0400.22004 1.0 en-US
