HITWAY BK6 Guía del usuario
BK6
Quick Operation Guide
V2022.0.1
EN------------------------------------------------------01
FR------------------------------------------------------09
DE------------------------------------------------------17
ES------------------------------------------------------25
IT-------------------------------------------------------33
NL------------------------------------------------------41
PL------------------------------------------------------49
1. Unfold Bike
Remove the packaging,
then place the bike on
a flat surface.
Open the frame on both
sides and unfold it.
Close the fold fastener.
-1-
1. Open the folding riser telescopic adjustment buckle.
2. Insert the telescopic standpipe in the same direction.
1. Insert the telescopic standpipe and adjust to the
proper height. Close the adjustment buckle in the
direction shown in the picture.
Note: If the adjustment buckle is too tight or too
loose, please adjust the screw at "1" appropriately.
-2-
Close the safety fold fastener as shown in the picture.
2. Install Handlebars
①
①
②
Press the folding buckle in the direction shown in the picture to lock the folding riser.
Note: If the folding buckle is too tight or too loose, please adjust the screw at "1" appropriately.
Put the folding riser up and close it in the
direction shown in the picture
After confirming that the quick release bolt is
inserted, lift the lever and buckle according to
the direction shown in the figure.
-3-
3. Folding Riser Operation
①
Open the seat tube adjustment quick release
buckle in the direction shown in the picture.
Insert the seat tube and adjust to the proper height.
Fasten the quick release buckle in the direction
shown in the picture.
Note: If the buckle is too tight or too loose, please
adjust the screw at "1" appropriately.
-4-
4. Seat tube installation operation
5. Assembly accessories
①
BK6 Parts
1. 16 in 1 Simple Tool
2. Wheel Reflectors
3. Pedals
4. Front Reflector
7. Wheel reflectors installation method
-5-
6. Front reflector installation
method
Put the front reflector bracket into the corresponding
position of the handlebar, and tighten the screw with
a Phillips screwdriver.
1. Put the wheel reflector on
the proper spoke position.
2. Snap the clips of the wheel
reflectors to the spokes.
3. Tighten the buckle to fasten the
wheel reflector. The front wheel
reflector and rear wheel reflector
operate in the same way.
-6-
8. Rear fender support stick fixing method
1. Use the No. 4 Allen key in the 16-in-1 tool to remove the pre-installed fender support screws and
washers on the left and right sides of the frame, as shown in the picture.
2. Pass the support rod through the fender support rod fixing screw and use a No. 4 Allen key to tighten
it into the corresponding screw holes on both sides of the frame, as shown in the picture.
-7-

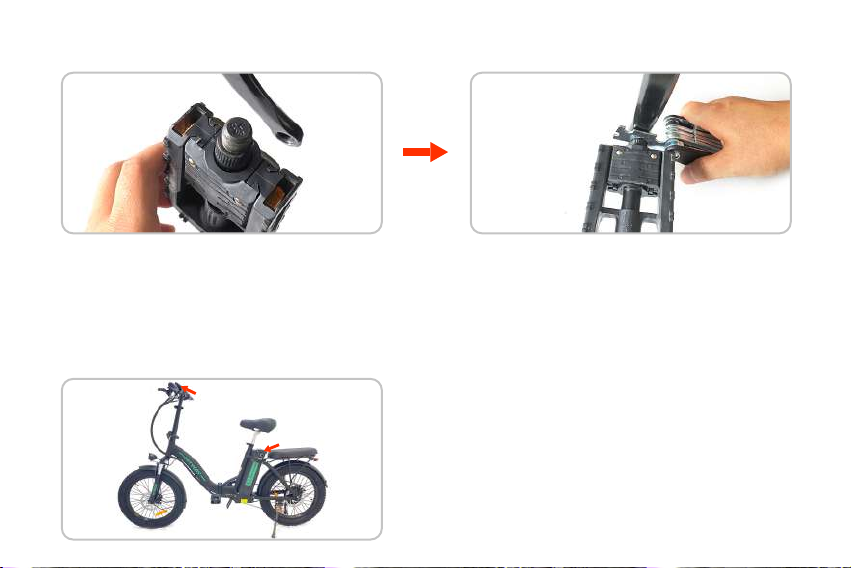

9. Pedal installation method
10. Power-on operation steps
The "L" marked on the pedal shaft is the left pedal. Turn the pedal shaft counterclockwise and screw it
into the left crank, and then use a No. 15 open-end wrench to turn it counterclockwise to tighten.
The “R” marked on the pedal shaft is the right pedal. Rotate the pedal shaft clockwise and screw it into
the right crank, and then use a No. 15 open-end wrench to turn it clockwise to tighten.
①
②1. Insert the key into the key hole at "1" in the
picture, turn the key from the "OFF" position to the
right and screw it to the "ON" position.
2. Press the switch on the panel at "2" in the
picture to start the machine.
