equipped with centrifugal fan the voltage is 380 V).
Chimney diameter cannot be inferior to the flue diameter.
Units are equipped with two-way fuel filers with shut off valves on the feed line
and return valve on fuel disposal (one-way filers are also in use).

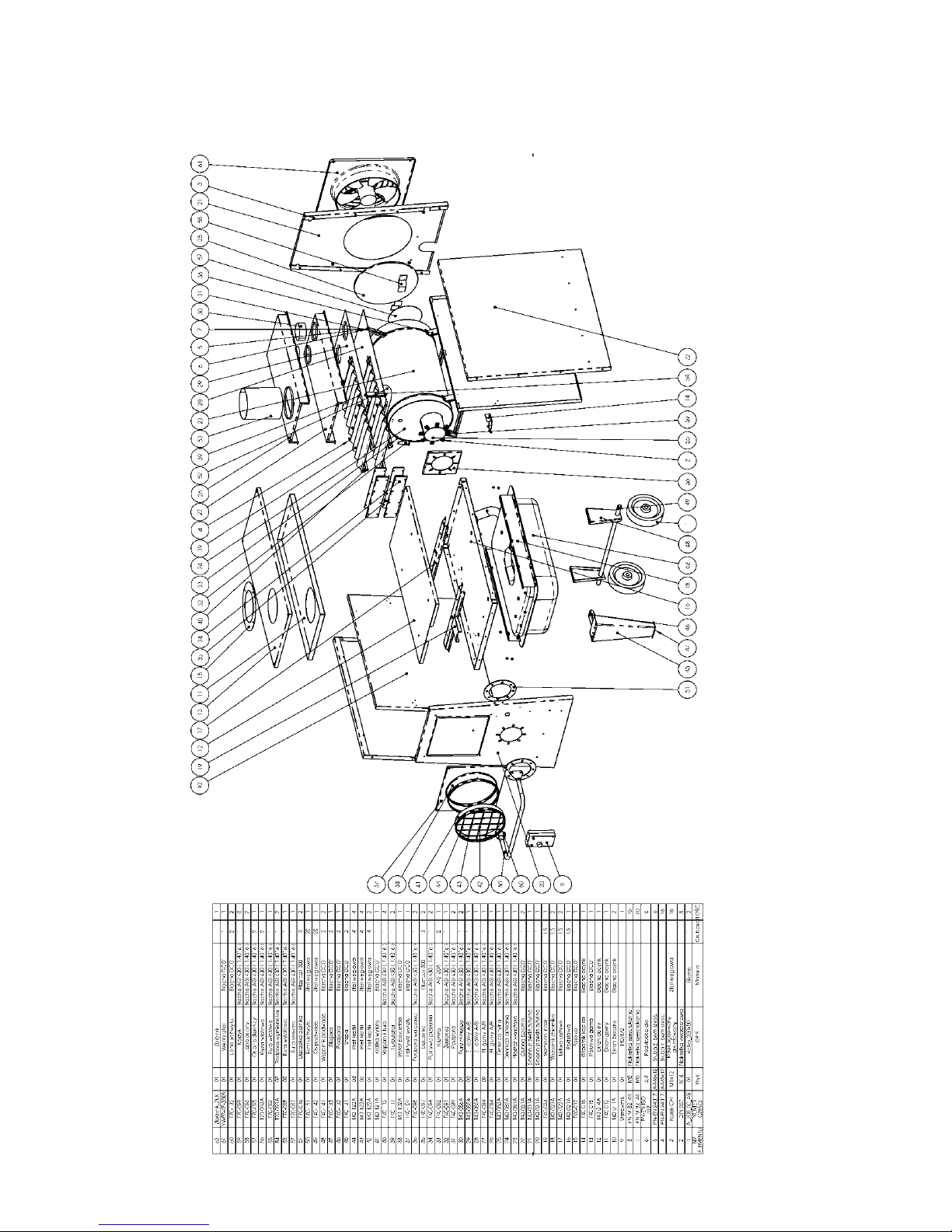

For T range heaters connections between tank, filter and burner are made by the
manufacturer. T-70 heater does not have a tank and the feed line connection
between the filter and the tank should be installed by an authorized person
according to regulations regarding storage of light heating oil and depending on
the capacity of burner pump. All T range heaters are fitted with oil burners
with pumps.
Assembly

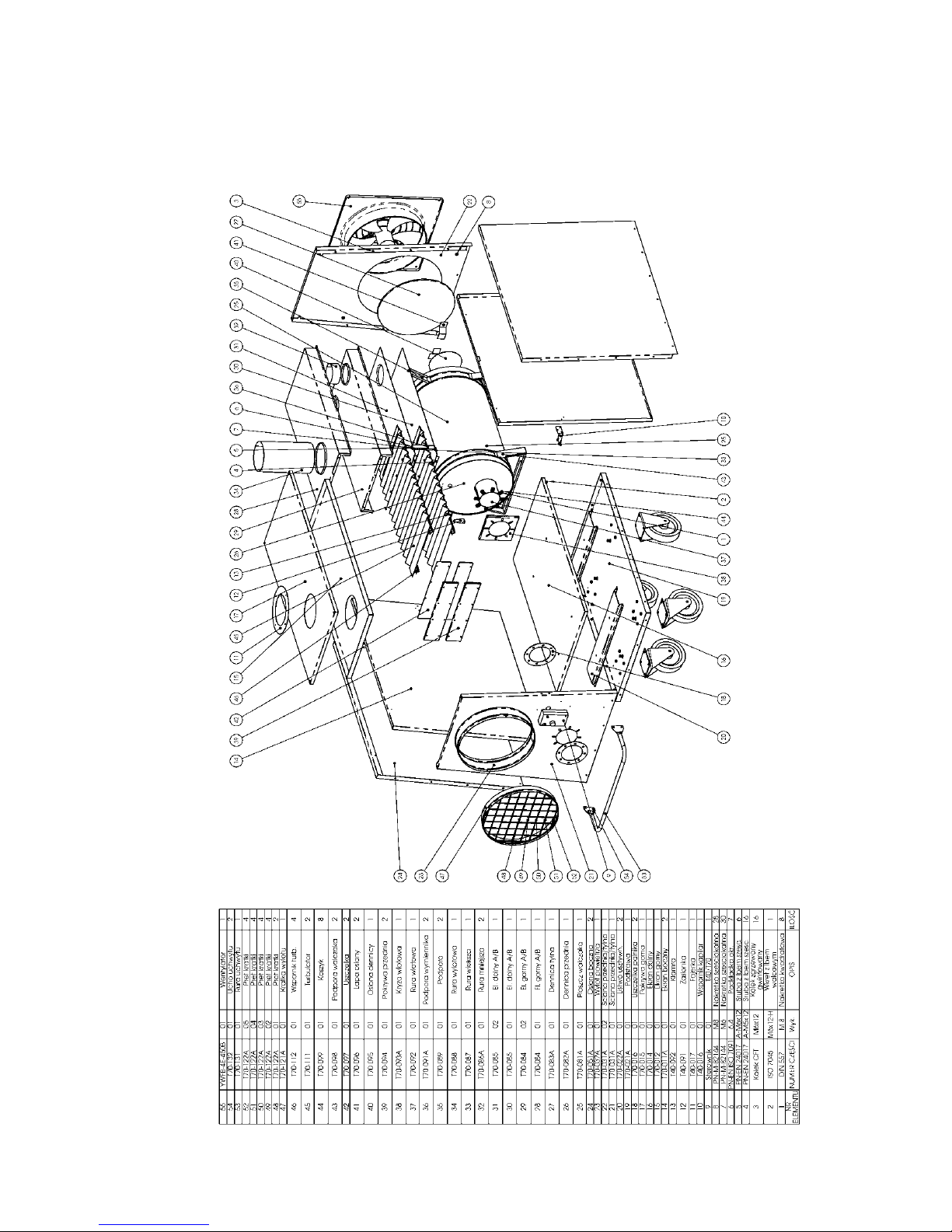

T-40 heaters are fitted with oil tanks and do not require assembly. Heaters
should be placed in appropriate location with respect to regulations regarding
flue and chimney connection. It also applies to T-70 units. When placing them,
regulations concerning connection of oil tank and storage of light heating oil
should be adhered to. Air outlet/inlet points should never be obstructed. If
heaters operate in conditions where contaminations occur or may occur (such as
dust, chemicals) or exhaust fans are in use (which may interfere by creating
negative pressure) air supply from a different source or from the outside should
be provided.
Fire regulations are also to be met.
Operation and maintenance manual
Prior to switching on the device, check the assembly and, if necessary, fill up
the oil tank. Heater cannot be switched on immediately after filling up the oil
tank. Allow the oil in the tank to settle for 15 minutes (if the device is switched
on too early, there is a risk of air getting into the oil feed line). Check if the
chimney is unobstructed and if there is sufficient air draught.
In 95 % of cases lack of air draught is the cause of failures of the device
(failure of flame sensor, electrodes, fuel nozzle, burner gasket, heat exchanger
gaskets).
Heater should be connected to the power outlet according to the following rule:
plug’s phase connects with the socket phase. Heater is fitted with two switches
(red switch activates heating and the blue switch triggers cooling) and a
thermostat.
Switching on
If you want to activate the heating mode, press the red button, the blue button
should be switched off.
If the blue button is switched on, the fan will work continuously without 3.5
