Hitachi Ultrastar C10K147 Manual de usuario

Page1 version1.0

Quick installation guide

Hitachi Ultrastar C10K147

Models: HUC101414CSS300

HUC101473CSS300

Handling precautions



Set the drive down gently to prevent damage from impact or vibration.



Handle the drive carefully by the edges. Do not touch the exposed printed circuit board or any electronic components.



Do not press on the top or bottom of the drive.



Before handling the drive, discharge any static electricity from yourself and your clothing. With one hand touch an

unpainted metal surface, then touch the ESD bag with the other hand. Remain in contact with the chassis and the bag for a

minimum of two seconds.



Vibration, shock and static electricity to the drive will damage the precision parts. In particular, prevent vibration or shock

generated by dropping, knocking over or hitting the drive. Also, avoid touching the electrical components directly, which

can discharge electrostatic energy and damage the drive.

Hitachi Global Storage Technologies

Page2 version1.0

Mounting Instructions

Caution

Mount the hard drive according to the following instructions to ensure optimal performance.

The drive will operate in all axes (6 directions). Performance and error rate will stay within specification limits if the

drive is operated in the other orientations from which it was formatted.

The reccommended mounting screw torque is 0.45 Nm (4.5 kgf-cm). The recommended mounting screw depth is 2.5

mm maximum for bottom and 3.0 mm maximum for horizontal mounting.

To avoid performance degradation, mount the drive in the system securely enough to prevent excessive motion or

vibration of the drive at seek operation or spindle rotation, using appropriate screws or equivalent mounting hardware.

Consult with the issuer of this specification for actual application if necessary.

Drive level vibration tests and shock tests are to be conducted with the drive mounted to a table using the bottom four

screws..

Hitachi Global Storage Technologies

Page3 version1.0

Mounting Recommendations

• Do not push on the striped area marked in the above image. Pressure on the striped area could cause contact between

the cover and movable parts inside the hard drive.

• Do not put a steel plate over the ‘Red Box’ area marked in the above image. If using a steel plate on the hard drive

cover side, 2mm of space is required between the plate and the drive to ensure airflow.

• The blue dotted lines in the above image represent the area in which shock drop insulation should be applied.

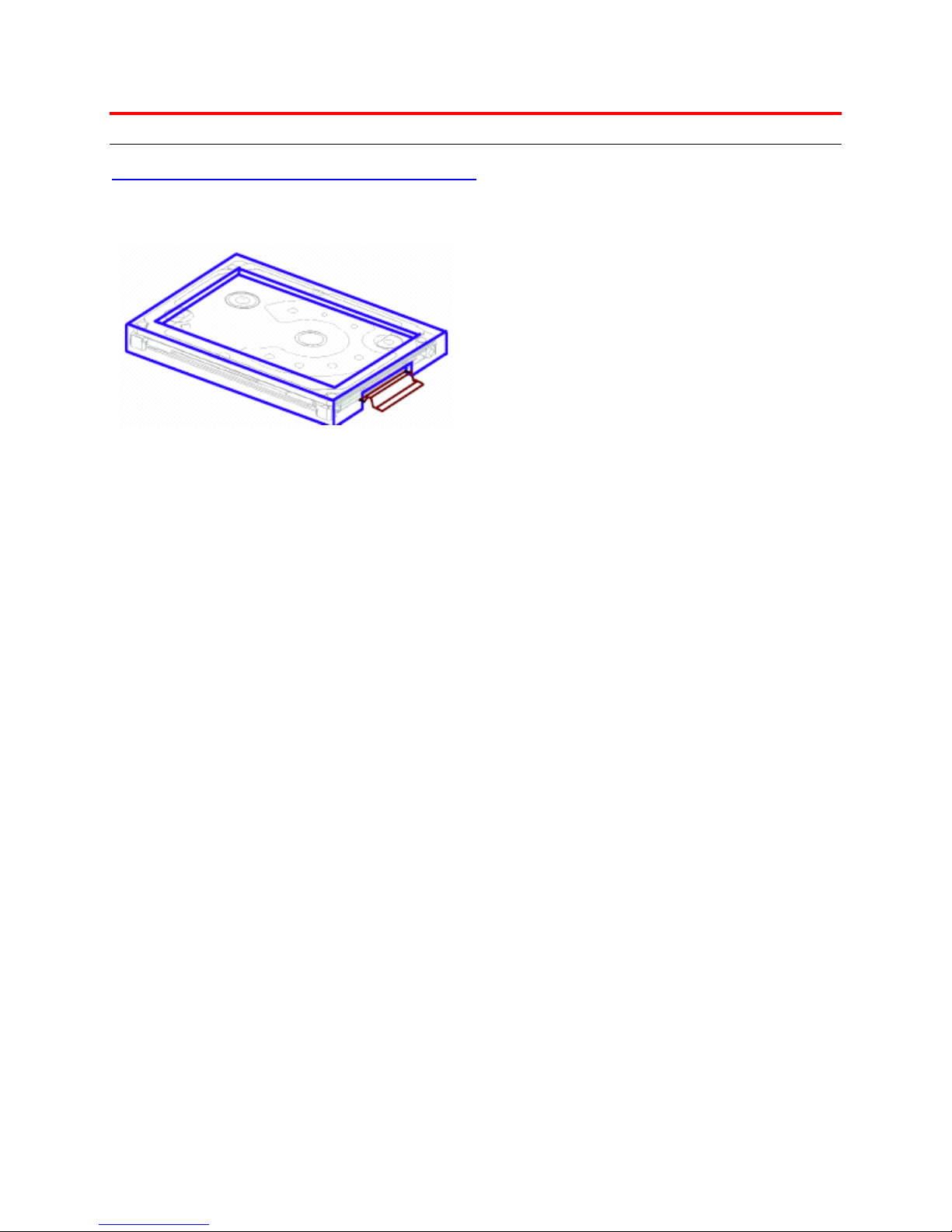

• The blue frame shown below represents the casing used if the drive can not be secured with screws.

• Hitachi Global Storage Technologies will assist customers with mounting design.

Hitachi Global Storage Technologies

Page4 version1.0

Recommended drop shock material distrubutors

http://www.sorbothane.com/distributor_beta.html

http://www.earsc.com/

Mounting Solution Company: E-A-R

Hitachi Global Storage Technologies

Page5 version1.0

Hitachi Global Storage Technologies

5600 Cottle Road

San Jose, CA 95193

Produced in the United States

01/07

Travelstar

is a trademark of

Hitachi Global Storage Technologies.

Microsoft, Windows XP, and Windows are

trademarks of Microsoft Corporation in the United

States, other countries, or both.

Other product names are trademarks or registered

trademarks of their respective companies.

References in this publication to Hitachi Global

Storage Technologies products, programs or services

do not imply that Hitachi Global Storage

Technologies intends to make these available in all

countries in which Hitachi Global Storage

Technologies operates.

Product information is provided for information

purposes only and does not constitute a warranty.

Information is true as of the date of publication and is

subject to change. Actual results may vary.

This publication is for general guidance only.

Photographs may show design models.

03 January 2007
