Quick Installation Guide

Hitachi Travelstar 7K500

Models: HTS725050A9A364 HTE725050A9A364

HTS725040A9A364 HTE725040A9A364

HTS725032A9A364 HTE725032A9A364

HTS725025A9A364 HTE725025A9A364

HTS725016A9A364 HTE725016A9A364

HTS725012A9A364

HTS725050A9A361 HTS725050A9A362

HTS725040A9A361 HTS725040A9A362

HTS725032A9A361 HTS725032A9A362

HTS725025A9A361 HTS725025A9A362

HTS725016A9A361 HTS725016A9A362

HTS725012A9A361 HTS725012A9A362

HTS725050A9A360

HTS725040A9A360

HTS725032A9A360

HTS725025A9A360

HTS725016A9A360

HTS725012A9A360

Handling precautions

Set the drive down gently to prevent damage from impact or vibration.

Handle the drive carefully by the edges. Do not touch the exposed printed circuit board or any electronic components.

Do not press on the top or bottom of the drive.

Before handling the drive, discharge any static electricity from yourself and your clothing. With one hand touch an

unpainted metal surface, then touch the ESD bag with the other hand. Remain in contact with the chassis and the bag

for a minimum of two seconds.

Vibration, shock and static electricity to the drive will damage the precision parts. In particular, prevent vibration or

shock generated by dropping, knocking over or hitting the drive. Also, avoid touching the electrical components

directly, which can discharge electrostatic energy and damage the drive.

Hitachi Global Storage Technologies

Page 2 version 1.0

Mounting Recommendations

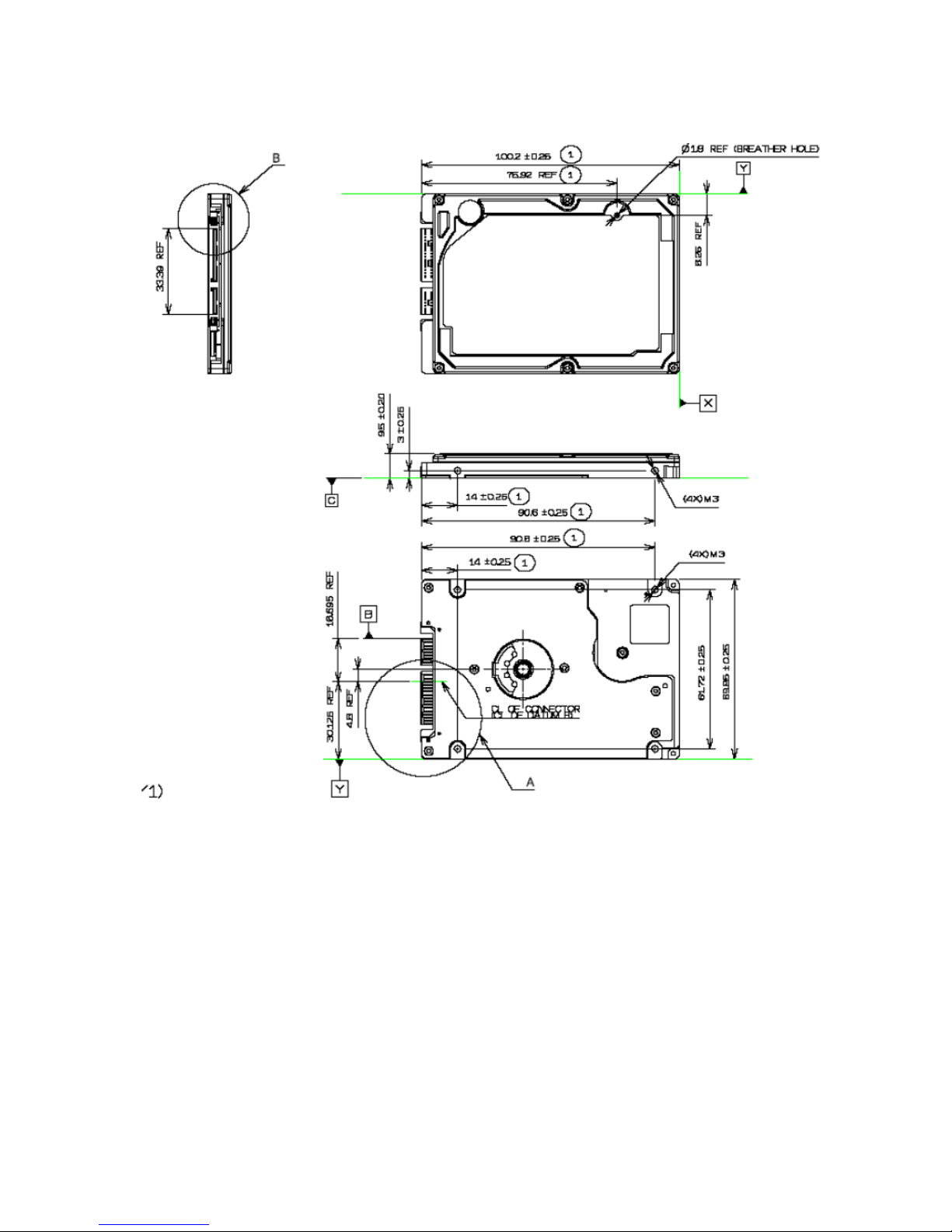

The mounting hole locations and size of the drive are shown in the following illustration:

Hitachi Global Storage Technologies

Page 3 version 1.0

The drive will operate in all axes (six directions) and will stay within the specified error

rates when tilted ±5 degrees from these positions. Performance and error rate will stay

within specification limits if the drive is operated in the other permissible orientations from

which it was formatted. Thus a drive formatted in a horizontal orientation will be able to

run vertically and vice versa.

The recommended mounting screw torque is 0.3±0.05 Nm.

The recommended mounting screw depth is 3.0±0.3 mm for bottom and 3.5±0.5 mm for

horizontal mounting.

The user is responsible for using the appropriate screws or equivalent mounting hardware

to mount the drive securely enough to prevent excessive motion or vibration of the drive at

seek operation or spindle rotation.

Hitachi Global Storage Technologies

Page 4 version 1.0

Interface connector

The figure below shows the physical pin location

All pins are in a single row, with a 127 mm (0.050”) pitch.

The comments on the mating sequence in Table in the section 7.3 apply to the case of

back-plane

blind-mate connector only. In this case, the mating sequences are:(1)the ground pins

P4 and P12;(2) the pre-charge power pins and the other ground pins; and (3) the

signal pins and the rest of the power pins.

There are three power pins for each voltage. One pin from each voltage is used for

pre-charge in the backplane blind-mate situation.

If a device uses 3.3V, then all V33 pins must be terminated. Otherwise, it is optional

to terminate any of the V33 pins

If a device uses 5.0V, then all V5 pins must be terminated. Otherwise, it is optional to

terminate any of the V5 pins

If a device uses 12.0V, then all V12 pins must be terminated. Otherwise, it is optional

to terminate any of the V12 pins.

Hitachi Global Storage Technologies

Page 5 version 1.0

Produced in the United States 6/09

Travelstar is a trademark of Hitachi Global Storage

Technologies.

Hitachi Global Storage Technologies’ trademarks are

authorized for use in countries and jurisdictions in which

Hitachi has the right to use, market and advertise the brands.

The Travelstar trademark is authorized for use in the Americas,

EMEA and the following Asia-Pacific countries and

jurisdictions: Australia, Hong Kong, Japan, New Zealand,

South Korea and Taiwan. Contact Hitachi for further

information. Hitachi Global Storage Technologies shall not be

liable to third parties for unauthorized use of Hitachi Global

Storage Technologies trademarks.

References in this publication to Hitachi Global Storage

Technologies’ products, programs, or services do not imply

that Hitachi intends to make these available in all countries in

which it operates. Some countries have laws that may affect

encryption-enabled devices. Hitachi GST assumes no

responsibility for compliance with laws that apply to our

products after they are sold or outside of our control.

Accordingly, we suggest that you review all laws of the

countries where you conduct business.

Product specifications provided are sample specifications and

do not constitute a warranty. Information is true as of the date

of publication and is subject to change. Actual specifications

for unique part numbers may vary. Please visit the Support

section of our website, www.hitachigst.com/support, for

additional information on product specifications. Photographs

may show design models.

24 June 2009
