S10 Series SIO

Driver

1 System Configuration....................................................................................................... 3

2 Selection of External Device ............................................................................................ 7

3 Example of Communication Setting ................................................................................. 8

4 Setup Items ....................................................................................................................18

5 Cable Diagram ............................................................................................................... 23

6 Supported Device........................................................................................................... 35

7 Device Code and Address Code.................................................................................... 44

8 Error Messages.............................................................................................................. 53

S10 Series SIO Driver

GP-Pro EX Device/PLC Connection Manual 2

Introduction

This manual describes how to connect the Display and the External Device (target PLC).

In this manual, the connection procedure will be described by following the below sections:

1System Configuration

This section shows the types of External

Devices which can be connected and SIO

type.

)"1 System Configuration" (page 3)

2Selection of External Device

Select a model (series) of the External

Device to be connected and connection

method.

)"2 Selection of External Device" (page 7)

3Example of Communication Settings

This section shows setting examples for

communicating between the Display and

the External Device.

)"3 Example of Communication Setting" (page

4Setup Items

This section describes communication

setup items on the Display.

Set communication settings of the Display

with GP-Pro EX or in offline mode.

)"4 Setup Items" (page 18)

5Cable Diagram

This section shows cables and adapters

for connecting the Display and the

External Device.

)"5 Cable Diagram" (page 23)

Operation

S10 Series SIO Driver

GP-Pro EX Device/PLC Connection Manual 3

1 System Configuration

The system configuration in the case when the External Device of Hitachi, Ltd. and the Display are connected is

shown.

Connection Configuration

• 1:1 connection

Series CPU Link I/F SIO Type Setting Example Cable Diagram

S10V LQP510*1

*1 To connect to the Display, a C revision or higher version of the LPU Module is required. Check the alphabet on

the right end of the bar code seal (top surface of the LPU Module) for the revision number of the LPU Module.

UP LINK Connector

on LPU Module

RS422/485

(4wire)

Setting Example 1

(page 8)

Cable Diagram 1

(page 23)

LQE560 (CN1) RS232C Setting Example 2

(page 9)

Cable Diagram 2

(page 29)

LQE560 (CN2) RS232C Setting Example 3

(page 10)

Cable Diagram 2

(page 29)

LQE565 (CN1) RS422/485

(4wire)

Setting Example 4

(page 11)

Cable Diagram 1

(page 23)

LQE565 (CN2) RS422/485

(4wire)

Setting Example 5

(page 12)

Cable Diagram 1

(page 23)

HIDIC-S10α

2α(LWP000) *2 ,

2αE (LWP040) *2,

2αH (LWP070) *2

*2 Connect to the CPU Module's HOST LINK COMPUTER LINK Input/Output Terminal (Upper Calculation I/F).

Terminal Block on

CPU Unit RS422/485

(4wire)

Setting Example 6

(page 13)

Cable Diagram 3

(page 30)

4α, 4αF LWE805

S10mini

Model S (LQP000),

Model H (LQP010),

Model F (LQP011),

Model D (LQP120),

Model L (LQP800)

LQE060 (CN1)

LQE160 (CN1)

LQE560 (CN1)

RS232C Setting Example 7

(page 14)

Cable Diagram 2

(page 29)

LQE060 (CN2)

LQE160 (CN2)

LQE560 (CN2)

RS232C Setting Example 8

(page 15)

LQE165 (CN1)

LQE565 (CN1)

RS422/485

(4wire)

Setting Example 9

(page 16) Cable Diagram 1

(page 23)

LQE165 (CN2)

LQE565 (CN2)

RS422/485

(4wire)

Setting Example

10 (page 17)

Display External Device

S10 Series SIO Driver

GP-Pro EX Device/PLC Connection Manual 4

IPC COM Port

When connecting IPC with an External Device, the COM port used depends on the series and SIO type. Please

refer to the IPC manual for details.

Usable port

Series

Usable Port

RS-232C RS-422/485(4 wire) RS-422/485(2 wire)

PS-2000B COM1*1 , COM2,

COM3*1, COM4

*1 The RI/5V can be switched. Use the IPC’s switch to change if necessary.

PS-3450A, PS-3451A,

PS3000-BA, PS3001-BD COM1, COM2*1*2 COM2*1*2 COM2*1*2

PS-3650A (T41 model),

PS-3651A (T41 model) COM1*1 --

PS-3650A (T42 model),

PS-3651A (T42 model) COM1*1*2, COM2 COM1*1*2 COM1*1*2

PS-3700A (Pentium®4-M)

PS-3710A

COM1*1, COM2*1,

COM3*2 , COM4

*2 Set up the SIO type with the DIP Switch. Please set up as follows according to SIO type to be used.

COM3*2 COM3*2

PS-3711A COM1*1, COM2*2 COM2*2 COM2*2

PS4000*3

*3 When making communication between an External Device and COM port on the Expansion slot,

only RS-232C is supported. However, ER (DTR/CTS) control cannot be executed because of the

specification of COM port.

For connection with External Device, use user-created cables and disable Pin Nos. 1, 4, 6 and 9.

Please refer to the IPC manual for details of pin layout.

COM1, COM2 - -

PL3000 COM1*1*2, COM2*1,

COM3, COM4 COM1*1*2 COM1*1*2

PE-4000B Atom N270 COM1, COM2 - -

PE-4000B Atom N2600 COM1, COM2 COM3*4 , COM4*4,

COM5*4, COM6*4

*4 Set up the SIO type with the BIOS. Please refer to the IPC manual for details of BIOS.

COM3*4, COM4*4,

COM5*4, COM6*4

PS5000 (Slim Panel Type

Core i3 Model) *5 *6 COM1, COM2*4 COM2*4 COM2*4

PS5000 (Slim Panel Type

Atom Model)

*5 *6

COM1, COM2*7 COM2*7 COM2*7

PS5000 (Enclosed Panel

Type)*8 COM1 - -

PS5000 (Modular Type

PFXPU/PFXPP)*5 *6

PS5000 (Modular Type

PFXPL2B5-6)

COM1*7 COM1*7 COM1*7

PS5000 (Modular Type

PFXPL2B1-4) COM1, COM2*7 COM2*7 COM2*7

S10 Series SIO Driver

GP-Pro EX Device/PLC Connection Manual 5

DIP Switch settings (PL3000 / PS3000 Series)

RS-232C

*5 When setting up communication between an External Device and the RS-232C/422/485 interface

module, use the IPC (RS-232C) or PS5000 (RS-422/485) cable diagrams. However, when using

PFXZPBMPR42P2 in a RS-422/485 (4-wire) configuration with no flow control, connect 7.RTS+

and 8.CTS+, and connect 6.RTS- and 9.CTS-.

When using RS-422/485 communication with External Devices, you may need to reduce the

transmission speed and increase the TX Wait time.

*6 To use RS-422/485 communication on the RS-232C/422/485 interface module, the DIP Switch

setting is required. Please refer to "Knowledge Base" (FAQs) on the support site. (http://www.pro-

face.com/trans/en/manual/1001.html)

*7 Set up the SIO type with the DIP Switch. Please refer to the IPC manual for details of DIP Switch.

The BOX Atom has not a switch to set the RS-232C, RS-422/485 mode. Use the BIOS for the

setting.

*8 For the connection with the External Device, on the user-created cable read as if the connector on

the Display-side is a M12 A-coding 8 pin socket. The pin assignment is the same as described in

the cable diagram. For the M12 A-coding connector, use PFXZPSCNM122.

DIP Switch Setting Description

1OFF

*1 When using PS-3450A, PS-3451A, PS3000-BA and PS3001-BD, turn ON the set value.

Reserved (always OFF)

2OFF

SIO type: RS-232C

3OFF

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

Settings FAQ ID

PFXZPBMPR42P2, RS422/485 change method FA263858

PFXZPBMPR42P2 termination resistor setting FA263974

PFXZPBMPR44P2, RS422/485 change method FA264087

PFXZPBMPR44P2 termination resistor setting FA264088

S10 Series SIO Driver

GP-Pro EX Device/PLC Connection Manual 6

RS-422/485 (4 wire)

RS-422/485 (2 wire)

DIP Switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

DIP Switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 ON Short-circuit of SDA (TXA) and RDA (RXA): Available

8 ON Short-circuit of SDB (TXB) and RDB (RXB): Available

9ON

RS (RTS) Auto control mode: Enabled

10 ON

S10 Series SIO Driver

GP-Pro EX Device/PLC Connection Manual 7

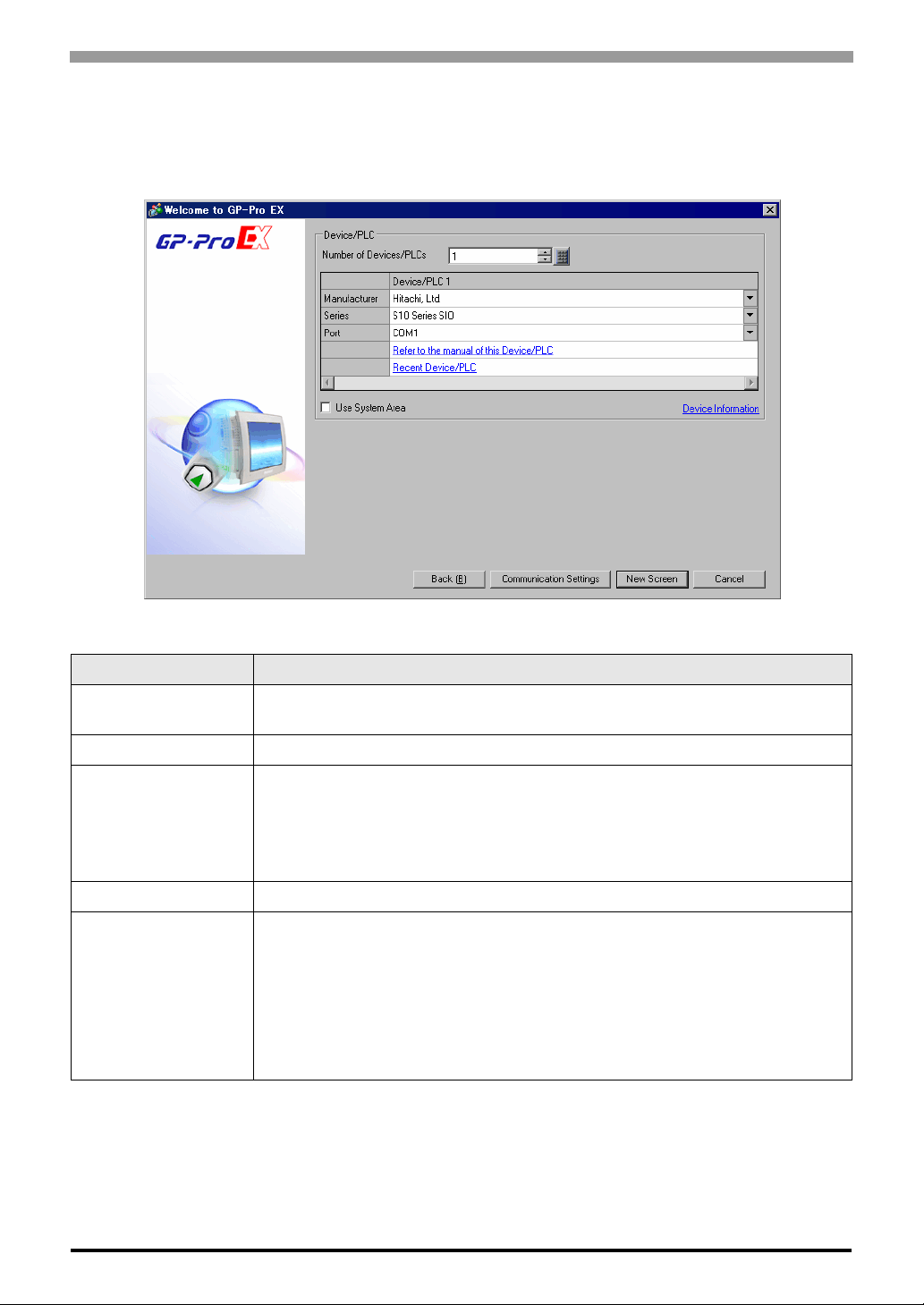

2 Selection of External Device

Select the External Device to be connected to the Display.

Setup Items Setup Description

Number of Devices/

PLCs

Enter an integer from 1 to 4 to define the number of Devices/PLCs to connect to the

display.

Manufacturer Select the manufacturer of the External Device to connect. Select "Hitachi, Ltd.".

Series

Select the External Device model (series) and the connection method. Select "S10 Series

SIO".

In System configuration, make sure the External Device you are connecting is supported by

"S10 Series SIO".

)"1 System Configuration" (page 3)

Port Select the Display port to be connected to the External Device.

Use System Area

Check this option to synchronize the system data area of the Display and the device

(memory) of the External Device. When synchronized, you can use the External Device’s

ladder program to switch the display or display the window on the Display.

Cf. GP-Pro EX Reference Manual "LS Area (Direct Access Method Area)"

This feature can also be set in GP-Pro EX or in the Display's offline mode.

Cf. GP-Pro EX Reference Manual "System Settings [Display Unit] - [System

Area] Settings Guide"

Cf. Maintenance/Troubleshooting Guide "Main Unit - System Area Settings"

S10 Series SIO Driver

GP-Pro EX Device/PLC Connection Manual 8

3 Example of Communication Setting

The following shows examples of communication settings of the Display and the External Device, which is

recommended by Pro-face.

3.1 Setting Example 1

Settings of GP-Pro EX

Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the external device and click [Settings] .

Settings of External Device

Communication setting of External Device is fixed. No setting is required.

S10 Series SIO Driver

GP-Pro EX Device/PLC Connection Manual 9

3.2 Setting Example 2

Settings of GP-Pro EX

Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the external device and click [Settings] .

Settings of External Device

Communication setting of External Device is fixed. No setting is required.

Rotary switch of External Device needs to be set depending on the channel in use.

Set as shown in the table below.

Channel in use

Rotary Switch

CN1MODU

CN1 8

S10 Series SIO Driver

GP-Pro EX Device/PLC Connection Manual 10

3.3 Setting Example 3

Settings of GP-Pro EX

Communication Settings

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

Device Setting

To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]

window, select the external device and click [Settings] .

Settings of External Device

Communication setting of External Device is fixed. No setting is required.

Rotary switch of External Device needs to be set depending on the channel in use.

Set as shown in the table below.

Channel in use

Rotary Switch

CN2MODU

CN2 9

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Hitachi

Hitachi

Hitachi HF-W100E/IoT Manual de usuario

Hitachi

Hitachi PSC-A16RS Manual de usuario

Hitachi

Hitachi HIDIC EH-150 Instrucciones de uso

Hitachi

Hitachi ATW-YCC-03 Manual de usuario

Hitachi

Hitachi ATW-YCC-03 Manual de usuario

Hitachi

Hitachi CIS02-H Manual de usuario

Hitachi

Hitachi ECO COMPACT PC-ARC-E Manual de usuario

Hitachi

Hitachi Eco Compact PC-ARC-A Manual de instrucciones

Hitachi

Hitachi EH-150 Series Instrucciones de uso

Hitachi

Hitachi HX-CP1S08-0 Manual de usuario

Hitachi

Hitachi S10mini LQS070 Manual de usuario

Hitachi

Hitachi PC-ARFG-E Manual de usuario

Hitachi

Hitachi S10mini LQS070 Manual de usuario

Hitachi

Hitachi SPX-WDC5 Manual de usuario

Hitachi

Hitachi EH-RMP2 Instrucciones de uso

Hitachi

Hitachi Eco Compact PC-ARC-A Manual de usuario

Hitachi

Hitachi HCWA10NEGQ Manual de usuario

Hitachi

Hitachi H Series Manual de usuario

Hitachi

Hitachi HIDIC EH-150 Instrucciones de uso

Hitachi

Hitachi HIDIC EH-150 EH-PT4 Instrucciones de uso

Hitachi

Hitachi PC-ARF1 Manual de usuario

Hitachi

Hitachi HD64465 Manual de usuario

Hitachi

Hitachi PC-ARFG-E Manual de usuario

Hitachi

Hitachi MICRO-EHV+ Instrucciones de uso

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
