Hisense X08060026B Instrucciones de operación

X08060026B

ensure

Ensure

Single inlet -

Dual inlet - and cold

only

Ensure that the ventilation openings in the base of the washing machine

(if available on your model) are not obstructed by a carpet or other material.

NOTE

The manufacturer reserves the right for any modifications on

the product which might be deemed necessary or useful

without informing about it in this IFU.

Thank you for choosing a Hisense washing machine.

Before operating your new washing machine, please read this

instruction carefully, and keep it for future reference. If you have

lost it accidentally, ask customer service for e-copy or hard copy.

Please make sure the socket is grounded securely, the water

source connection is reliable. The manufacturer declines all

liability and warranty for damage to property or injury to

persons or animals due to non-compliance with the directions

given in this instruction.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons

in order to avoid a hazard.

The new hose-sets supplied with the appliance are to be used

and that old hose-sets should not be reused.

This appliance can be used by children aged from 8 years and

above and persons with reduced physical. Sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless

continuously supervised.

The maximum permissible inlet water pressure, 1 MPa, for

appliances intended to be connected to the water mains

The minimum permissible inlet water pressure, 0.1 MPa, if

this is necessary for the correct operation of the appliance

For washing machines with ventilation openings in the base,

that a carpet must not obstruct the openings.

3 4

that

the

ing

the

from the mains supply,

615 mm

855 mm

the mains.

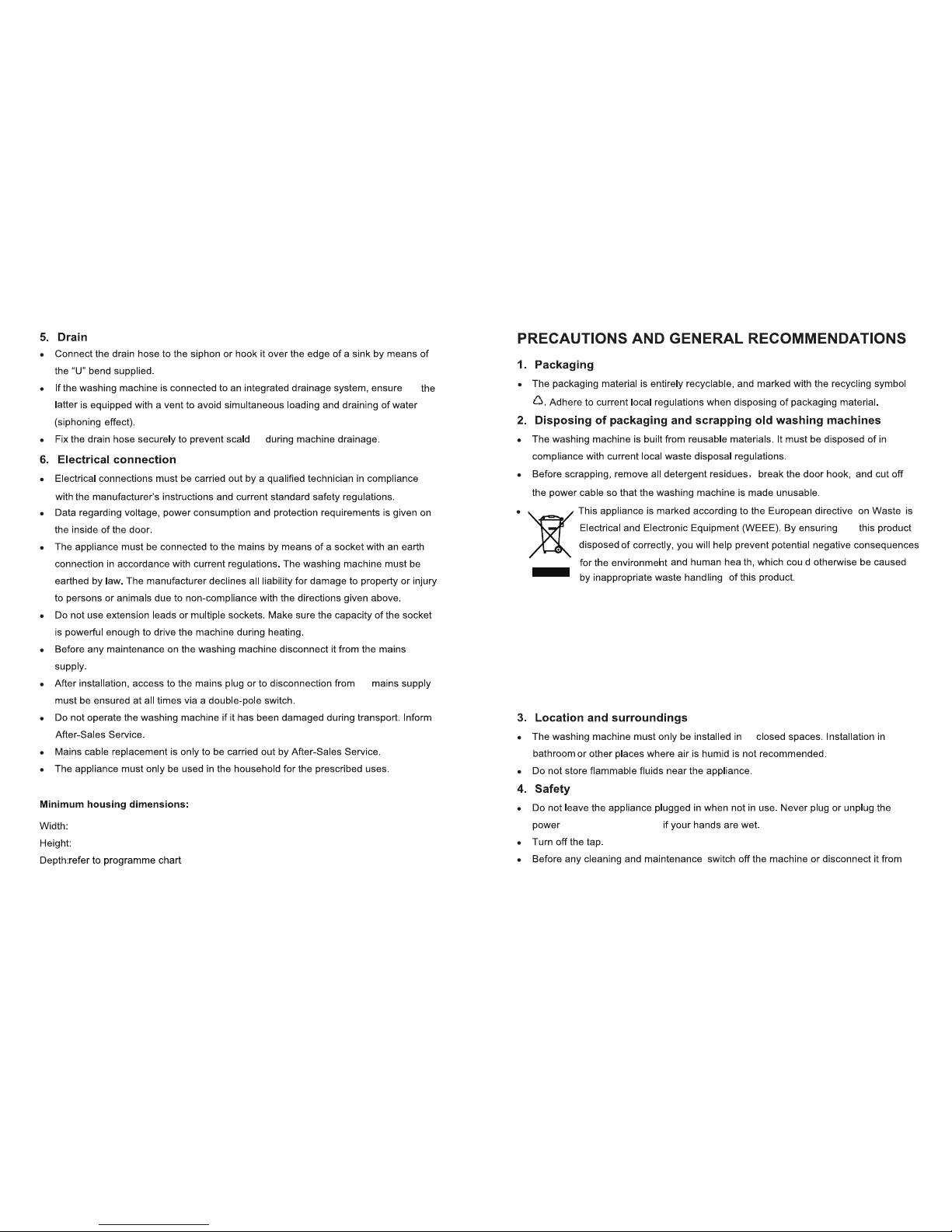

The symbol on the product, or on the documents accompanying the product,

indicates that this appliance may not be treated as household waste. Instead it

shall be handed over to the applicable collection point for there cyclingof electrical

and

electronic equipment. Disposal must be carried out in accordance with local

environmental regulations for waste disposal. For more detailed information about

treatment, recovery and recycling of this product, please contact your local city

ofﬁce, your household waste disposal service or the shop where you purchased

the product.

that

Control panel layout and

appearance will depend on the model.

5 6

Clean the outside of the washing machine with a damp cloth. Do not use abrasive

detergents.

Never open the door forcibly or use it as a step.

1. Sort the laundry according to...

Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwash items.

The wool wash cycle of this machine has been tested and approved by The

Woolmark Company for the washing of Woolmark garments labelled as “machine

wash” provided that the garments are washed according to the instructions on the

garment label and those issued by the manufacturer of this washing machine.

Colour

Separate coloured and white items. Wash new coloured articles separately.

Wash items of different sizes in the same load to improve washing efficiency and

distribution in the drum.

Delicates

Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras)

in a cloth bag or pillow case with zip. Always remove curtain rings or wash curtains

with the rings inside a cotton bag.

2. Empty all pockets

Coins, safety pins etc. can damage your laundry as well as the appliance drum and

tub.

3. Fasteners

Close zips and fasten buttons or hooks; loose belts or ribbons should be tied

together.

Stain removal

Blood, milk, eggs etc. are generally removed by the automatic enzyme phase of the

programme.

To remove any residual water used during testing by the manufacture r, we

recommend that you carry out a short wash cycle without laundry.

1 Open the tap.

2 Close the door.

3 Pour a little detergent (about 30 ml) into the main wash chamber of the deter-

gent dispenser .

4 Select and start a short programme (see separate quick reference guide).

BEFORE THE FIRST WASH CYCLE

PREPARATION OF THE WASHING

DESCRIPTION OF THE WASHING MACHINE

while the

can

for

for to be

7 8

/ soak

Open the door.

9 10

unds

Remove siphon in softener slot. (fig.“C”).

Refit the siphon in the detergent drawer and fit the drawer back inside its housing.

Press the release lever in the main wash compartment downward and remove

the drawer(fig.“B”).

Select the “Rinse+Spin” programme,reduce the speed to 1000rpm and strat

2 Insert removal tool like slotted screwdriver into the small opening of bottom

baffle, press the bottom baffle downward with much strength and open it.

Before emptying the residual water, switch the appliance off and unplug it

fromthe mains socket. Remove the plinth,place a container beneath it.

DRAINING RESIDUAL WATER

(depends on model)

1 Pull out emergency drain pipe of machine.

2 Put end of emergency drain pipe into a container.

3 Rotate emergency drain pipe plug and remove it after it becomes loose.

4 Until water runs off naturally.

5 Reinstall emergency drain pipe plug.

6 Fill detergent box with 1L water to check

emergency drain pipe.Check if there is

any leakage at connection of pipe plug.

7 Put emergency drain pipe back.

if it fails to perform spin cycles.

Ensure that the water has

We recommend that you check and clean the filter regularly, at least two or three

times a year.

11 12

3 Put a flat container under filter door and then drain with emergency drain pipe

(see [draining residual water] for specific operation methods). Then, loosen

filter anticlockwise and completely unscrew and remove the filter.

Check the supply hose regularly for brittleness and cracks and replace it if

necessary using a new hose of the same type(available from After-Sales Service

or specialist dealer).

13 14

solv

and the power switched ON

too

remove some

15 16

Fig.1

Hot fill

Red inlet valve

Blue inlet valve

Cold fill

Red inlet valve

Blue inlet valve

Cold fill

Y-piece

Fig.2

If you wish to connect hot and cold water supply (Fig.1):

1 Fix the red marked inlet hose to the hot water tap and to the inlet valve with the red

filter on the rear side of machine.

2 Fix the other inlet hose to the cold water tap and to the inlet valve with the blue

filter on the rear side of the machine.

Make sure:

a) The connections are tightly fixed

b) Do not invert their position (for example: cold fill into hot inlet valve and vice versa).

If you wish to connect only the cold fill follow the below instructions (Fig. 2):

1 You will need a Y-piece connector. This can be purchased from local hardware or

plumbing supplier.

2 Fix the Y-piece connector to the cold fill tap.

3 Connect the two inlet valves present on the rear part of the machine to the Y-piece

connector using the hoses provided.

Ensure that:

All connections are tightly fixed.

Do not allow children to operate, crawl on, be near or inside your washer.

Note that during the wash cycles, the surface temperature of the porthole door

may increase.

Close supervision of children is necessary when the appliance is used near

children.

Hot / Cold fill fault - For Models with Dual Inlets

Ensure that

Fault Code List

Displayed on Display Window Fault Description

“F01” Water inflow fault

“F03” Drainage fault

“F04”, “F05”, “F06”, “F07” “F23” and “F24”

Electronic module fault, overflow or too much foam.

“F13” Door lock fault

“UNB” Unbalance alarm

a. “F01” displayed on screen

The machine is not fed with water or insufficient water. Check:

Faucet is fully open and has enough water pressure.

Water inlet pipe is knotted or not.

Filtering net of water inlet pipe is blocked or not (refer to maintenance and

repair).

Water pipe is frozen or not.

Press “Start/Pause” key after fault is removed.

If fault occurs again, please contact with after-sale service (refer to after-sale

service.).

b. “F03” displayed on screen

The washer is not emptied. The washer stops the program being executed. Shut

down the machine and disconnect power supply. Check:

Drain pipe is knotted or not.

Filter in drain pump is blocked or not (refer to the cleaning of filter in drain pump)
