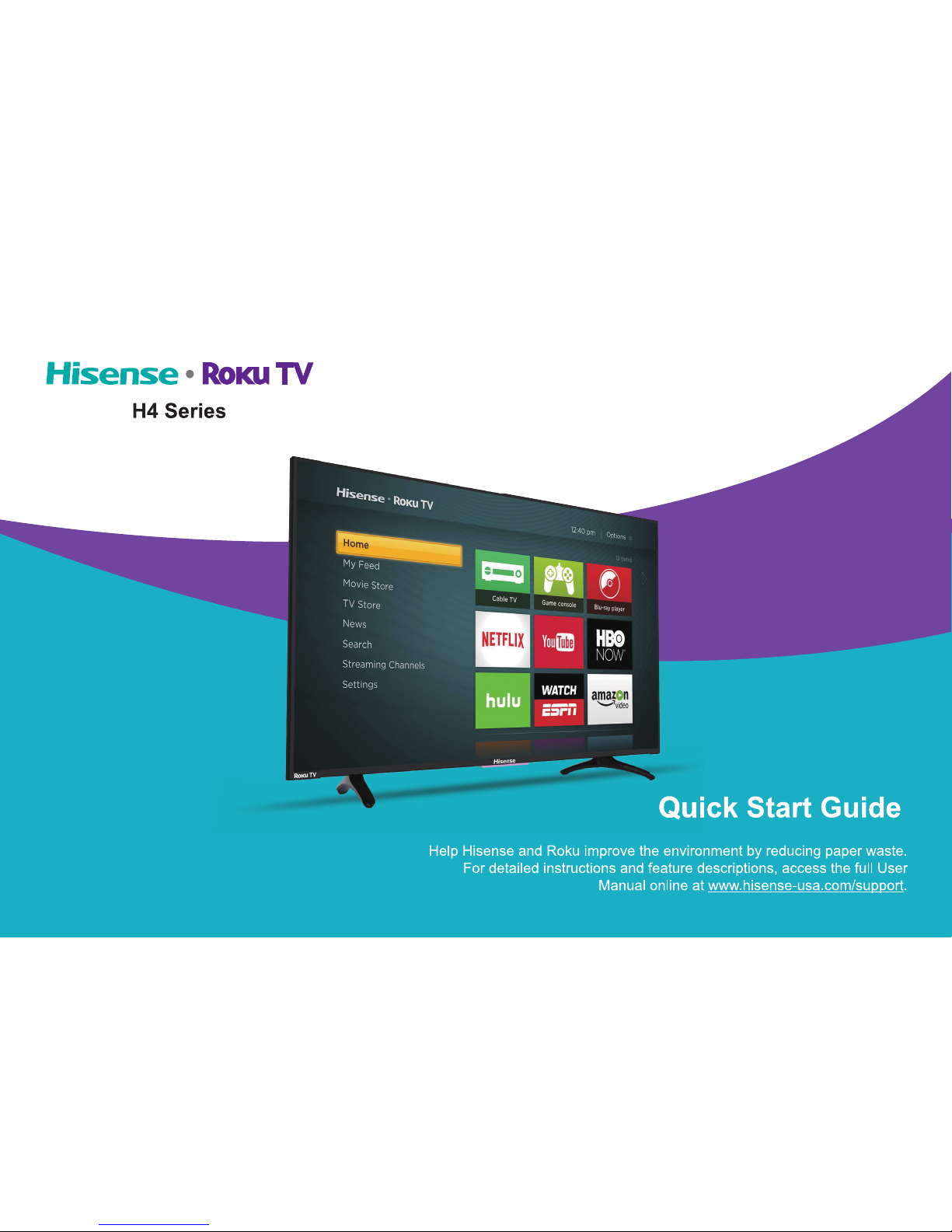

Hisense 40H4C1 Manual de usuario
ES-G160319-1
©Hisense Company Ltd. and Roku, Inc. 2016
All material in this Quick Start Guide is the property of Hisense Company Ltd. and Roku Inc. and its subsidiaries, and is protected under
U.S. and International copyright
and/or other intellectual property laws. Reproduction or transmission of the materials, in whole or in part, in any manner, electronic, print,
or otherwise, without the prior written consent of Hisense Company Ltd. and Roku, Inc. is a violation of the rights of Hisense Company
Ltd. and Roku, Inc. rights under the aforementioned laws.
No part of this publication may be stored, reproduced, transmitted or distributed, in whole or in part, in any manner, electronic or
otherwise, whether or not for a charge or other or no consideration, without the prior written permission of Hisense Company Ltd. and
Roku, Inc.
Requests for permission to store, reproduce, transmit or distribute materials may be made to the following address:
USA: Hisense USA Corporation
PO Box 3289
Suwanee, GA 30024
CANADA: Hisense Canada Co., Ltd,
405 Britannia Rd E., Suite 11
Mississauga, Ontario,L4Z 3E6
Hisense, and any and all other Hisense product names, logo’s, slogans or marks are registered trademarks of Hisense Company Ltd.
and its subsidiaries. All other trademarks are the property of their respective holders. Roku, Roku TV, Happy Streaming and the Roku
logo are the trademarks or registered trademarks of Roku, Inc.
1
Your easiest way to endless entertainment
Legal Disclaimers:
*Subscription or other payment may be required to access certain channels. Content may not be available in all areas in which the Roku TVs are sold and
channel availability is subject to change.
† Roku search is for movies and TV shows and does not work with all channels.
º Limitation apply. Please see support.roku.com for device compatibility information.
2
WELCOME TO THE HISENSE FAMILY!
Congratulations on the purchase of your new Hisense Roku TV H4 Series! This Quick Start Guide will walk you
through a few easy steps to set up your TV.
Because we value your business, we want to keep you in the know of 'all things Hisense'. Using your mobile phone, scan the Registration page QR code
to register your TV. Depending on the make and model of your phone, you may need to download a QR code scanning app.
Country Customer Care Center Hisense Support Page REGISTER YOUR TV
U.S.A •Phone: 1-888-935-8880
•Hours of Operation:
Monday - Friday: 9 AM to 9 PM EST
Saturday - Sunday: 9 AM to 6 PM EST
•Service Email: [email protected]
http://www.hisense-usa.
com/support/
http://www.hisense-usa.
com/support/productReg.
asp
CANADA •Phone: 1-855-344-7367
•Hours of Operation:
Monday - Friday: 8 AM to 8 PM EST
•Service Email: [email protected]
http://www.hisense-
canada.com/support/
http://www.hisense-
canada.com/support/
productReg.asp
MEXICO
•Phone: 01-800-008 8880
•Hours of Operation: Monday-Friday 9:00-18:00
•Service Email: [email protected]
http://www.hisense.com.
mx/support/
http://www.hisense.com.
mx/support/productReg.
asp
Disclaimer: This Quick Start Guide is intended as a general guideline to help you set up your Hisense Roku TV.
Images throughout this document are for illustrative purposes only and may differ from the actual product.
3
· Please check foam for accessories before discarding.
· Veuillez vérifier la mousse pour qu'il n'y ait pas d'accessoires avant de la jeter.
· Antes de desechar la espuma, asegúrese de retirar todos los accesorios.
Packaged contents
Your package in which you purchased your new TV contains the following items:
TV Power Cord (for 48"/50")
Remote Control 2 AAA batteries
Hisense Roku TV H4 Series Quick Start Guide (this document) Important Safety Information and Warranty Card leaflet
2 legs that forms the TV stand 4 screws (M4×12) (for 40")
4 screws(M4×20) (for 48"/50")
IMPORTANT:
To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.
Required tools and devices
Wireless router (not included) for Internet connectivity
Phillips screwdriver (not included) to secure the TV stand
HDMI and other types of cables (not included) to connect external devices to the TV
Wall mount bracket (not included) if you prefer to mount the TV to the wall
4
Buttons and ports on the Hisense Roku TV
Back View of the TV (40")
TV Side Vi
ew
TV Bottom View
TV Bottom Panel
VIDEO LR
AV IN
DIGITAL
AUDIO OUT
HDMI 1(ARC) ANT/Cable
AUDIO
OUT RESETHDMI 2HDMI 3
5
Back View of the TV (48"/50")
TV Side Vi
ew
TV Bottom View TV Bottom Panel
S
ANT/CABLE
HDMI 1
AUDIO
OUT
ARC
HDMI 2RESET
HDMI 3
DIGITAL
AUDIO OUT
(for 48″)
TV Bottom Panel
(for 50″)
6
STEP 1. Attach the TV stand or wall mount bracket (not included)
Attach the TV Stand (For steps to attach the wall mount see page 7)
Follow the illustrations and instructions below to complete the installation steps:
1. Carefully place your TV facing down on a soft, flat surface to prevent damage to the TV or scratches to the screen.
2. Remove the two legs (that form the stand) from the accessory bag and then insert them into the bottom slots of the TV.
3. Secure the legs to the TV with the 4 screws in the accessory bag.
Screws: M4×12 (40")
Screws: M4×20 (48"/50")
leg
leg
7
Attach the Wall Mount Bracket (not included)
Before you begin the third-party manufacturer instructions, be
sure to do the following things:
1.Place the TV face down on a flat, clean, safe and cushioned
surface.
2.Remove the TV stand if you already attached it.
3.Place the spacers (not included) in the corresponding bracket
holes.
CAUTION:
• Whenyouattachthemount,besuretousethespacers
(provided by the third-party manufacturer) between the TV
and the bracket.
• TopreventinternaldamagetotheTVandensureitis
mountedsecurely,besuretousefixingscrews(not
provided) that are 8 - 9.5 mm (40") / 9.5 - 11.5 mm (48"/50")
in length when measured from the attaching surface of the
mounting hook.
9.5 - 11.5 mm (48"/50")
8 - 9.5 mm (40")
Wall mount hole pattern
VESA (mm)
100 ×100(for40″)
200 ×200(for48″)
200 ×400(for50″)
Wall mount screw size (mm) M4(for40″)
M6(for48″/50″)
Follow instructions provided with the Wall mount bracket.
To complete the installation, please contact the wall-mount
manufacturer or the retailer from which you purchased the TV.
The selected screws are 8 - 9.5 mm / 9.5 - 11.5 mm in length
when measured from the attaching surface of the rear cover.
The diameter and length of the screws differ depending on the
Wall mount bracket model.
NOTE: The diameter and length of the screws differ depending
on the wall mount bracket model.
Screw
(not provided)
Bracket
(not provided)
Spacer
(not provided)
Rear cover of the TV Spacer
Screw
Wall mount bracket
8
STEP 2. Connect devices to your TV
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can
affect the quality of the picture image and color. (Cables and External Equipment not included.)
TV label Port Cable External Equipment Brief Description
ANT/CABLE
Antenna
VHF/UHF Antenna
ANT OUT
Connect an outdoor or indoor
antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
ConnectaHighDenitionMultimedia
Interface (HDMI®) cable from an
external device.
AV IN
VIDEO Yellow
Connect a composite video cable
and left-right audio cables from an
external AV device.
LWhite
RRed
DIGITAL AUDIO
OUT
SpeakerAudioAmplier
Connect an optical cable from an
external digital audio system.
