Hisense 32D50 Manual de usuario
32D50
40D50P
English
ES-
QUICK SETUP GUIDE
Before using the TV, please read this guide thoroughly
and retain it for future reference. For more detailed
instructions, please see the User Manual.
NO.1
English 1
Contents
Contents
Accessories List..............................................................................................................1
Installing the Stand.........................................................................................................2
TV Front..........................................................................................................................4
TV Rear ..........................................................................................................................5
Making Connections.......................................................................................................5
Remote Control ..............................................................................................................9
Turning the TV on for the First Time............................................................................. 11
Specifications ...............................................................................................................13
TV Base Stand User Manual
Quick Setup Guide Warranty Card Remote Control
AAA Batteries × 2 (ST4 × 12F) × 4 (32˝)
(ST4 × 14F) × 4 (40˝)
Accessories List
The following accessories are included with TV:
Quick Setup Guide
HiSmart
CH
MENU
RETURN
MUTE
FAV
PRE CH
OFF
ON
DMP
EXIT
CHLIST
SOURCE
LANG.
P.MODE
S.MODE
SIZE
SUBT.
TEXT
INDEX
SUBPAGE
PVR
I/II
Anyview Cast
ER- 2265 4HS
0
123
456
78 9
OK
VOL
INFO
EPG
Warranty
Card
2English
Installing the Stand
Installing the Stand
NOTES
The TV screen is very fragile,and must be protected at all times when removing the
base stand.Be sure that no hard or sharp object,or anything that could scratch or
damage the screen,come into contact with it.DO NOT exert pressure on the front of
the TV at any time because the screen could crack.
For tabletop use,the TV must be attached to the provided stand as shown on this
page.
Product images are only for reference, actual product may vary in appearance.
WARNING
Be sure to disconnect the AC power cord before installing a stand or wall-mount
brackets.
CAUTION
Carefully place your TV facedown on a soft,cushioned surface to prevent damage
to the TV or scratching to the screen.
Follow the illustrations and textual instructions below to complete the installa-
tion steps:
1. Attach the stand to the TV set as shown in the picture.
2. Use the screws (ST4 × 12F) × 4 (32˝), (ST4 × 14F) × 4 (40˝) to fix the stand tightly.
Screws: ST4 × 12F (32˝)
ST4 × 14F (40˝)
BASE STAND
English 3
Installing the Stand
WALL-MOUNT BRACKET
200×100(32˝)
200×200(40˝)
M6
If you need to use the Wall-mount Bracket, please refer to the below information.
4English
TV Front
TV Front
Item Description
Remote sensor
Receive remote signals from the remote control.
Do not put anything near the sensor, as its function may
be affected.
Remote Indicator Red light up in standby mode. Blue light up in power on
mode.
STANDBY/ SOURCE
Press for a few seconds to turn on the TV or put the TV
in standby mode. / Touch to select among the different
signal sources.
Remote Sensor
Remote Indicator
STANDBY / SOURCE
NOTES
The Picture is Only for Reference.
Powering up or down the TV requires several seconds of processing time.Do not
rapidly turn the TV on / off as abnormal operation may occur.
English 5
TV Rear & Making Connections
TV Rear
HDMI 3HDMI 2 USB
DC 5V 0.5A(MAX)
LR
VIDEO
/AUDIO OUT P
Y
COMPONENT IN PC IN
AUDIO IN
ANT/CABLE IN
PC/DVI VGA
P
HEADPHONE Connect Headphone for audio out of the TV.
The built-in speakers will be disabled once the headphone is connected.
TV JACK
(not included)
/AUDIO OUT
B R
AV IN
OPTICAL
NOTES
The Picture is Only for Reference.
AV&COMP AUDIO IN
HDMI 1 (ARC)
6English
Making Connections
HDMI/COMP/AV
Connect a HDMI / Comp / AV cable from an external A/V equipment. No sound
connection is needed for HDMI to HDMI connection. If the signal resolution does not
match the specification table, you need to change the setting of device according to
the table. Please consult your device user manual for instruction.
·To select the HDMI / Component / AV
Press [Source] button, when the list of input Source appears, press [▲/▼] to select
the source [HDMI] / [YPbPr] / [AV], then press [OK] to connect.
Red(PR/CR)
Blue(PB/CB)
Green(Y)
Red(R)
White(L)
Yellow(Video)
Red(R)
White(L)
VGA & AUDIO Connect a VGA cable and an audio cable from the PC.
Press [Source] button, when the list of Input Source appears, press[[▲/▼] to select
the source [PC], then press [OK] to connect.
TV JACK
PC/DVI
AUDIO IN
VGA
COMPONENT IN
AV IN
(not included)
(not included) Blue(PB/CB)
Green(Y)
(not included) White(L)
(not included) Red(PR/CR)
(not included) Red(R)
AV IN
(not included) White(L)
(not included) Yellow(Video)
(not included) Red(R)
PR
PB
Y
R
R
L
L
VIDEO
TV JACK
(not included) HDMI cable
HDMI
Video Effect:
BEST(HDMI)
BETTER(COMP)
GOOD(AV)
AV&COMP AUDIO INAV&COMP AUDIO IN
English 7

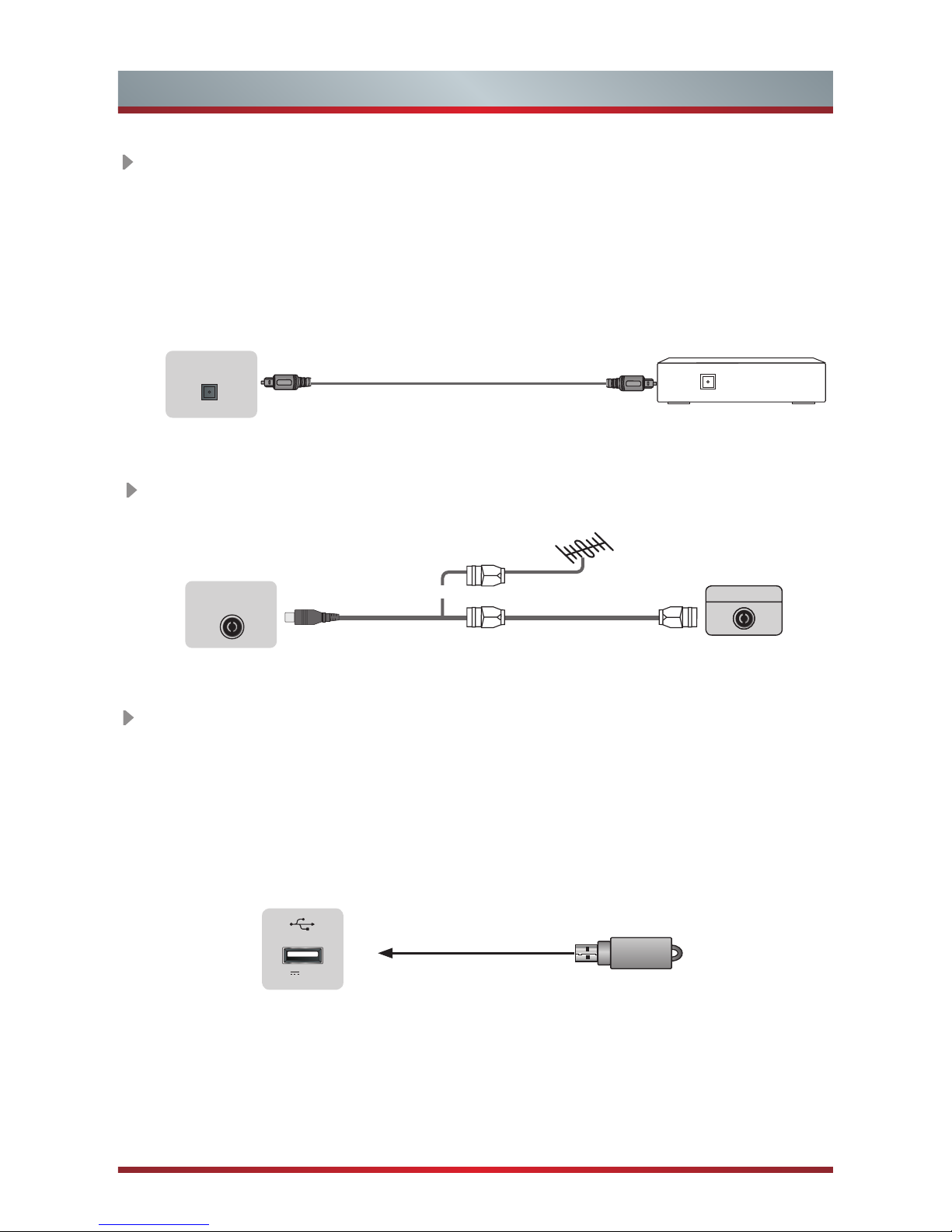

OPTICAL Connect an optical cable from an external digital audio system
Optical S/PDIF—is a type of digital audio interconnect cable used in consumer
audio equipment to output audio over reasonably short distances. The signal is
transmitted over a fibre optical cable.
Before connecting a digital audio system to the OPTICAL jack, you should
decrease the volume of both the TV and the system to avoid that the volume
suddenly become bigger.
TV JACK
OPTICAL cable (not included)
Audio Amplier/Speaker
OPTICAL
Making Connections
USB
Connect the USB devices such as hard drives, USB sticks or digital cameras for
browsing photos, listening music and watching recorded movies. You can record
live TV program (refer to PVR in user Manual). At the same time firmware update is
also an easy thing and can be done just by plugging the USB with the update files
into the USB interface.
TV JACK
USB
DC 5V 0.5A(MAX)
TV JACK
Outdoor
Antenna
Antenna Cable (75Ω)
or ANT OUT
Cable
VHF/UHF Antenna
ANT Connect an outdoor VHF/UHF antenna or cable.
ANT/CABLE IN
(not included)
8English
ARC Connect an HDMI cable from an external digital audio system.
ARC enables the TV to directly output the digital sound through an HDMI cable.
Please note that it works only when the TV is connected to the audio receiver that
supports the ARC (Audio Return Channel) function.
When this port is used as the ARC function, it can't be used as signal input at the
same time.
Making Connections
NOTES
When connecting a hard disk or a USB hub, always connect the mains adapter of
the connected device to the power supply. Exceeding a total current consumption
may result in damage. The maximum current consumption is 500mA.
For individual non-standard high-capacity mobile hard disk, if it's impulse current is
greater than or equal 500mA, it may cause TV-rebooting or self-locking. So the TV
does not support it.
The USB port supports a voltage of 5V.
The maximum supported storage space of the hard disk is 1T.
If you want to store the video streaming of a DTV program, the transfer rate of the
USB storage device must not be less than 5MB/s. At least a mobile storage with
more than 20G is required to Timeshift and record a 2.5 hour HD video.
TV JACK
HDMI cable (not included)
HDMI
HDMI1
（ARC）
English 9
Remote Control
Remote sensing Window
Power button
Switch to DTV Radio
program
Available source selection
Zoom image
Mute the sound
Set the sleep time
Select Audio language
Display the subtitle content
of the signal
Fast access to your saved
favorite programs
Red, Green, Yellow and Blue
are used in media mode
Exit: Exit all menu display
Enter or confirm the
operation, ▲/▼/◄/► Up/
Down/Left/Right
Electronic program guide
Picture mode selecting
Volume Up / Volume Down
1,2,...numbers: For
direct channel access
To return to the last
view program
Text, Size, Reveal, Hold,
Index, Subpage (refer to
teletext function)
Play/ Pause, Stop, etc.
are used in media mode
Analog / Digital TV
Start video recorder
Select USB-Digital Media
player mode
Mono/Stereo
operation,Audio select
button
Display the main menu/
Back menu display
Display informations
Channel Up/ Channel
Down
Sound mode selecting
Freeze picture
Time shift in DTV Mode
Video recorder list
