Safety and warning information.........2

Installing your new appliance............7

Description of the appliance ............9

Display controls...............................10

Using your appliance.......................14

.......................19

.......................21

Troubleshooting...............................23

Disposal of the appliance................25

Cleaning and care....

Helpful hints and tips

This appliance is produced in accordance with the following EU

guidelines: LVD 2014/35/EU, EMC 2014/30/EU, 2009/125/EC,

EC.643/2009 and 2002/96/EC.

Safety and warning information

For your safety, before installing

and first using the appliance,

read this user manual carefully,

including its hints and warnings.

To avoid unnecessary mistakes

and accidents, it is important to

make sure that all people using

the appliance are thoroughly

familiar with its operation and

safety features. Save these

instructions and be sure that

they remain with the appliance if

it is moved or sold, so that

anyone using it, throughout its

life, will be properly informed on

its usage and safety notices.

For the safety of life and

property, keep the warnings

contained within these user's

instructions as the manufacturer

is not responsible for damages

caused by omission.

Safety for children and

others who are vulnerable

This appliance can be used

by children aged from 8 years

and above and persons with

reduced physical, sensory or

mental capabilities or lack of

experience and knowledge if

they have been given

supervision or instruction

concerning use of the

appliance in a safe way and

understand the hazards

involved. Children shall not

play with the appliance.

Cleaning and user

maintenance should not be

carried out by children without

supervision.

Keep all packaging away

from children as there is risk of

suffocation.

If you are discarding the

appliance, pull the plug out of

the socket, cut the connection

cable (as close to the appliance

as you can) and remove the

door to prevent children playing

from suffering an electric shock

or from closing themselves

inside the unit.

General safety

WARNING —This

appliance is intended

to be used to be used in

domestic households and not

intended for use in retail or

commercial environments;

WARNING — The water

supply line should only be

connected to a potable water

supply.

WARNING — Do not store

explosive substances such as

aerosol cans with a flammable

propellant in this appliance.

WARNING — If the supply

cord is damaged, it must be

replaced by a qualified

electrician in order to avoid the

risk of electric shock.

WARNING — Keep

ventilation openings, in the

appliance enclosure or in any

built-in structure clear of

obstruction.

WARNING — Do not use

mechanical devices or other

means to accelerate the

defrosting process, other than

those recommended by the

manufacturer.

WARNING — Do not damage

the refrigerant circuit.

WARNING — Do not use

electrical appliances inside the

food storage compartments of

the appliance, unless they are

of the type recommended by

the manufacturer.

WARNING — The refrigerant

and insulation are flammable.

When disposing of the

appliance, do so only at an

authorized waste disposal

center. Do not expose to flame.

Refrigerant

The refrigerant isobutene

(R600a) is contained within the

refrigerant circuit of the

appliance. This is a natural gas

with a high level of

environmental compatibility,

which is nevertheless

flammable. During

transportation and installation

of the appliance, ensure that

none of the components of the

refrigerant circuit becomes

damaged. The refrigerant

(R600a) is flammable.

Caution:risk of fire

If the refrigerant circuit is

damaged:

-Avoid naked flames and

sources of ignition.

-Thoroughly ventilate the room

in which the appliance is

situated. It is dangerous to alter

specifications or modify this

product in any way. Any

damage to the cord may cause

a shortcircuit, fire, and/or

electric shock.

Electrical safety

3. Make sure that you can

access the main plug of the

appliance.

4. Do not pull the main cable.

5. If your wall socket is loose,

do not insert the power plug.

There is a risk of electric shock

or fire.

6. You must not operate the

appliance without the interior

lighting lamp cover.

7. The fridge should only be

supplied with single phase

alternating current of

220~240V/50Hz. If the supply

fluctuates outside this range an

automatic A.C. voltage

regulator of more than 350W

should be used. The fridge

should be plugged into an

adequately earthed supply.

1. The power cord must not be

lengthened.

2. Make sure that the power

plug is not crushed or

damaged. A crushed or

damaged power plug may

overheat and cause a fire.

Daily use

Do not store flammable gas

or liquids in the appliance,

There is a risk of an explosion.

Do not operate any electrical

appliances in the appliance

(e.g. electric ice cream makers,

mixers etc.).

When unplugging always pull

the plug from the mains socket.

Do not pull on the cable.

Do not place hot items near

the plastic components of this

appliance.

Do not place food products

directly against the air outlet on

the rear wall.

Store pre-packed frozen food

in accordance with the frozen

food manufacture’s instructions.

The manufactures storage

recommendations should be

strictly adhered to. Refer to

relevant instructions for

storage.

Do not place carbonated or

fizzy drinks in the freezer

compartment as it creates

pressure on the container,

which may cause it to explode,

resulting in damage to the

appliance.

Do not place food directly

against the air outlet on the rear

wall cause it to explode,

resulting in damage to the

appliance.

Frozen food can cause frost

burns if consumed straight from

the freezer compartment.

Do not place the appliance in

direct sunlight.

Keep burning candles, lamps

and other items with naked

flames away from the

appliance.

The appliance is only

intended for keeping food stuff

and/or beverages for normal

household consumption as

explained in this instruction

booklet.

The appliance is heavy. Care

should be taken when moving it

Do not remove nor touch

items from the freezer

compartment if your hands are

damp/wet, as this could cause

skin abrasions or frost/freezer

burns.

Never use the base, drawers,

doors etc. to stand on or as

supports.

Frozen food must not be

refrozen once it has been

thawed out.

To avoid items falling and

causing injury or damage to the

appliance, do not overload the

door racks or put too much food

in the crisper drawers.

Caution!

Care and cleaning

Before performing

maintenance, switch off the

appliance and disconnect the

mains plug from the mains

socket.

Do not clean the appliance

with metal objects, steam

cleaner, ethereal oils, organic

solvents or abrasive cleansers.

Do not use sharp objects to

remove frost from the

appliance. Use a plastic

scraper.

Installation Important!

It is advisable to wait at least

four hours before connecting

the appliance to avoid

damaging the compressor.

Adequate air circulation

should be provided around the

appliance.To achieve sufficient

ventilation, please follow the

instructions relevant to

installation.

Wherever possible the back

of the product should not be too

close flammable materials as

some components are hot in

normal operation.

The appliance must not be

locate close to radiators or

cookers.

Make sure that the mains

plug is accessible following

installation of the appliance.

For electrical connection

carefully, follow the instructions

given in this manual.

Unpack the appliance and

check for damage. Do not

connect the appliance if it is

damaged. Report possible

damage immediately to your

retailer. In this case retain

packing.

Service

This product must be serviced

by an authorized Service

Center or Service Agent, and

only genuine spare parts must

be used.

WARNING

fill with potable water only.

Installing your new appliance

Before using the appliance for the first

time, you should be aware of the

following tips.

Ventilation of appliance

In order to improve efficiency of

the cooling system and save

energy, it is necessary to maintain

good ventilation around the appliance

for the dissipation of heat. For this

reason, sufficient clear space should

be available around the refrigerator.

Suggest: It is advisable for there to

be 75mm of space from the back to

the wall, at least 100mm from its top,

at least 100mm from its side to the

wall and a clear space upfront to allow

the freezer door to open 130°and

refrigerator door to open 1 .35°See

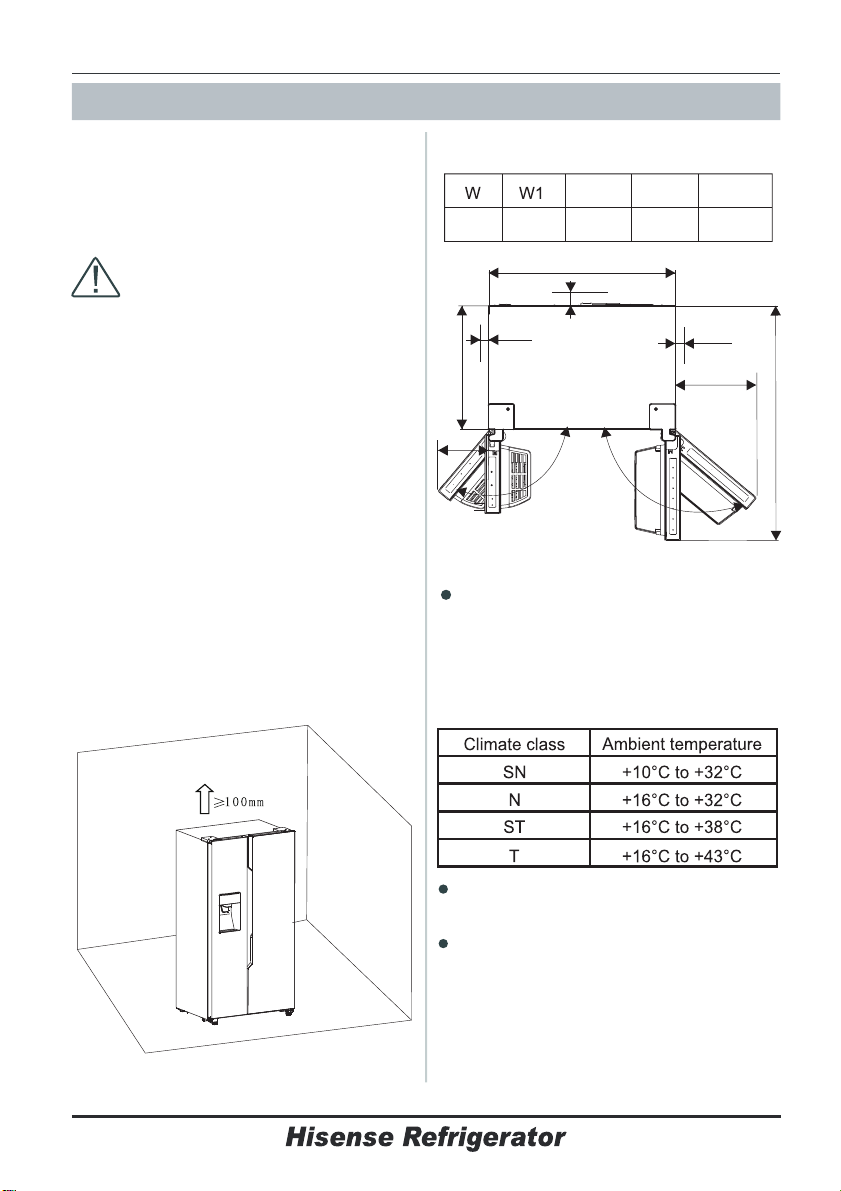

in follow diagrams. Please refer to the

diagrams below.

the

Relevant information (mm)

This appliance performs well in the

climate class from SN to T. It may not

work properly if being left at a

temperature above or below the

indicated range for a long period.

Note:

Stand your appliance in a dry place

to avoid high moisture damage.

Keep the appliance out of direct

sunlight, rain or frost. Stand the

appliance away from heat sources

such as stoves, fires or heaters.

908 372 600 1142.5

252

DD1

130°

13 5°

≥100

≥75

adjusta e bottom f etbl e

Warning!

For proper installation, this refrigerator

must be placed on a level surface of

hard material that is the same height

as the rest of the flooring. This surface

should be strong enough to support a

fully loaded refrigerator.

The rollers, which are not castors,

should be only used for forward or

backward movement. Moving the

refrigerator sideways may damage

your floor and the rollers.

Leveling of appliance

For sufficient leveling and air

circulating in the lower rear section of

the appliance, the bottom feet may

need to be adjusted. Please use a

suitable spanner.

To allow the doors to self-close, tilt

back the top backwards at about

15mm or 0.5 by turning the°

adjustable feet.

Whenever you want to move the

appliance, remember to turn the feet

back up, so that the appliance can roll

freely. Reinstall the appliance when

relocating.

0.5

15mm

View of the appliance

Description of the appliance

Note: Due to constant development of our products, your refrigerator may be

slightly different from this Instruction Manual, but its functions and usage

remain the same.

1. Freezer zone LED light

2. Ice-Maker Front Cover Assembly

3. Ice Bucket Assembly

4. Wind channel cover in freezer

5. Freezer shelf

6. Freezer door Rack

7. Freezer upper drawer

8. Freezer lower drawer

9. Left adjustable bottom feet

10. Fridge zone LED light

11. Fridge door Rack

12. Wind channel cover in fridge

13. Fridge shelf

14.Bottle Rack

15.Water storage box part

16. Fridge upper drawer

17. Fridge lower drawer

18. Right adjustable bottom feet

Use your appliance according to the following control guidelines, your product

has a control panel as shown in the diagram below.

When the appliance is powered on for

the first time, the backlighting of the

icons on the display panel starts

working. If no buttons have been

touched and the doors are closed, the

backlighting will turn off after 60

seconds.

Caution!When you set a

temperature, you set an average

temperature for the whole refrigerator

cabinet. Temperatures inside each

compartment may vary from the

temperatures displayed on the panel,

depending on how much food you

store and where you place it. High or

low room temperature may also affect

the actual temperature inside the

appliance.

The control panel consists of two

areas about temperature, and one

area about different modes.

Display controls

Non Plumbing

Tabla de contenidos

Otros manuales de Refrigerador de Hisense

Hisense

Hisense RS-11DC4SB Instrucciones de montaje

Hisense

Hisense HR6TFF270 Instrucciones de montaje

Hisense

Hisense RS818N4TCE Instrucciones de montaje

Hisense

Hisense HR6BMFF320 Instrucciones de montaje

Hisense

Hisense HRBM503S Instrucciones de montaje

Hisense

Hisense RS-47WL4SBA/CLA2 Instrucciones de montaje

Hisense

Hisense RD-35DR4SAA/CPA Manual de usuario

Hisense

Hisense RF750N4ISF Instrucciones de montaje

Hisense

Hisense RC43C2GSE Instrucciones de montaje

Hisense

Hisense RT749N4ABVI Instrucciones de montaje

Hisense

Hisense FT237D4BW21 Instrucciones de montaje

Hisense

Hisense RQ22N6ASD Manual de usuario

Hisense

Hisense RL481N4BIE Instrucciones de montaje

Hisense

Hisense RB327N4WB1 Instrucciones de montaje

Hisense

Hisense RS-33DL4SCB/CPA Manual de usuario

Hisense

Hisense HRFD560SW Instrucciones de montaje

Hisense

Hisense WMS017M6XVE Instrucciones de montaje

Hisense

Hisense RS694N4TCF Instrucciones de montaje

Hisense

Hisense RD-44WC series Manual de usuario

Hisense

Hisense H620BS-WD Instrucciones de montaje

Hisense

Hisense FF176F20W Instrucciones de montaje

Hisense

Hisense RS741N4WC11 Instrucciones de montaje

Hisense

Hisense FUV126D4AW11 Instrucciones de montaje

Hisense

Hisense RT600N4DC2 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
