XM100LAN
LAN connection module for the XM Series
ENGLISH
1
!
Safety degree: 1
Ambiental class: 2
!Dimensions (WxHxD): 55x38x17mm
!Approved directives CEI EN 50131-1

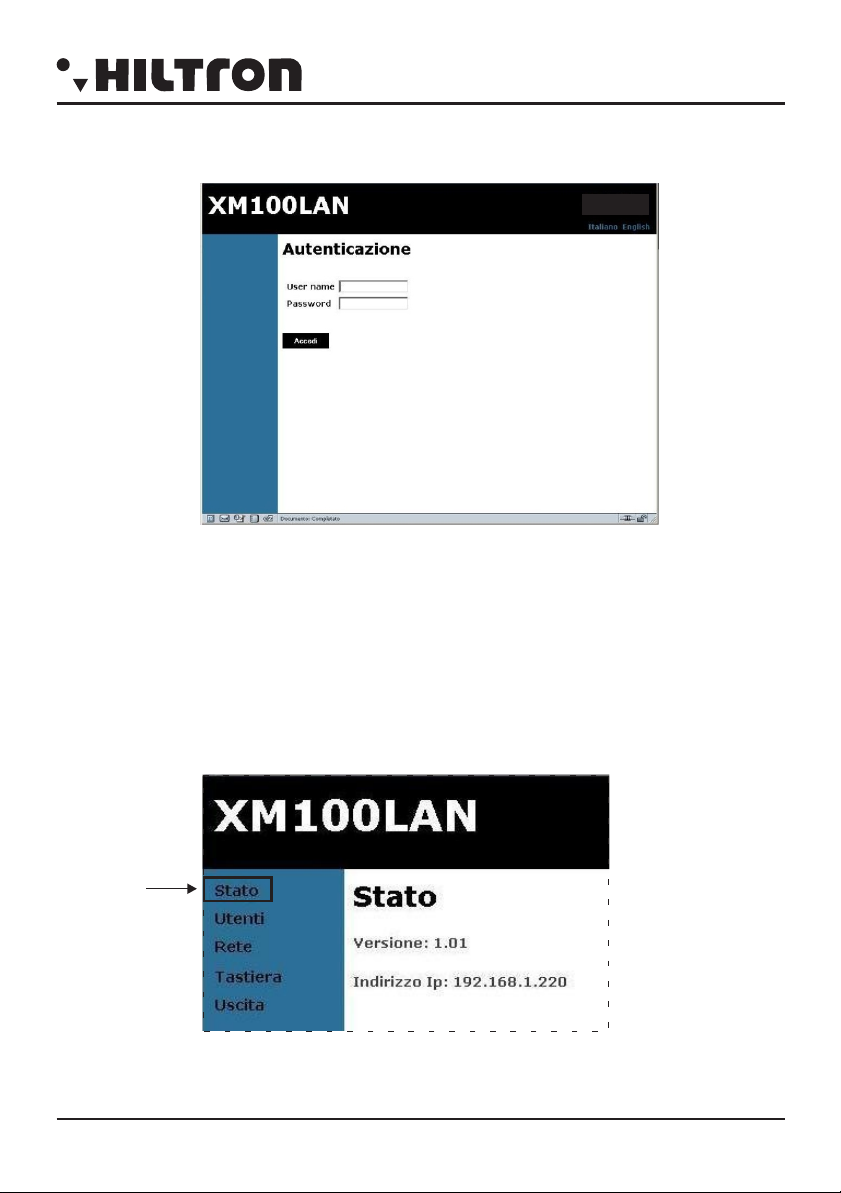

The XM100LAN card is an interface that allows you to schedule and manage a central XM through the
use of the network adapter of a PC. It is easy to install and requires no drivers..
ATTENTION : The XM100LAN cannot be used simultaneously from multiple computers.
1 Installation
- Connect the jumper JP2 from XM central unit as shown in the diagram below.
- Connect the XM100LAN board at XM central unit with the cable in dotation.
- Connect the XM100LAN boardwith an ethernet cable at net board from PC.
Power supply voltage: DC 12V +/- 5%
!Max current consumption: 100mA
!Ethernet Port : 10/100Mbit
!IDC Connector
!4 signalling LEDS (green,red,green,orange)
!Operating temperature: -20 ÷ +70°C
!
!
Connected
Activity
XM100LAN
Ethernet Port
RESET Button
Simultaneous flashing
ON BRIDGE modality
Standby
Alternating flashing/reboot Anomaly
IDC Connector
LAN
IDC Cable
(In dotation)
XM4xxx
XMA4xxx
B A
XMA6xxx
JP2
posit. A
JP2
posit. B
XM100LAN
A
B
A
B
IDC cable
(In dotation)
XM100LAN
IDC Cable
GND
IN
011
IN
012
B
A
B
