HIK VISION ITS Instrucciones de uso

Guide of ITS Construction

Hikvision ITS Construction

Guide

Guide of ITS Construction

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to ITS construction.

The Manual includes instructions for using and managing the product. Pictures, charts, images and

all other information hereinafter are for description and explanation only. The information

contained in the Manual is subject to change, without notice, due to firmware updates or other

reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various

jurisdictions. Other trademarks and logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE,

AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS,

OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,

INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF

BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN

CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY

AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL

OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER

Guide of ITS Construction

ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL

PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS

THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED

WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER

PREVAILS.

Guide of ITS Construction


Contents
CHAPTER 1 PREPARATION .................................................................................................. 4
1 TOOLS .................................................................................................................................4
2 TECHNICAL REVIEW ................................................................................................................4
CHAPTER 2 CONSTRUCTION METHODS............................................................................... 5
1 POLE BASE CONSTRUCTING AND REQUIREMENTS.........................................................................5
1.1 Excavation Requirements..........................................................................................5
1.2 Excavating Pole Base .................................................................................................5
1.3 Installing Grounding Stick..........................................................................................6
1.4 Installing Reinforcement Cage...................................................................................7
1.5 Concreting Pole Base.................................................................................................7
1.6 Base Surface Processing............................................................................................8
2 CONSTRUCTING CABINET BASE.................................................................................................8
3 CONSTRUCTING HANDHOLE .....................................................................................................9
4 PIPE LAYING AND REQUIREMENTS .............................................................................................9
5 LIGHTNING PROTECTION AND GROUNDING SYSTEM ...................................................................10
6 INSTALLING THE POLE ...........................................................................................................12
CHAPTER 3 EXAMPLE....................................................................................................... 14



Guide of ITS Construction

Chapter 1 Preparation

1.1 Tools

Protective tools

Reflective vest

Safety rope

Safety helmet

Working clothes

Gloves

Safety sign

Traffic cone

Plastic road barrier

Warning lines

Positioning tools

Measuring wheel

Tape measure

Flexible tape measure

Spray paint

Tools

Excavation tool (shovel,

mattock, etc.)

Bricklaying tools (trowel, etc.)

Generator

Electric breaker

Concrete vibrator

Vehicle

Ladder truck

Working vehicle

Crane

1.2 Technical Review

Check whether construction drawing is complete.

Check whether the drawing conforms to local standards and regulations.

Technical disclosure is required before the construction; staff signature.

Guide of ITS Construction

Chapter 2 Construction Methods

2.1 Pole Base Constructing and Requirements

2.1.1 Excavation Requirements

The depth and width of pole base must comply with the requirements in the drawing. If the actual

conditions do not meet the requirements, ensure that the volume of the pole base equals to that

in the design. Below is a table of Chinese specifications, for reference only.

Table 2-1 Base Specifications

No.

Arm Length

Base Dimensions (L × W × D)

Remarks

4m-5m

1 × 1 × 1.8 (m3)

6m-9m

1.2 × 1.2 × 2(m3)

10m-12m

1.5 × 1.5 × 2.1 (m3)

13m-15m

1.8 × 1.8 × 2.3 (m3)

2.1.2 Excavating Pole Base

1. Strictly follow the drawing to start excavation with either manual labor or excavator. Avoid

damaging underground pipeline and cables.

Figure 2-1 Excavation

Guide of ITS Construction

2. Construction waste must be removed and disposed of in specified locations in time.

3. When excavation is finished, clean the sludge and drain the underground water, if any.

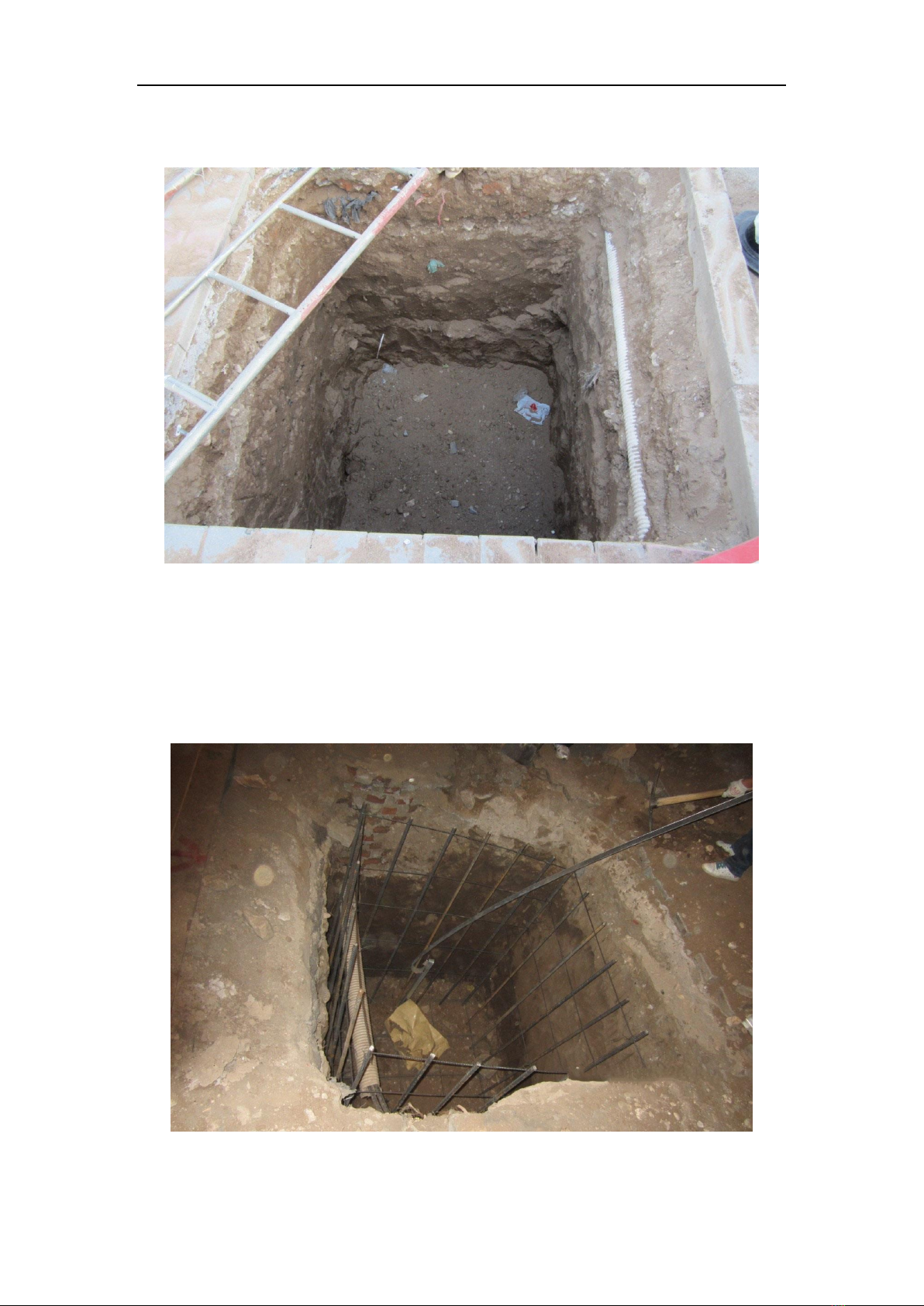

Figure 2-2 Excavation

2.1.3 Installing Grounding Stick

Drive the grounding stick and slab into the bottom of the base based on the drawing to ensure the

pole is entirely grounded. For details, see

Figure 2-3 Install Grounding Stick

Guide of ITS Construction

2.1.4 Installing Reinforcement Cage

1. Place the cage at the center of the base, use level ruler to adjust its position.

2. Pay attention to the angle how the foundation bolts are placed to ensure the arm will be

perpendicular to the road.

Figure 2-4 Install Reinforcement Cage

3. If the cage cannot be placed at the center due to passing underground pipeline, relocate it to

a proper position otherwise. Change the location of the base as early as possible if it is not

suitable for the base.

4. Lay the pipelines through the base from underground to the pole, and the pipe should be

higher than the flange plate. The mouth of the pipe should be sealed and tied to the flange

plate with wire to prevent concrete from falling down and blocking the pipe.

2.1.5 Concreting Pole Base

1. Purchase the concrete specified in the drawing or mix on site. Do not spill concrete on to the

road. The concrete grade should match with that required in the drawing.

2. Pour a part of the concrete into the base pit and use the concrete vibrator to get rid of air

bubbles. Then pour the rest and repeat the process to ensure the concrete pours evenly and

is free of bubbles, as shown in Figure 2-5.

Guide of ITS Construction

Figure 2-5 Stirring Concrete

2.1.6 Base Surface Processing

1. After concreting is finished, trowel the surface even and flat.

2. Maintenance for concrete is at least 20 days. 28 days is best.

Figure 2-6 Troweling

2.2 Constructing Cabinet Base

1. Excavate the pit for the cabinet base according to the drawing. Generally speaking, for a 600 ×

Guide of ITS Construction

600 mm cabinet, the base pit should be 800 × 800 mm, and 600 mm deep.

2. Erect support plates around the pit and they should be 100 mm higher than the ground. Then

lay the pipeline properly. Generally, 6 ×φ50PVC pipes are recommended.

3. Use the vibrator to stir when concreting the pit to get rid of air bubbles. The finished cabinet

base is shown in Figure 2-7.

4. The maintenance period of the base should not be less than 14 days.

Figure 2-7 Cabinet Base

2.3 Constructing Handhole

1. Excavate the pit for handhole according to the drawing.

2. Brick the handhole and trowel the interior and surface of it.

3. Place the lid onto the handhole and finish surface processing.

2.4 Pipe Laying and Requirements

1. Lay the pipes according to the drawing. The pipes connect handhole, cabinet and pole.

2. The size of pipe grooves: 0.2 × 0.6 m (W × D) under sidewalk and 0.2 × 0.8 m (W × D) under

roadway. For special construction requirements, refer to the drawing for specifications. Steel

pipes are required when laid across the roadway.

3. Place the PE pipes or steel pipes in the bottom of the grooves, cover them with sands if

required. When burying the pipes, tamp the backfill every 15 cm. Recover the road surface to

finish.

4. The pipe base should be tamped to avoid deformation which is a result of sunk roadbed by

passing vehicles.
