HIK VISION DS-2CE78U7T-IT1F Manual de usuario

TURBO HD

U7T Series Turret & Dome

Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Type

Model

Type I Camera

DS-2CE78U7T-IT1F

DS-2CE78U7T-IT3F

Type II Camera

DS-2CE76U7T-ITMF

Type III Camera

DS-2CE57U7T-VPITF

This manual may contain technical incorrect places or

printing errors, and the content is subject to change

without notice. The updates will be added to the new

version of this manual. We will readily improve or update

the products or procedures described in the manual.

0100001081124

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate the

equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference when the equipment is operated in

a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European standards

listed under the Low Voltage Directive 2014/35/EU, the

EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a

battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery

to your supplier or to a designated collection point. For

more information, see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of the

warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of the

nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power adapter

to avoid over-heating or a fire hazard caused by

overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical shock.

Do not place the camera in extremely hot, cold (the

operating temperature shall be -40°C to 60°C), dusty or

damp locations, and do not expose it to high

electromagnetic radiation.

Do not touch senor modules with fingers.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Keep the camera away from liquid while in use for non-

water-proof device.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Mark Description

Table 0-1 Mark Description

Mark

Description

DC Voltage

1Introduction

1.1 Product Features

The main features are as follows:

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

SMART IR

3-axis adjustment

1.2 Overview

This manual applies to two types of turret cameras, and

one type of dome camera.

The overviews of each type are shown in the figures

below.

1.2.1 Overview of Type I Camera

DC12VIN

Enclosure

Main

Body

Mounting

Base Video Cable

Power Cord

Switch

Button

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch button for 5 seconds to switch

the video output. Four kinds of video outputs are

available: TVI, AHD, CVI, and CVBS.

1.2.2 Overview of Type II Camera

DC12VIN

Mounting

Base

Enclosure Main

Body Switch Button

Power Cord

12 VDC

Video Cable

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch button for 5 seconds to switch

the video output. Four kinds of video outputs are

available: TVI, AHD, CVI, and CVBS.

1.2.3 Overview of Type III Camera

Mounting Base

Tilt Adjusting

Screw

Pan Adjusting Screw

Bubble

Video Cable

Power

Cord

Switch

Button

Safety

Rope

Figure 1-3 Overview of Type III Camera

Note:

Press and hold the switch button for 5 seconds to switch

the video output. Four kinds of video outputs are

available: TVI, AHD, CVI, and CVBS.

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with your

required output to avoid damage.

Make sure the wall is strong enough to withstand three

times the weight of the camera and the bracket.

If the wall is cement, insert expansion screws before

installing the camera. If the wall is wooden, use self-

tapping screw to secure the camera.

If the product does not work properly, contact your

dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Installation of Type I Camera

Before you start:

Both wall mounting and ceiling mounting are suitable for

the turret camera. Ceiling mounting will be taken as an

example in this section. You can take steps of ceiling

mounting as the reference, when adopting the wall

mounting.

Steps:

1. Disassemble the turret camera by rotating the camera

to align the notch to one of the marks, as shown in the

figure below.

Mark

Notch

Figure 2-1 Disassemble the Camera

2. Pry the mounting base by using a flat object, e.g., a

coin.

3. Paste the drill template (supplied) to the place where

you want to install the camera.

4. Drill the screw holes and the cable hole (optional) on

the ceiling/wall according to the drill template.

Figure 2-2 Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable.

5. Attach the mounting base to the ceiling/wall, and

secure them with supplied screws.

Self-tapping Screws

Expansion Bolts

Figure 2-3 Attach the Mounting Base to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are required

to fix the camera. For wooden wall/ceiling, self-

tapping screws are required.

6. Route the cables through the cable hole, or the side

opening.

7. Install the camera to the mounting base, and tighten

the screws to secure it on the mounting base.

Figure 2-4 Install the Camera to the Mounting Base

8. Connect the corresponding cables, such as power

cord, and video cable.

9. Power on the camera to check whether the image on

the monitor is gotten from the optimum angle. If not,

adjust the camera according to the figure below to get

an optimum angle.

Pan Position

[0°to 360°]

Tilt Position

[0°to 75°] Rotation Position

[0°to 360°]

Figure 2-5 3-axis Adjustment

1). Hold the camera body and rotate the enclosure to

adjust the pan position [0° to 360°].

2). Move the camera body up and down to adjust the

tilt position [0° to 75°].

3). Rotate the camera body to adjust the rotation

position [0° to 360°].

2.2 Installation of Type II Camera

Before you start:

Both wall mounting and ceiling mounting are suitable for

the turret camera. Ceiling mounting will be taken as an

example in this section. You can take steps of ceiling

mounting as the reference, when adopting the wall

mounting.

Steps:

1. Disassemble the turret camera by loosening the screw

Figure 2-6 Disassemble the Camera

2. Remove the mounting base from the camera body.

3. Paste the drill template (supplied) to the place where

you want to install the camera.

4. Drill the screw holes according to the drill template,

and the cable hole (optional) on the ceiling.

Figure 2-7 Drill Template

Note:

Drill the cable hole in the center of the drill template,

when adopting the ceiling outlet to route the cable.

5. Secure the mounting base to the ceiling with supplied

screws.

Figure 2-8 Secure the Mounting Base to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden wall/ceiling,

self-tapping screws are required.

6. Route the cables through the cable hole, or the side

opening.

7. Secure the camera on the mounting base.

1）Pull out the clip plate, and then to combine the

camera with the mounting base.

2）Push the clip plate in, and secure the camera by

tightening the screw.

Screw

Clip Plate

Figure 2-9 Secure the Camera

8. Connect the corresponding cables, such as power

cord, and video cable.

9. Power on the camera to check whether the image on

the monitor is gotten from the optimum angle. If not,

adjust the camera according to the figure below to get

an optimum angle.

Pan Position

[0°to 360°]

Tilt Position

[0°to75°] Rotation Position

[0°to 360°]

Figure 2-10 3-axis Adjustment

1). Hold the camera body and rotate the enclosure to

adjust the pan position [0° to 360°].

2). Move the camera body up and down to adjust the

tilt position [0° to 75°].

3). Rotate the camera body to adjust the rotation

position [0° to 360°].

Note:

Loose the screw on the mounting base before

adjusting the monitoring angle.

2.3 Ceiling Mounting of Type III Camera

Steps:

1. Paste the dill template to the ceiling.

2. Drill the screw holes and cable hole (optional) in the

ceiling according to the drill template.

Drill Template

Hole A: for cables routed through the ceiling

screw hole 1: for Mounting Base

Screw

Hole

Cable

Hole

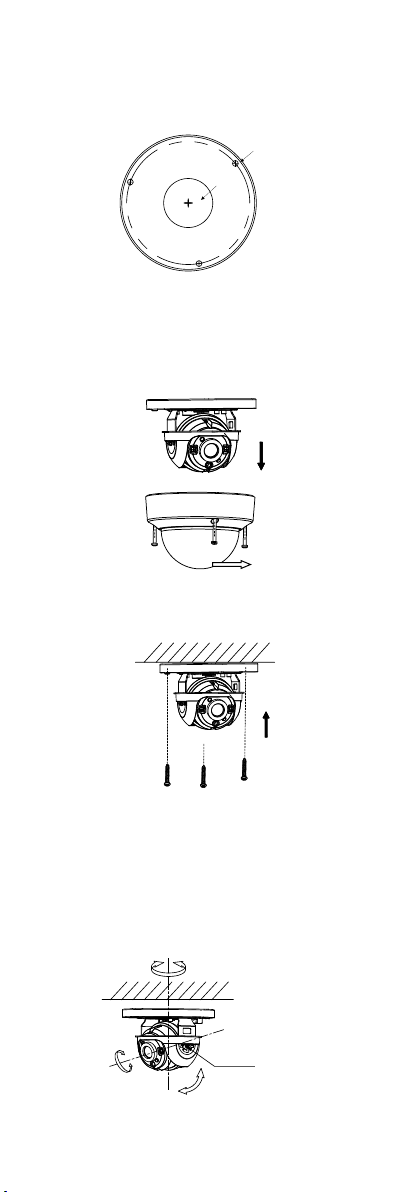

Figure 2-11 Drill Template

Note:

Cable hole is required, when adopting the ceiling

outlet to route cables.

3. Loosen the screws with a hex wrench (supplied) to

remove the bubble.

Figure 2-12 Remove the Bubble

4. Install the mounting base to the ceiling with supplied

screws.

Figure 2-13 Install the Mounting Base

5. Route the cables through the cable hole, or the side

opening.

6. Connect the corresponding cables.

7. Power on the camera to check whether the image on

the monitor is gotten from the optimum angle. If not,

adjust the camera according to the figure below to get

an optimum angle.

Adjusting Screw

0° to 355°

0° to 75°0° to 355°

Figure 2-14 Type III Camera 3-Axis Adjustment

1). Loosen the tilt adjusting screw to adjust the tilt

position [0° to 75°].

2). Hold the black liner to adjust the pan position [0°

to 355°].

3). Hold the camera body to adjust the rotation

position [0° to 355°].

8. Install the bubble back.

Figure 2-15 Install the Bubble back

9. Tighten screws to finish the installation.

Figure 2-16 Finish the Installation

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de HIK VISION

HIK VISION

HIK VISION DeepinView DS-2XM6425G0/F Series Manual de usuario

HIK VISION

HIK VISION DS-FB52 Series Manual de usuario

HIK VISION

HIK VISION DS-2DE2103 Manual de usuario

HIK VISION

HIK VISION DS-2CD2452F-IW Manual de usuario

HIK VISION

HIK VISION EPI-4215I-DE Manual de usuario

HIK VISION

HIK VISION DS-2CD2955FWD-I Manual de usuario

HIK VISION

HIK VISION HiWatch DS-I112 Manual de usuario

HIK VISION

HIK VISION DS-2CD6D54G1-IZS Manual de usuario

HIK VISION

HIK VISION EPI-4215-DE3 Manual de usuario

HIK VISION

HIK VISION DS-2CV2G26G0-IDW Manual de usuario

HIK VISION

HIK VISION DS-2CE59H8T-(A)VPIT3ZF Manual de usuario

HIK VISION

HIK VISION DS-2XE6126FWD-HS Manual de usuario

HIK VISION

HIK VISION 21 Series Manual de usuario

HIK VISION

HIK VISION DS-2DF8C842IXS-AELW Manual de usuario

HIK VISION

HIK VISION DS-2AE5232T-A Manual de usuario

HIK VISION

HIK VISION TURBO HD U1T Series Manual de usuario

HIK VISION

HIK VISION DS-2CC5281P Manual de usuario

HIK VISION

HIK VISION DS-2AF1-7**-B Manual de usuario

HIK VISION

HIK VISION DS-2CD6445G1 Series Manual de usuario

HIK VISION

HIK VISION DS-2CE12DF0T-FS Manual de usuario

HIK VISION

HIK VISION UD07275B Manual de usuario

HIK VISION

HIK VISION DS-PDPC12P-EG2-WE Manual de usuario

HIK VISION

HIK VISION DS-2DE2A404IW-DE3/W Manual de usuario

HIK VISION

HIK VISION TurboHD H0T Series Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
