HIK VISION DS-2CE16H0T-ITF Manual de usuario

TURBO HD

H0T Series Bullet & Dome

Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Type

Model

Type I Camera

DS-2CE16H0T-ITF

DS-2CE16H0T-ITPF

Type II Camera

DS-2CE16H0T-IT1F

DS-2CE16H0T-IT3F

DS-2CE16H0T-IT5F

Type III Camera

DS-2CE56H0T-VPITF

This manual may contain several technical incorrect

places or printing errors, and the content is subject to

change without notice. The updates will be added to

the new version of this manual. We will readily improve

or update the products or procedures described in the

manual.

0100001071116

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a

battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery

to your supplier or to a designated collection point. For

more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers.

Do not place the camera in extremely hot, cold (the

operating temperature shall be -40°C to 60°C), dusty

or damp locations, and do not expose it to high

electromagnetic radiation.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Mark Description

Table 0-1 Mark Description

Mark

Description

DC Voltage

1Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor

conditions, and the application scenarios include road,

warehouse, underground parking lot, bar, etc..

The main features are as follows:

High performance CMOS sensor

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

internal synchronization

SMART IR mode

3-axis adjustment

1.2 Overview

1.2.1 Overview of Type I Camera

DC12VIN

Photoresistor

Lens

Main Body

Bracket

Power Cord

12 VDC

Video Cable

Switch Button

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

1.2.2 Overview of Type II Camera

Lens Main Body

Bracket

Switch Button

Power Cord

12 VDC

Video Cable

Photoresistor

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

1.2.3 Overview of Type III Camera

Mounting Base

Tilt Adjusting Screw

Pan Adjusting Screw

Bubble

Safty Rope

Black Liner

Photoresistor

IR LED

Power Cord

12 VDC

Video Cable

Switch Button

Figure 1-3 Overview of Type III Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your power output to avoid the damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the mount.

If the wall is cement, insert expansion bolts before

installing the camera. If the wall is wooden, use

self-tapping screws to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Installation of Type I Camera

2.1.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes, and the cable hole (optional)

in the ceiling/wall according to the drill template.

Template

Cable

Hole

Side Opening

Screw

Hole

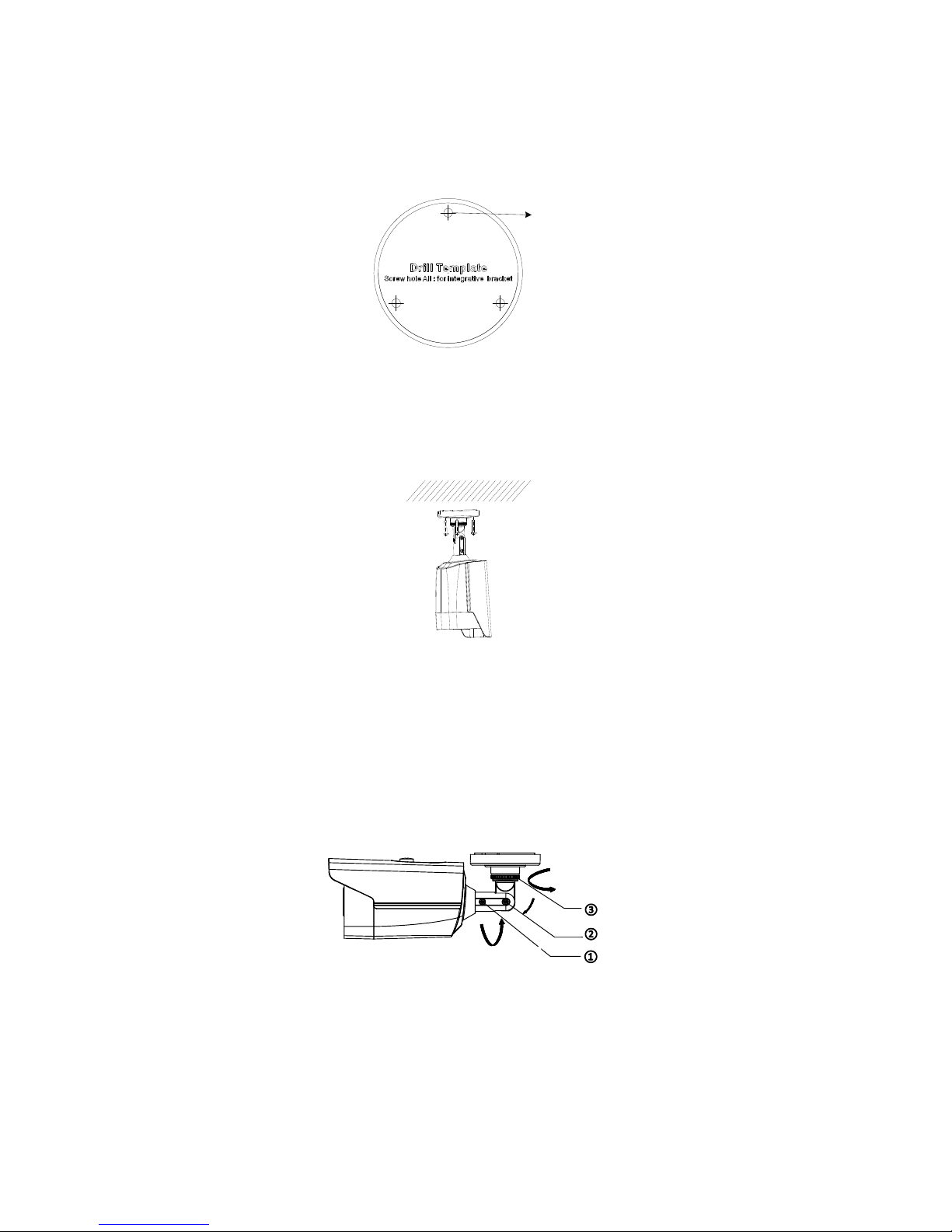

Figure 2-1 Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable.

3. Attach the bracket to the ceiling/wall and secure the

camera with supplied screws.

Fixing Screw

Adjusting Screws

Figure 2-2 Fix the Camera to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden

wall/ceiling, self-tapping screws are required.

4. Route the cables through the cable hole, or the side

opening.

5. Connect the corresponding power cord, and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

P Screw

T Screw

R Screw

Tilt Position

[0°to 180°]

Pan Position

[0°to 360°]

Rotation Position

[0°to 360°]

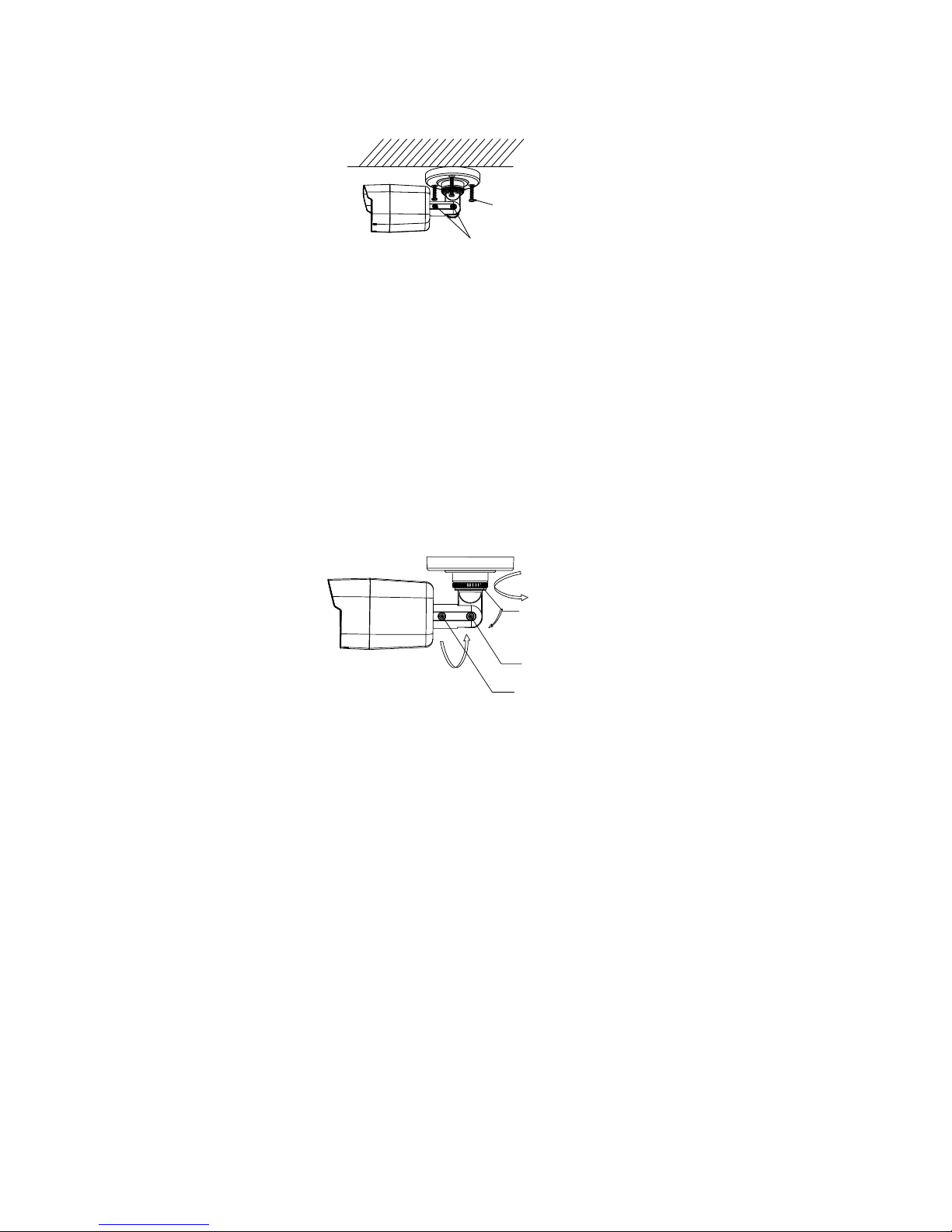

Figure 2-3 3-axis Adjustment

1). Loosen the P screw to adjust the pan position [0°

to 360°]. Tighten the screw after completing the

adjustment.

2). Loosen the T screw to adjust the tilt position [0°

to 180°]. Tighten the screw after completing the

adjustment.

3). Loosen the R screw to rotate the camera [0°to

360°]. Tighten the screw after completing the

adjustment.

2.1.2 Ceiling/Wall Mounting with Junction Box

Before you start:

You need to purchase a junction box separately.

Steps:

1. Paste the drill template on the ceiling/wall.

2. Drill screw holes, and the cable hole in the

ceiling/wall according to the holes of the drill

template.

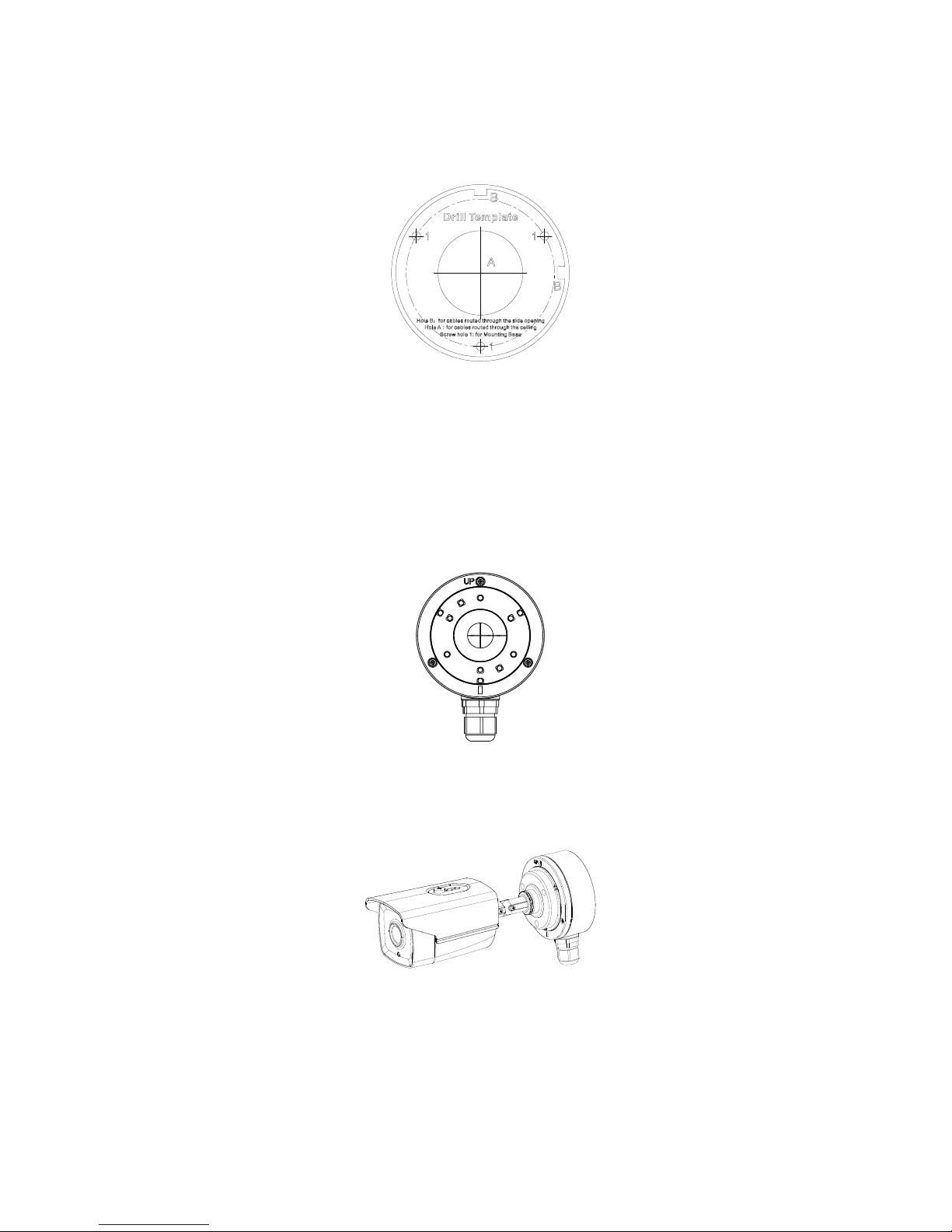

Figure 2-4 Drill Template of Junction Box

3. Take apart the junction box, and align the screw

holes of the bullet camera with those on the

Junction box’ cover.

4. Fix the camera on the junction box’s cover with

supplied screws.

Junction

Box Cover

Figure 2-5 Fix the Camera on the Junction Box’s Cover

5. Attach the junction box body to the ceiling/wall by

aligning the screw holes of the junction box.

6. Secure the junction box’s body with supplied screws

on the ceiling/wall.

Junction Box

Body

Figure 2-6 Fix the Junction Box to the Wall/Ceiling

7. Route the cables through the bottom cable hole, or

the side cable hole of the junction box.

8. Combine the junction box cover with its body.

Figure 2-7 Fix the Junction Box Cover back to its

Body

9. Repeat the step 5 and 6 of 2.1.1 Ceiling/Wall

Mounting without Junction Box to complete the

installation.

2.2 Installation of Type II Camera

2.2.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes according to the drill template,

and the cable hole (optional) on the ceiling.

Screw

Hole

Figure 2-8 Drill Template

Note:

Drill the cable hole in the center of the drill template,

when adopting ceiling outlet to route the cable.

3. Route the cables through the cable hole (optional)

or the side opening.

4. Fix the camera to the ceiling with supplied screws.

Figure 2-9 Fix the Camera to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden

wall/ceiling, self-tapping screws are required.

5. Connect the corresponding power cord, and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the surveillance angle.

0°to 360°

0°to 180°

Figure 2-10 3-Axis Adjustment

4). Loosen the No.1 adjusting screw to adjust the

pan position [0°to 360°]. Tighten the No.1

adjusting screw.

5). Loosen the No.2 adjusting screw to adjust the

tilting position [0°to 180°] . Tighten the No. 2

adjusting screw.

6). Loosen the No.3 adjusting screw to adjust the

rotation position [0°to 360°]. Tighten the No.3

adjusting screw.

2.2.2 Ceiling/Wall Mounting with Junction Box

Before you start:

You need to purchase a junction box separately.

Steps:

1. Paste the drill template on the ceiling/wall.

2. Drill screw holes and the cable hole (optional) in the

ceiling/wall according to the holes of the drill

template.

Figure 2-11 Drill Template

Note:

Drill the cable hole, when adopting ceiling outlet to

route the cable.

3. Take apart the junction box, and align the screw

holes of the bullet camera with those on the

Junction box’s cover.

4. Fix the camera on the junction box’s cover with

three supplied screws.

5. Secure the junction box’s body with supplied screws

on the ceiling/wall.

Figure 2-12 Install the Junction Box

6. Route the cables through the bottom cable hole, or

the side cable hole of the junction box.

7. Combine the junction box cover with its body with

supplied screws on the junction box’s cover.

Figure 2-13 Combine the Junction Box’s Cover with its

Body

8. Repeat the steps 5 to 6 of 2.2.1 Ceiling/Wall

Mounting without Junction Box to complete the

installation.

2.3 Ceiling Mounting of Type III Camera

Steps:

1. Paste the dill template to the ceiling.

2. Drill the screw holes and cable hole (optional) in the

ceiling according to the drill template.

Drill Template

Hole A: for cables routed through the ceiling

screw hole 1: for Mounting Base

Screw

Hole

Cable

Hole

Figure 2-14 Drill Template

Note:

Cable hole is required, when adopting the ceiling

outlet to route cables.

3. Loosen the set screws with a hex wrench (supplied)

to remove the bubble.

Figure 2-15 Remove the Bubble

4. Fix the mounting base on the ceiling with supplied

screws.

Figure 2-16 Fix the Mounting Base

5. Route the cables through the cable hole, or the side

opening.

6. Connect the corresponding cables, such as power

cord, and video cable.

7. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle

Adjusting Screw

0° to 355°

0° to 75° 0° to 355°

Figure 2-17 Type I Camera 2-Axis Adjustment

1). Loosen the tilt adjusting screw to adjust the tilt

position [0°to 75°].

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de HIK VISION

HIK VISION

HIK VISION DS-2CE16C2T-IR Manual de usuario

HIK VISION

HIK VISION DS-2CD7A26G0/P-LZHS Manual de usuario

HIK VISION

HIK VISION DeepinView DS-2XM6425G0/F Series Manual de usuario

HIK VISION

HIK VISION DS2CD2725FWDIZS Manual de usuario

HIK VISION

HIK VISION DS-2DF1-57XY Manual de usuario

HIK VISION

HIK VISION DS-2CD2D21G0/M-D/NF Manual de usuario

HIK VISION

HIK VISION DS-2CE1582N-IR Manual de usuario

HIK VISION

HIK VISION DS-2CD2142FWD-IWS Manual de usuario

HIK VISION

HIK VISION DS-2AE5223TI-A Manual de usuario

HIK VISION

HIK VISION iDS-2CD9136-AIS Manual de usuario

HIK VISION

HIK VISION TurboHD H0T Series Manual de usuario

HIK VISION

HIK VISION DS-2CD5526G0-IZHS Manual de usuario

HIK VISION

HIK VISION HiLook IPC-T250H Manual de usuario

HIK VISION

HIK VISION DS-2CE17U8T-IT Manual de usuario

HIK VISION

HIK VISION DS-2TD2528T-10/Q Manual de usuario

HIK VISION

HIK VISION Turbo HD DS-2AE5232T-A3 Manual de usuario

HIK VISION

HIK VISION DS-2ZMN3607 Manual de usuario

HIK VISION

HIK VISION DS-2CC512 P(N)-FB Manual de usuario

HIK VISION

HIK VISION DS-2TD2667-35/PY Manual de usuario

HIK VISION

HIK VISION DS-2CD51C5G0-IZS Manual de usuario

HIK VISION

HIK VISION US-5 Inch Speed Dome Manual de usuario

HIK VISION

HIK VISION Turbo HD D8T Series Manual de usuario

HIK VISION

HIK VISION PIR Series Manual de usuario

HIK VISION

HIK VISION DS-2XE62 2F-IS Series Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
