HIK VISION 64 Series Manual de usuario

Network Camera

Installation Manual (5.0.8)

UD.6L0201A1187A01

Installation Manual of Network Camera

64xx Series Camera Installation

6.1 Overview

ALARM

RS232

RXD TXD GND IN1 1B 1A

LAN(PoE)

DC 12V

RESET

VIN1

AUDIO

OUT

AUDIO

910 11

12 13 14

16 17

Figure 6-1 The Overview of Covert Camera with Cylindrical Sensor Unit

ALARM

RS232

RXD TXD GND IN1 1B 1A

LAN(PoE)

DC 12V

RESET

VIN1

AUDIO

OUT

AUDIO

910 11

12 13 14

16 17

Figure 6-2 The Overview of Covert Camera with Block-shaped Sensor Unit

Installation Manual of Network Camera

Table 1-8 Table 1 1 Description of the Camera

No.

Description

No.

Description

Main Unit

STATUS Indicator LED

Mounting Rail

LINK Indicator LED

Block-Shaped Sensor Unit

Audio Interface

Cover

RJ-12 Interface

Straight Mounting Bracket

Micro SD Card Slot

Cylindrical Sensor Unit

RESET Button

RJ-12 Cable

Power Interface

Round Rail Mounting Bracket

PoE & Network

POWER Indicator LED

RS-232 &Alarm Interface

To reset the camera, press and hold the Reset button for at least 10 seconds when powering

on or rebooting the camera.

Table 1-9 LED Indicator

LED

Color& Status

Indicator

POWER

Solid red

On normal operation

Unlit

Power Off

STATUS

Solid green

Camera works properly

Unlit

Camera does not work properly.

LINK

Flashing amber

Network connection is functioning properly

Unlit

No network connection

6.2 Installation

6.2.1 Installation of Main Unit

Steps:

1. Fix the standard mounting rail on the mounting surface. As shown in Figure 2-1.

Figure 6-3 Fix the Standard Mounting Rail

Installation Manual of Network Camera

 For cement surface mounting, you need to use the expansion screw to fix the camera.

 For wooden surface mounting, you can just use the self-tapping screw to fix the camera.

2. Hang the hook which is on upper-side of the main unit onto the rail, press a little harder on the

lower part of the main unit, and then the elastic clasp will be automatically buckled. As shown in

figure 6-4

Figure 6-4 Buckle the Main Unit

If you already had a standard rail to be installed, you can buckle the main unit onto the installed rail

directly.

Figure 6-5 Buckle the Main Unit onto Standard Rail

6.2.2 Installation of Block-Shaped Sensor Unit

This series of camera support concealed mounting and exposed mounting with a decorative cover.

Installation Manual of Network Camera

Concealed Mounting

Please make sure that the mounting surface is suitable for adhesive pasting.

Steps:

1. Drill on the mounting surface. As shown in Figure 6-6.

Figure 6-6 Drill on the Surface

Make sure the drilling hole is big enough for the camera lens.

2. Remove a side of the adhesive tape on the bracket. Paste the bracket on the mounting surface

with aligning with the drilling hole. As shown in Figure 6-7.

Figure 6-7 Paste the Bracket

3. Install the Block-shaped sensor unit into the bracket and make it to be buckled.

4. Tighten the fastening screw on the top of the bracket.

Installation Manual of Network Camera

Figure 6-8 Insert the Block-shaped Sensor Unit

Exposed Mounting

Steps:

5. Fix the Block-shaped sensor unit on the mounting surface with screws. As shown in Figure 2-7.

Figure 6-9 Fix the Block-shaped Sensor Unit

 For cement surface mounting, you need to use the expansion screw to fix the camera.

 For wooden surface mounting, you can just use the self-tapping screw to fix the camera.

6. Shield the sensor unit with the decorative cover. As shown in Figure 2-8.

Installation Manual of Network Camera

Figure 6-10 Hood the Cover

6.2.3 Installation of Cylindrical Sensor Unit

This series of camera only support concealed mounting.

Please make sure that the mounting surface is suitable for adhesive pasting.

Steps:

1. Drill on the mounting surface. As shown in Figure 6-11.

Figure 6-11 Drill on the Surface

Make sure that the drilling hole is big enough for the camera lens.

2. Remove a side of the adhesive tape on the bracket. Paste the bracket on the mounting surface with

aligning with the drilling hole. As shown in Figure 6-12.

Installation Manual of Network Camera

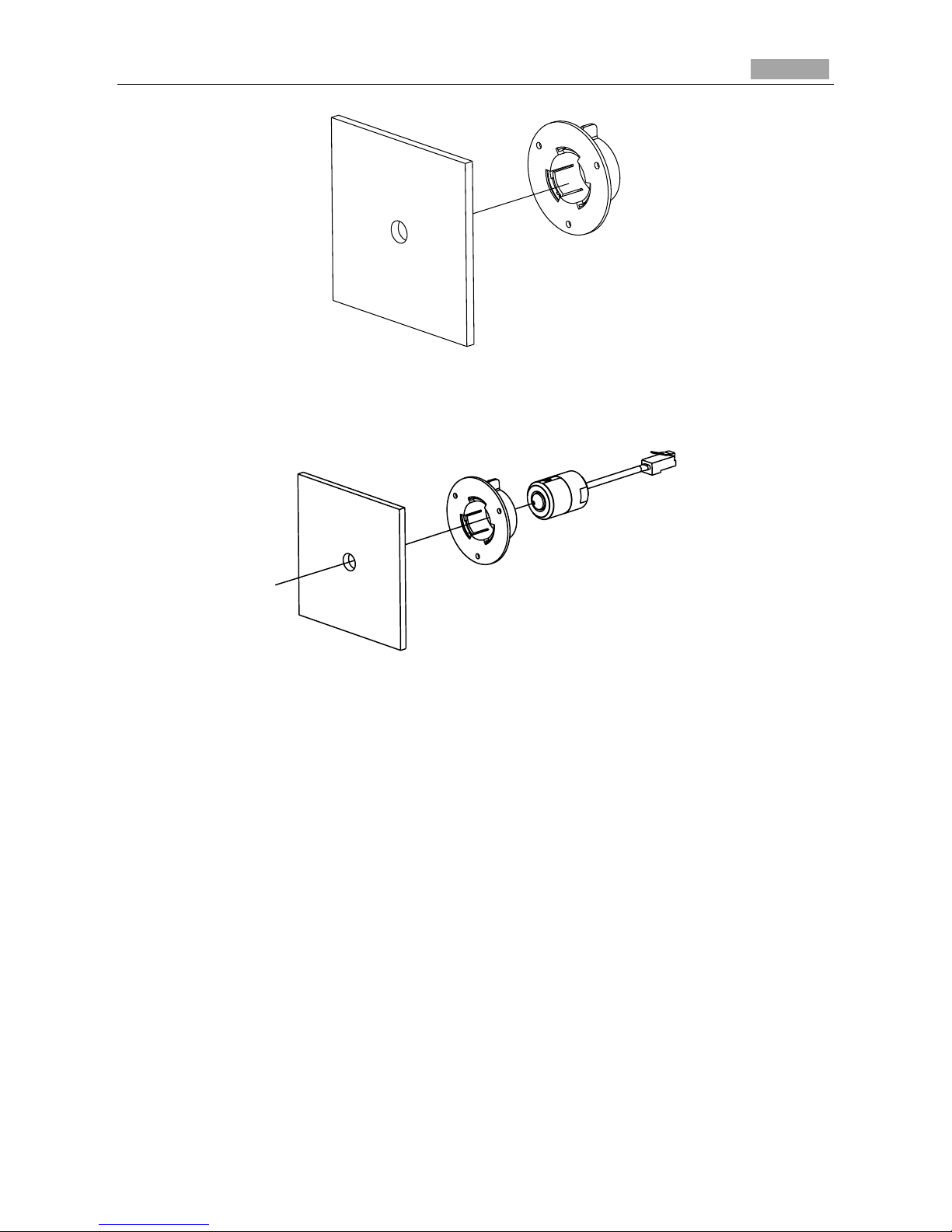

Figure 6-12 Paste the Bracket

3. Install the cylindrical sensor into the mounting hole in the round rail bracket.

4. Turn the locking sleeve to fix the sensor. As shown in Figure 6-13.

Figure 6-13 Install the Cylindrical Sensor

Installation Manual of Network Camera
