Chapter 1 Overview
Product Features
The main features of the network microphone are as follow:
Adopts multi-mic array, picking up sounds in the radius up to 10 meters.
The built-in digital circuit is embedded with DSP processing unit and AGC technology to
realize clear sound with high fidelity.
With multi-mic array design and self-adaptive beamforming technology, the microphone
reduces reverberation effectively.
Supports accessing echo reference signal via line in interface, and with AEC algorithm,
the microphone suppresses echo effectively.
Supports 5-level noise reduction and auto noise reduction, avoiding environmental
noise.
The indicator is convenient for troubleshooting.
Supports configuring parameters, updating software, and maintaining via network. The
network audio stream can access to the camera, back-end device or Speech-to-Text
Platform.
32 kHz high audio sampling rate for Hi-Fi sound.
Supports POE power supply.
For detailed function, refer to the actual device.
Packing List
Check the package contents and make sure that the device in the package is in good condition and
all the assembly parts are included.
Network Microphone • User Manual
2

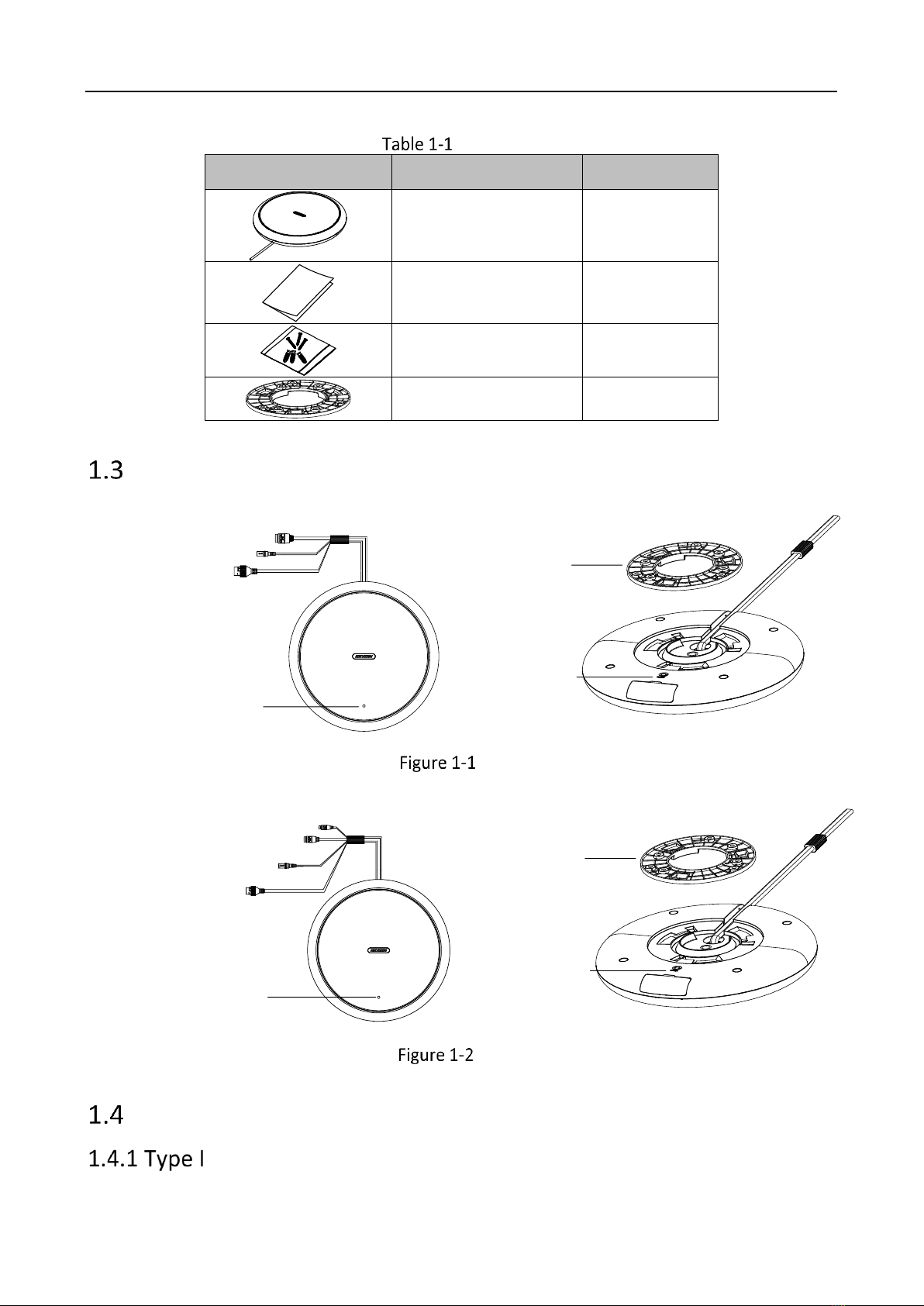

Packing List
Item
Description
Amount
Microphone
1
User Manual
1
Screws
1
Installation Plate
1
Appearance and Interfaces
DC12VIN
+
-
Indicator
Line out
Power Cord
Network Cable
Installation
Plate
Reset
Type I
Indicator
Line out
Power Cord
Network Cable
Line in
Installation
Plate
Reset
Type II
Connection
Network Microphone • User Manual
3
The device supports POE power supply and the using scenarios of the microphone are as follow:
Camera
Power Cord
Line out
DC
VIN G
LINE_OUT
G
OUT+ OUT-
Network Cable
Education
Sharing System
Using Scenario I
Connect the device with the camera.
Power Adapter
Camera
Network Cable
Power Cord
Line out
DC
VIN G
LINE_OUT
G
OUT+ OUT-
Using Scenario II
Connect the device with the education sharing system by adapter cable.
Network Microphone • User Manual
4
Line in
Line out
Audio out
Audio in
Power Adapter
Adapter Cable
Education
Sharing System
Camera
Microphone
Power Cord
Network Cable
Using Scenario III
Type II microphone can also directly connect to the education sharing system. Refer to Figure
1-3 for detailed information.
If you don’t have an education sharing system, you can connect the microphone to a POE
switch to get powered on.
Network Microphone • User Manual
5
Chapter 2 Installation and Application
Installation
Before you start
Both ceiling and pendant mounting are suitable for the device. The supplied screws are for ceiling
mounting. The bracket for pendant mounting shall be purchased separately.
Fix the installation plate to the ceiling with three KA4 × 22 screws.
(Optional) For cement wall, drill the screw holes with a 5.5 mm drill and insert the supplied wall
plugs before installation.
Fix the Installation Plate
Remove the stick in the cable slot and snap the cable in the slot.
Fit the microphone onto the installation plate.

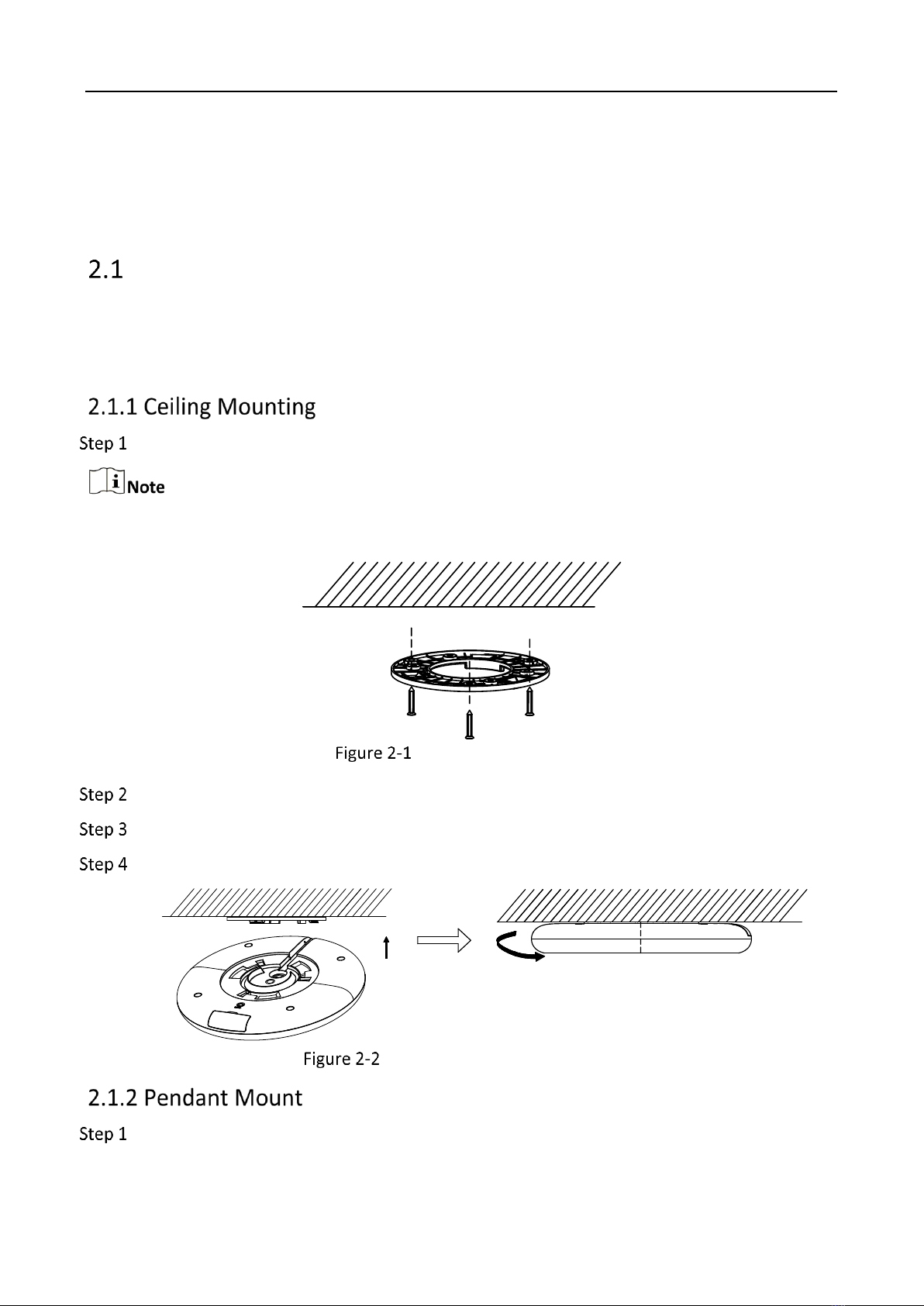

Turn the microphone as the figure below until it snaps into the installation plate.
Install the Microphone to Ceiling
Fix the bracket on the ceiling with four M6 metal expansion bolts.
Tabla de contenidos
Otros manuales de Micrófono de HIK VISION
