HIK VISION HiLook Series Manual de usuario
HiLook Series
3K ColorVu
Audio Turret Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Model
Type I
THC-T159-MS
Type II
THC-T259-MS
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
01010020220429
Legal Information
©2021 Hangzhou Hikvision Digital Technology Co., Ltd.
About this Manual
Pictures, charts, images and all other information
hereinafter are for description and explanation only.
The information contained in the Manual is subject to
change, without notice, due to firmware updates or
other reasons. Please find the latest version in the
company website (https://www.hikvision.com/). Please
use this user manual under the guidance of
professionals.
Trademarks
and other Hikvision's trademarks and logos are
the properties of Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the
properties of their respective owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, THIS MANUAL AND THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE
PROVIDED "AS IS" AND "WITH ALL FAULTS AND
ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS
FOR A PARTICULAR PURPOSE. THE USE OF THE
PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT
WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS
OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF
DOCUMENTATION, WHETHER BASED ON BREACH OF
CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE
USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE
INTERNET PROVIDES FOR INHERENT SECURITY RISKS,
AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES
FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR
OTHER DAMAGES RESULTING FROM CYBER-ATTACK,
HACKER ATTACK, VIRUS INFECTION, OR OTHER
INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE
WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY
RESPONSIBLE FOR ENSURING THAT YOUR USE
CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU
ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A
MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF
THIRD PARTIES, INCLUDING WITHOUT LIMITATION,
RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS,
OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY
PROHIBITED END-USES, INCLUDING THE DEVELOPMENT
OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION,
THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR
BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE
CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR
UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF
HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS
MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
Regulatory Information
FCC Information
Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery
to your supplier or to a designated collection point. For
more information, see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
the nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard and
IEC62368-1 standard. Refer to technical specifications
for detailed information.
The socket-outlet shall be installed near the
equipment and shall be easily accessible.
An all-pole mains switch shall be incorporated in the
electrical installation of the building.
Do not connect multiple devices to one power
adapter to avoid over-heating or a fire hazard caused
by overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
No naked flame sources, such as lighted candles,
should be placed on the equipment.
Install the equipment according to the instructions in
this manual.
To prevent injury, this equipment must be securely
attached to the wall in accordance with the
installation instructions.
Do not drop the camera or subject it to physical
shock.
Do not touch senor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Warnings Follow
these safeguards to
prevent serious
injury or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
Do not aim the camera at the sun or extra bright
places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Keep the camera away from liquid while in use for
non-water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
The beam of the light at the distance of 200 mm is
classified as Risk Group 1 (RG1). Possible hazardous
optical radiation emitted from this product.
DO NOT stare at operating light source. May be
harmful to the eyes.
Wear appropriate eye protection or turn on the
supplement light only at a safe distance (0.3 m) or in
the area that is not directly exposed to the light when
installing or maintaining the device.
1Introduction
1.1 Product Features
The main features are as follows:
High performance CMOS sensor
Smart light
4 in 1 video output
Audio over coaxial cable
1.2 Overview
1.2.1 Overview of Type I Camera
Screw
Clip Plate
Mounting Base
Trim Ring
Enclosure Main Body
Switch Button
Power Cord
Audio & Video Cable
Microphone
Figure 1-1 Overview of Type I Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.2 Overview of Type II Camera
DC12VIN
Trim Ring
Enclosure
Main Body
Mounting
Base
Switch Button
Power Cord
Audio & Video Cable
Microphone
Figure 1-2 Overview of Type II Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
2Installation
Before you start
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your power output to avoid damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera and the mount.
If the product does not function properly, contact
your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.

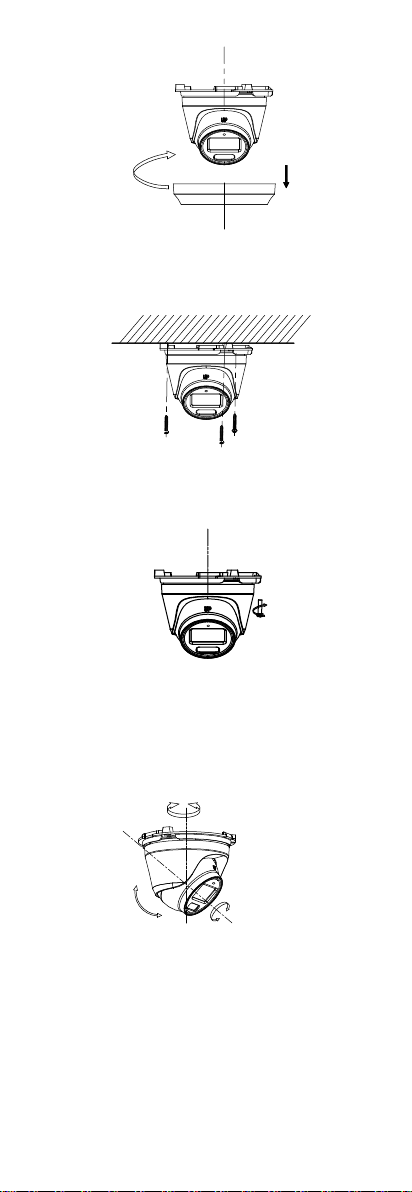

2.1 Installation of Type I Camera
2.1.1 Ceiling Mounting without Junction Box
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Figure 2-1 Drill Template
3. Loosen the screw and pull out the clip plate to
dissemble the camera.
Figure 2-2 Dissemble the Camera
4. Secure the mounting base to the ceiling with three
PA4 × 25 screws.
Figure 2-3 Attach the Mounting Base to the Ceiling
5. Pull out the clip plate and install the camera back to
the mounting base. Push the clip plate back in to
secure the camera.
Figure 2-4 Install the Camera
6. Connect the cables.
7. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure
below.
Rotation Position
[0° to 360°]
Tilt Position
[0° to 75°]
Pan Position
[0° to 360°]
Figure 2-5 3-Axis Adjustment
1). Rotate the enclosure to adjust the pan position
[0° to 360°].
2). Move the main body up and down to adjust the
tilt position [0° to 75°].
3). Rotate the main body to adjust the rotation
position [0° to 360°].
8. Tighten the screw to finish the installation.
2.1.2 Ceiling Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
Steps:
1. Paste the drill template for junction box to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Figure 2-6 Drill Template
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
4. Take apart the junction box.
5. Secure the junction box body on the ceiling with PA4
× 25 screws that come with the junction box.
Figure 2-7 Secure the Junction Box Body
6. Route the cables through the bottom cable hole or
the side cable hole of the junction box.
7. Combine the junction box cover with its body and
secure it with three PM3 screws.
Figure 2-8 Combine the Junction Box Cover and Body
8. Fix the mounting base onto the junction box with
three M4 × 10 screws.
9. Connect the cables and put them back into the
junction box.
10. Refer to steps 5, 7, and 8 of 2.1.1 Ceiling Mounting
without Junction Box to finish the installation.
2.1.3 Wall Mounting
Before you start:
You need to purchase a wall mount in advance.
Steps:
1. Drill Φ 10 mm screw holes in the wall where you
want to install the wall mount.
2. Use four M6 expansion bolts to fix the wall mount
onto the wall.
Figure 2-9 Fix the Wall Mount
3. Loosen the screw and pull out the clip plate to
dissemble the camera.
Figure 2-10 Dissemble the Camera
4. Use three M4 screws to fix the mounting base onto
the wall mount.
Figure 2-11 Fix the Mounting Base onto the Wall Mount
5. Refer to steps 5 to 8 of 2.1.1 Ceiling Mounting
without Junction Box to finish the installation.
Figure 2-12 Finish Installation
2.2 Installation of Type II Camera
2.2.1 Ceiling Mounting Without Junction Box
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Figure 2-13 Drill Template
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
4. Turn the trim ring counterclockwise to remove it
from the camera.
Figure 2-14 Remove the Trim Ring
5. Secure the camera to the ceiling with three PA4 × 25
screws (supplied).
Figure 2-15 Secure the Camera to the Ceiling
6. Connect the cables.
7. Loosen the screw and the clip plate.
Figure 2-16 Loosen the Screw and Clip Plate
8. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure
below.
Rotation Position
[0° to 360°]
Tilt Position
[0° to 75°]
Pan Position
[0° to 360°]
Figure 2-17 3-Axis Adjustment
1). Rotate the enclosure to adjust the pan position
[0° to 360°].
2). Move the main body up and down to adjust the
tilt position [0° to 75°].
3). Rotate the main body to adjust the rotation
position [0° to 360°].
9. Fasten the screw and the clip plate.
10. Install the trim ring back.
Otros manuales para HiLook Series
2
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Cámara digital de HIK VISION
HIK VISION
HIK VISION Casino D8T DS-2CC12D8T-AMM Manual de usuario
HIK VISION
HIK VISION Color Zoom Camera Manual de usuario
HIK VISION
HIK VISION TCP440-DB Series Manual de usuario
HIK VISION
HIK VISION TandemVu SE4C Series Manual de usuario
HIK VISION
HIK VISION DS-2CD2155FWD-IS Manual de usuario
HIK VISION
HIK VISION DS-2CE12DF3T-PIRXOS Manual de usuario
HIK VISION
HIK VISION PanoVu PT Series Manual de usuario
HIK VISION
HIK VISION AE-VC222T-ITS Manual de usuario
HIK VISION
HIK VISION DS-MH2311C Series Manual de usuario
HIK VISION
HIK VISION AE-VC154T-IT Manual de usuario
HIK VISION
HIK VISION Smart-Linkage PTZ Manual de usuario
HIK VISION
HIK VISION DS-2CE10DF0T-F Manual de usuario
HIK VISION
HIK VISION E10-DS-2XS2T47G1 Manual de usuario
HIK VISION
HIK VISION DS-MCW40B Manual de usuario
HIK VISION
HIK VISION AE-VC143T-ITS Manual de usuario
HIK VISION
HIK VISION AE-VC155T Manual de usuario
HIK VISION
HIK VISION UD24041B Manual de usuario
HIK VISION
HIK VISION DS-MCW406 Manual de usuario
HIK VISION
HIK VISION UD00719B Manual de usuario
HIK VISION
HIK VISION 2 MP Series Manual de usuario
