HighPoint SSD6444M Manual de usuario

SSD6444M

4-Bay U.2/U.3/M.2 NVMe RAID Enclosure

Quick Installation Guide

V1.00

SSD6444M Overview

The SSD6444M is a compact, high-performance NVMe storage solution

for PC and Mac platforms. Each of the 4 drive bays features dedicated

PCIe 3.0 x4 bus bandwidth to ensure each NVMe SSD operates at peak

performance. Any PC or Mac platform with a free, dedicated PCIe 3.0

/4.0 x16 slot can now experience the true performance capabilities of

NVMe technology.

System Requirements

•Windows 11, 10 / Server 2022, 2019, 2016 / Microsoft Hyper-V

•RHEL/ Debian/ Ubuntu/ Fedora/ Proxmox/ Rocky Linux

(Linux kernel 3.10 and later)

•macOS 10.13 ~ macOS 13.x

Kit Contents

•1x 4-Bay Enclosure

•1x PCIe 3.0 x16 controller (external SFF-8644 port)

•2x Mini-SAS 8644-8644-210 cables

•4x U.2 to M.2 Trays

•1x UL Power Cord

•20x 2.5" SSD mounting screws

•1x Quick Installation Guide

•1x Low Profile Bracket

SSD6444M Hardware

Controller card

PCIe 3.0 x16 Host Interface

SFF-8644 Connector

NVMe HBA

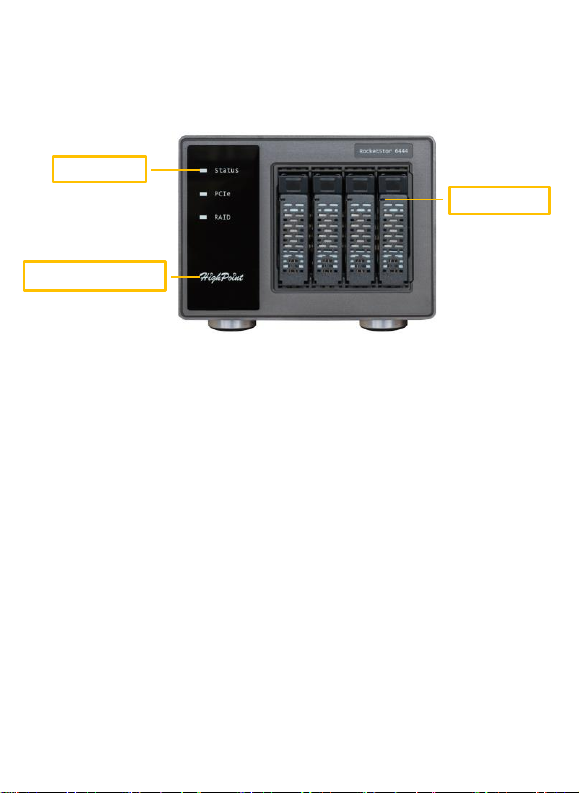

Enclosure Panel Layout-Front View

HighPoint logo LED

Solid Blue：Power on

Status LED

Solid Blue：Normal status

Solid Red：The temperature exceeds the Critical Threshold

Flash Red：The fan speed is lower than the Critical Threshold

Flash Yellow：The temperature exceeds the Warning Threshold or the

fan speed is lower than the Warning Threshold

Tray LED

Lights out：The disk is not detected, or the disk adapter (U.2 to M.2)

LED is not responding

Solid Blue：The disk is detected

Blue, flashing：Disk I/O

Solid Red：The disk has failed

Status LED

HighPoint logo LED

Tray LED

Enclosure Panel Layout-Rear View

Kensington Lock Slot: Optional slot for Kensington Lock

Power Switch: Enclosure power switch

Mute Button: Mute the internal enclosure alarm buzzer

Ethernet：Can be used monitor the SSD6444 via an internet

connection

4x SFF-8644 Connector: SFF-8644 cable connector for the NVMe

HBA connection

Kensington Lock Slot

AC Power IN

Mute Button

Ethernet

Power Switch

OOB Port

SFF-8644 Connector

OOB Port (out-of-band): Implements the virtual serial port function,

through which you can obtain the network IP address

AC Power IN: Connects to the AC power cord

Disk Tray

U.2 to M.2 Tray

For 2.5 inch device

SSD6444M Hardware Installation

1. Insert the NVMe M.2 SSD into the ‘M.2 to U.2 Adapter’.

Note1: Please make sure the M.2 connectors (“golden fingers”)

are clean before installation. Dust/debris or fingerprints may lead

to connection/stability issues.

Note2: Make sure the SSDs are carefully, but securely installed into

each M.2 port. Loose connections can cause a variety of stability

and performance issues, and may ultimately result in data loss.

2. Carefully insert the ‘M.2 to U.2 Adapter’ into the disk tray and

secure it with the provided mounting screws.

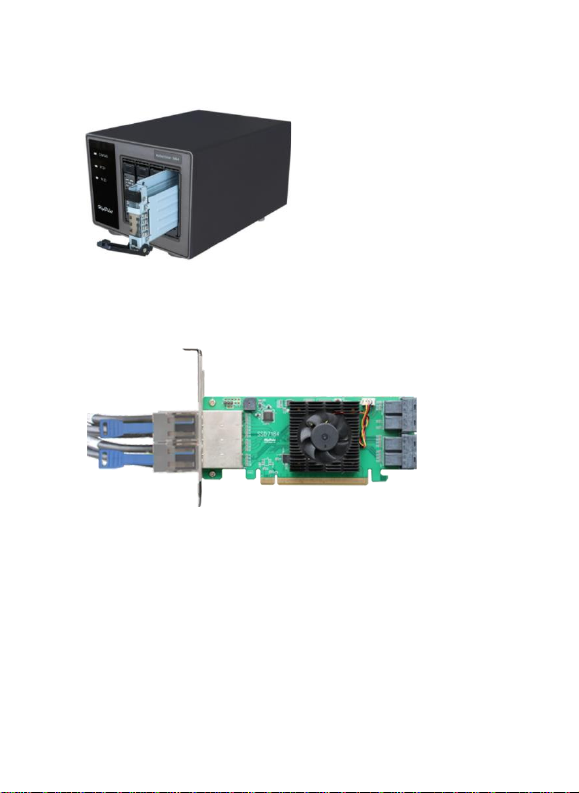

3. Place the Enclosure on a level surface and load each disk tray.

4. SFF-8644 to SFF-8644 cable connects to the SFF-8644 connector

on the left side of the NVMe HBA.

5. The other end of the SFF-8644 to SFF-8644 connects to the

Enclosure’s SFF-8644 connector as illustrated below (a to a, and b

to b), the Enclosure connects to M.2 NVMe, and connect to AC

power.

Channel/ Port assignment:

6. Connect the SSD6444M’s HBA into the PCIe 3.0/4.0 x16 slot of

the motherboard;

Note: Make sure the NVMe SSDs are installed prior to powering on and

using the enclosure!

Optional Certified Cable & Controller Accessories

Device Cables

8644-8644-220

SFF-8644 to SFF-8644 cable

Length: 2M

8644-8644-210

SFF-8644 to SFF-8644 cable

Length: 1M
