RocketStor 6314A/6318A

Setup Guide

(Windows)

Mar. 10, 2016

Revision v1.00

Install and Update Drivers

Drivers provide a way for your operating system to communicate with your new hardware.

Update to the latest driver to ensure you have the latest performance and stability updates.

Check if drivers are currently installed

1. Install and verify motherboard Thunderbolt™ drivers are functional

2. Click Start

3. Click Control Panel

4. Click Hardware and Sound

5. Under Devices and Printer, Click Device Manager

Note: Alternatively, you can search for Device Manager using your start menu search bar.

6. Click the Storage controllers tab

If driver is installed it will show RocketRAID 4520 SAS Controller,

If driver is not installed it will be located in Other devices as RAID Controller

Right-click RAID controller and select Properties, then click the Driver Tab to check the

driver version.

Figure 1. Driver version 1.4.74.22 (version may vary)

Install/Update Drivers on existing operating systems

For Windows Platforms:

1. Download the latest drivers from the product software download page:

RocketStor 6314A

http://www.highpoint-tech.com/USA_new/series-rs6314a-download.htm

RocketStor 6318A

http://www.highpoint-tech.com/USA_new/series-rs6318a-download.htm

2. Once downloaded, click setup.exe

3. Follow the on-screen instructions until prompted to reboot

4. After rebooting, check to make sure the drivers were installed properly using Device

Manager.

Alternate Install Method:

1. Obtain the latest driver software from our website: http://www.hptmac.com/series-

rs6318A-resources.php or http://www.hptmac.com/series-rs6314A-resources.php

Extract the download to a location of your choice, then open Windows Device Manager.

Click Start

Click Control Panel

Click Hardware and Sound

Under Devices and Printer, Click Device Manager

Note: Alternatively, you can search for Device Manager using your start menu search bar.

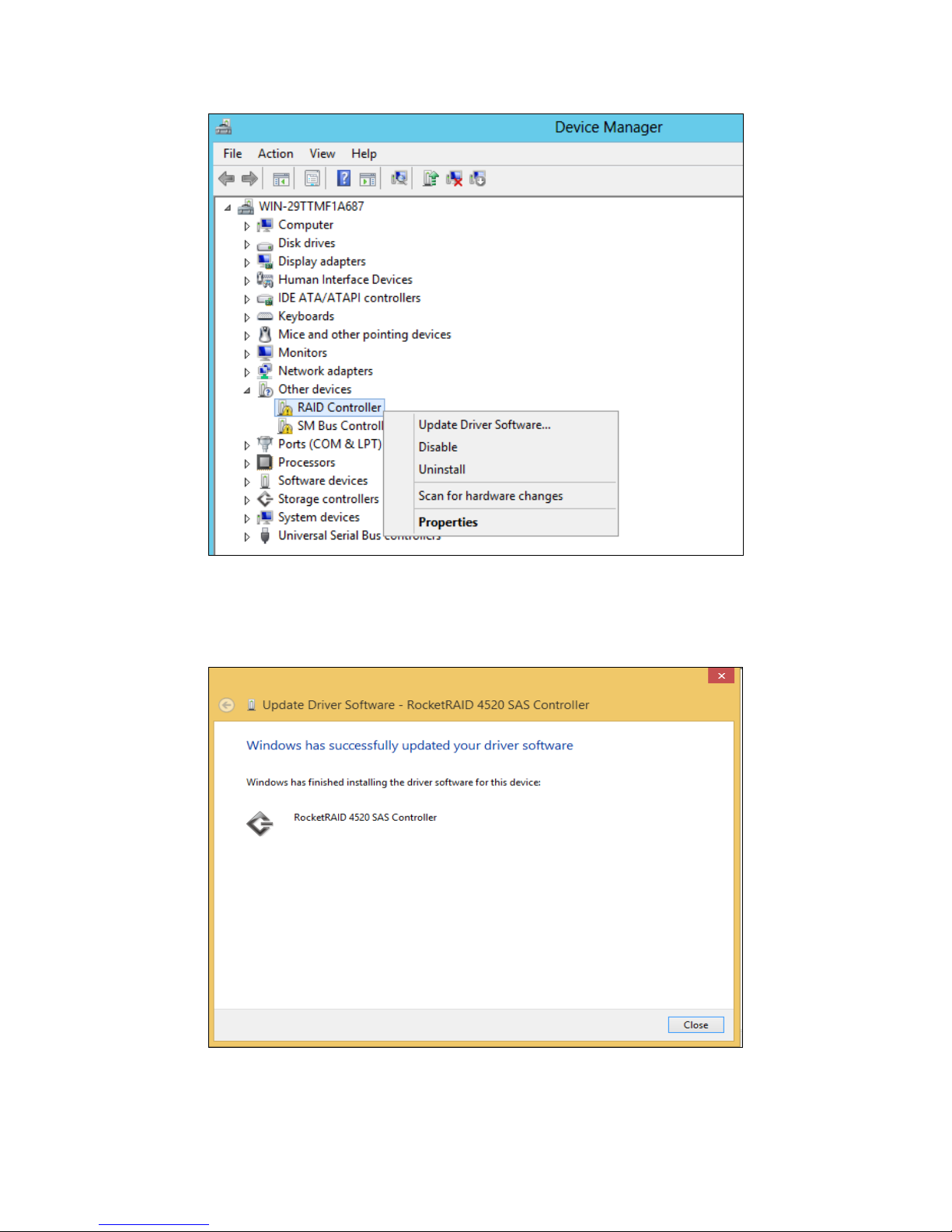

2. Under Other Devices, right click on RAID controller

3. On the drop down menu, click Update Driver Software

4. When prompted, select Browse my computer for driver software

5. Locate the driver files you downloaded and select them.

6. Press next and follow the on screen instructions

7. Click Close to complete driver installation.

Uninstall Drivers

1. Open Windows Device Manager

Click Start

Click Control Panel

Click Hardware and Sound

Under Devices and Printer, Click Device Manager

Note: Alternatively, you can search for Device Manager using your start menu search bar.

2. Click the Storage controllers tab

3. Right click RocketRAID 4520 SAS Controller

4. Click Uninstall

5. Reboot your PC to allow the changes to take effect.

Installing HighPoint WebGUI

HighPoint Web RAID Management Software (WebGUI) is used to monitor and configure your

hard disks and RAID arrays hosted by to HighPoint RAID controllers and solutions.

The software package must be installed on the system that is hosting the RAID solution, and the

device driver must be loaded to run the service. A web browser with XML support is required on

the client side, e.g. Internet Explorer, Mozilla, FireFox or Google’s Chrome.

New features are continually added to the interface; update to the latest version at

http://www.hptmac.com/series-rs6318A-resources.php or http://www.hptmac.com/series-

rs6314A-resources.php

1. Locate the HighPoint WebGUI Setup on our website and download the file.

2. Extract the files from the archive.

3. Double click on “HighPoint RAID Management.exe”.

4. Follow the on screen steps to install our software.

5. Log in the WebGUI by double clicking the desktop icon created or by typing

http://localhost:7402 in your preferred browsers address line (we recommend using the

latest version of your browser).

Quick Way to build RAID 5 Storage Array

1. Double-click the RAID management software ICON on the desktop to log into the

WebGUI.

2. Click on the Logical tab at top of the interface menu –this will display a list of

available drives (Physical Device Information). Make sure all installed drives are

properly detected.

Note:

Single or new (unused) drives will be labeled as Legacy disks. Legacy disks can be

used to create a new RAID array.

3. Click Create Array

Specify the RAID Level (RAID 5 or 6) using the Array Type drop-down menu. Next,

select Quick Init. from the Initialization Method drop-down menu. Leave all other

parameters at the Default setting, and click the Create button to create the array.

Note:

Quick Initialization is the best option for creating arrays with new or unused drives.
