RocketStor 6414TS/6418TS

Software Installation Guide

(Windows)

Mar. 10, 2016

Revision 1.0

HighPoint Technologies, Inc.

2

Install/Update Drivers

Installing Drivers on an Existing Operating System

Drivers provide a way for your operating system to communicate with your new

hardware. Updating to the latest drivers ensures your product has the latest

performance, stability, and compatibility improvements. Drivers are updated regularly

at www.highpoint-tech.com

1. Download the latest driver files from our website www.highpoint-tech.com>

Support > Documents and Downloads >RocketStor6418TS.

2. Extract the downloaded files onto your PC and note the location of the files.

3. Open Windows Device Manager (Control Panel > Hardware and Sound > Devices

and Printers > Device Manager).

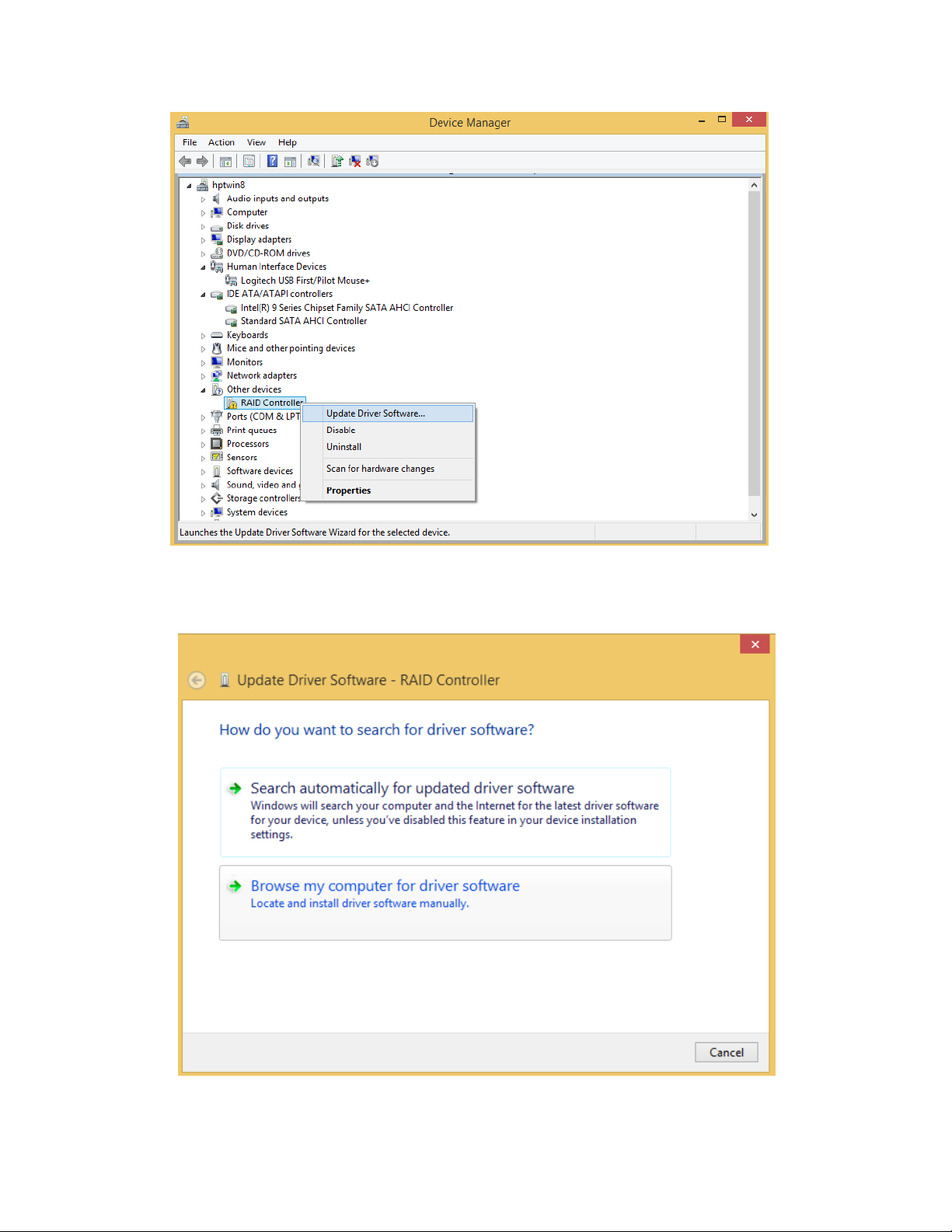

4. Under Other devices, right-click RAID Controller.

5. Click Update Driver Software.

3

6. Click Browse my computer for driver software.

7. Navigate to where you saved the driver files.

4

8. Click OK.

9. Click Next.A Windows Security prompt will ask if you are sure you want to

install HighPoint Software.

5

10. After clicking Install, the driver will be installed.

11. Reboot to allow the changes to take effect.

Install HighPoint RAID Management (WebGUI)

The HighPoint RAID Management (WebGUI) software is necessary to create, maintain,

and view your RAID arrays.

1. Download the latest WebGUI from our website at www.highpoint-tech.com>

Support > Documents and Downloads >RocketStor6418TS> Windows WebGUI

2. Extract and open the contents of the downloaded file.

6

3. Double-click HighPoint RAID Management.exe

4. Follow the on-screen instructions to complete the WebGUI installation

5. Double-click the HighPoint RAID Management desktop icon to start the WebGUI

7

6. Your default web browser will open and prompt for username and password

(Default username: RAID / password: hpt). Username and password are case-

sensitive.

7.

Uninstalling HighPoint RAID Management (WebGUI)

1. Open Control Panel.

2. Click Uninstall a program.

3. Select HighPoint RAID Management to uninstall.

Quick Way to build RAID 5 Storage Array

1. Double-click the RAID management software ICON on the desktop to log into the

WebGUI.

2. Click on the Logical tab at top of the interface menu –this will display a list of

available drives (Physical Device Information). Make sure all installed drives are

properly detected.

Note:

Single or new (unused) drives will be labeled as Legacy disks. Legacy disks can be

used to create a new RAID array.

8

3. Click Create Array

Specify the RAID Level (RAID 5 or 6) using the Array Type drop-down menu. Next,

select Quick Init. from the Initialization Method drop-down menu. Leave all other

parameters at the Default setting, and click the Create button to create the array.

Note:

Quick Initialization is the best option for creating arrays with new or unused drives.

9

4. Once the array has been created, a new device should be displayed under

Logical Device Information.

5. Right Click the start button or bottom-left window. Select the Disk Management

to run the Windows Disk Management Utility.

10

6. Disk Management will ask to initialize unknown disks either in MBR format or

GPT.

(Windows) Disk Management asks to initialize the disks before use. As a general rule,

select MBR for disks less than 2TB and GPT for disks greater than 2TB.

7. Right click the unallocated space and click New Simple Volume.

Right Click unallocated space, then click New Simple Volume.
