High Sec Labs FV11D-M Manual de usuario

HSL Secure 2-Port KVM Combiner Quick Setup Guide

Table of Contents SECTIONS 123

HDC19412 Rev. 1.0

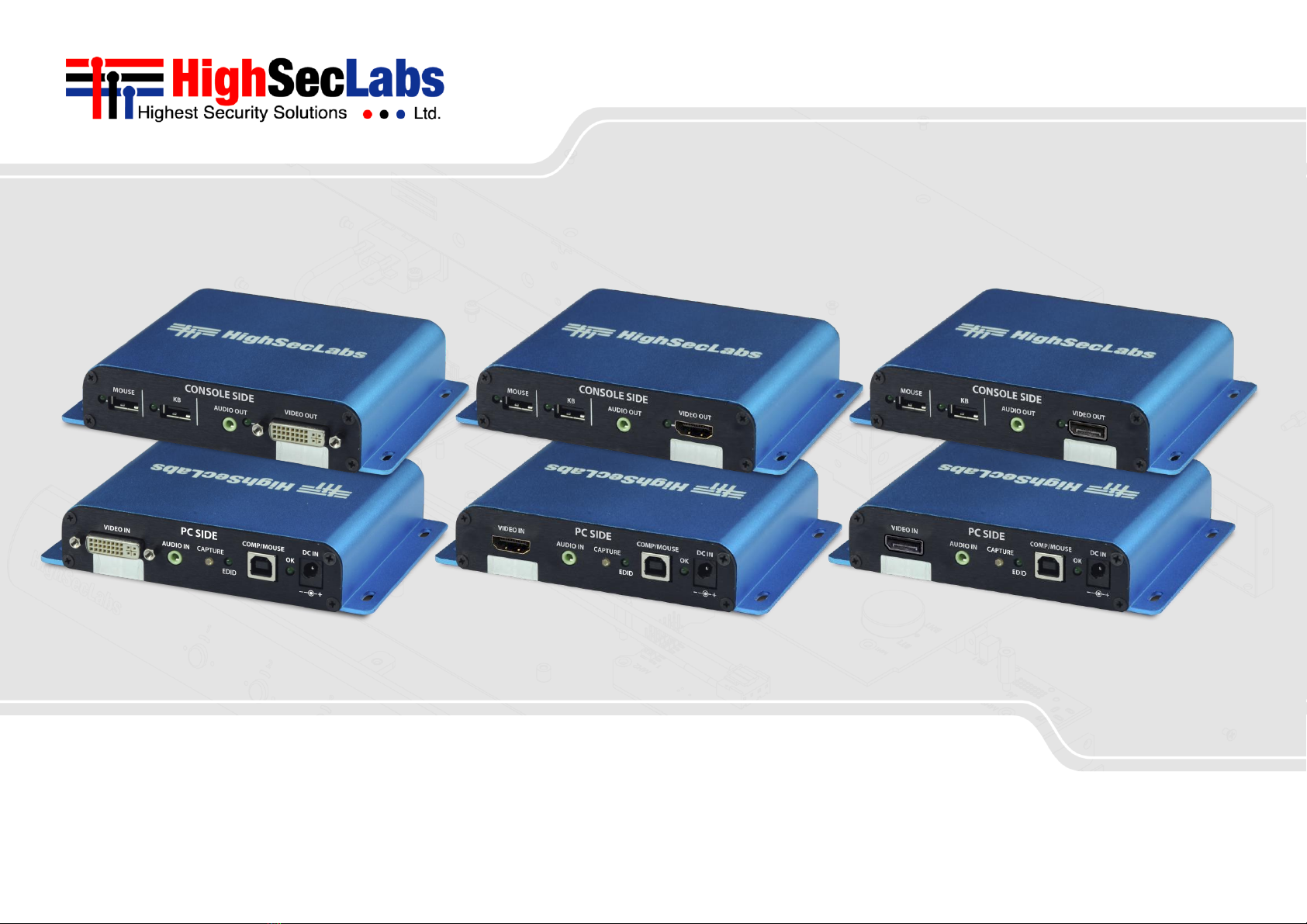

Models:

FV11D-M - Secure 1-Port DVI-I Video Isolator

FV11H-M - Secure 1-Port HDMI Video Isolator

FV11P-M - Secure 1-Port DisplayPort Video Isolator

FI11D-M - Secure 1-Port DVI-I KVM Isolator

FI11H-M - Secure 1-Port HDMI KVM Isolator

FI11P-M - Secure 1-Port DisplayPort KVM Isolator

Secure Isolators | QUICK SETUP GUIDE

Secure Isolators

HSL Secure 2-Port KVM Combiner Quick Setup Guide

Table of Contents SECTIONS 123

TABLE OF CONTENTS

Introduction

HSL Secure Isolators

Installation

Connecting the Isolators

Operation

Running an EDID Capture

HSL Secure 2-Port KVM Combiner Quick Setup Guide

Table of Contents SECTIONS 123

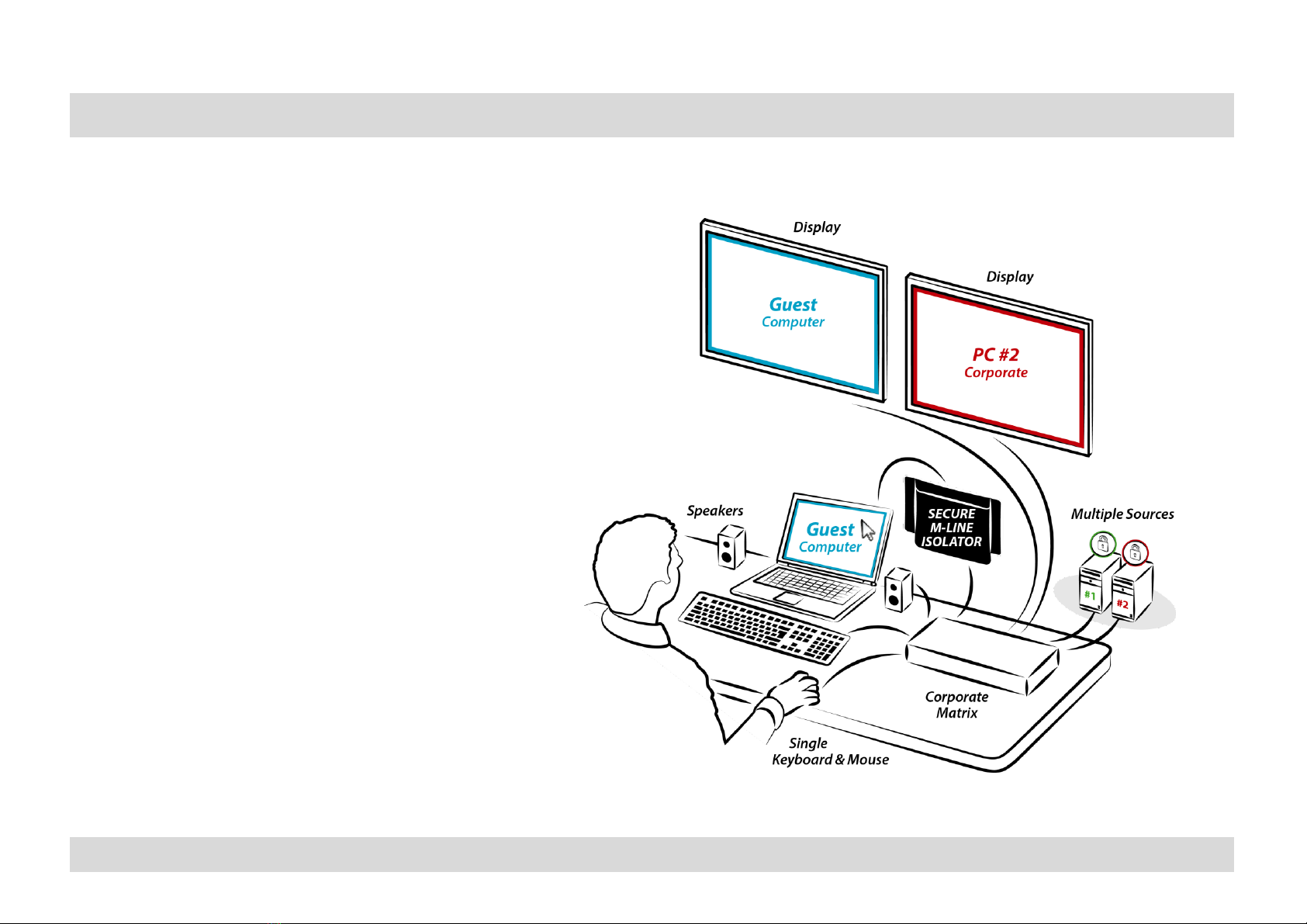

INTRODUCTION

HSL Secure Isolators

The secure Isolator prevents vulnerable peripherals

from mediating between compromised and secure

computers by ensuring that video and audio flow in a

single direction.

HSL Secure 2-Port KVM Combiner Quick Setup Guide

Table of Contents SECTIONS 123

INSTALLATION

Connecting the Isolator

Step 1 - Connect the PC to the Isolator’s PC SIDE:

1. Audio connection: For all models, connect the PC to the

Isolator’s AUDIO IN port, using a 1/8" (3.5mm) stereo

plug.

2. Video connection: For all models, connect the PC to the

Isolator’s VIDEO IN port, using the corresponding video

cable (VGA/HDMI/DVI/DP).

3. PC keyboard and mouse connection: For FI11D-M,

FI11H-M, and FI11P-M models, connect the PC to the

Isolator using a USB A to USB B cable. Connect the USB

A end to the PC and the USB B end to the Isolator’s

COMP/MOUSE port.

Power

LED

EDID

LED

HSL Secure 2-Port KVM Combiner Quick Setup Guide

Table of Contents SECTIONS 123

INSTALLATION

Step 2 - Connect the peripherals to the Isolator’s

CONSOLE SIDE:

1. Audio connection: For all models, connect the speakers

to the Isolator’s AUDIO OUT port.

2. Video connection: For all models, connect the

monitor/projector cable to the Isolator’s VIDEO OUT

port.

3. PC keyboard and mouse connection: For FI11D-M,

FI11H-M, and FI11P-M models, connect a USB mouse

and keyboard, to the Isolator’s corresponding MOUSE

and KB ports.

Both mouse and keyboard LEDs should light

continuously.

Keyboard

LED

Mouse

LED

Note: If either LED remains OFF, the Isolator does not recognize the

device; use an alternative device.

HSL Secure 2-Port KVM Combiner Quick Setup Guide

Table of Contents SECTIONS 123

INSTALLATION

Step 3 - Power ON the Isolator

1. For all models, connect the power adapter to the

Isolator’s PC SIDE, DC IN port.

Power ON the Isolator by plugging it into an AC

wall outlet.

2. The PC SIDE Power LED should light continuously.

If not, check the connections.

Step 4 - Make sure the PC and display are

powered ON

HSL Secure 2-Port KVM Combiner Quick Setup Guide

Table of Contents SECTIONS 123

OPERATION

Running an EDID Capture

Before using the Isolator, run a one-time EDID capture. This

prevents the continuous transfer of potentially malicious data -

from the display to the PC –that could infect the PC, cause data

leakage, and so on.

Preparation:

•Connect the PC and all peripherals to the unit, according to

the diagram.

•Make sure the PC, display, and unit are ON.

To run an EDID capture:

1. On the PC SIDE, short-click the CAPTURE button –for less

than one second. Warning: Long-clicking the CAPTURE

button sends the unit into an undesired loop. If this

happens, restart the unit and repeat the procedure.

At first, the EDID LED flickers for a few seconds and then

lights continuously.

Note: If the EDID LED is OFF, check the connections and

that the display is powered ON. Then, repeat the

procedure.

2. Restart the unit.

Note: An EDID capture needs to be performed for new installations and

when changing a display.

HSL Secure 2-Port KVM Combiner Quick Setup Guide

Table of Contents SECTIONS 123

their respective owners. Images for demonstration purposes only. This document may contain confidential and/or proprietary information of HSL

Corporation, and its receipt or possession does not convey any right to reproduce, disclose its contents, or to manufacture or sell anything that it may

describe. Reproduction, disclosure, or use without specific authorization from HSL Corporation is strictly prohibited.

Highseclabs.com
