Hi-Spec MixMax10 Manual de usuario
Manufacturers of Agricultural Machinery
Hi-Spec
Mixmax Diet Feeder
Operators
Manual
Models:
10, 14, 16, 18, 21, 24, 30
rev –mm10mm104
MixMax Diet
Contents
Introduction.......................................................................................................4
Contents ............................................................................................................2
Designated Use of Machine...............................................................................5
Technical Specifications and Dimensions........................................................14
Safety.................................................................. Error! Bookmark not defined.
Recognize safety information............................. Error! Bookmark not defined.
General Safety.......................................... Error! Bookmark not defined.
Safety Checklist .....................................................................................11
Description of Safety Warnings and Instructions....................................9
PTO Shaft Safety....................................... Error! Bookmark not defined.
Getting Started ................................................................................................15
Tractor Requirements ...........................................................................16
Hydraulic Requirements........................................................................16
Connecting Feeder to Tractor ...............................................................17
Fitting PTO Shaft....................................................................................18
Road Transportation........................................................................................19
Emergency Breakaway Handbrake..................................................................20
Operating Instructions.....................................................................................22
Ladder Operation ..................................................................................24
Loading Instructions ........................................................................................25
Feedout Instructions........................................................................................26
Feeding with Chute Discharge...............................................................26
Feeding with an Elevator Fitted ............................................................27
Maintenance....................................................................................................28
Correct Maintenance and Inspection Procedures: ...............................28
Maintenance Safety ..............................................................................28
Recommended Interval Maintenance...................................................29
Recommended Yearly Maintenance .....................................................30
Front Gearbox Maintenance .................................................................31
Lubrication.............................................................................................32
Elevator Maintenance ...........................................................................33
MixMax Diet
Greasing and Maintenance Location Points..........................................34
Wheel removal/refitting .......................................................................44
Root Chopper (Optional Extra) ........................................................................45
Designated use of machine ...................................................................45
Operating Instructions ..........................................................................45
Safety Decals .........................................................................................46
Greasing and Maintenance points ........................................................47
Sales and Service .............................................................................................51
Warranty..........................................................................................................52
Conditions of Sale............................................................................................53
Registration Forms ..........................................................................................56
Declaration of Conformity...............................................................................60
MixMax Diet
1
Introduction
Congratulations on your purchase of MixMax Diet Feeder.
Please Read the Following Manual Before Using Machine.
The way you care for and maintain this machine will decide its future performance. This manual has
been carefully written to help you maintain the condition of your machine. Read this manual
carefully to learn how to operate and service your machine correctly. Failure to do so could result in
personal injury or machine damage.
MixMax Diet Feeders have been designed and manufactured in compliance with the following
directives and standards;
Machinery Directive 2006/42/EEC
Harmonized standards ;
EN ISO 12100-1:2003, Safety of machinery Part 1: Basic terminology, methodology
EN ISO 12100-2:2003, Safety of machinery Part 2: Technical principles
EN ISO 4254-1:2005, Agricultural machinery -- Safety -- Part 1: General requirements
EN ISO 14121-1:2007, Safety of Machinery –Principle of Risk Assessment
BS EN 703:2004+A1:2009, Agricultural machinery –Silage loading, mixing and distributing machines –
safety
This manual should be kept within the vicinity of the machine at all times. This manual should be
considered a permanent part of your machine and should remain with the machine should you
decide to sell it.
Warranty is provided as a part of Hi-Spec Engineering’s support program for customers who operate
and maintain this machine and equipment as described in this manual. This warranty provides you
the assurance that Hi-Spec Engineering will back its machines where defects appear within the
warranty period. Should the machine be abused, or modified to change its performance beyond the
original factory specifications, the warranty will become void and improvements may be denied.
All information, illustrations, and specifications in this manual are based on the latest product
information available at the time of publication.
It is the policy of Hi-Spec Engineering to improve its products and designs whenever it is practical
and possible to do so. We reserve the right to make changes or improvements at any time without
incurring any obligation to make such changes on products sold previously
Thank you for choosing Hi-Spec Engineering
MixMax Diet
2
Designated Use of Machine
The MixMax Diet Feeder is exclusively designed to mix and dispense feed in a controlled
environment e.g. level, stable ground such as a cattle shed, using low power requirements and low
maintenance costs. Ensure the machine is level to get the best results while mixing.
Hi-Spec Engineering will not be held responsible for any loss or damage resulting from machine
applications other than those specified above. Any other use the machine may be put to is entirely
at the owners/operators risk. The Designated use of a MixMax Diet Feeder includes that the
operating, maintenance, and repair instructions given by the manufacturer will be strictly fulfilled.
Designated use means operating the Diet Feeder is exclusively for persons familiar with the machine
and fully aware of the associated risks involved in operating it.
By any alteration of safety equipment, the Declaration of Conformity, as well as the CE sign on
machine loses its validity.
MixMax Diet
3
Foreword
To ensure personal safety and the safety of others, please ensure that everybody that operates the
machine reads and fully understands this manual prior to operation. It is essential that you observe
all safety instructions. It is the responsibility of the owner to advise the operator of the operating
instructions and make sure they fully understand all instructions. Failure to do so may lead to
personal injury and/or machine damage. Using the vertical feeder is a one person operation
therefore there should be no other person(s) in the vicinity of the machine while in use. Person
under the age of 16 must not operate the machine
Designated Use of Machine
Hi-Spec Engineering will not be held responsible for any loss or damage resulting from machine
applications other than those specified above. Any other use the machine may be put to is entirely
at the owners/operators risk. The Designated use of a vertical feeder includes that the operating,
maintenance and repair instructions given by the manufacturer will be strictly fulfilled. Designated
use means operating the vertical feeder is exclusively for persons familiar with the machine and fully
aware of the associated risks involved in operating it.
The Hi-Spec Vertical Feeder is exclusively designed to mix and dispense feed in a controlled
environment, e.g. level stable ground such as a cattle shed, using low power requirements and low
maintenance costs. Ensure the machine is level to get the best results while mixing.
By any alteration of safety equipment, the Declaration of Conformity, as well as the CE sign on
machine loses it validity
Intended Use:
Vertical Feeder –Machine for handling, transporting and distributing and mixing of animal feed
Note: It must be noted that feeders have been designed to travel at a maximum speed of 40 km/h,
unless otherwise stated.
MixMax Diet
4.
Safety
The Hi-Spec MixMax diet feeder has been designed with many safety
features built in to its design but ultimately, safe operation and
maintenance is the responsibility of the operator.
Recognise Safety Information.
Please pay attention to these signs for your own safety
This is a safety alert symbol. When you see this symbol on your machine or in this manual be alert to
the potential for personal injury.
Follow the recommended guidelines for safe operating practice:
Understand signal words: - On machine safety signs, signal words give the level of the hazard.
Danger
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
Warning
Indicates a potentially more hazardous situation which, if not avoided, could
result in death or serious injury.
Caution
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury. You will find these signs located near specific hazards
on your machinery.
Safety signs should be maintained and replaced when necessary.
They can often become dirty, torn or unreadable due to dirt and wear and tear.
If you need a replacement sign or have lost your user manual, please contact your Hi-Spec
authorised dealer or Hi-Spec engineering directly and we would be happy to issue you with a
replacement.
MixMax Diet
4.1
General Safety
Have an emergency plan.
Keep all emergency numbers close by; write them into your manual.
Inspect your machine carefully each time before use; this will only take a minute.
Stop machine when leaving unattended.
Children should never be in the area when your mix max is in operation.
Using A mix max is a one-man operation therefore there should be no other person(s) in the
vicinity of the machine while in use.
Remember that the first step to avoiding danger is to recognise the hazards.
Keep a first-aid kit and a fire extinguisher close by at all times, if possible, on your tractor
with this operator instruction manual.
Always climb the ladder and check inside the machine before starting or filling it, to make
certain it is empty.
When stopping the machine always ensure a SAFE STOP
oHandbrake ON
oControls to Neutral
oEngine OFF
oRemove key
MixMax Diet
4.2
Description of Safety Warnings and Instructions
Description of Safety Warnings and Instructions
The following is a list of safety signs and warning labels on the MixMax Diet Feeder. Look carefully
and make sure you know where on the Mix Max they are positioned and what they mean. It is
important you are fully aware of the areas of risk on your machine.

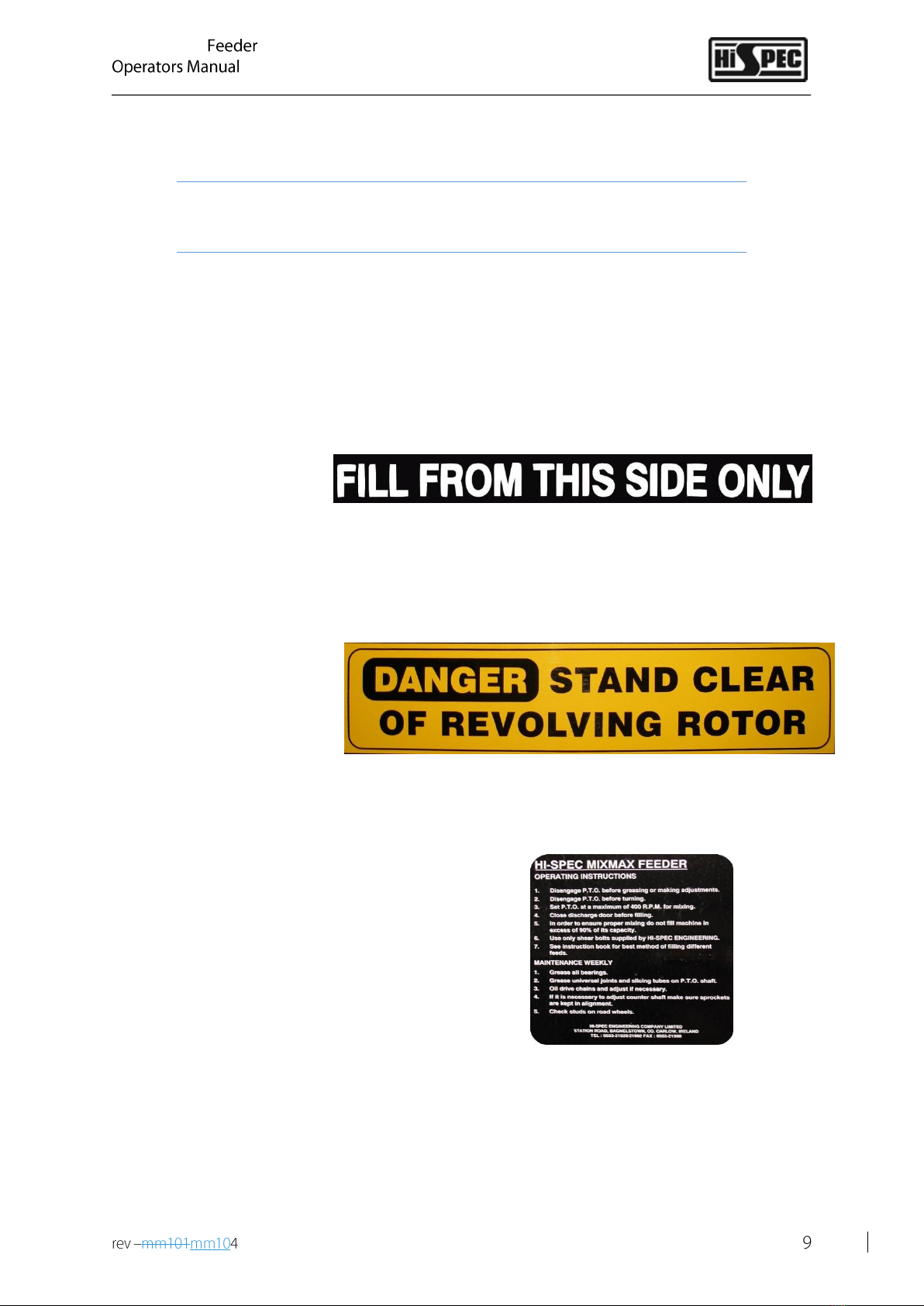

Feed should be
loaded into the
machine from this
side only, i.e. the side
with this decal.
Keep a safe distance
from the revolving
rotor while machine is
in operation.
MixMax Feeder Operating Instructions.
MixMax Diet

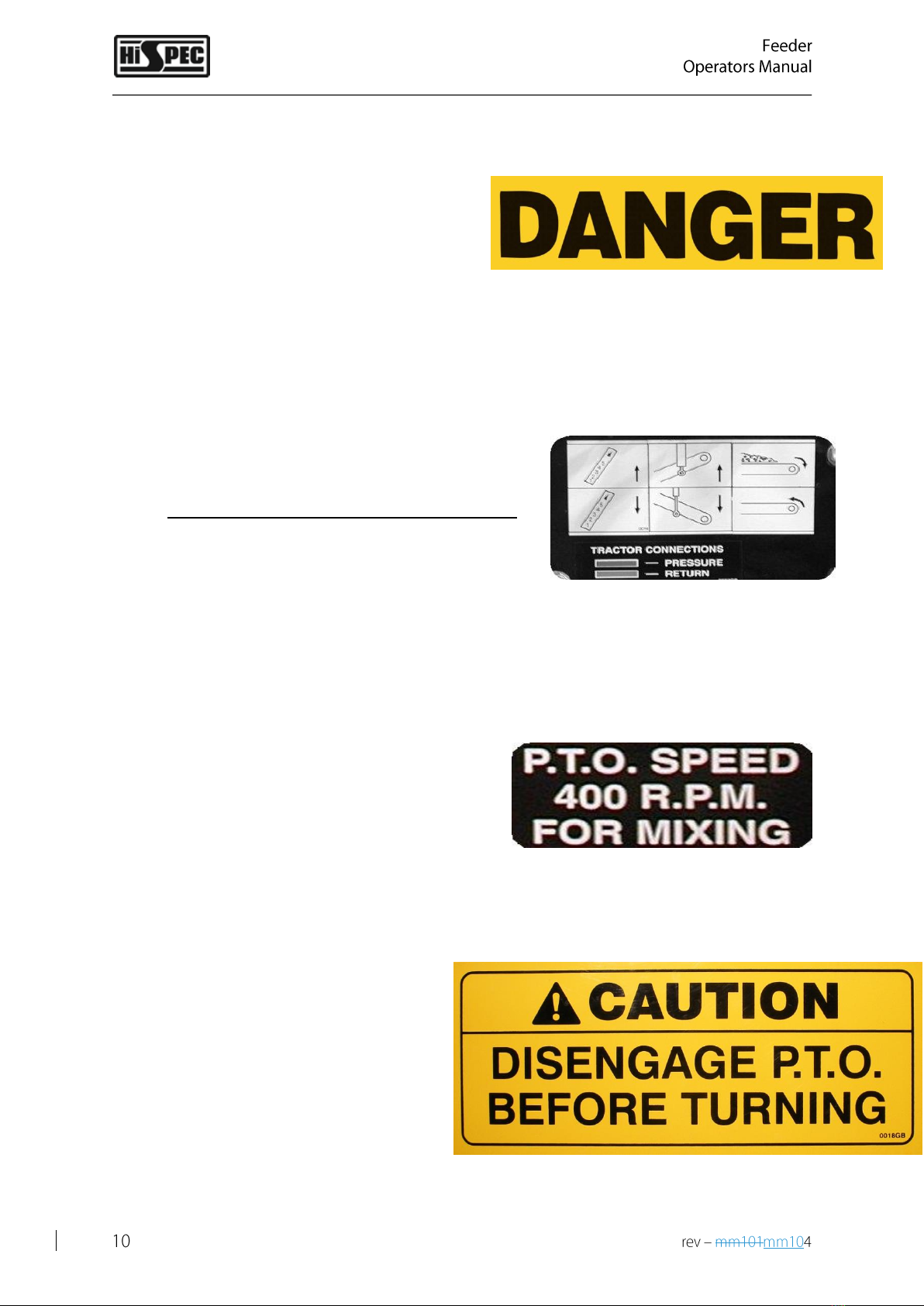

General danger sign, danger of rotating
parts and foreign objects. Keep clear of
machine while working.
Follow these tractor hydraulic connection diagrams.
Remember Red for Pressure and Green for return!
The maximum PTO speed for mixing is 400 R.P.M.
This safety sign is to remind the operator
to disengage the PTO before turning
