Heyuan Intelligence DZS100-4P Manual de usuario

DZS100-4P

Single-Phase Energy Meter

User Manual

Heyuan Intelligence Technology Co., Ltd

IMPORTANT DECLARATIONS

This manual may not be reproduced, copied, transmitted or transcribed in whole or in part

by any means without the expressed written permission of Heyuan. Any shall be

investigated for legal responsibility in violation of copyright or other intellectual property

rights of the Company. We check the user manual’s contents regularly and will make

necessary amendments in next version. Welcome to give advice for some unexpected

errors. The rights of upgrading without notice are reserved.

Please read this manual carefully before the product is operated. And once you start

operating the meter, you’ll be considered to have read this manual and accept all our terms.

Heyuan shall not be responsible or liable for any damages or injuries caused by improper

meter installation and/or operation.

Attention: the following symbols in this manual refer to meanings as follows

Electric Shock Symbol: Carries information about procedures which must be

followed to reduce the risk of electric shock and danger to personal health

Safety Alert Symbol: Carries information about circumstances which if not

considered may result in injury or death

The meter must be installed and operated by one who has experience with high-voltage

devices or has qualifications. Please connect the meter to correct voltage before operating

the meter. Please install and use the meter according to the user manual. Heyuan shall not

be responsible or liable for any damages or injuries caused without following the

instructions in the user manual.

Contents

Chapter 1 Meter Overview ………………………………………………………………………….1

Chapter 2 Specification & Technical Parameters …………………………… ……………….1

2.1 Specification …………………………………………………….............................1

2.2 Technical Parameters …………………………………………………………………1

Chapter 3 Dimension & Wiring …………………………………………………………………….2

3.1 Dimension …. ………………………………………………………………...………..2

3.2 Terminals & Wiring …………………………………………………………………....2

Chapter 4 Communication Interface ……………………………………………………………..3

Chapter 5 Meter Display & Operation …………………………………………………………….3

5.1 Operation and Buttons …. ……………………………………………………………3

5.2 Digits and Symbols Display …. ………………………………………………………4

Chapter 6 Installation ……………………………………………………………………………….4

Chapter 7 After-sales service ……………………………………………………………………..5

Chapter 8 Contact Us ………………………………………………………………………………..5

Chapter 1 Meter Overview

DZS100-4P is an advanced, smart single-phase DIN rail energy meter. It meters electric

parameters of single-phase current, voltage, power, energy, frequency, power factor etc.

with high accuracy. It is LCD display and also equipped with RS485 communication and

pulse output.

Its main functions are as follows:

◆Measure import active energy and export active energy;

◆Measure combination of active energy, which is equal to the sum of import active energy

and export active energy

◆Measure all instantaneous values of electric parameters, including voltage, current,

power, energy, frequency, power factor etc.;

◆LCD displaying voltage, current, power etc..

◆Automatically blocking and saving the blocked energy of last 12 months

◆Timing Records with saving last 10 times of recording moments

◆Loading data storage with recording data such as voltage, current, power, frequency,

power factor and active energy;

◆Compatible with DL/T645-2007, DL/T645-1997 and Modbus-RTU protocols.

Chapter 2 Specification & Technical Parameters

2.1 Specification (the following parameters are subject to marks on nameplate)

Reference Voltage: AC220V(Un)

Current Specification: 1.5(6)A, 5(40) A, 10(80) A (which can be customized)

Frequency: 50Hz

Pulse Constant: 6400/1600/800imp/kWh (in the light of marks on nameplate)

Accuracy Class: Class 1.0

2.2 Technical Parameters

Starting Current: 0.004Ib

Insulation Strength: input to output, 2.0kV/min·1mA

Power Consumption: ＜2W,10VA

Creeping: Equipped with anti-creep logic circuits, when the energy meter loads 115% of

rated voltage and there is no current in current circuit, the energy meter shouldn’t output

more than one pulse in testing within the prescribed time.

Voltage Range: 0.9～1.1Un; limit range: 0.8～1.2Un

Communication Mode: RS485

Reference Temperature: 23℃±2℃;

Reference Humidity: 40％～60％RH

Working temperature: -20℃~50℃

Storage Temperature: -40℃~70℃ with relative humidity less than 85% and no corrosive

harmful substances in the air

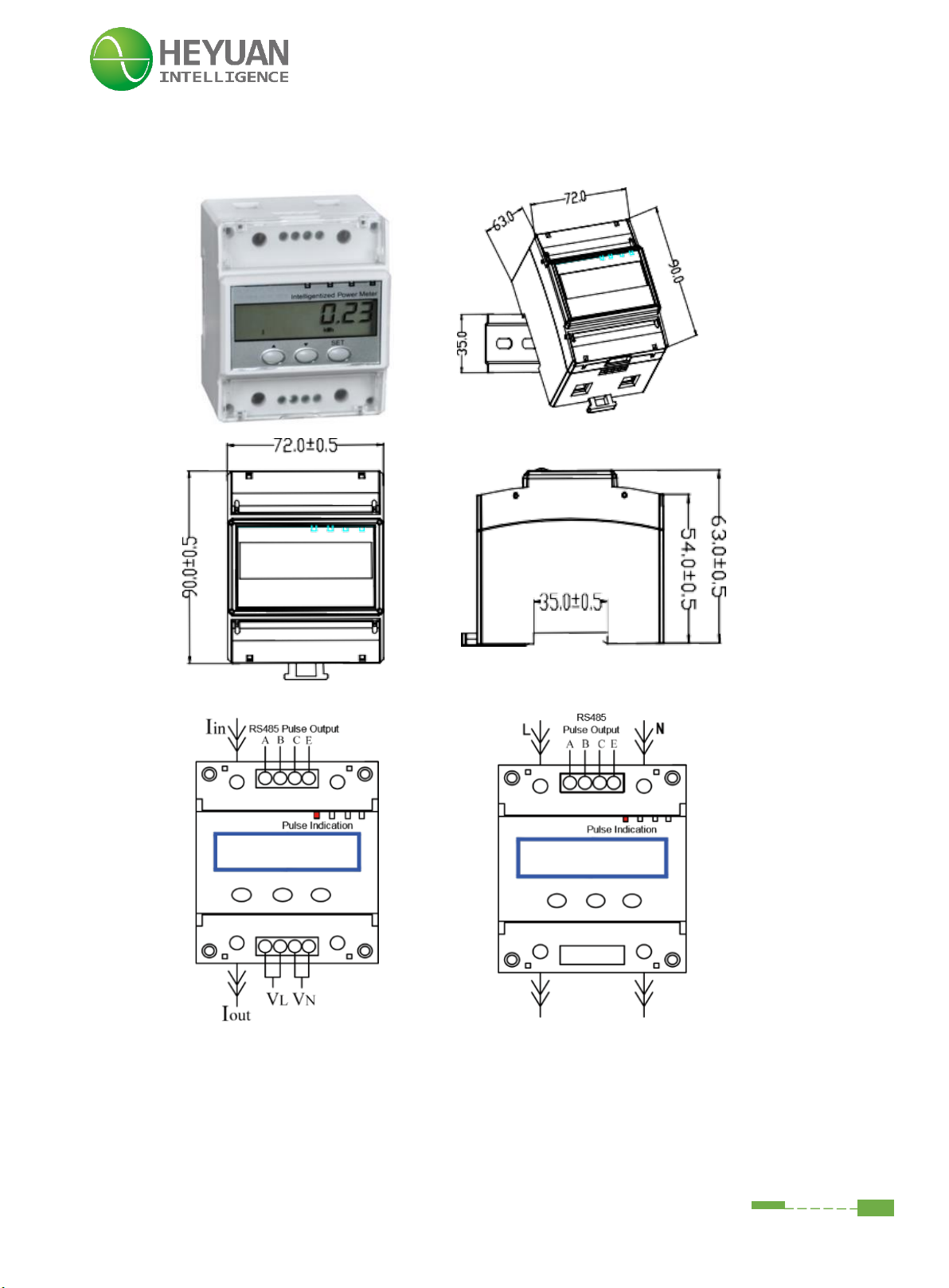

Chapter 3 Dimension & Wiring

3.1 Dimension (Unit: mm)

3.2 Terminals & Wiring

1.5(6)A wiring diagram (CT operated) 5(40)A, 10(80)A wiring diagram(directly connected)

Chapter 4 Communication Interface

The meter is equipped with one communication interface. The settable baud rates of RS485

communication are 1200bps, 2400bps, 4800bps, 9600bps, 19200 bps. The default is

2400bps. The programming parameter settings and data reading can be completed with PC

with RS485 communication interfaces.

For Modbus Communication Protocol, when the last three digits of the bar code are less

than 256(decimal), the last three digits are the communication protocol addre ss for the

meter. For example, if the bar code is 170510201023, the communication protocol address

is 023.

While when the last three digits of the bar code are more than or equal to 256(decimal),

the last three digits of the bar code should be converted into hexadecimal, whose last two

digits are the Modbus communication protocol address.For example, if the bar code is

170510300920, the communication protocol address is 98(hexadecimal)/152(decimal).

Chapter 5 Meter Display & Operation

5.1 Operation and Buttons

The display interface is composed of LCD display screen, 3 buttons and 1 LED pulse light

indicator.

Press buttons “▲” and “▼”to cyclically switch interfaces of active energy, power,

voltage, current, power factor and frequency.

Press button “SET” to enter setting interfaces, in which PT/CT settings can be saved.But

the display data of voltage, current etc. does not make the appropriate multiplication.

Press button “▲” to increase values of passwords, baud rates, baud rate, PT/CT etc. Pres

sbutton “▼” to shift digits.

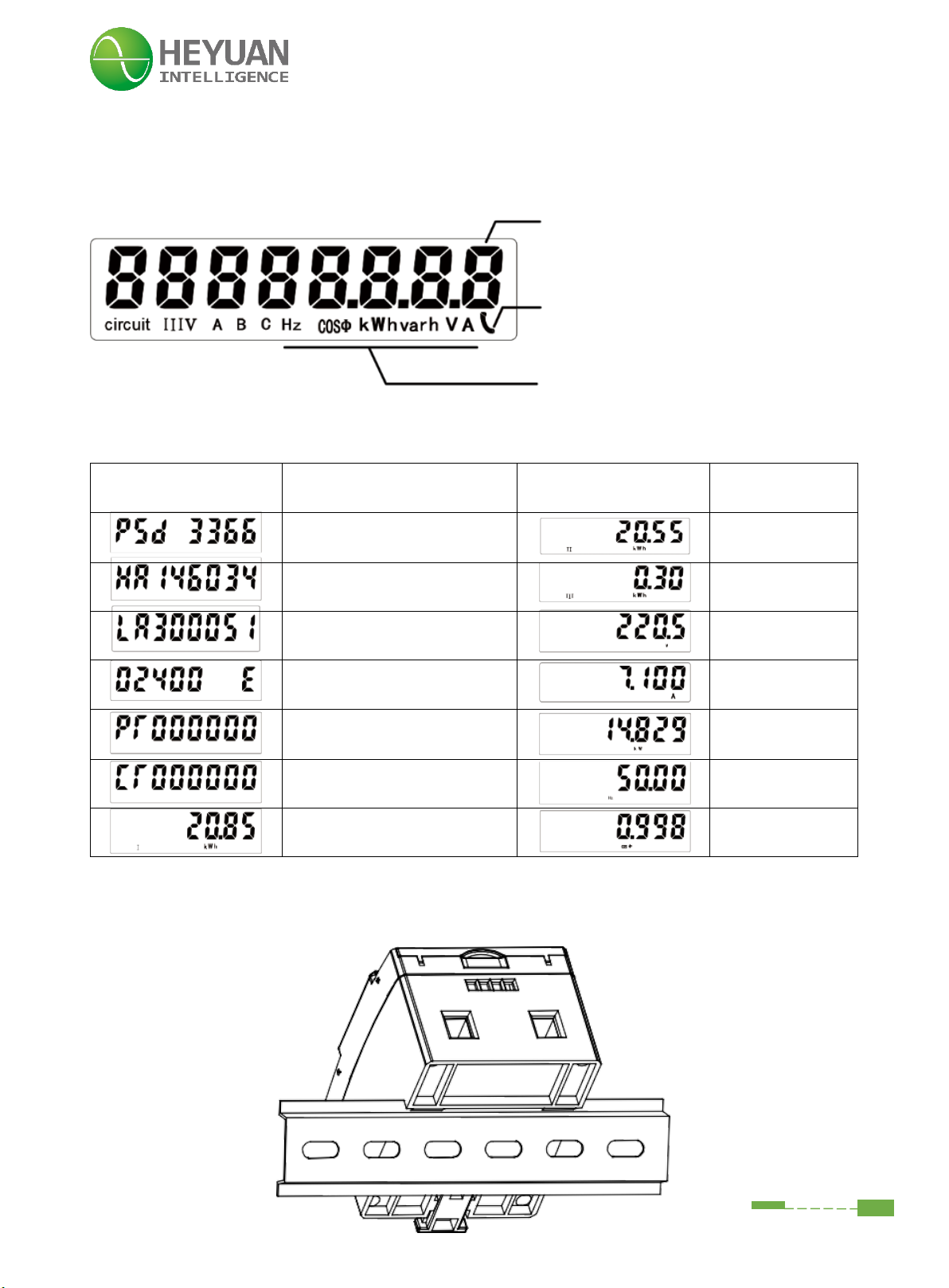

5.2 Digits and Symbols Display

Digits Display

Communication Indication

Unit

Figure 1 LCD Display Interface Reference Diagram

LCD Display

Description

LCD Display

Description

Password 3366

Import Energy

High 6-digit for DL/T645

Export Energy

Low 6-digit for DL/T645

Voltage

Baud Rate and Parity

Current

PT Voltage Ratio

Active Power

CT Current Ratio

Frequency

Combination Energy

Power Factor

Chapter 6 Installation

Installation Methods:

Standard DIN 35mm installation.

Chapter 7 After-sales Service

Product Warranty

1. The product warranty period is one year.

2. The company is responsible for free maintenance or exchange within one -year

warranty period.

3. The cost of the components and freight shall be charged for improper meter installation

and/or operation.

4. Over the warranty period, part of the maintenance cost according to actual situation

will be charged.

Service Guarantee

1. Product technical consulting and quality complaints will be replied within 12 hours.

2. Solutions for quality complaints will be provided within 24 hours.

3. Except statutory holidays and force majeure.

Chapter 8 Contact Us

Headquarter Add.: 7F No.1 Aosheng Building, 1166 Xinluo Street, High-tech Development

Zone, Jinan, P.R. China 250101

Factory Add.: 2F Innovation Factory, Feiyue Road, High-tech Development Zone, Jinan,

P.R. China 250101

Tel: +86 68621770

Code: 250101

E-mail: info@hyznworld.com
