HEPER MINIKA Instrucciones de instalación y funcionamiento

1/2 2022-1 / 23/09/2022

Installation & Maintenance

Instructions

HEPER USA LLC

W227 N546 Westmound Drive Waukesha, 53186

Wisconsin, United States

+1 312 910 9740

[email protected]

MINIKA 2x90° (LR9014.515-2x90-US)

1.45 lbs

https://heperlighting.com/us/lr9014.515-2x90-us/

2/2

English ( USA )

Safety

- The product must be installed in accordance with applicable

NEC standards by a qualified electrician familiar with the

installation of exterior lighting fixtures.

- The product must be operated under specified voltage at all

times.

- Do not install if parts are damaged.

- Power must be disconnected while installing or servicing to

avoid electrical shock.

- Failing to comply with warnings and installation steps in this

document might void warranty.

- Do not touch the light source.

- Make sure that temperature of the product is at a safe level before

touching.

- Do not allow cables to touch sharp edges of metal parts or other sharp

objects to avoid damage or abrasion.

- Check all of the cable connections including grounding before

powering the product.

- Check the proper grounding of the metal housing before powering the

product.

- Only use the product for its intended purposes.

- Do not use accessories not approved or recommended by

HEPER.

- Installation of inground luminaires shouldn't be done during periods

of excessive rain.

- The product is suitable for walk-over with a maximum load of

200 kg.

- Replace any broken/cracked protective surface with a new

one

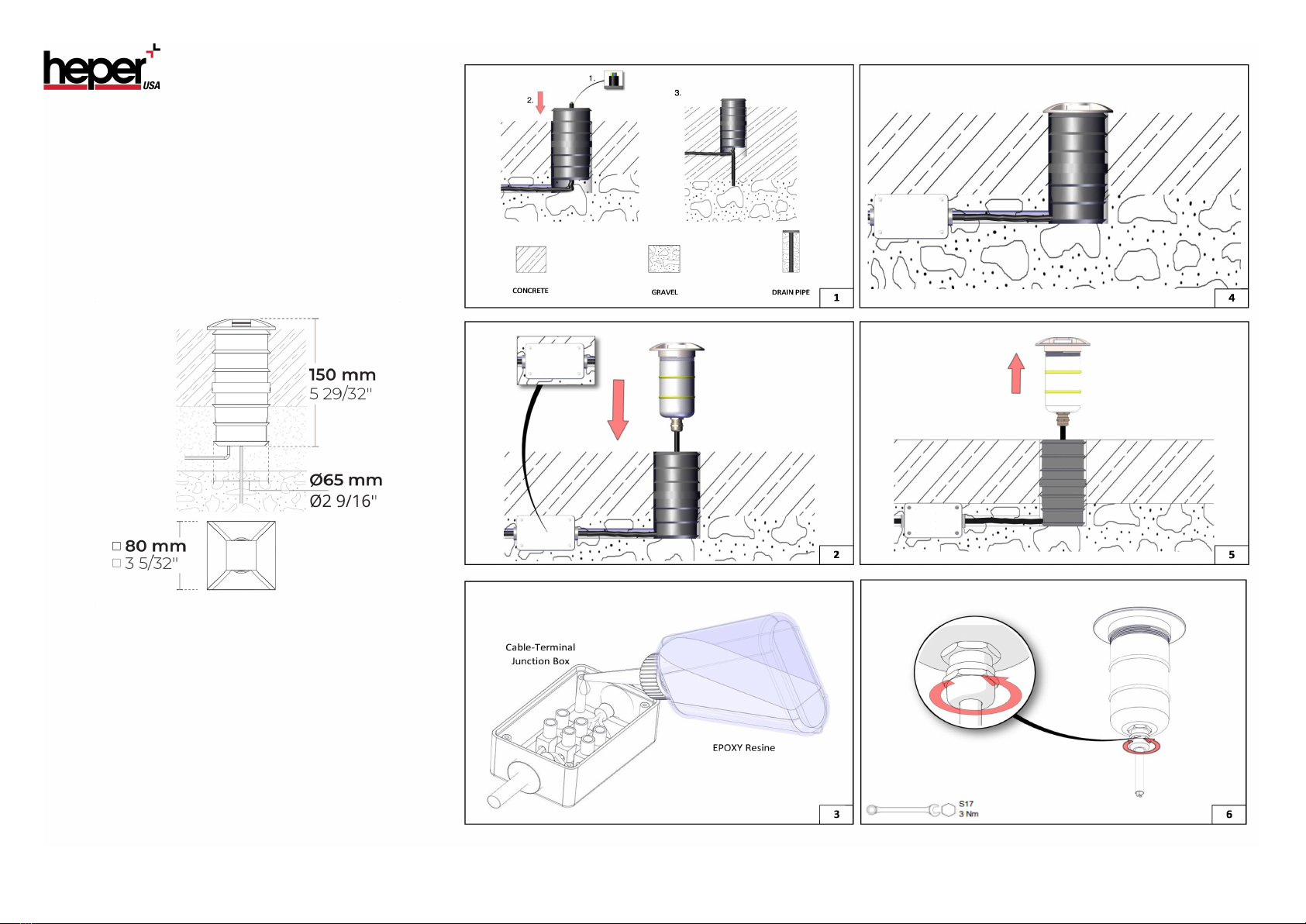

Installation

- Please note that, sleeves/cases are ordered seperately from the

luminaire.

- Install pea gravel below luminaire to provide drainage. If the luminaire

will be completely encased in concrete or a substrate that has

questionable drainage, then the use of a drainage pipe to re-direct rain

or water flowing into the luminaire is required

- Prepare cavity and be sure that certain conduit and power supply

cable are accessible and have ample slack to make appropriate

connections.

- Install the luminaire into prepared cavity.

- Utilize appropriate IP 68 or NEMA-rated box and fittings to make all

electrical connections. Note: IP 68 or NEMA-rated box and epoxy resin

are not provided with the product.

Cleaning - Maintenance

- The product was designed and manufactured to operate for a long

period of time. To ensure maximum lifespan of the product, regular (i.e.

every six months) visual inspection and cleaning with a solvent-free

cleaner using a soft cloth is recommended.

- Do not clean or service while the product is power connected.

Disposal

- In accordance with EU Directive WEEE (Waste Electrical and

Electronic Equipment), luminaires must not be disposed of with

other household waste. At the end of their life, luminaires must

be taken to the appropriate local facility available for the

disposal or recycling of electronic products.

Wiring Color Codes

- Ground - GREEN

- Line - BLACK

- Neutral - WHITE

- Dim(+) - RED/PURPLE

- Dim (-) - GRAY/ORANGE

Disclaimer

- HEPER reserve the right to make technical and design changes.
